• AVer CAM570 4K Dual Lens Audio Tracking Camera for Medium and Large Rooms

  4K Dual Lens Audio Tracking Camera for Medium and Large Rooms
  AVer CAM570 is a 4K dual lens camera with a 36X Total zoom PTZ camera and a second AI lens with 95˚FOV. Equipped with built-in audio sensor, CAM570 detects human voices up to 10M and offers audio tracking function. AI technology such as Smart Gallery and gesture control can capture every attendees up-close with premium video quality.


  Built-in Audio Sensor Enables Audio Tracking
  Easily focus on active speaker with audio tracking mode and presentation mode. The camera will follow the speaker automatically or you can set up a preset point to focus on a specific area. The built-in sensor picks up human voices up to 10M without being disturbed by a local speakerphone.

  Dynamic Detection Optimizes Meeting Experience
  The dual-lens design detects real-time motion precisely while offering a complete view of the room simultaneously. When the second AI lens detects a newcomer walking in, it triggers the first PTZ camera to re-frame the participants, ensuring all meeting attendees are instantly captured again for a seamless collaboration in real-time.


  Smart Gallery Delivers a Clearer View of Faces
  Perfectly see everyone in the room. Thanks to AI technology, Smart Gallery crops meeting attendees and display them in equal individual feeds. Highlight participants’ facial and body expressions, leading to effective hybrid meetings.

  Interact with CAM570 Using Touchless Gesture Control
  With the application of AI to recognize gestures and interpret commands, you can turn on/off the tracking function and zoom in/out without any direct physical touch. Minimize the touch points and improve workplace hygiene.


  Picture-in-Picture Displays Preferred Conference View
  CAM570 includes a PTZ camera with 36X Total zoom and a second AI lens to provide a panoramic view. The dual-lens design offers a speaker view and wide-angle view simultaneously with various PIP layout options. Ideal for larger and more complex meeting spaces.


  Accurate Attendee Capture with AVer Smart Composition – No Installation Required
  The CAM570 is one of the first PTZ camera and audio systems on the market to offer a Smart Composition feature — technology usually only found in enterprise-grade devices. Smart Composition uses AI algorithms to automatically frame each participant’s face or body perfectly. It’s a click-to-play feature with no software setup needed. Seamlessly transition between headshots and half-body views, effortlessly switching from individual to group images. With the CAM570, you’ll enjoy high-definition views of participants and easy meeting setups for optimal productivity.


  Smart ViewShift Reduces Movement Sensitivity
  The CAM570 has just become even smarter with the latest firmware upgrade! The new Smart ViewShift function is designed to enhance your video conferencing experience by reducing movement sensitivity during audio tracking. With various transition effects, the camera smoothly shifts focus to the target person, providing remote participants with a more comfortable and stress-free call experience. Say goodbye to jarring movements and hello to seamless transitions.

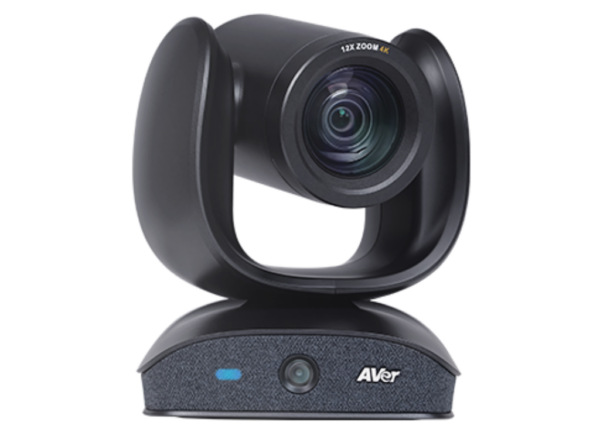

  Camera Front

  1. PTZ lens: 12X optical zoom
  2. LED indicator
  3. AI lens
  4. IR sensor

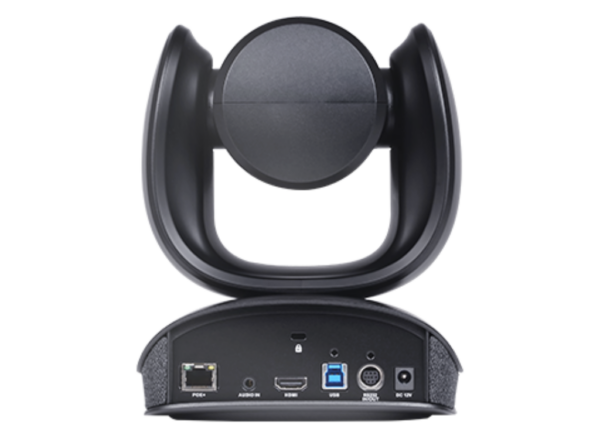

  Camera Back

  1. LAN for IP streaming and Power over Ethernet (PoE)
  2. 3.5mm Audio-in
  3. HDMI out
  4. USB 3.1 type-B
  5. RS232 in/out
  6. DC 12V
  7. Kensington lock

• Category	Specification
  Dual Camera
  PTZ Optical Zoom Lens
  Image Sensor	Sony 4K EXMOR, crystal clear in any lighting
  Frame Rates	(16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
  Zoom	36X Zoom*: 12X optical; 3X digital zoom
  Field of View	DFOV 90°/ HFOV 78°/ VFOV 50°
  Lens Focal Length	3.4mm (wide) ~ 40.3mm (tele)
  Lens F#	1.8 (wide) ~ 3.6 (tele)
  Wide Dynamic Range (WDR)	Superb backlight compensation technology for optimizing light balance in high-contrast conditions
  Minimum Focus Distance	1.5m
  Motorized Pan & Tilt	Pan: ±170°; Tilt: +90° (up) -30° (down)
  Preset Number	10 via IR remote, 128 via RS232
  Image Flip and Mirror	Supported
  Secondary Fixed Lens (AI Lens)
  Image Sensor	Sony 4K EXMOR
  Frame Rates and Resolution	Set according to PTZ lens settings
  Field of View	DFOV 95°; HFOV 82°; VFOV 52°
  Innovative Features
  SmartSpeaker	Automatically track human voice and focus on the speaker
  Dynamic Detection	Secondary AI lens detects all participants; new participants trigger PTZ lens to dynamically frame all participants
  Presentation Tracking	Voice-triggered tracking speaker with both preset area and people tracking*
  Simultaneous 3-Way Output	USB, HDMI and IP connections
  Gesture Control	Provides intuitive camera controls
  Smart Gallery	Great visibility for individual participant in the meeting room
  Cableless Access	AVer virtual USB streaming technology** (One RJ45 cable transfers IP streaming to USB.)
  3rd Party Audio Tracking Support	Integration with 3rd party ceiling microphone via AVer Preset Link** function
  Connectivity
  USB	USB type-B 3.1 connector, backward compatible with USB 2.0
  Power Adapter	12V/2A DC jack
  RS232 Connection	Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)
  IP	RJ45
  HDMI	Supported
  Audio Line-In*	Supported
  Audio Sensor
  Audio Pick-Up Range	10m, ±60°
  Sensor Pairs	3 pairs of sensor, each composed of 4 sensors
  Package Contents
  Unit	CAM570 unit
  Power Adapter	10 ft/3 m
  USB Cable	USB 3.1 type-B to type-A cable (3m)
  Remote Control	Supported
  RS232 Adapter Cable	Mini DIN9 to mini DIN8
  HDMI Cable	3 m
  Mounting	Wall mount bracket and screws
  Other	QR code card, Tripod screw, Drill paper
  HDMI & PoE
  HDMI	HDMI 1.3: 1080p 30fps/ 60fps
  PoE+	802.3at
  Video Format
  Formats	YUV, YUY2, MJPEG
  Network Video Compression	H.264
  Network Protocol	RTSP, RTMP
  USB
  Version	3.1 Gen 1, backward compatible with USB 2.0
  Video Class	UVC 1.1 (USB video), UVC1.5*
  Control
  Remote Control	IR remote control
  Protocols	VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
  Remote Side	VISCA over IP, IP (RJ45)
  Plug and Play	UVC
  Browser Access	WebUI: Browser IP access via Chrome (Not supported on IE)
  OSD Setting	HDMI out to TV monitor
  Power Supply
  AC	100V–240V, 50/60 Hz
  Consumption	12V, 2A
  PoE+	802.3at
  Free Applications
  EZManager 2	Camera Central Management Software
  PTZApp 2	Camera Settings Software
  EZLive	Broadcasting Software
  Environment Data
  Operation Temperature	0 to 40°C
  Operation Humidity	20% to 80%
  Storage Temperature	-20 to 60°C
  Storage Humidity	20% to 80%
  Dimensions
  Package Dimensions	253(L) * 253(W) * 271(H) mm
  Package Weight	4.8KG
  Camera Dimensions	170.8 (L) X 190.5 (H) X 173 (D) mm / 2.1kg
  Remote Control Dimensions	200 x 50 x 21mm / 90g
  Optional Accessories
  Accessories	FONE 540, Mini DIN 8 to D-Sub 9 RS232 Cable, Ceiling mount, Foldable TV mount, USB2.0 type-B to type-A cable (5 m), USB 3.1 Extension Cable (10 m/20 m/30 m), 1-Port POE+ Injector
  Security and Mount
  Lock	Kensington lock
  Tripod Mount	1/4′ tripod mounting screw
  Wall Mount	Camera wall-mount bracket included
  Other Mounts	Optional foldable TV mount, Optional ceiling mount
  System Requirements
  OS	Windows® 7/10/11, Mac OS X 10.14 or later, Chromebox 3 version 94.0.4606.114 or later
  Hardware	3.2 GHz Intel® Core™ i5-4460 processor, 4 GB RAM or more, USB 3.1 port, backward compatible with USB 2.0
  Warranty
  Camera	3 years*
  Accessories	1 year
  Compatible Applications
  Apps	Zoom, Microsoft® Teams, Skype, Skype for Business, Google Meet, RingCentral, BlueJeans, Intel® Unite™, Fuze, Adobe® Connect™, CyberLink U Meeting®, Cisco WebEx® GoToMeeting™, LiveOn, Microsoft® Lync™, TrueConf, V-Cube, Vidyo, vMix, WebRTC, Wirecast, XSplit
