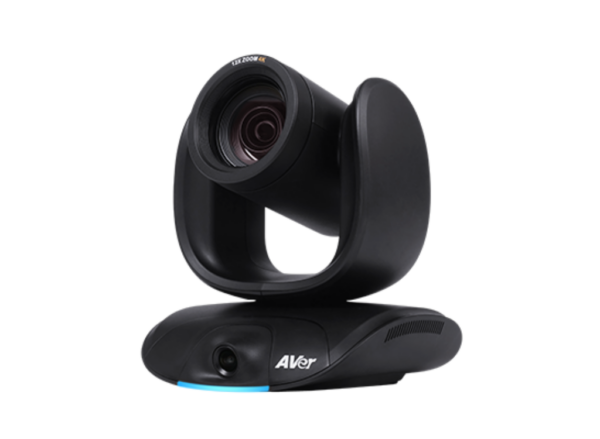

AVer CAM550 4K Dual Lens PTZ Conferencing Camera

• Description
• Specifications
• Downloads

• AVer CAM550 4K Dual Lens PTZ Conferencing Camera

  4K Dual Lens PTZ Conferencing Camera
  The CAM550 is equipped with an AI lens for automated PTZ functionality, which delivers a full view of meeting attendees and detects newcomers. The Smart Gallery feature puts up clear views of every participant on the remote side. Enable gesture control camera operation to enjoy a fluent, safe meeting experience. 4K dual-lens technology captures the room in its entirety, providing a premium conferencing experience for mid-to-large scale rooms.


  4K Dual Lens Offers Wide-angle Clarity for Mid-to-Large Scale Rooms
  Capture a complete view of the room with wide-angle clarity. The CAM550 equips two 4K lenses. The first is a PTZ camera with 12X optical zoom (24X total zoom) to clearly frame meeting participants. The second is an AI lens with 95°FOV to provide a panoramic view of the room.

  Dynamic Framing Enhances Meeting Efficiency
  The CAM550 quickly and precisely focuses on participants and newcomers. When newcomers walk in, the secondary AI lens springs to action to detect them, then the PTZ camera automatically re-frames. Through fully automatic operation, this dynamic framing optimizes meetings and protects the safety of participants.


  AI Gesture Recognition Delivers Contactless Control
  Take advantage of intuitive gesture control to operate the camera. Built-in AI gesture recognition eliminates touchpoints. Camera controls have never been easier or safer.

  Highlight Participants with Smart Gallery
  Clearly capture attendees with Smart Gallery, which enables AI face and body detection technology to crop participant’s faces and make sure everyone is looking great. You can choose between headshot and half body mode to adapt to any situation without compromise.

  Get rid of USB cable connections by using the AVer Virtual Stream function
  Get rid of USB cable connections by using the AVer Virtual Stream function AVer Virtual Streaming technology makes the CAM550 available as a camera video source for virtual meetings via a single Ethernet connection. Also, a PoE+ port simplifies set up and reduces installation costs.


  Enable Third-Party Audio Tracking Integration with Preset Link
  Preset Link is an all new function of the included PTZApp 2 that integrates AVer USB cameras with Shure® and Sennheiser® microphones. The camera automatically identifies speakers and adjusts its field of view instantly by voice tracking, according to your preset area settings. Upgrade your smart conference meeting experience with Preset Link.

  Accurate Attendee Capture with AVer Smart Composition – No Installation Required
  The CAM550 is one of the first PTZ camera and audio systems on the market to offer a Smart Composition feature — technology usually only found in enterprise-grade devices. Smart Composition uses AI algorithms to automatically frame each participant’s face or body perfectly. It’s a click-to-play feature with no software setup needed. Seamlessly transition between headshots and half-body views, effortlessly switching from individual to group images. With the CAM550, you’ll enjoy high-definition views of participants and easy meeting setups for optimal productivity.


  AVer Camera & Speakerphone Collaboration with Voice Tracking
  The CAM550 and FONE700 work seamlessly as a team. FONE700 intelligently detects the active speaker’s location, guiding CAM550 to automatically adjust its view and keep them in focus. No more manual adjustments! Enjoy smooth meeting flow, clear FONE700 audio, and focused visuals for a truly engaging meeting.

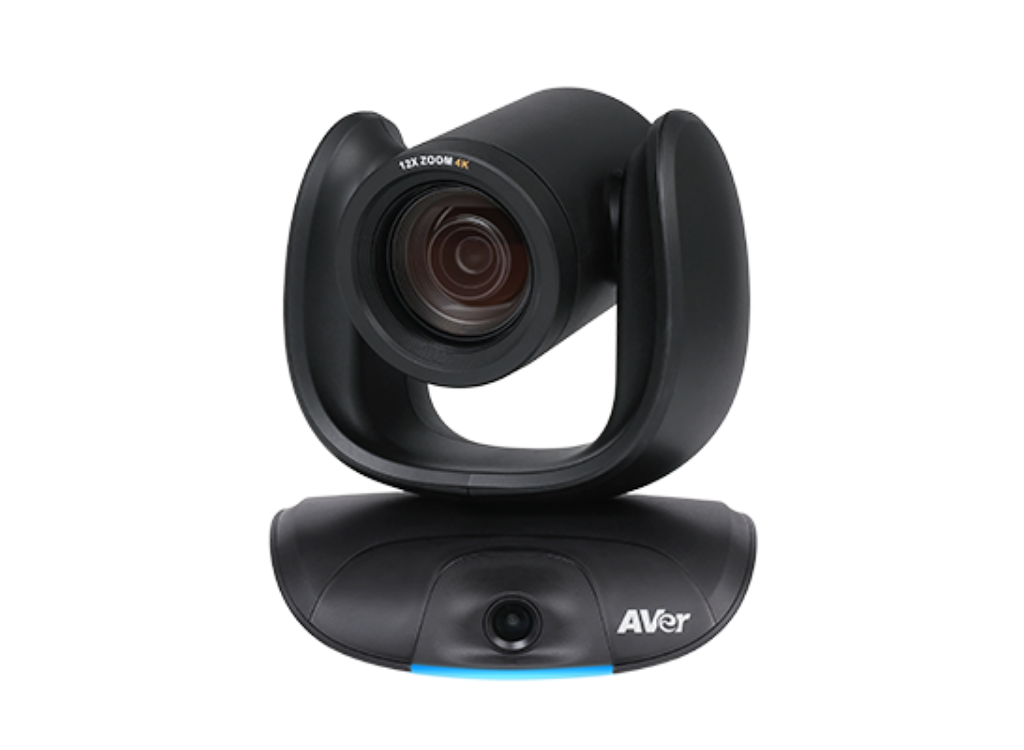

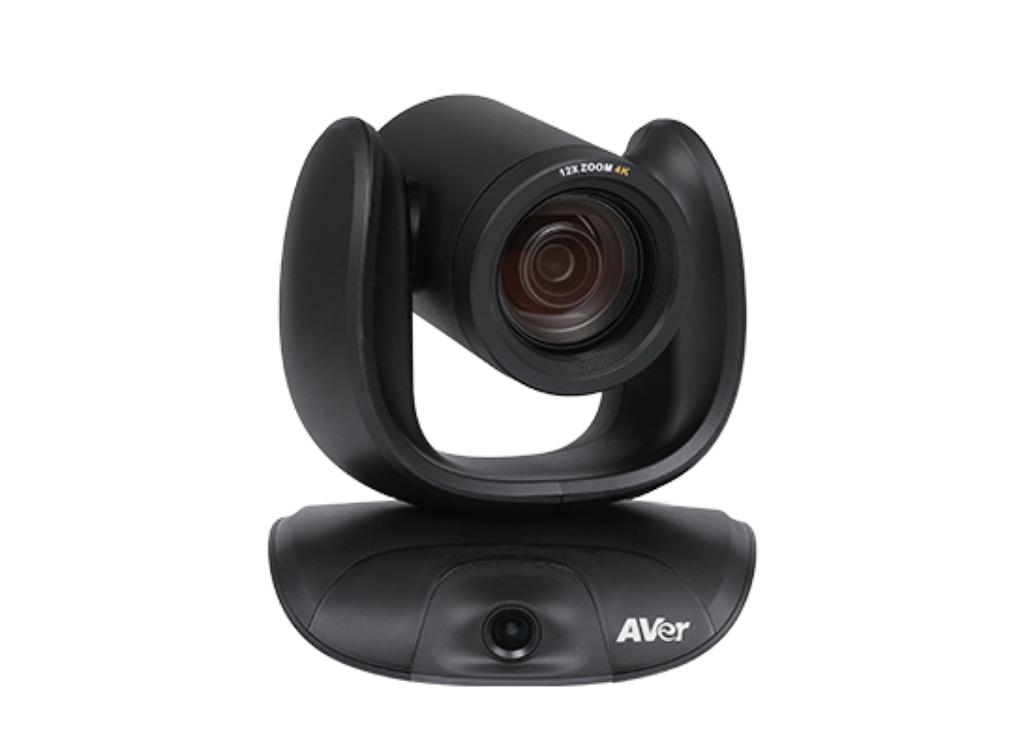

  Camera Front

  1. PTZ lens: 12X optical zoom
  2. IR sensor
  3. AI lens
  4. LED indicator

  Camera Back

  1. Kensington lock
  2. HDMI out
  3. USB 3.1 type-B
  4. RS232 in/out
  5. LAN for IP streaming and Power over Ethernet (PoE)
  6. DC 12V

• Category	Specification
  Dual Camera
  PTZ optical zoom lens
  Image sensor	Sony 4K EXMOR, crystal clear in any lighting
  Frame rates	(16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
  Zoom	24X Zoom*: 12X optical; 2X digital zoom
  Field of view	DFOV 85°; HFOV 76°; VFOV 46°
  Lens focal length	3.9mm (wide) ~ 47.3mm (tele)
  Lens F#	1.8 (wide) ~ 2.8 (tele)
  AE, white balance	Auto, manual override via PTZApp 2
  Minimum focus distance	1.5m
  Motorized Pan & tilt	Pan: ±170°; Tilt: +90° (up) -30° (down)
  Preset number	10 via IR remote, 128 via RS232
  Secondary fixed lens (AI lens)
  Image sensor	Sony 4K EXMOR
  Frame rates and resolution	Set according to PTZ lens settings
  Field of view	DFOV 95°; HFOV 82°; VFOV 52°
  Innovative features
  Dynamic auto framing	Detects all participants, new participants trigger PTZ lens to dynamically frame all participants
  Preset framing	Tracks both preset area and speaker*
  Simultaneous 3-way output	USB, HDMI and IP connections
  Gesture control	Provides intuitive camera controls
  HDMI Picture in Picture (PIP)	Function
  Smart gallery**	Offers great visibility for individual participants
  Cableless access to meetings	AVer virtual USB streaming technology*** (One RJ45 cable transfers IP streaming to USB)
  Audio tracking support	Integration with AVer FONE700 & 3rd party ceiling microphone (Shure/Sennheiser) via AVer Preset Link***
  Connectivity
  USB type-B 3.1 connector	Backward compatible with USB 2.0
  Power adapter	12V/2A DC jack
  RS232 in & out connection	Mini DIN9 for (VISCA control panel and camera daisy-chain)
  IP (RJ45)
  HDMI	HDMI & PoE
  HDMI version	HDMI 1.3: 1080p 30fps/ 60fps
  PoE+	802.3at
  Video Format
  Formats	YUV, YUY2, MJPEG
  Network video compression	H.264, H.265
  Network protocol	RTSP, RTMP
  USB
  USB version	3.1 Gen 1, backward compatible with USB 2.0
  UVC	UVC 1.1 (USB video), UVC1.5*
  Control
  Remote control	IR remote control
  Protocols	VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
  Remote side	VISCA over IP, IP (RJ45)
  WebUI	Browser IP access via Chrome. (Not support IE)
  OSD setting	HDMI out to TV monitor
  PTZApp 2
  Power Supply
  AC	100V–240V, 50/60 Hz; Consumption: 12V, 2A
  PoE+	802.3 at
  Free Applications
  EZManager 2	Camera Central Management Software
  PTZApp 2	Camera Settings Software
  EZLive	Broadcasting Software
  Environment Data
  Operation temperature	0 to 40°C
  Operation humidity	20% to 80%
  Storage temperature	-20 to 60°C
  Storage humidity	20% to 80%
  Dimensions
  Package dimensions	253(L)*253(W)*271(H) mm
  Package weight	4.8KG
  Camera dimensions	170.8 (L) X 190.5 (H) X 173 (D) mm/ 2.1kg
  Remote control dimensions	200 x 50 x 21 mm/90g
  Package Contents
  	CAM550 unit, Power adapter (10 ft/3 m), USB 3.1 type-B to type-A cable (3m), Remote control, Mini DIN9 to mini DIN8 RS232 adapter cable, HDMI cable (3 m), Wall mount bracket and screws, QR code card, Tripod screw, Drill paper
  Optional Accessories
  	Mini DIN8 to D-Sub9 cable, Ceiling mount*, Foldable TV mount, USB2.0 type-B to type-A cable (5 m), USB 3.1 Extension Cable (10 m/20 m/30 m), 1-Port POE+ Injector, AVer ceiling mount
  Security and Mount
  Security	Kensington lock, 1/4′ tripod mounting screw
  Mount	Camera wall-mount bracket included, Optional foldable TV mount, Optional ceiling mount
  System Requirements
  Windows	Windows 7/10/11
  Mac OS	Mac OS X 10.14 or later
  Chromebox	Chromebox 3 version 94.0.4606.114 or later
  Hardware Specs	3.2 GHz Intel® Core™ i5-4460 processor, 4 GB RAM or more, USB 3.1 port, backward compatible with USB 2.0
  Warranty
  Camera	3 years*
  Accessories	1 year
  Compatible Applications
  Applications	Zoom, Microsoft® Teams, Skype, Skype for Business, Google Meet, RingCentral, BlueJeans, Intel® Unite™, Fuze, Adobe® Connect™, CyberLink U Meeting®, Cisco WebEx® GoToMeeting™, LiveOn, Microsoft® Lync™, TrueConf, V-Cube, Vidyo, vMix, WebRTC, Wirecast, XSplit
