AVer CAM550 4K 12X Zoom Dual Lens PTZ Conferencing Camera View Clearly and Capture Widely

• Description
• Specifications
• Downloads

• AVer CAM550 4K 12X Zoom Dual Lens PTZ Conferencing Camera View Clearly and Capture Widely


  CAM550
  4K Dual Lens PTZ Conferencing Camera
  View Clearly and Capture Widely

  4K Dual Lens PTZ Conferencing Camera
  The CAM550 is equipped with an AI lens for automated PTZ functionality, which delivers a full view of meeting attendees and detects newcomers. The Smart Gallery feature puts up clear views of every participant on the remote side. Enable gesture control camera operation to enjoy a fluent, safe meeting experience. 4K dual-lens technology captures the room in its entirety, providing a premium conferencing experience for mid-to-large scale rooms.

  4K Dual Lens Offers Wide-angle Clarity for Mid-to-Large Scale Rooms
  Capture a complete view of the room with wide-angle clarity. The CAM550 equips two 4K lenses. The first is a PTZ camera with 12X optical zoom (24X total zoom) to clearly frame meeting participants. The second is an AI lens with 95°FOV to provide a panoramic view of the room.

  Dynamic Framing Enhances Meeting Efficiency
  The CAM550 quickly and precisely focuses on participants and newcomers. When newcomers walk in, the secondary AI lens springs to action to detect them, then the PTZ camera automatically re-frames. Through fully automatic operation, this dynamic framing optimizes meetings and protects the safety of participants.

  AI Gesture Recognition Delivers Contactless Control
  Take advantage of intuitive gesture control to operate the camera. Built-in AI gesture recognition eliminates touchpoints. Camera controls have never been easier or safer.

  Highlight Participants with Smart Gallery
  Clearly capture attendees with Smart Gallery, which enables AI face and body detection technology to crop participant’s faces and make sure everyone is looking great. You can choose between headshot and half body mode to adapt to any situation without compromise.


  Get rid of USB cable connections by using the AVer Virtual Stream function
  Get rid of USB cable connections by using the AVer Virtual Stream function AVer Virtual Streaming technology makes the CAM550 available as a camera video source for virtual meetings via a single Ethernet connection. Also, a PoE+ port simplifies set up and reduces installation costs.
  * PoE+ configuration is only supported by Windows OS.

  Enable Third-Party Audio Tracking Integration with Preset Link
  Preset Link is an all new function of the included PTZApp 2 that integrates AVer USB cameras with Shure® and Sennheiser® microphones. The camera automatically identifies speakers and adjusts its field of view instantly by voice tracking, according to your preset area settings. Upgrade your smart conference meeting experience with Preset Link.

  Product Overview

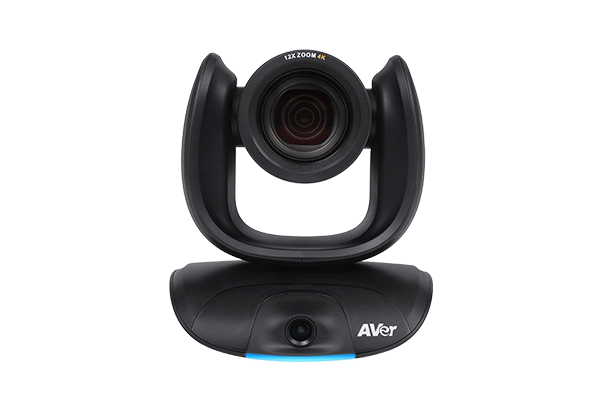

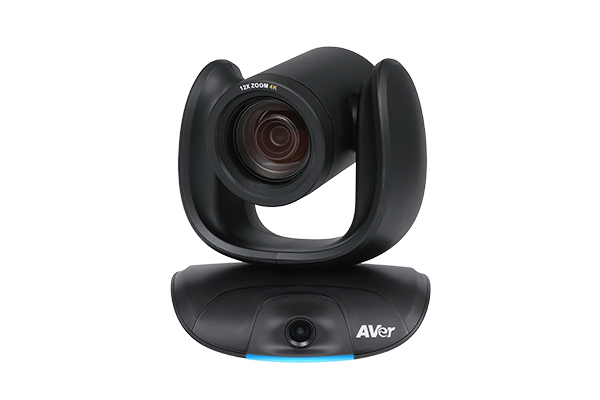

  Camera Front

  Camera Back

• Specifications	Details
  Dual Camera
  PTZ Optical Zoom Lens
  Image Sensor	Sony 4K EXMOR
  Frame Rates	4K 30fps; 1080p, 720p, 640×480, 320×240 at 60, 30, 15fps
  24X Zoom*	12X optical; 2X digital zoom
  Wide Field of View	DFOV 85°; HFOV 76°; VFOV 46°
  Lens Focal Length	3.9mm (wide) ~ 47.3mm (tele)
  AE, White Balance	Auto, manual override via PTZApp 2
  Motorized Pan & Tilt	Pan: ±170°; Tilt: +90° (up) -30° (down)
  Preset Number	10 via IR remote, 128 via RS232
  Secondary Fixed Lens (AI Lens)
  Image Sensor	Sony 4K EXMOR
  Frame Rates	Set according to PTZ lens settings
  Wide Field of View	DFOV 95°; HFOV 78°; VFOV 50°
  Innovative Features
  Dynamic Auto Framing	Secondary AI lens detects all participants, triggering PTZ lens to dynamically frame them
  Preset Framing	Tracks both preset area and speaker*
  Simultaneous 3-Way Output	USB, HDMI, and IP connections
  Gesture Control	Provides intuitive camera controls
  HDMI PIP Function	HDMI Picture in Picture function
  Smart Gallery**	Offers great visibility for individual participant in the meeting room
  Connectivity
  USB Type-B 3.1 Connector	Backward compatible with USB 2.0
  12V/2A DC Jack Power Adapter
  Mini DIN9 for RS232	In & out connection (VISCA control panel and camera daisy-chain)
  IP (RJ45)
  HDMI
  HDMI & PoE	HDMI 1.3: 1080p 30fps/ 60fps; PoE+: 802.3at
  Video Format
  YUV, YUY2, MJPEG	Network Video Compression Format: H.264, H.265; Network Protocol: RTSP, RTMP
  USB	3.1 Gen 1, backward compatible with USB 2.0; UVC 1.1 (USB video), UVC1.5*
  Control
  IR Remote Control	VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
  Remote Side	VISCA over IP, IP (RJ45); UVC Plug and Play; PTZApp 2
  Power Supply
  AC 100V–240V, 50/60 Hz	Consumption: 12V, 2A; PoE+: 802.3 at
  Free Applications	(For Windows® and Mac® Computers)
  EZManager 2	PTZApp 2: Smart gallery/ Virtual USB streaming/ Preset Link
  EZLive	Broadcasting Software
  Environment Data
  Operation Temperature	0 to 40°C
  Operation Humidity	20% to 80%
  Storage Temperature	-20 to 60°C
  Storage Humidity	20% to 80%
  Dimensions
  Package Dimensions	253(L) * 253(W) * 271(H) mm
  Package Weight	4.8KG
  Camera	170.8(L) X 190.5(H) X 173(D) mm / 2.1kg
  Remote Control	200 x 50 x 21 mm / 90g

• Description	Downloads
  Quick Guide	Downloads
  User Manual	Downloads
