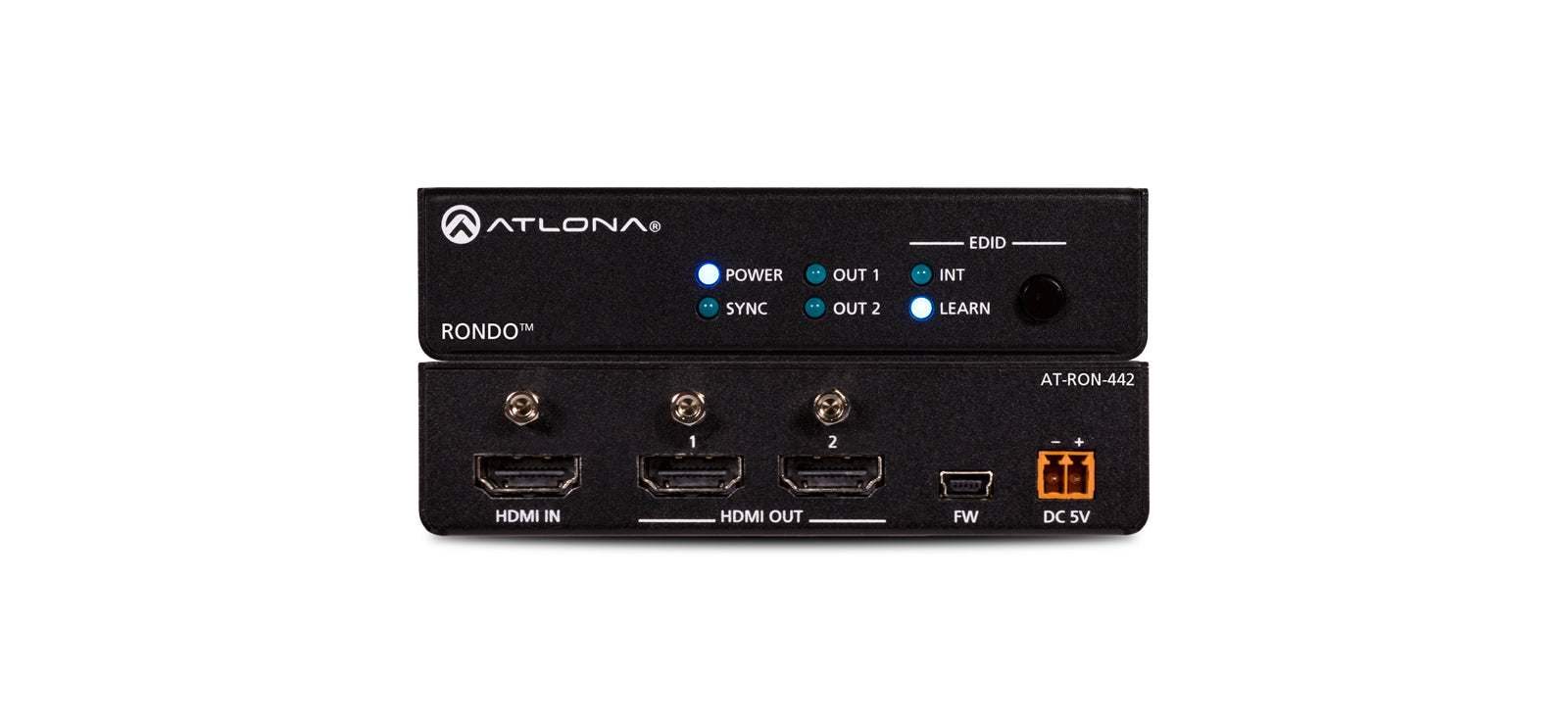

• Atlona AT-RON-442 Two-Output HDMI Distribution Amplifier

  The Atlona Rondo™ 442 (AT-RON-442) is a 1×2 HDMI distribution amplifier for high dynamic range (HDR) formats. Part of the comprehensive family of Atlona 4K HDR integration products, it is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The Rondo 442 is ideal for applications requiring the latest as well as emerging 4K/UHD and HDR sources and displays. This Rondo Series HDMI distribution amplifier includes EDID management features, front panel LED indicators for power and signal status, and the capability to cascade several units without compromising performance.

  The Rondo 442 is designed to deliver dependable, pristine-quality image presentations in commercial and residential applications.

  Applications
  Residential installations – The Rondo 442 is designed for AV systems with the latest UHD and HDR sources such as Ultra HD Blu-ray players, plus compatible televisions and projectors.
  TV showrooms – The Rondo 442 can be used for reliable content distribution to televisions, to properly demonstrate the quality and appeal of 4K and HDR programming.
  Professional AV applications – Atlona 4K HDR products are ideal for full-motion, highly detailed 4K graphics presentations for visualization, 3D renderings, simulations, and more.

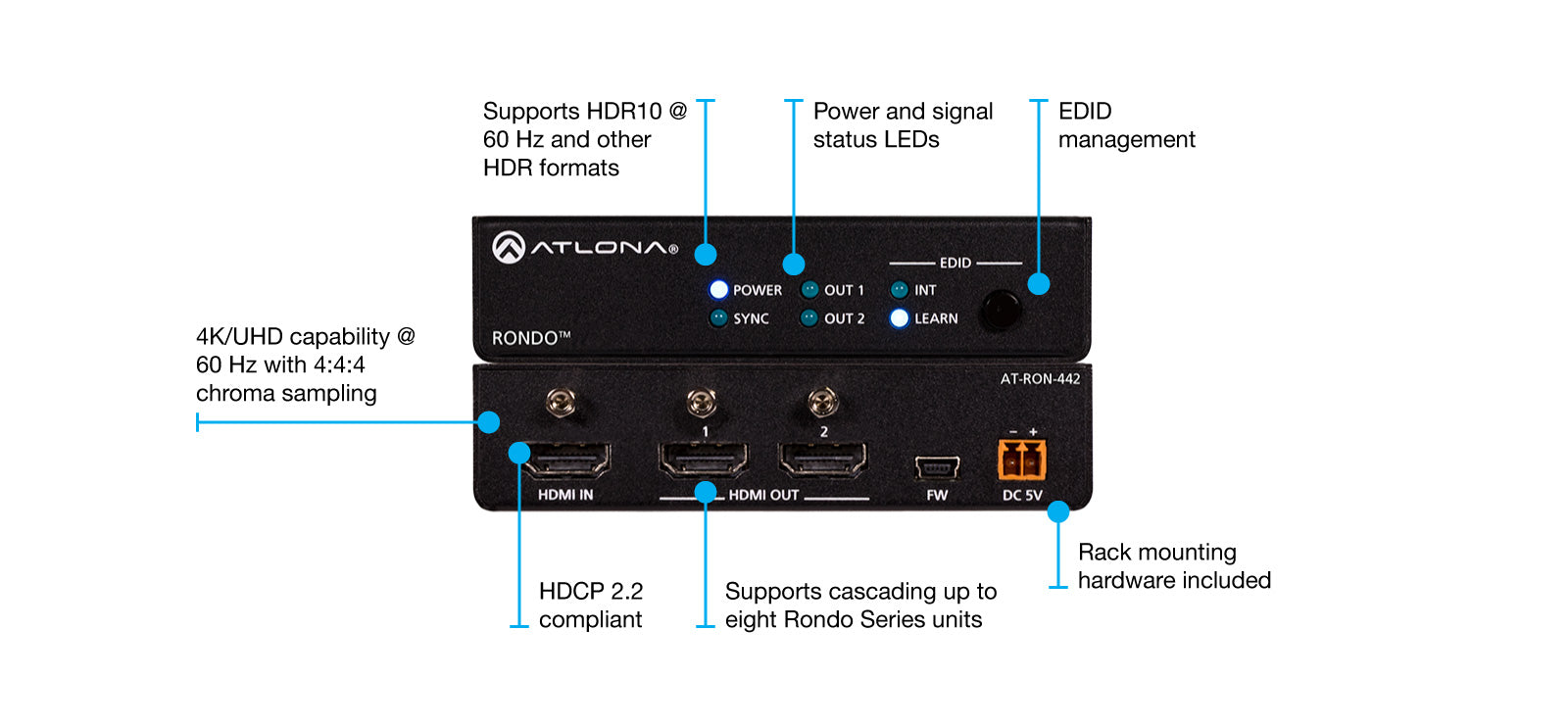

  FEATURES
  1×2 HDMI distribution amplifier

  Delivers high performance, reliable HDMI signal distribution
  Easy to install and deploy in commercial and residential applications
  4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats

  Ideal for new and emerging 4K/UHD and HDR-capable sources and displays
  Compatible with 4K HDR10 and Dolby® Vision™ @ 60 Hz, as well as HLG (Hybrid Log-Gamma) for 60p HDR broadcast services
  HDCP 2.2 compliant

  Adheres to latest specification for High-bandwidth Digital Content Protection
  Allows protected content stream to pass between devices
  EDID management

  Manages EDID communications with the source through a display’s EDID or internally stored EDID
  Ensures desired audio formats and video resolutions are provided to the AV system
  Supports cascading up to eight units

  Combine multiple Rondo 442 and other Rondo Series distribution amplifiers without compromising performance or reliability
  System designs and configurations can easily be adapted or modified as needed
  Multi-channel audio compliant

  Passes through multi-channel audio formats from the HDMI input
  Supports PCM, Dolby Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, and DTS:X®
  Field-updatable firmware

  Device can be updated in the field via USB port
  Front panel power and signal status LEDs

  LED indicators provide power and HDMI input / output signal status information
  Provides easy setup and troubleshooting
  Low-profile, 1 inch (25 mm) high enclosure

  Easy installation into racks and confined spaces
  Keeps devices out-of-sight when placed in public spaces
  Included accessories

  User guide, rack mount brackets, and external universal power supply

• Feature	Specification
  Resolution
  – Video	4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 2048x1080p, [email protected]/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
  – VESA	2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800, 1280×768, 1152×768, 1024×768, 800×600, 640×480
  – Color Space	YUV, RGB
  – Chroma Subsampling	4:4:4, 4:2:2, 4:2:0
  – Color Depth	8-bit, 10-bit, 12-bit
  – HDR	HDR10 and Dolby® Vision™ @ 60Hz
  Audio
  – HDMI	PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
  – Sample Rate	32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
  – Bit Rate	up to 24-bit
  Distance
  – HDMI IN/OUT @ 4K	up to 5 meters (up to 15 feet)
  – HDMI IN/OUT @ 1080p	up to 10 meters (up to 30 feet)
  Signal
  – Bandwidth	18 Gbps
  – CEC	No
  – HDCP	2.2 Compliant
  Temperature
  – Operating	0°C to 50°C (32°F to 122°F)
  – Storage	-20°C to 60°C (-4°F to 140°F)
  – Humidity	20 to 90% non-condensing
  Power
  – Consumption	6W
  – Supply	Input: AC100-240V ~ 50/60Hz, Output: DC 5V
  Dimension (H x W x D)	26 x 109 x 89 (mm), 1.02 x 4.29 x 3.5 (inch)
  Weight
  – Device	0.2 kg (0.4 lbs)
  Certification
  – Unit	CE, FCC
  – Power Supply	CE, FCC, Level VI, RoHS, cULus, RCM, CCC
