Aten VS481C 4-Port True 4K HDMI Switch

£23.68

4 Items sold in last 18 minutes
  • 30 days easy returns
  • Delivery within 2-5 days
18 People watching this product now!
SKU: UK-7956585283770 Category:
Description

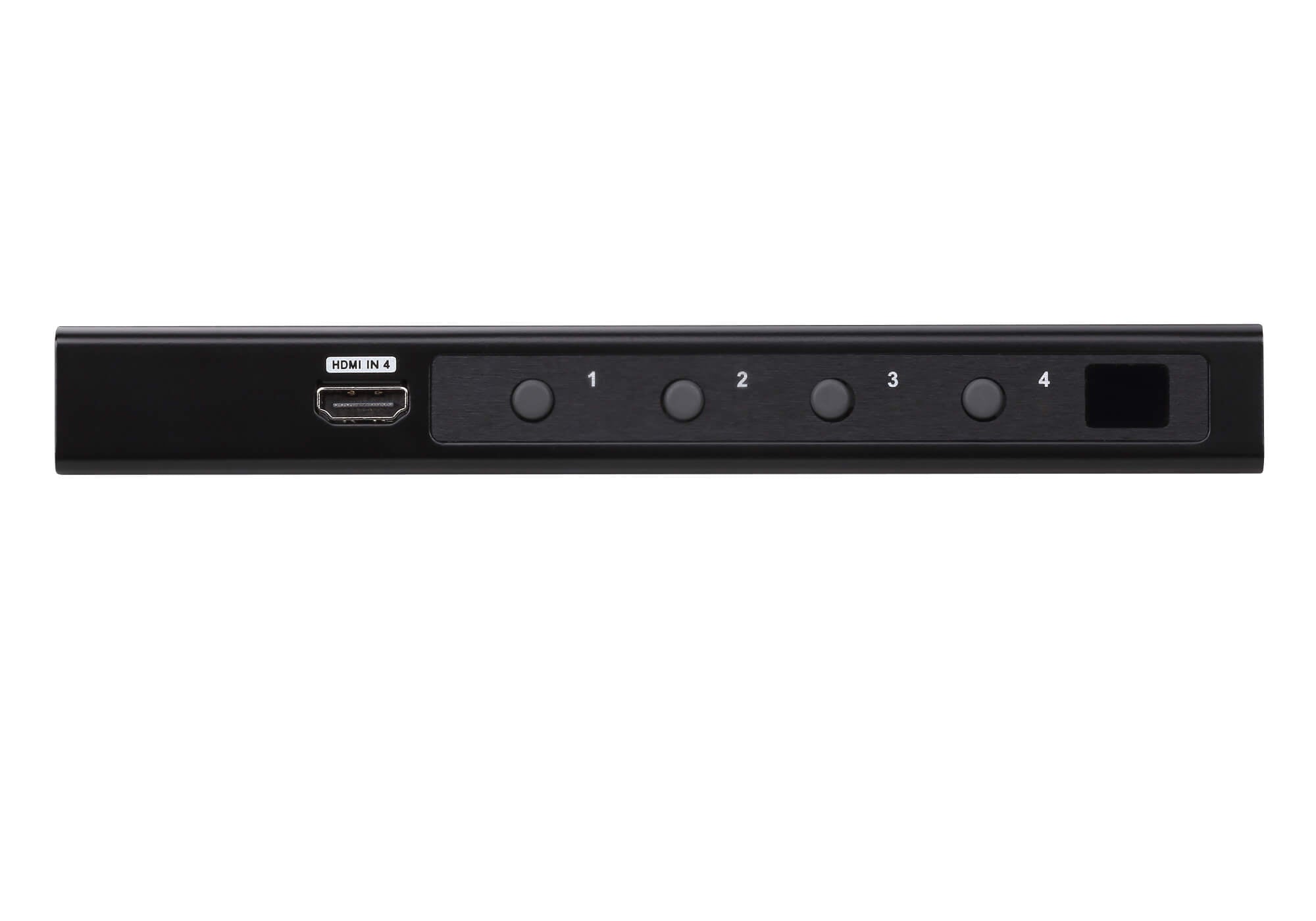

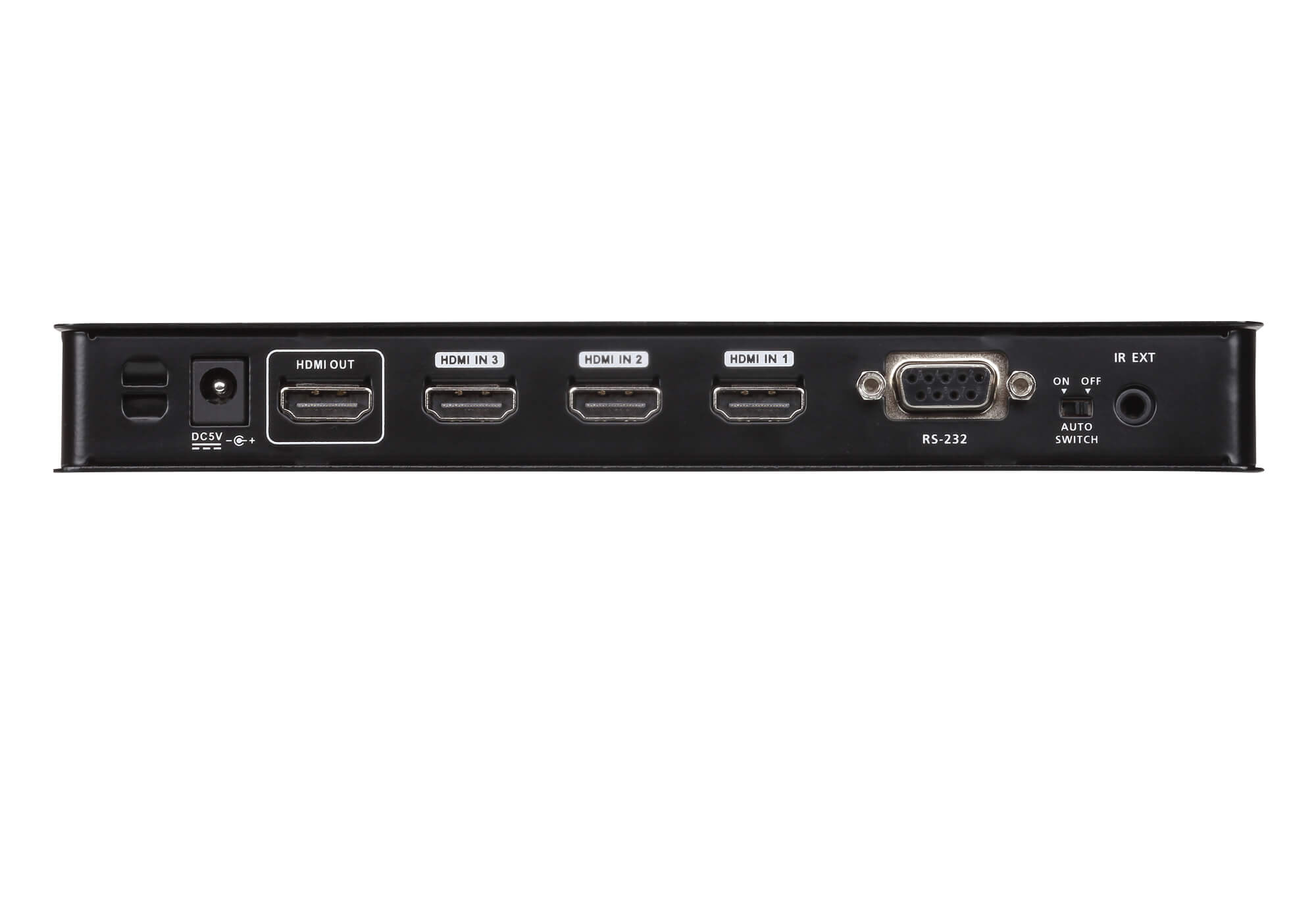

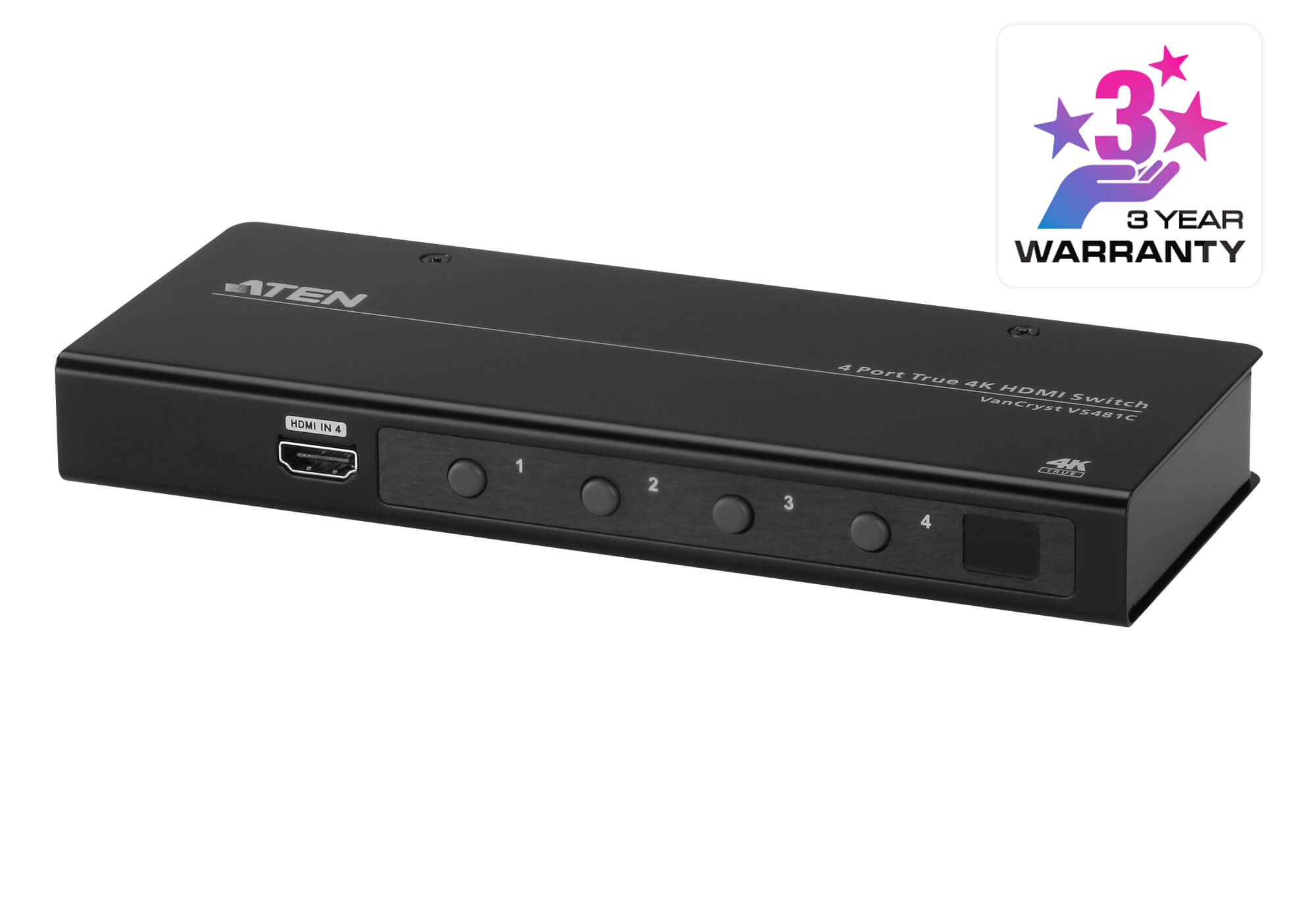

Aten VS481C 4-Port True 4K HDMI Switch

  • Description
  • Specifications
  • Downloads

  • Aten VS481C 4-Port True 4K HDMI Switch

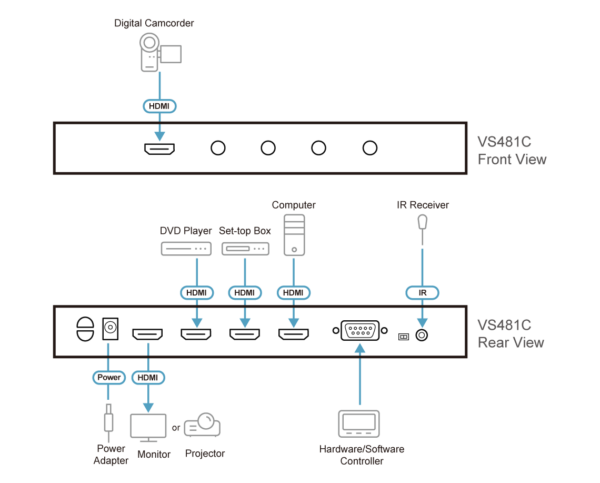

    The ATEN VS481C is designed for applications that require the routing of 4 sources to one compatible display device. It enables the reliable transmission at video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and HD lossless audio formats. Integrator-friendly features include Auto Switching modes for auto port selection, bi-directional RS-232, and IR for remote device control.

    Engineered to meet today’s demand of True 4K signal transmission and user- oriented design, the ATEN VS481C is a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade shows, and shopping centers.

    Package Contents
    1x VS481C 4-Port True 4K HDMI Switch
    1x Power Adapter
    1x IR Remote Control Unit
    1x HDMI Cable
    1x User Instructions

    Allows up to 4 HDMI sources to be connected to one HDMI display
    HDMI 2.0(3D, Deep Color, 4K); HDCP 2.2 compliant
    Superior video quality- True 4k resolutions of 4k x 2k @ 60 Hz (4:4:4)
    Supports HDR10+
    Supports IR extension
    Built-in bi-directional RS-232 serial port for high-end system control
    Auto switching modes for auto port selection
    LED indication of source device status
    Plug-and-play

  • Category Specification
    Switches DIP Auto Switch ON/OFF
    Video Input 4 x HDMI Type A Female (Black)
    Impedance 100 Ω
    Max. Distance (Input) 5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
    Video Output 1 x HDMI Type A Female (Black)
    Impedance 100 Ω
    Max. Distance (Output) 5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
    Max. Data Rate 18 Gbps (6 Gbps Per Lane)
    Max. Pixel Clock 600 MHz
    Compliance HDMI 2.0 (3D, Deep Color, 4K), HDCP 2.2, Consumer Electronics Control (CEC)
    Max. Resolution 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
    Control RS-232: 1 x DB-9 Female (Black), Baud Rate: 19200, Data Bits: 8, Stop Bits: 1
    IR Control 1 x Mini Stereo Jack Female (Black), 1 x IR Receiver
    Power Connector 1 x DC Jack (with locking)
    Power Consumption DC5V: 0.924W: 20BTU/h
    Operating Temperature 0-40 °C
    Storage Temperature -20 – 60 °C
    Humidity 0 – 80% RH, Non-Condensing
    Housing Metal
    Weight 0.47 kg (1.04 lb)
    Dimensions (L x W x H) 20.00 x 8.21 x 2.50 cm (7.87 x 3.23 x 0.98 in.)
    Carton Lot 10 pcs
