Aten VS184B Aten 4-Port True 4K HDMI Splitter | VS184B-AT-E
- Description
- Specifications
-

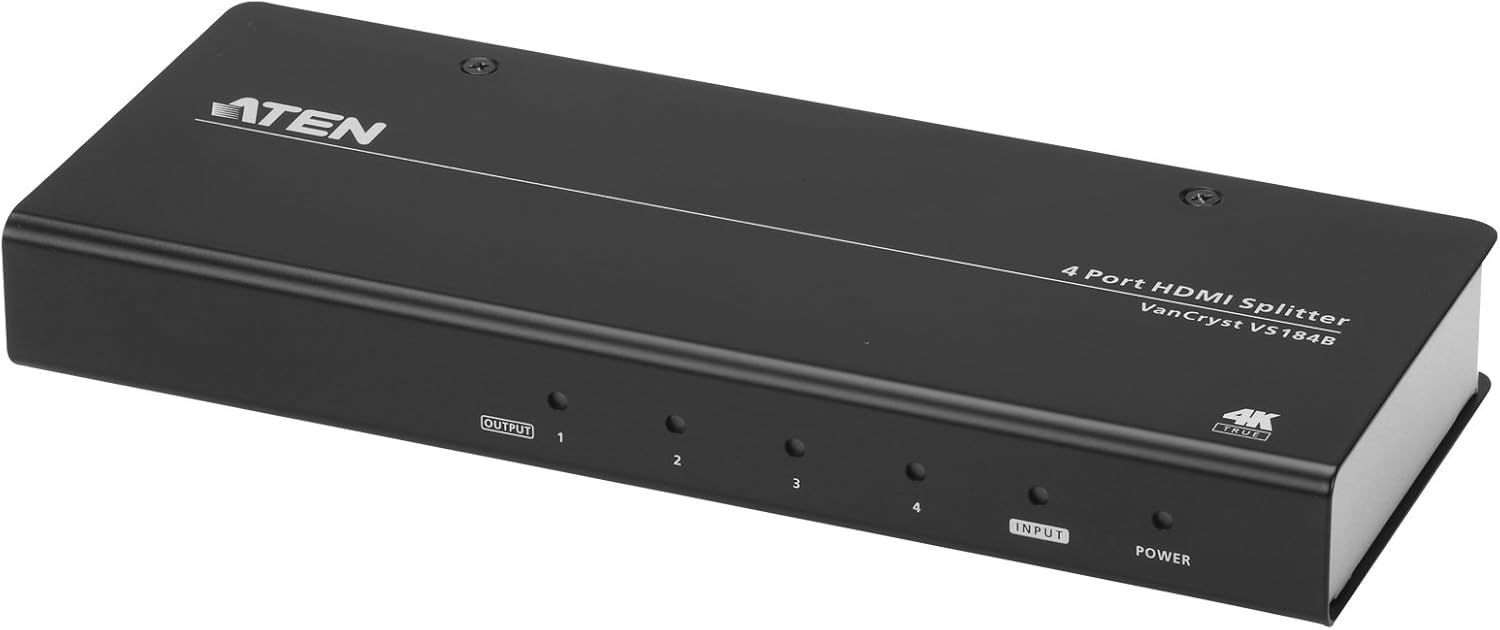

Aten VS184B Aten 4-Port True 4K HDMI Splitter
Aten VS184B-AT-E
Product Key Features
Connects one HDMI source to four HDMI displays at the same time.
HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible.
Max pixel clock rate up to 600 MHz.
Long distance transmission- up to 15 m(1920×1200)/ 1.8m (True 4K)*.
Supports HDR10+
Supports max resolutions of up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4)
Max data rate up to 18 Gbps (6 Gbps per lane)

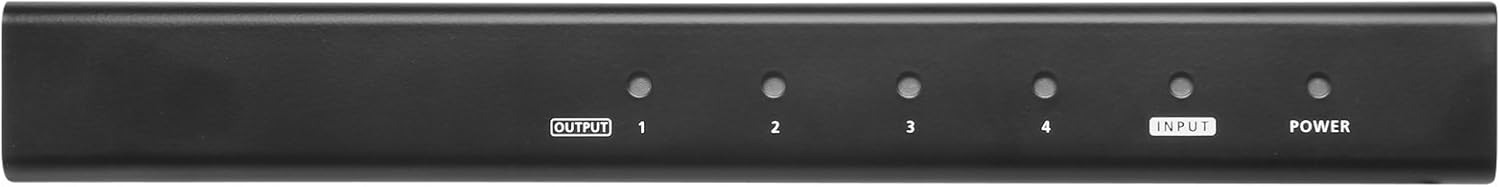

LED indication of power status and source devices
EDID Expert™ – Selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution via • EDID DIP Switch, allowing users to effortlessly switch among Port 1, Default, and Auto
Plug-and-play – No software installation requiredProduct Overview
The VS184B True 4K HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMIenabled equipment, such as DVD players, satellite set- top boxes and all HDMI monitors, displays, projectors, or TVs.
The VS182B True 4K HDMI Splitter is HDMI 2.0 compliant, 4K at 60Hz (4:4:4), and supports multiple streaming audio, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings. -

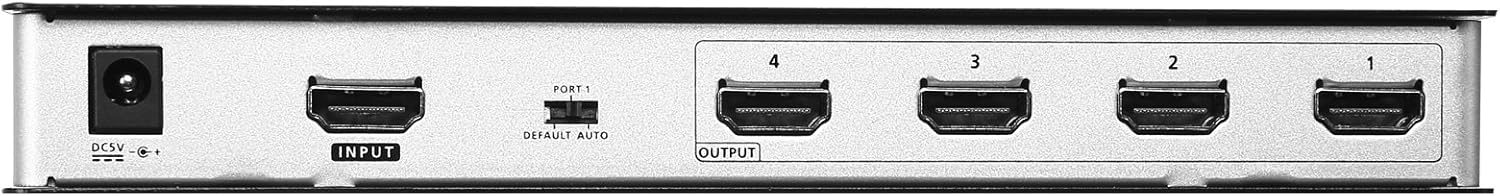

Category Details Video Input 1 x HDMI Type A Female (Black), 100 Ω, Max Distance: 1.8m / 4K@60Hz (4:4:4) Video Output 4 x HDMI Type A Female (Black), 100 Ω, Max Distance: 1.8m / 4K@60Hz (4:4:4), 15m / 1920 x 1200 Video Max Data Rate: 18Gbps (6 Gbps Per Lane), Max Pixel Clock: 600 MHz, HDMI (3D, Deep Color, 4K), HDCP Compatible, Max Resolution: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) Audio Input: 1 x HDMI Type A Female (Black), Output: 4 x HDMI Type A Female (Black) Connectors Power: 1 x DC Jack Power Consumption DC5V: 4.84W: 23BTU Environmental Operating Temperature: 0-40°C, Storage Temperature: -20-60°C, Humidity: 0-80% RH, Non-Condensing Physical Properties Housing: Metal, Weight: 0.48 kg (1.06 lb), Dimensions: 20.00 x 8.00 x 2.50 cm (7.87 x 3.15 x 0.98 in.) Carton Lot 20 pcs.
