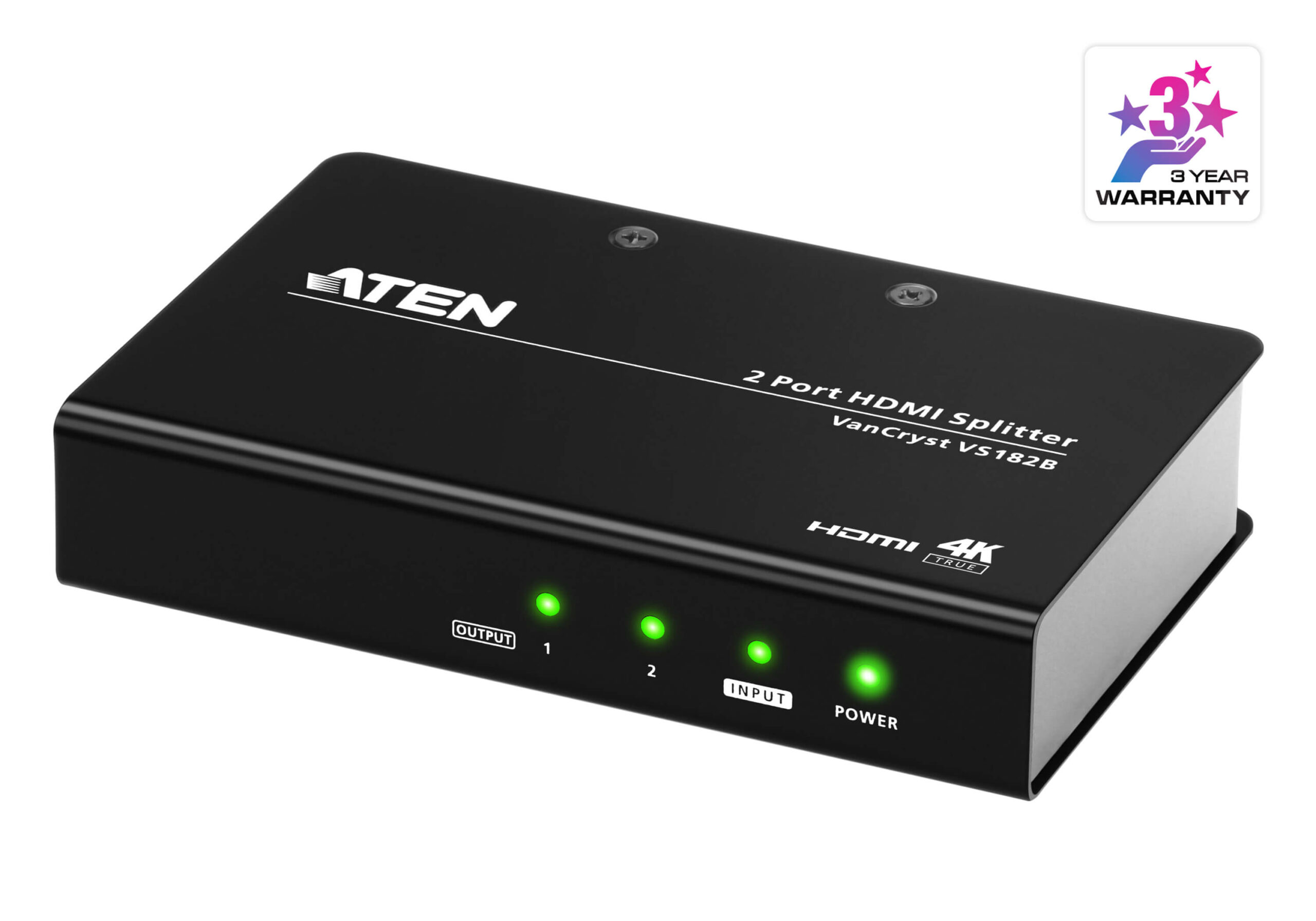

• Aten VS182B 2-Port True 4K HDMI Splitter

  The VS182B True 4K HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMIenabled equipment, such as DVD players, satellite set- top boxes and all HDMI monitors, displays, projectors, or TVs.

  The VS182B True 4K HDMI Splitter is HDMI 2.0 compliant, 4K at 60Hz (4:4:4), and supports multiple streaming audio, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.


  Package Contents
  1 x VS182B 2-Port True 4K HDMI Splitter
  1 x Power adapter
  1 x HDMI cable
  1 x User Instructions

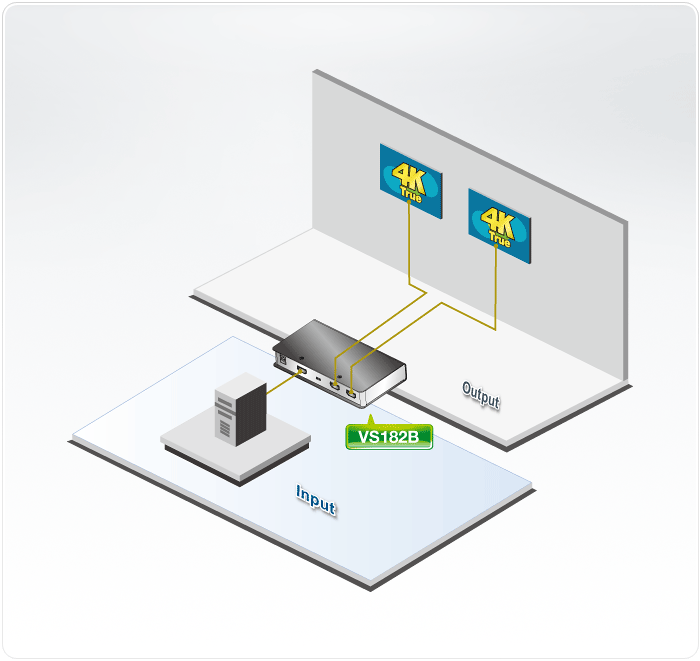

  Connects one HDMI source to two HDMI displays at the same time

  HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible

  Supports HDR10+

  Supports max resolutions of up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4)

  Long distance transmission- up to 15 m(1920×1200) / 1.8m (True 4K)*

  Max pixel clock rate up to 600 MHz

  Max data rate up to 18 Gbps (6 Gbps per lane)

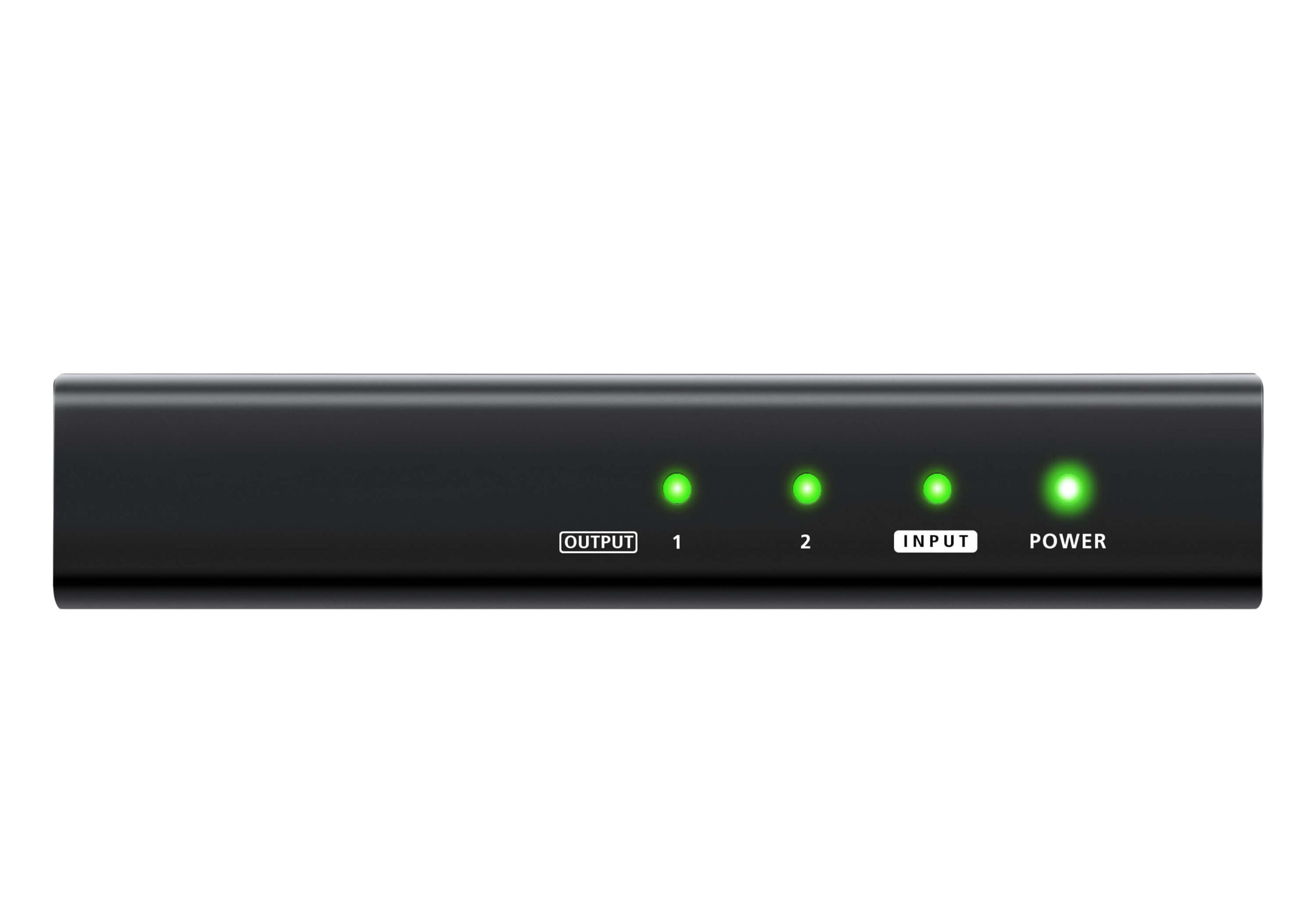

  LED indication of power status and source devices

  EDID Expert™  – Selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution via EDID DIP Switch, allowing users to effortlessly switch among Port 1, Default, and Auto

  Plug-and-play  – No software installation required

• Category	Specification
  Video Input	1 x HDMI Type A Female (Black)
  	Impedance: 100 Ω
  	Max. Distance: 5m at 4K@60Hz (4:4:4)
  Video Output	2 x HDMI Type A Female (Black)
  	Impedance: 100 Ω
  	Max. Distance: 5m at 4K@60Hz (4:4:4)
  Video	Max. Data Rate: 18 Gbps (6 Gbps Per Lane)
  	Max. Pixel Clock: 600 MHz
  	Compliance: HDMI (3D, Deep Color, 4K); HDCP Compatible
  	Max. Resolution: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
  Audio	Input: 1 x HDMI Type A Female (Black)
  	Output: 2 x HDMI Type A Female (Black)
  Connectors	Power: 1 x DC Jack
  	Power Consumption: DC5V: 4.24W: 20BTU/h
  Environmental	Operating Temperature: 0-40 °C
  	Storage Temperature: -20 – 60 °C
  	Humidity: 0 – 80% RH, Non-Condensing
  Physical Properties	Housing: Metal
  	Weight: 0.32 kg (0.7 lb)
  	Dimensions (L x W x H): 12.50 x 8.00 x 2.50 cm (4.92 x 3.15 x 0.98 in.)
  	Carton Lot: 20 pcs
  Note	For some rack mount products, dimensions are expressed as LxWxH format.
