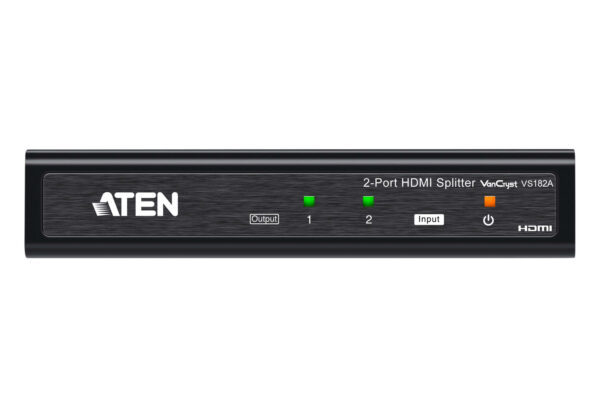

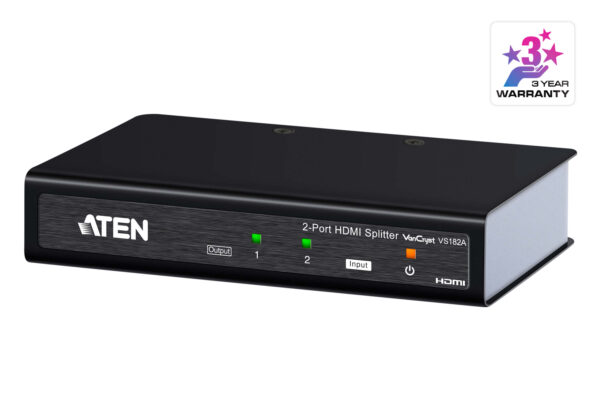

• Aten VS182A 2-Port 4K HDMI Splitter

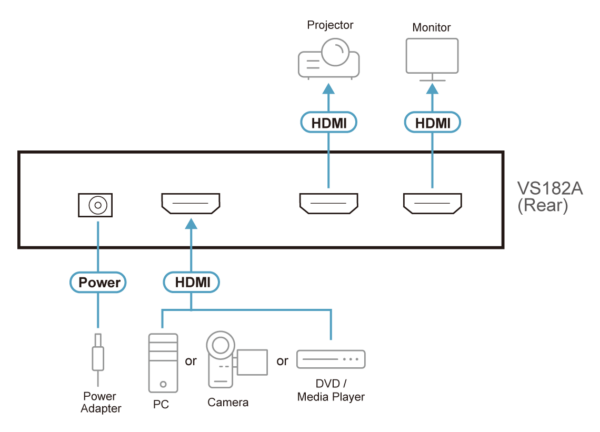

  The VS182A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.

  The VS182A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.

  Package Contents
  1x VS182A 2-Port HDMI Splitter
  1x Power Adapter
  1x HDMI Cable
  1x User Instructions

  Features
  Connects one HDMI source to two HDMI displays at the same time
  HDMI (3D, Deep Color, 4K); HDCP Compatible
  Supports resolutions of up to Ultra HD 4k x 2k
  Supports Dolby True HD and DTS HD Master Audio
  Long distance transmission – up to 15 m (24 AWG)
  Supports max. data rate of 10.2 Gbps
  Plug-and-play – no software installation required

• Category	Specification
  Video Input
  Interfaces	1 x HDMI Type A Female (Black)
  Impedance	100 Ω
  Max. Distance	3m @3840×2160@30Hz (4:4:4)
  Video Output
  Interfaces	2 x HDMI Type A Female (Black)
  Impedance	100 Ω
  Max. Distance	15m @3840×2160@30Hz (4:4:4)
  Video
  Max. Data Rate	10.2 Gbps (3.4 Gbps Per Lane)
  Max. Pixel Clock	340 MHz
  Compliance	HDMI (3D, Deep Color, 4K); HDCP Compatible
  Max. Resolution	Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
  	4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
  Audio
  Input	1 x HDMI Type A Female (Black)
  Output	2 x HDMI Type A Female (Black)
  Connectors
  Power	1 x DC Jack
  Environmental
  Operating Temperature	0-50 °C
  Storage Temperature	-20 – 60 °C
  Humidity	0 – 80% RH, Non-Condensing
  Physical Properties
  Housing	Metal
  Weight	0.31 kg (0.68 lb)
  Dimensions (L x W x H)	12.50 x 8.00 x 2.50 cm (4.92 x 3.15 x 0.98 in.)
  Carton Lot	20 pcs
  Power Consumption
  Power Supply	DC5.3V:3.12W:15BTU/h
  Note	For rack mount products, standard physical dimensions of WxDxH are expressed as LxWxH.
