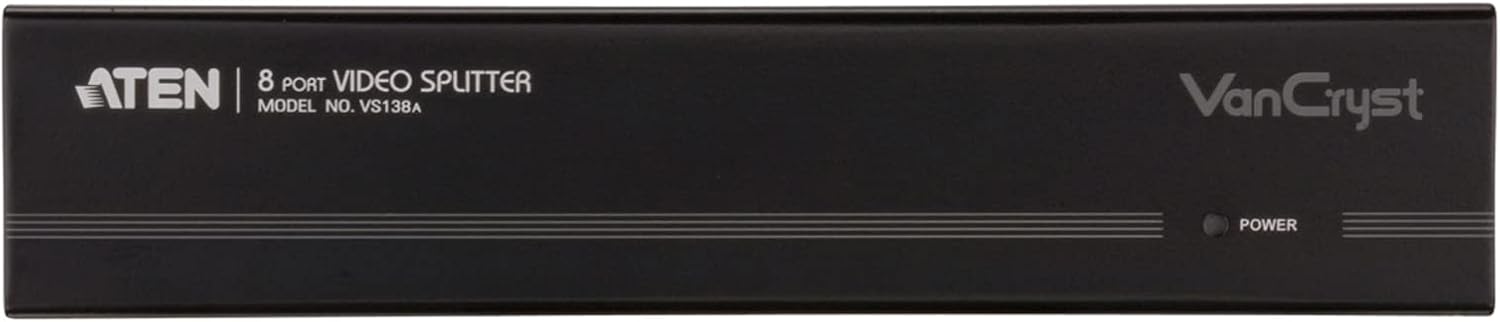

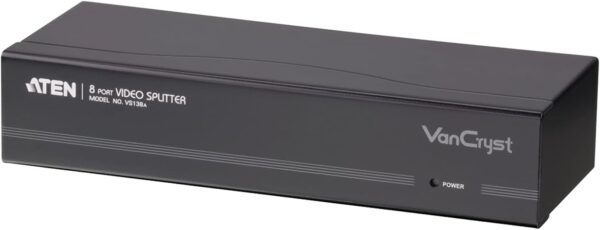

Aten VS138A 8-Port Video Splitter
One video input to 8 video outputs
Supports up to 450 MHz bandwidth
Cascadable to 3 levels – provides up to 512 video signals
Long distance transmission – up to 30m
Superior video quality – up to 2048 x 1536
Supports VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync monitors
The VS138A Video Splitter is a boosting device that duplicates a video signal from one source to 8 output devices. Cascadable to three levels, the VS138A provides up to 512 video signals, in addition to extending transmission distance up to 98.5 feet (30 m), making it excellent for public broadcast systems.To transmit multiple, high-quality VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync video signals over long distance without hassle, the VS138A is your best choice.Applications include:-Financial – the remote display of stock market information-Education – the remote display of lectures and lessons to halls and classrooms-Business – the remote display of addresses to overflow rooms; video conferencing; and demos Package Contents 1x VS138A Video Splitter 1x Power Adapter 1x User Guide -

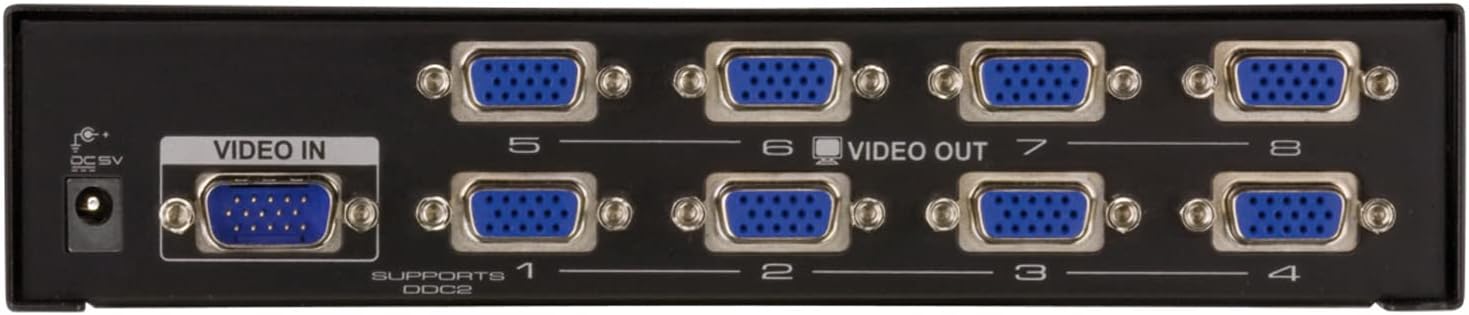

Specification Details Ports & Interfaces Video ports quantity 8 Video port type VGA Video out 8x VGA DC-in jack Yes Features Maximum resolution 2048 x 1536 pixels Product colour Black Housing material Metal Maximum operating distance 30 m Bandwidth 450 MHz Power AC input voltage 5 V Power consumption (typical) 2.25 W Weight & Dimensions Weight 690 g Operational Conditions Operating temperature (T-T) 0 – 50 °C Storage temperature (T-T) -20 – 60 °C Operating relative humidity (H-H) 0 – 80%
