• Aten VGA/Audio Cat 5 Receiver with Deskew (1280 x 1024@300m) | VE170RQ-AT-E

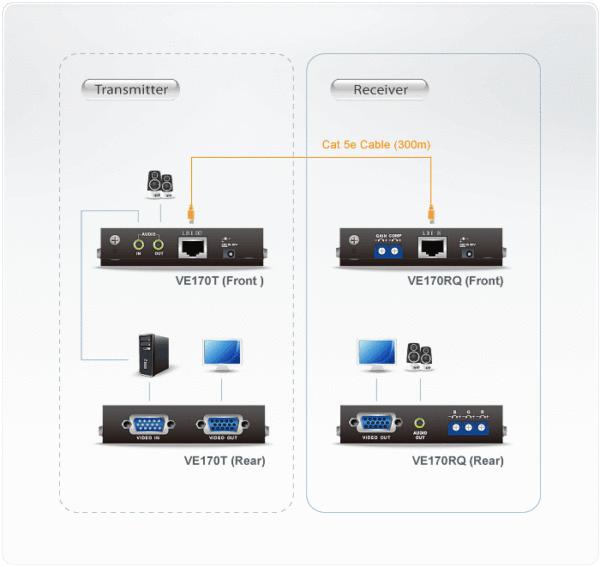

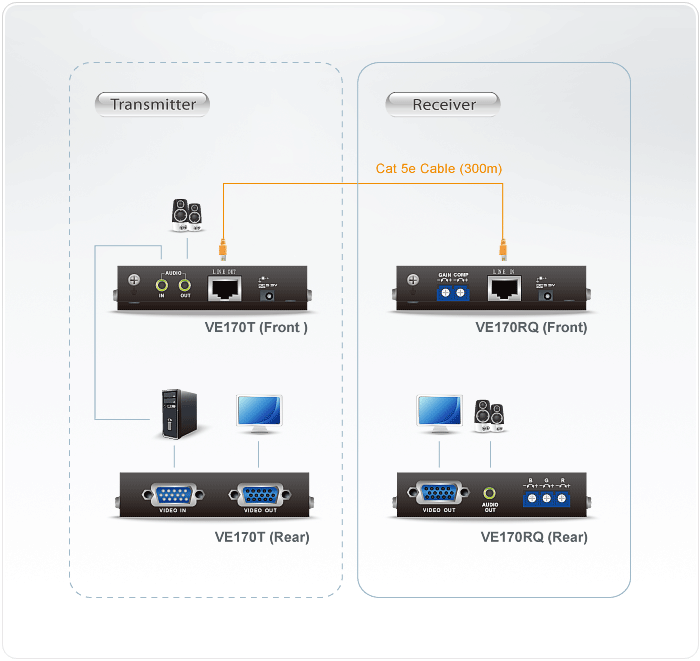

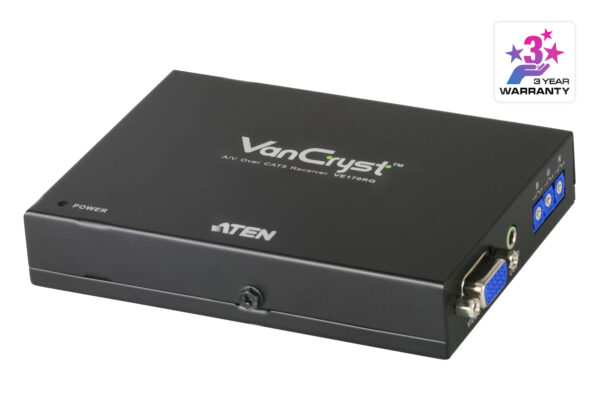

  The VE170RQ A/V Over Cat 5 Receiver connects to a transmitter* to extend signals up to 300m from the source using a Cat 5e cable. It is a cost-effective and efficient solution for sending and receiving high quality audio and video content.
  The VE170RQ features ATEN patented Deskew technology, which supports the manual synchronization of RGB signals and corrects color phase and timing errors that occur over large distances.

  Compatible Transmitter Unit:
  VE170T A/V Over Cat 5 Transmitter
  VS1204T A/V Over Cat 5 Transmitter
  VS1208T A/V Over Cat 5 Transmitter


  Package Contents
  1x VE170RQ A/V Over Cat 5 Receiver
  1x Power Adapter
  1x Mounting Kit (1 pc)
  1x User Instructions

• Category	Specifications
  Video Output
  Interfaces	1 x HDB-15 Female (Blue)
  Impedance	75 Ω
  Max. Distance	1.8 m
  Video
  Max. Bandwidth	300 MHz
  Max. Resolutions / Distance	Up to 1920 x 1200@150m; 1280 x 1024@300m
  Audio Output	1 x Mini Stereo Jack Female (Green)

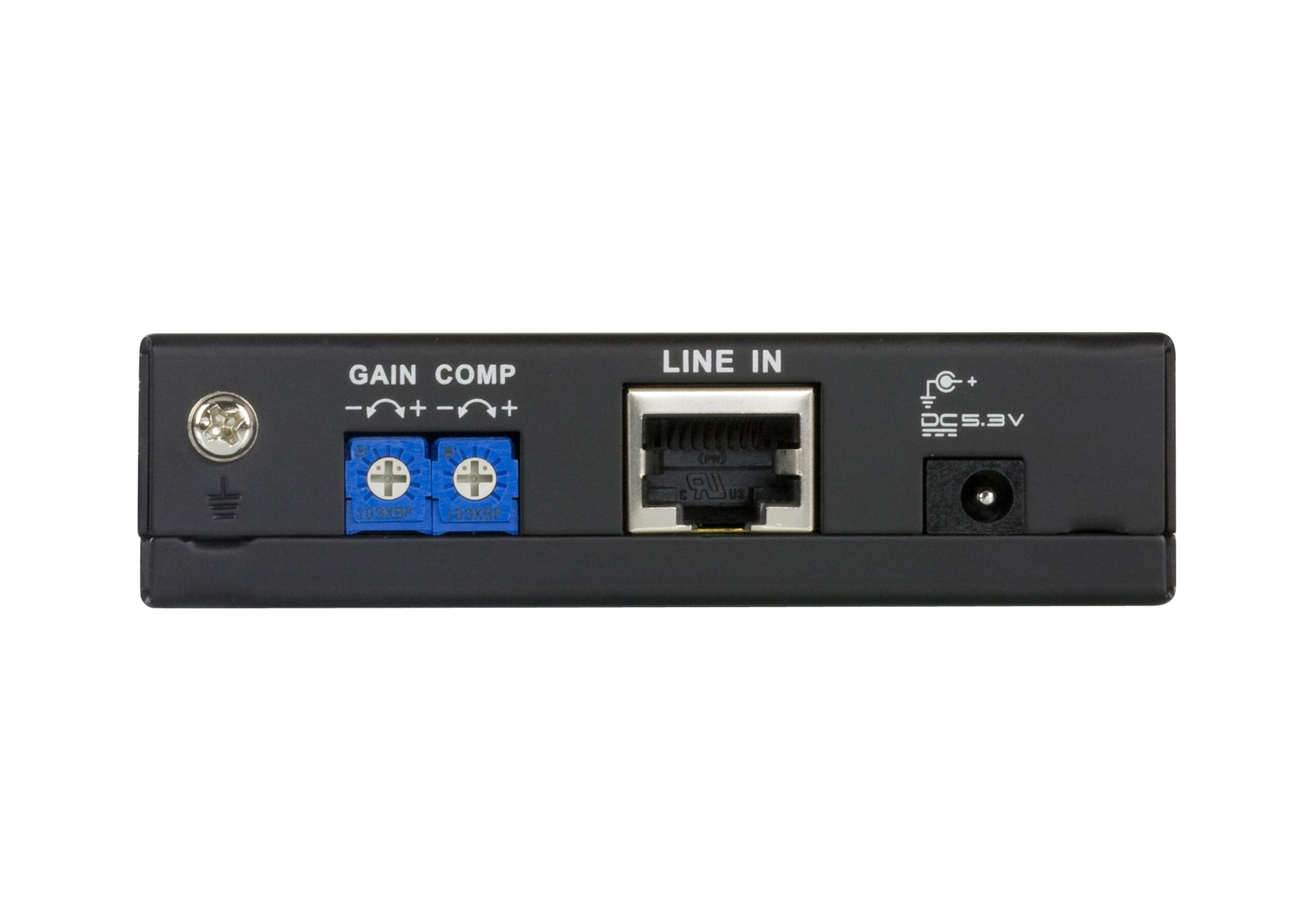

  Connectors
  Power	1 x DC Jack (Black)
  Power Consumption	DC5.3V:5.24W:25BTU/h
  Environmental
  Operating Temperature	0-50°C
  Storage Temperature	-20 – 60°C
  Humidity	0 – 80% RH, Non-Condensing
  Physical Properties
  Housing	Metal
  Weight	0.24 kg (0.53 lb)
  Dimensions (L x W x H)	12.77 x 9.04 x 2.26 cm (5.03 x 3.56 x 0.89 in.)
  Carton Lot	5 pcs
  Note	For some rack-mount products, dimensions are expressed in LxWxH format.
