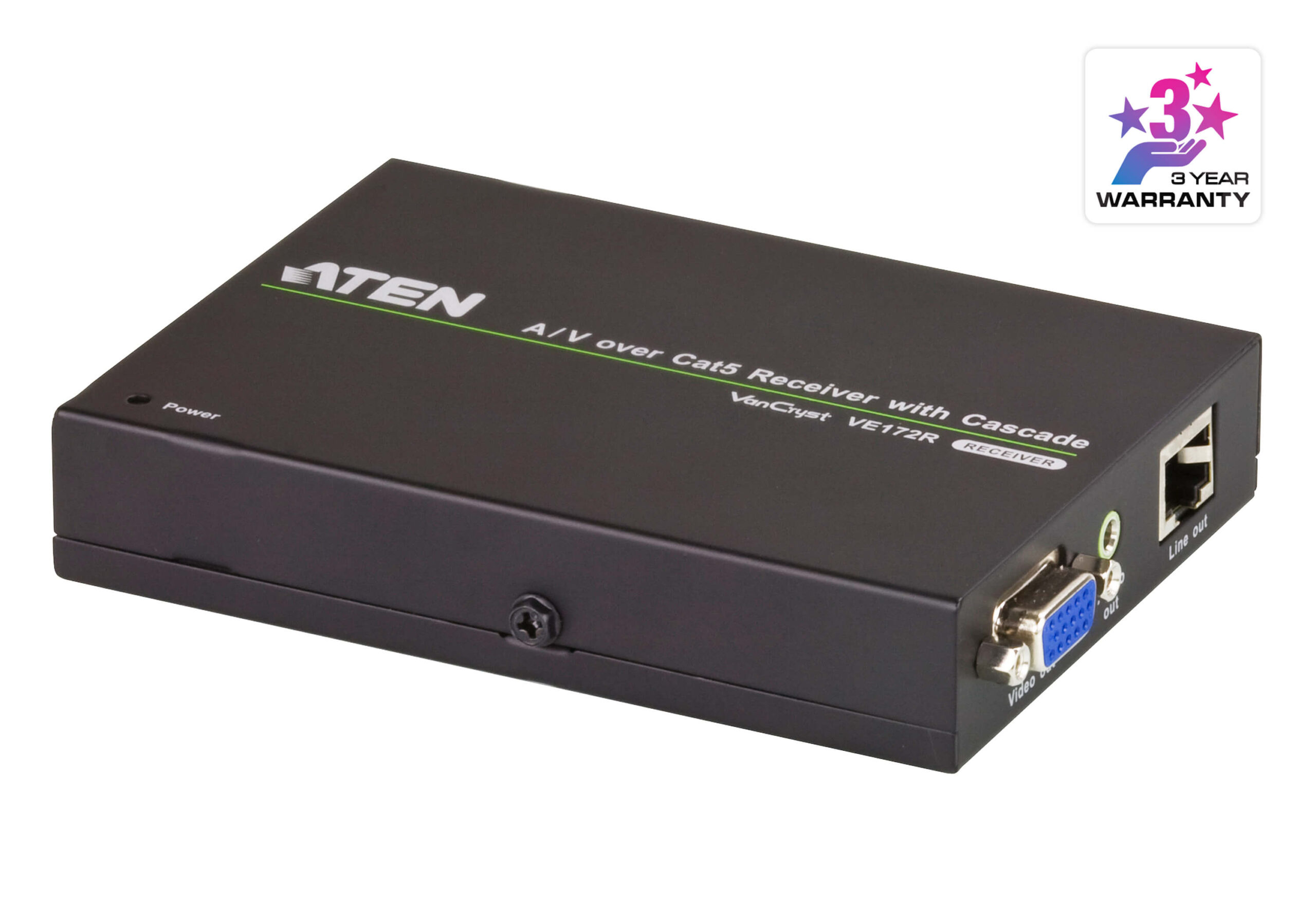

• Aten VGA/Audio Cat 5 Receiver with Cascade (1280 x 1024@150m) | VE172R-AT-E

  VE172R A/V Over Cat 5 Receiver is compatible with ATEN MDS Standard Plus Solution (VS1204T/VS1208T, VE170T/VE170R/VE170RQ). It can cascade up to 10 levels make long distance transmissions up to 150m.

  Compatible Transmitter Units:
  VE170T A/V Over Cat 5 Transmitter
  VS1204T A/V Over Cat 5 Transmitter
  VS1208T A/V Over Cat 5 Transmitter

  Compatible Receiver Units:
  VE172R A/V Over Cat 5 Receiver with Cascade
  VE170R A/V Over Cat 5 Receiver
  VE170RQ A/V Over Cat 5 Receiver with Deskew
  Package Contents
  1x VE172R A/V Over Cat 5 Receiver with Cascade
  1x Power Adapter
  1x Mounting Kit
  1x User Instructions


  Features
  Uses Cat 5e cable to connect the transmitter and receiver uints
  Cascadable up to 10 levels
  Long distance transmission up to 150m
  Superior video quality – 1920×1200 @ 60Hz (30 m);1600×1200 @ 60Hz (100 m); 1280×1024@ 60Hz (150 m)
  Audio enabled (mono)

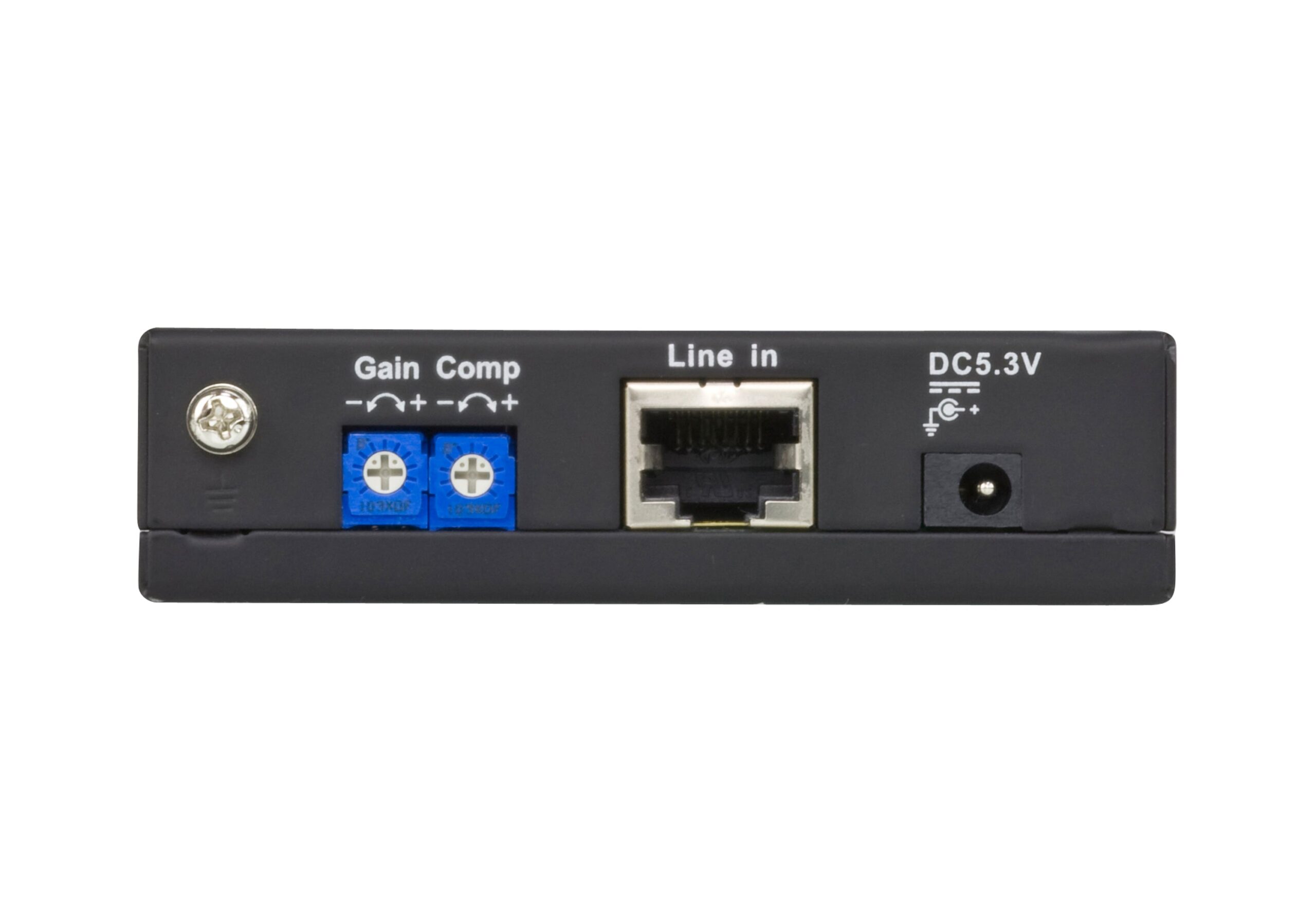

  Adjustable gain/compensation control – manually adjusts signal strength to compensate for distance
  Built-in 8KV/15KV ESD protection
  Rack-mountable
  Complies with VESA FDMI mount standard

• Category	Specifications

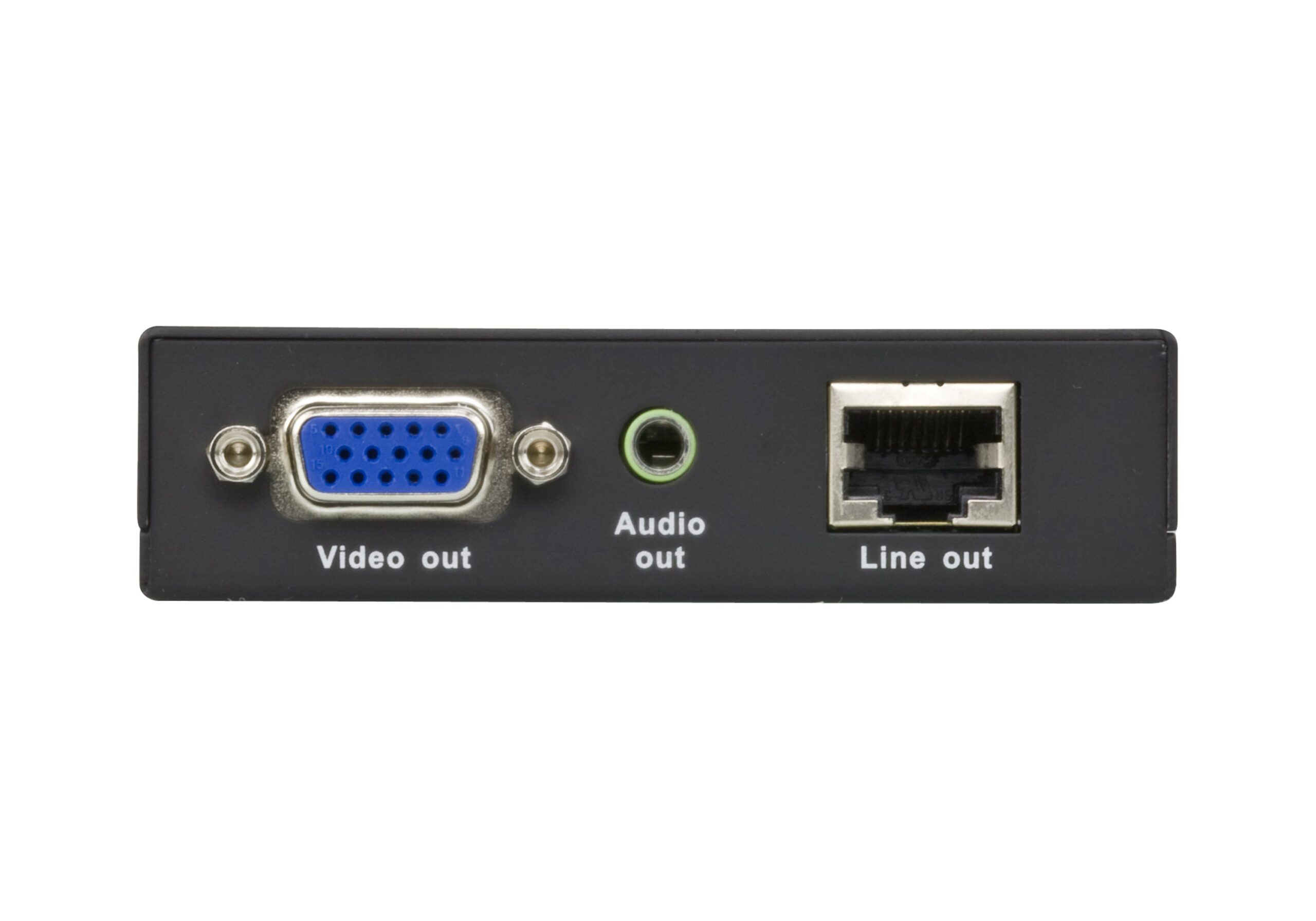

  Video Output
  Interfaces	1 x HDB-15 Female (Blue)
  Impedance	75 Ω
  Video
  Max. Bandwidth	300 MHz
  Max. Resolutions / Distance	Up to 1920 x 1200@30m; 1280 x 1024@150m
  Audio Outputs
  Interfaces	1 x Mini Stereo Jack Female (Green)
  Connectors
  Power	1 x DC Jack (Black)
  Power Consumption	DC5.3V:2.29W:11BTU/h
  Environmental
  Operating Temperature	0 – 50°C
  Storage Temperature	-20 – 60°C
  Humidity	0 – 80% RH, Non-Condensing
  Physical Properties
  Housing	Metal
  Weight	0.24 kg (0.53 lb)
  Dimensions (L x W x H)	12.77 x 9.04 x 2.26 cm (5.03 x 3.56 x 0.89 in.)
  Carton Lot	5 pcs
  Note	For some rack-mount products, dimensions are expressed in LxWxH format.
