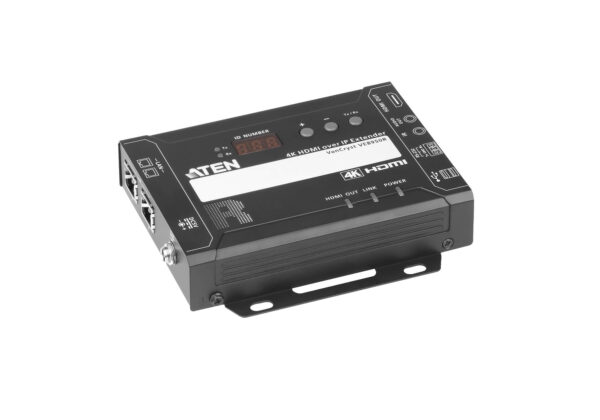

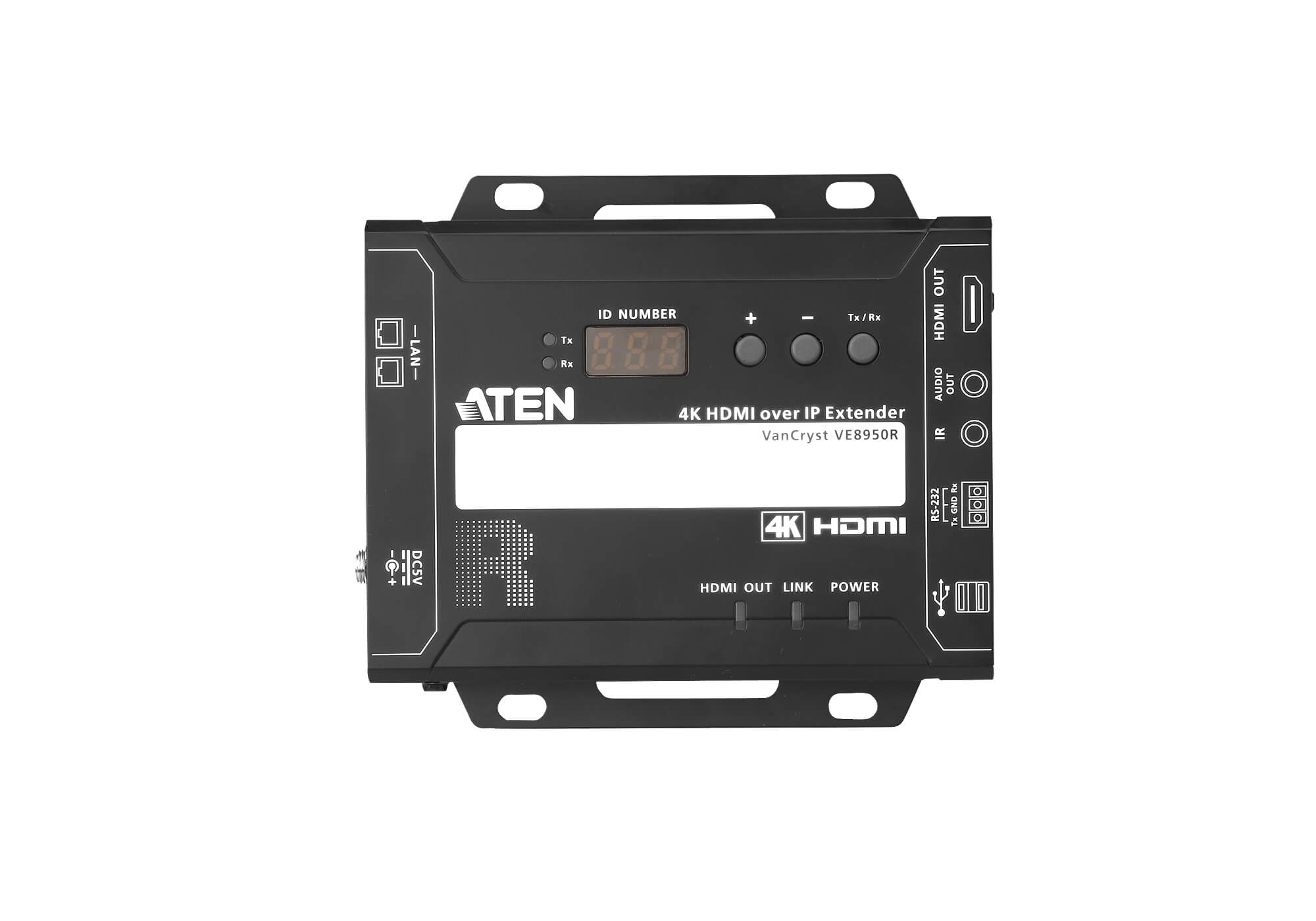

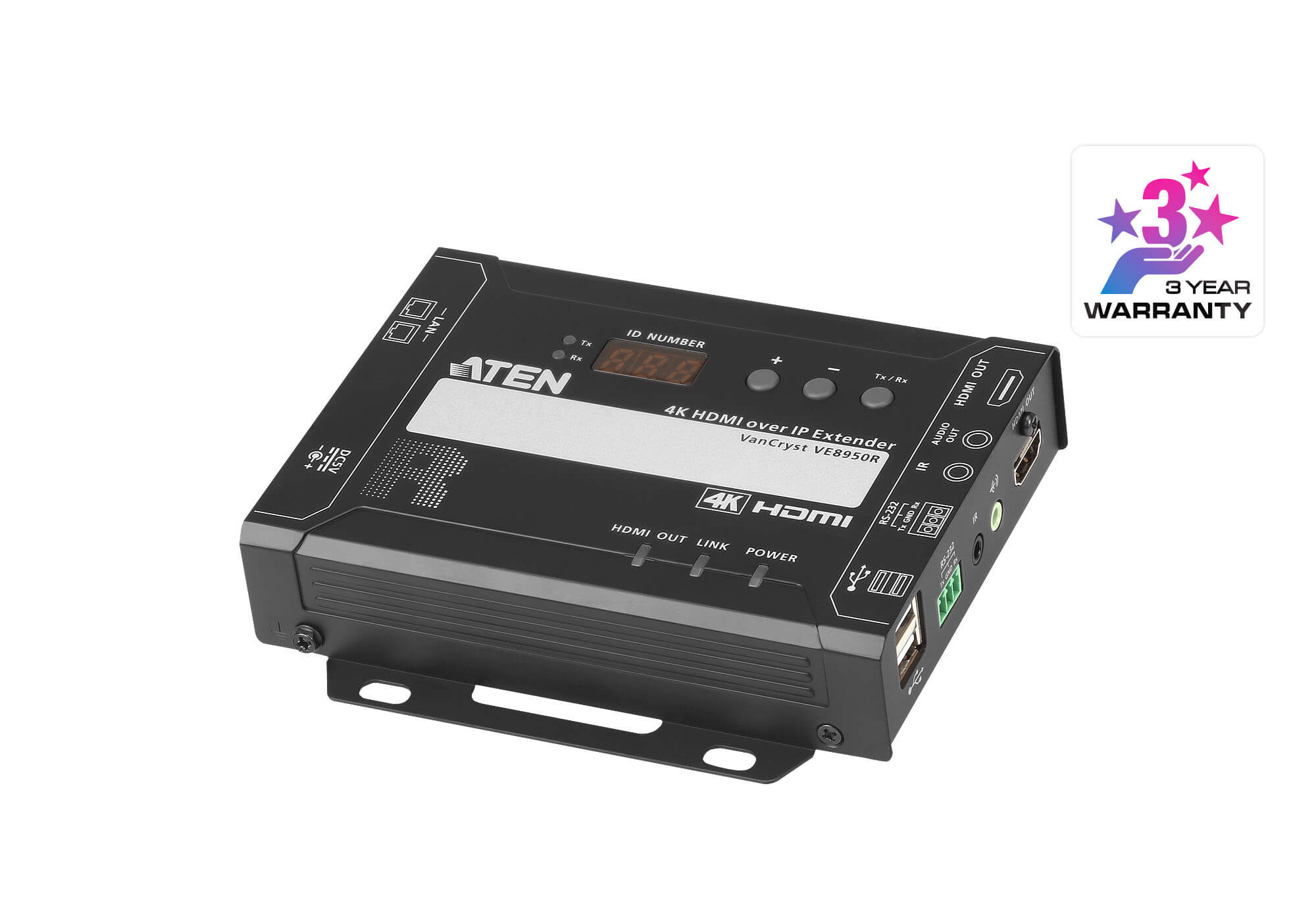

• Aten VE8950R 4K HDMI over IP Receiver

  The VE8950R provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators encounter when implementing AV over IP systems:

  Limitless scalability and flexibility
  No complicated IP setup
  No additional server PCs or software required required
  Go further for less with daisy chaining

  Engineered to meet today’s demands of large scale, multi-display, 4K signal transmission, and designed to be easy to set up and operate, the VE8950R Video over IP Receiver is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.


  Package Contents
  1x VE8950R 4K HDMI over IP Receiver
  1x RS-232 Terminal block
  1x 5V Power adapter
  1x User instructions

  Lightweight Compression with Ultra-low Latency
  Delivers visually lossless high-quality video up to 4K @ 30 Hz 4:4:4
  Ensures stunning quality video using ATEN advanced video lossless compression technology
  EDID Expert™ selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens
  Offers different levels of video compression rate including Smooth, Balance, and High Quality for users to choose depending on practical usage

  Limitless Scalability and Flexibility
  Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN without distance limitations
  Offers multi-functionality in extender, splitter, matrix switch, video wall and daisy chain applications
  Mix and match the latest 4K displays and 1080p screens. The built-in scaler automatically scales up incoming video signal to match the maximum resolution of the connected display devices*

  Collaboration with ATEN Control System
  Integrated solution – Compatible with ATEN Control System, allowing users to directly operate VE8950R via CLI Telnet or RS-232 protocol
  Effortless operation – One click to effectively operate VE Manager, TV, projector, source player, and related equipments via touch panel and keypad

• Category	Specification
  Video Output
  Interfaces	1 x HDMI Type A Female (Black)
  Impedance	100 Ω
  Max. Distance	3 m
  Video
  Max. Data Rate	Average: 150 ~ 500 Mbps
  Compliance	HDMI, HDCP Compatible
  Max. Resolutions / Distance	Up to 4K@100m (Cat 5e/6, point to point)
  Audio

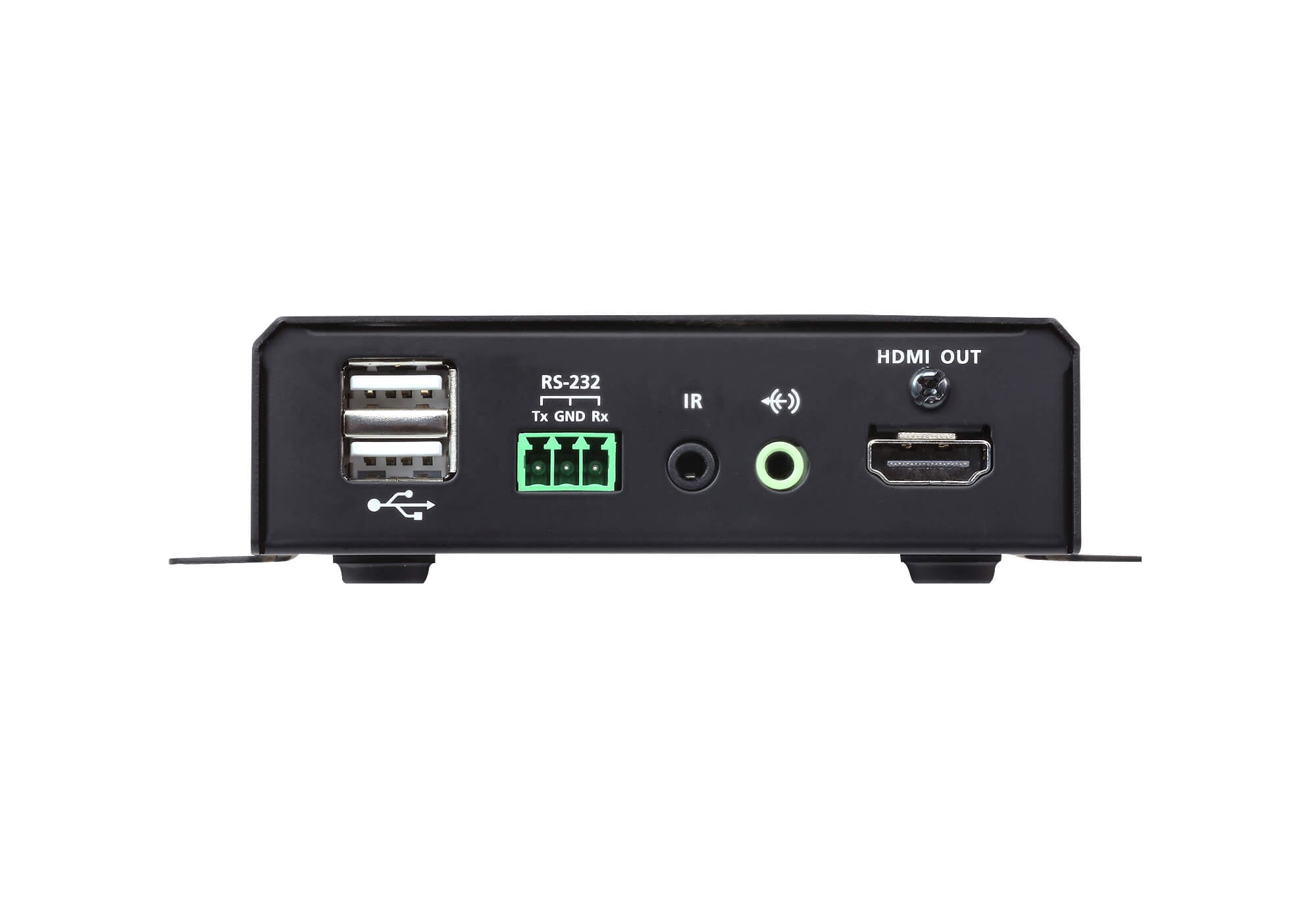

  Output	1 x HDMI Type A Female (Black), 1 x Mini Stereo Jack Female (Green)
  Connectors
  Unit To Unit	2 x RJ-45 Female
  Power	1 x DC Jack (Black) with locking
  Control
  IR	1 x Mini Stereo Jack Female (Black)
  RS-232	Connector: 1 x Terminal Block, 3 pole
  Baud Rate	19200
  Data Bits	8
  Stop Bits	1
  USB	2 x USB Type A Female (Black)
  Pushbuttons
  ID Number Selection	3 x Push buttons
  Power Consumption	DC5V: 4.53W (43 BTU/h)
  Environmental
  Operating Temperature	0 – 40°C
  Storage Temperature	-20 – 60°C
  Humidity	0 – 80% RH, Non-Condensing
  Physical Properties
  Housing	Metal
  Weight	0.49 kg (1.08 lb)
  Dimensions (With Bracket)	14.02 x 12.30 x 3.06 cm (5.52 x 4.84 x 1.2 in.)
  Dimensions (Without Bracket)	13.60 x 10.10 x 2.96 cm (5.35 x 3.98 x 1.17 in.)
  Input Resolutions
  640x480p @ 59.94/60Hz (4:3)	720x576p @ 50/200Hz (4:3)/(16:9)
  720x480p @ 59.94/60/119.88/120/239.76/240Hz (4:3)/(16:9)	720x576p @ 100Hz (16:9)
  1280x720p @ 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120 Hz (16:9)	1440x480p @ 59.94/60Hz (4:3)/(16:9)
  1280x720p @ 29.97/30/50/59.94/60/100/119.88/120Hz	1440x576p @ 50Hz (4:3)/(16:9)
  1920x1080i @ 50/59.94/60/100/119.88/120Hz (16:9)	(2880)x480p @ 59.94/60Hz (4:3)/(16:9)
  1920x1080p @ 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120Hz (16:9)	1680x720p @ 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120 Hz
  720 (1440)x576i @ 50/100/200Hz (4:3)/(16:9)	2560x1080p @ 23.98/24/25/29.97/30/50/59.94/60Hz
  720 (1440)x480i @ 59.94/60Hz (4:3)/(16:9)	3840x2160p @ 23.98/24/25/29.97/30Hz (16:9)
  720 (1440)x288p @ 50Hz (4:3)/(16:9)	4096x2160p @ 23.98/24/25/29.97/30Hz
  720 (1440)x240p @ 59.94/60/119.88/120/239.76/240Hz (4:3)/(16:9)
