• Aten VE801 HDMI HDBaseT-Lite Extender – 4K@40m

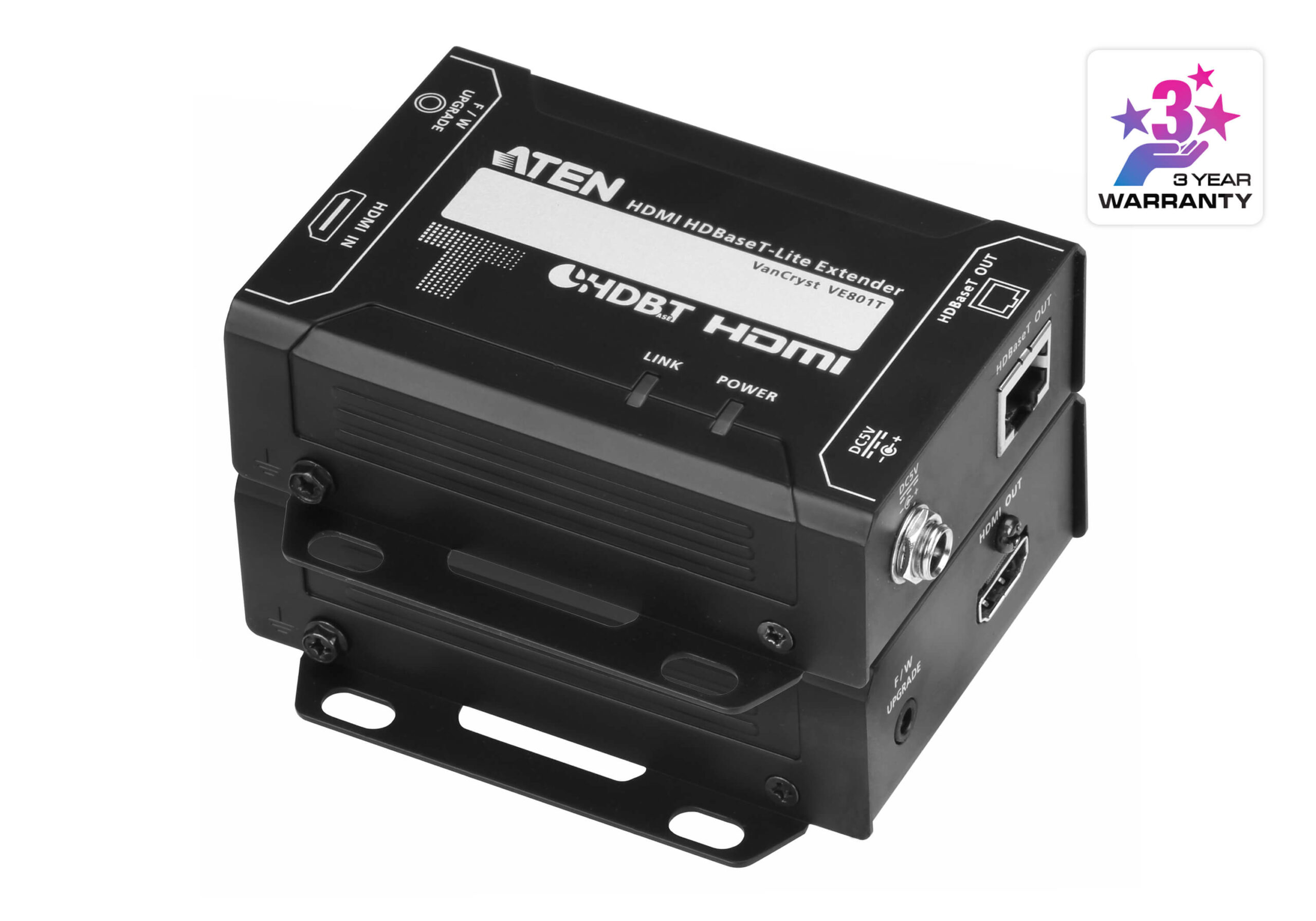

  The VE801 HDMI HDBaseT-Lite Extender extends an HDMI signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801 all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801 is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.


  Package Contents

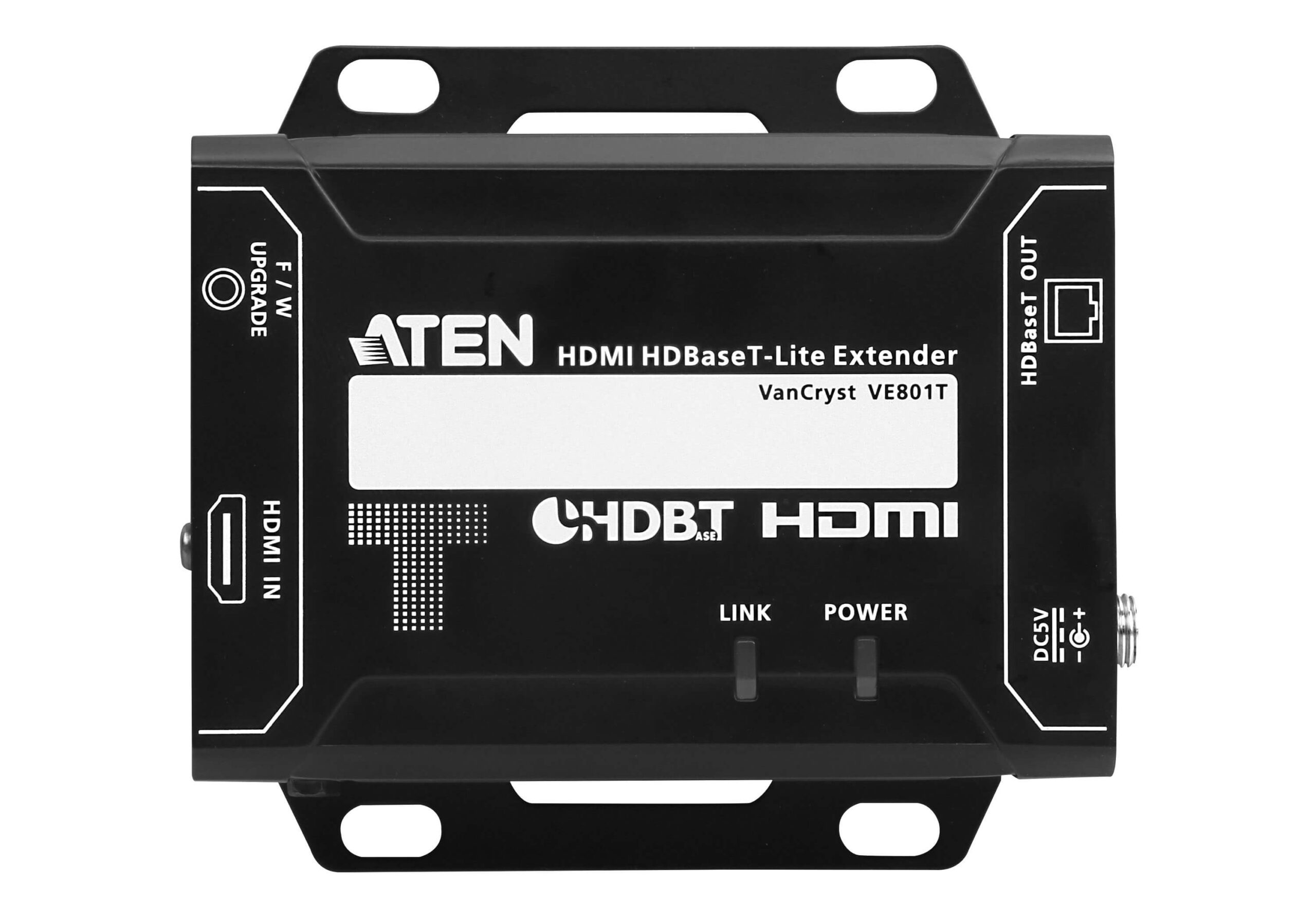

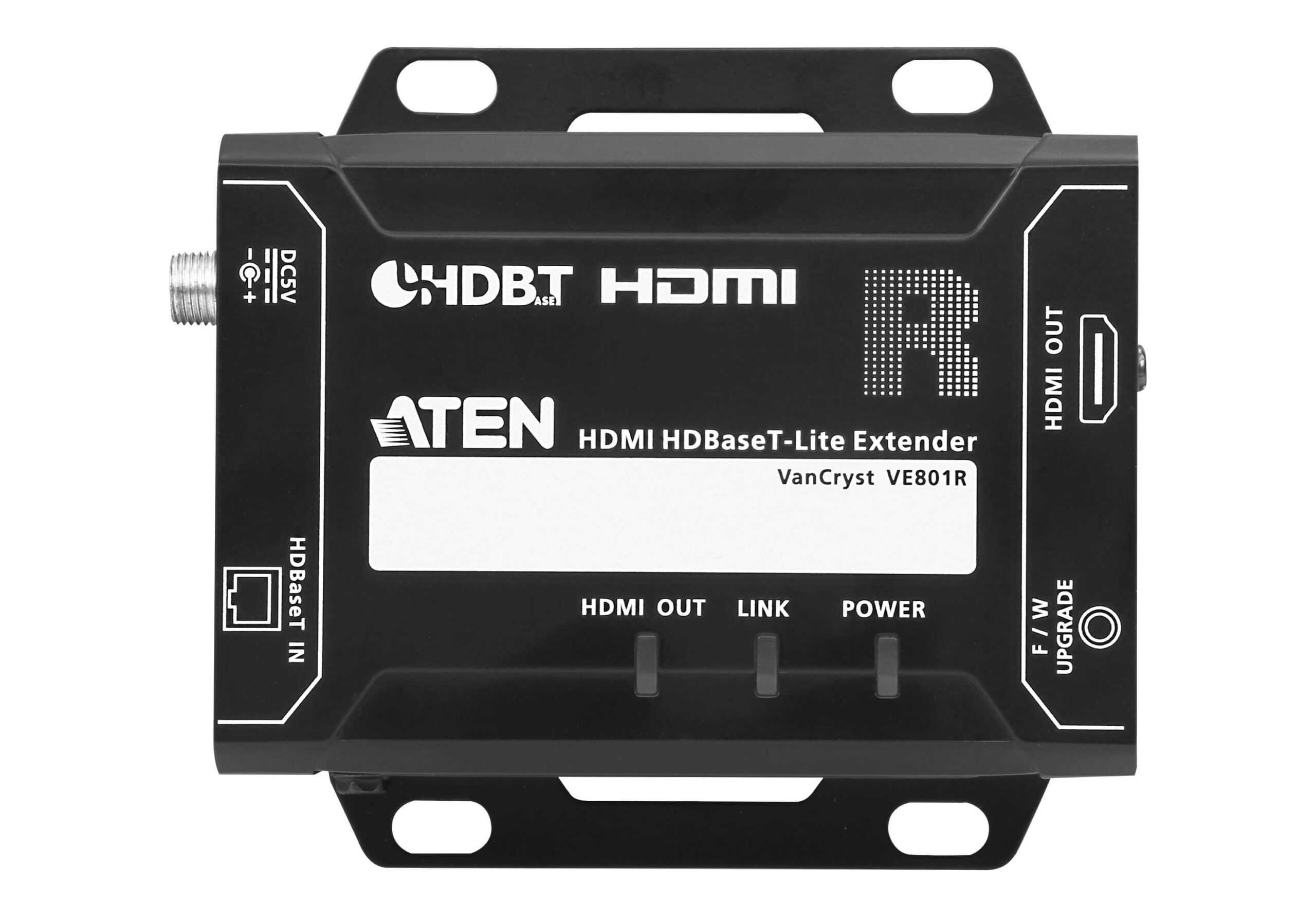

  1x VE801T/R HDMI HDBaseT-Lite Extender
  2x Power Adapters
  1x User Instructions


  Features
  Extends HDMI signals over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable
  HDMI (3D, Deep color, 4K); HDCP 2.2 compliant
  Superior video quality – up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
  HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
  Plug-and-play
  Rack-mountable

• Function	VE801R	VE801T

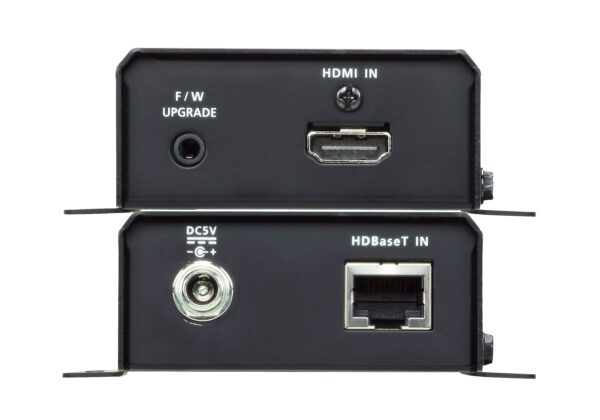

  Video Input	N/A	1 x HDMI Type A Female (Black)
  Impedance	N/A	100 Ω
  Max. Distance	N/A	3 m
  Video Output	1 x HDMI Type A Female (Black)	N/A
  Impedance	100 Ω	N/A
  Max. Distance	3 m	N/A
  Max. Data Rate	10.2Gbps (3.4Gbps per lane)	10.2Gbps (3.4Gbps per lane)
  Max. Pixel Clock	340 MHz	340 MHz
  Compliance	HDMI (3D, Deep Color, 4K), HDCP2.2 Compatible, CEC	HDMI (3D, Deep Color, 4K), HDCP2.2 Compatible, CEC
  Max. Resolutions / Distance	Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6); *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)	Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6); *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
  Audio Input	N/A	1 x HDMI Type A Female (Black)
  Audio Output	1 x HDMI Type A Female (Black)	N/A
  Power	1 x DC Jack (Black) with locking	1 x DC Jack (Black) with locking
  Unit To Unit	1 x RJ-45 Female	1 x RJ-45 Female
  Power Consumption	DC5V:4.24W:20BTU	DC5V:1.86W:9BTU
  Operating Temperature	0-50°C	0-50°C
  Storage Temperature	-20 – 60°C	-20 – 60°C
  Humidity	0% – 80% RH, Non-condensing	0% – 80% RH, Non-condensing
  Housing	Metal	Metal
  Weight	0.25 kg (0.55 lb)	0.24 kg (0.53 lb)
  Dimensions (L x W x H) with bracket	9.86 x 8.70 x 3.00 cm (3.88 x 3.43 x 1.18 in.)	9.86 x 8.70 x 3.00 cm (3.88 x 3.43 x 1.18 in.)
  Dimensions (L x W x H) without bracket	9.42 x 6.60 x 2.90 cm (3.71 x 2.6 x 1.14 in.)	9.42 x 6.60 x 2.90 cm (3.71 x 2.6 x 1.14 in.)
