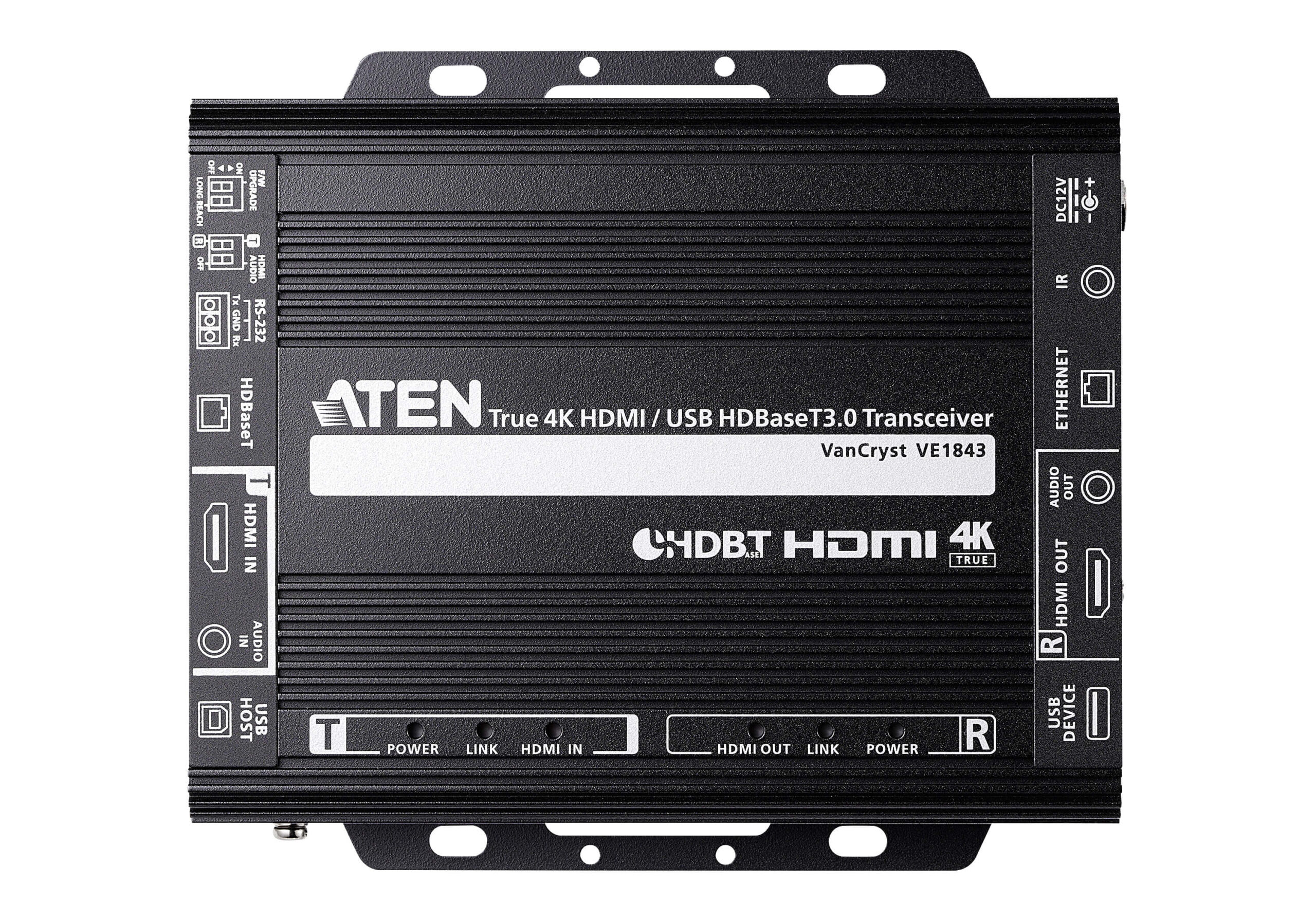

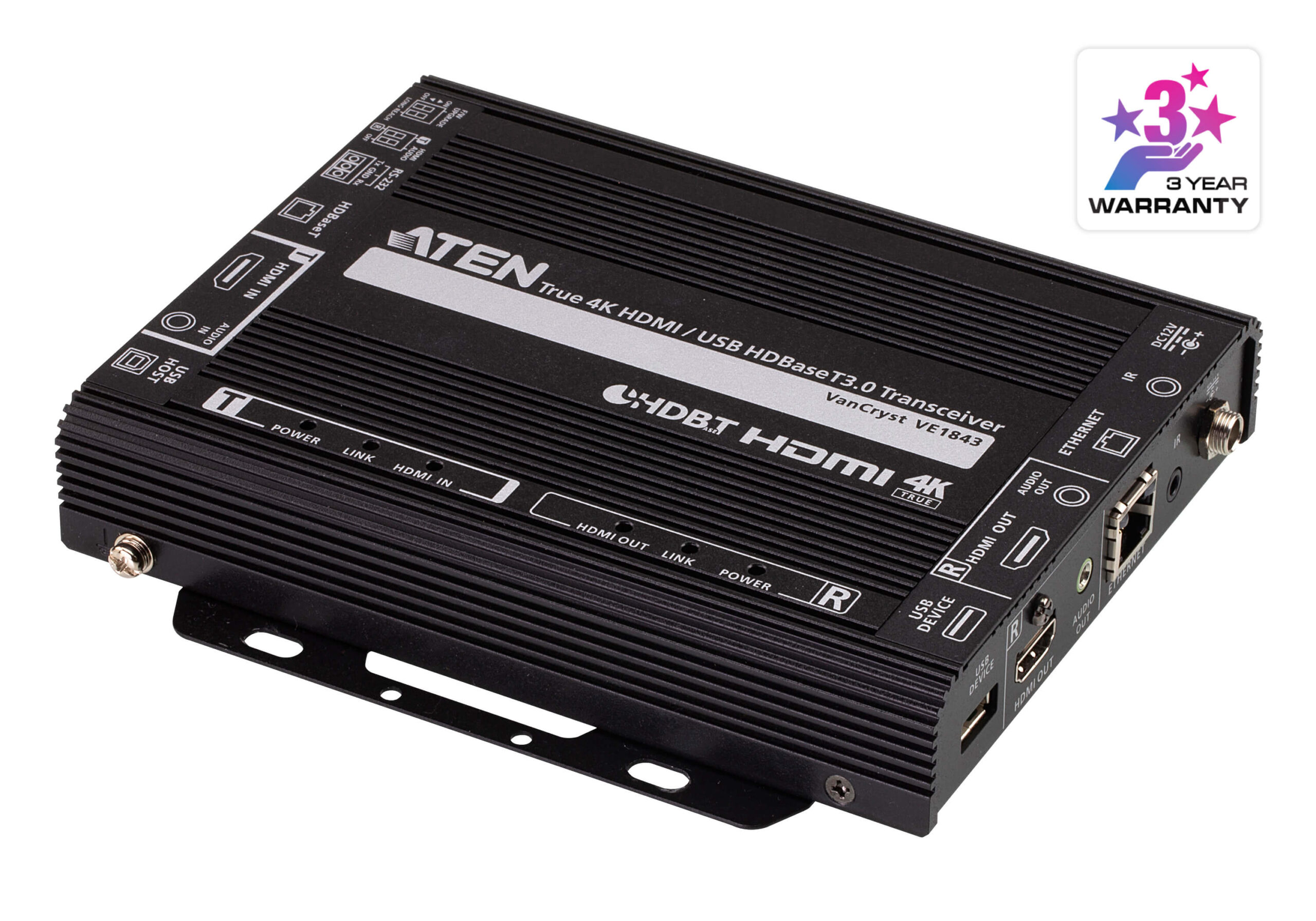

Aten VE1843 True 4K HDMI / USB HDBaseT 3.0 Transceiver
As ATEN ’s first video transceiver, the VE1843 features the latest HDBaseT 3.0 technology, allowing users to easily configure the unit to be a transmitter or receiver depending on the AV solution they need, while enabling uncompressed True 4K HDMI transmission up to 100m/328ft with zero latency via just one Cat 6A U/FTP cable. With its user-oriented hardware design and enhanced durability, this new model is purpose-built for spaces that require long-distance, yet high-quality, signal transmission with easy installation and non-stop operation, such as conference rooms, auditoriums, banquet halls, and museums.
* Cat 6A U/FTP is the recommended setting. The skewless nature and inter-pair shielding of FTP provides the better near-end crosstalk (NEXT, source end) and far-end crosstalk (FEXT, receiver end) parameters required to achieve the maximum performance and distance.
One Unit, Two Configurations
VE1843 integrates the functions of a transmitter and a receiver into one unit for users to easily set it to the direction (Tx / Rx) required and enjoy more flexible deployment with video matrix switches, splitters, and more.
Uncompressed True 4K HDMI with HDR @100m
Delivering uncompressed True 4K @ 60Hz 4:4:4 HDMI with HDR up to 100m/328ft over a Cat 6A U/FTP cable with no latency, VE1843 offers superior video quality even when output devices are located far away.
One Cable to Transmit It All
Streamline complex installation and enjoy multi-signal control by using a Cat 6A U/FTP cable to extend signals including high-quality video, audio, IR, RS-232, Gigabit Ethernet, and USB 2.0 for remotely located equipment management. -

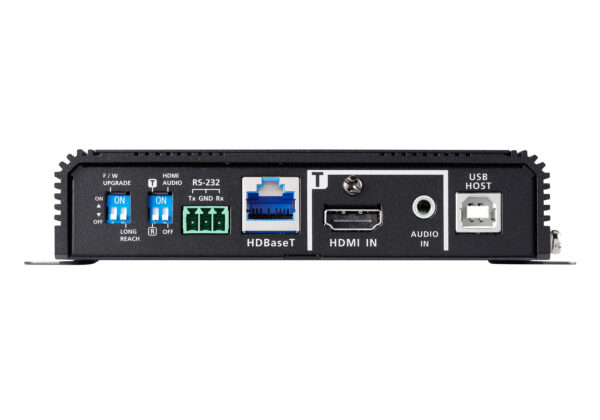

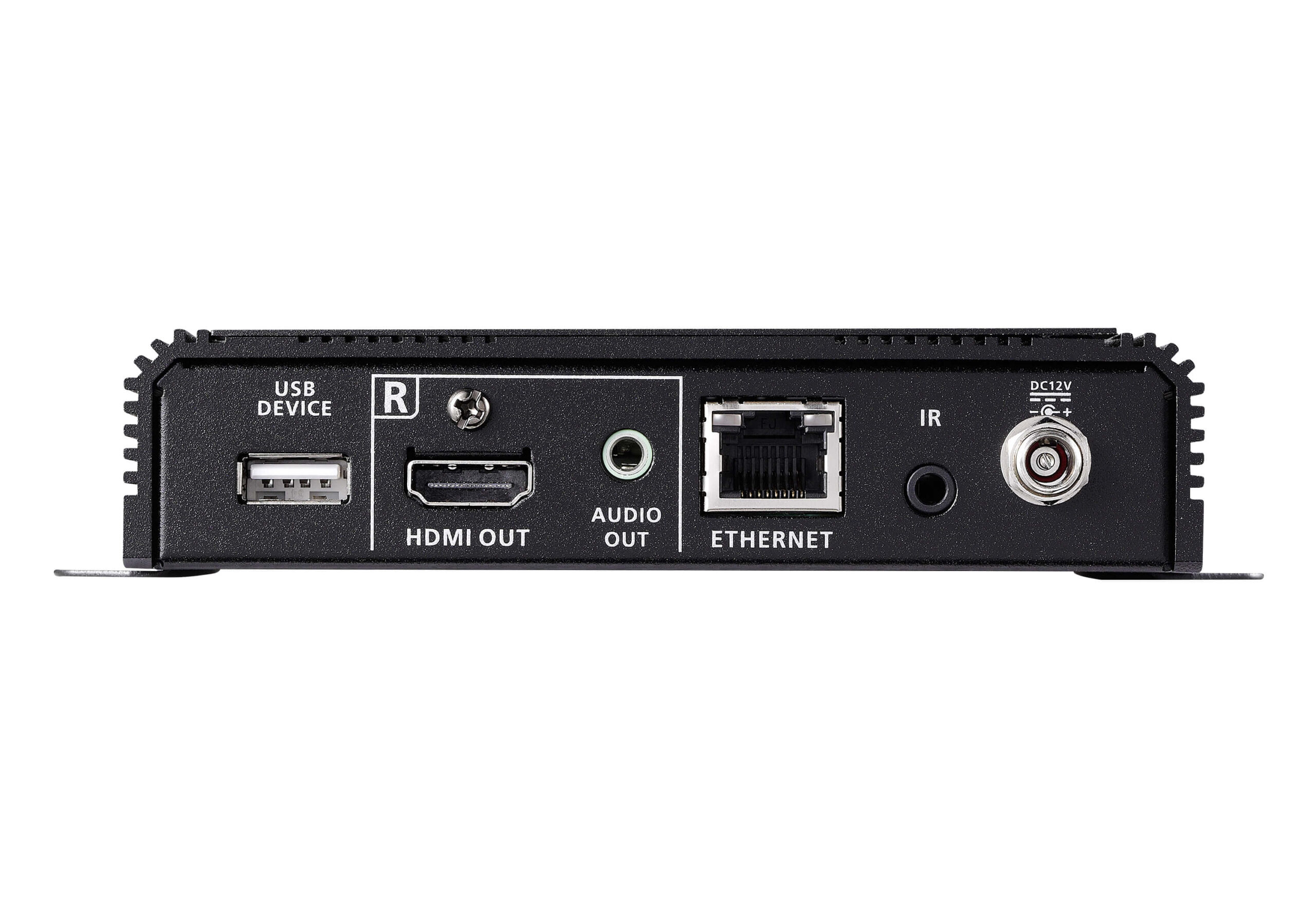

Category Specification Video Input Interfaces 1 x HDMI Type A Female (Black) Impedance 100 Ω Max. Distance 5 m Video Output Interfaces 1 x HDMI Type A Female (Black) Impedance 100 Ω Max. Distance 5 m Video Max. Data Rate 18Gbps (6Gbps per lane) Max. Pixel Clock 600 MHz Compliance HDMI (3D, Deep Color, 4K/60Hz); 4K HDR HDCP2.3 Compatible Yes Max. Resolution 4096 x 2160 @ 60Hz (4:4:4) Supported Resolutions 3840 x 2160 @ 60Hz (4:4:4) Max. Resolutions / Distance Up to 4K x 2K @ 60Hz (4:4:4) @100m Audio Input 1 x HDMI Type A Female (Black) 1 x Stereo Audio (mini stereo Jack female, Green) Output 1 x HDMI Type A Female (Black) 1 x Stereo Audio (mini stereo Jack female, Green) Connectors Unit To Unit 1 x RJ-45 Female Power 1 x DC Jack (Black) with locking Control RS-232 Channel Connector: 1 x Terminal Block, 3 pole Baud Rate: 19200, Data Bits: 8, Stop Bits: 1 No parity and flow control IR Channel 1 x Mini Stereo Jack Female, (Bi-directional, Black) 30K ~56KHz full range transmission Ethernet Channel 1 x GbE (RJ45 Female) USB Channel 1 x USB2.0 Type B Female (White, Host) 1 x USB2.0 Type A Female (White, Device) Transmission data bandwidth: Up to 300Mbps Power Consumption DC12V: 6.45W / 40BTU/h Switches Selection 1 x Slide Switch – TX/RX selection Mode Selection 1 x Slide Switch – HDMI Audio embed or De-embed ON/OFF Firmware Upgrade 1 x Slide Switch – ON/OFF Long Reach Mode Switch 1 x Slide Switch – ON/OFF (Reserved) LEDs Power 1 x TX (Transmitter, Green) 1 x RX (Receiver, Green) Link 1 x TX (Transmitter, Orange) 1 x RX (Receiver, Orange) Video Output 1 x RX HDMI OUT (Receiver, Orange) Video Input 1 x TX HDMI IN (Transmitter, Orange) Environmental Operating Temperature 0 – 40°C Storage Temperature -20 – 60°C Humidity 0 – 80% RH, Non-Condensing Physical Properties Housing Metal Weight 0.64 kg (1.41 lb) Dimensions (L x W x H) 17.15 x 15.09 x 3.00 cm (6.75 x 5.94 x 1.18 in.) Input Resolutions 4096 x 2160p 24/25/30/50/60Hz 3840 x 2160p 24/25/30/50/60Hz 1080p 24/25/30/50/60Hz 1080i 50/60Hz 720p 50/60Hz 480p 60Hz -
