• Aten USB VGA/Audio Cat 5 KVM Extender (1280 x 1024@200m) | CE750A-AT-E

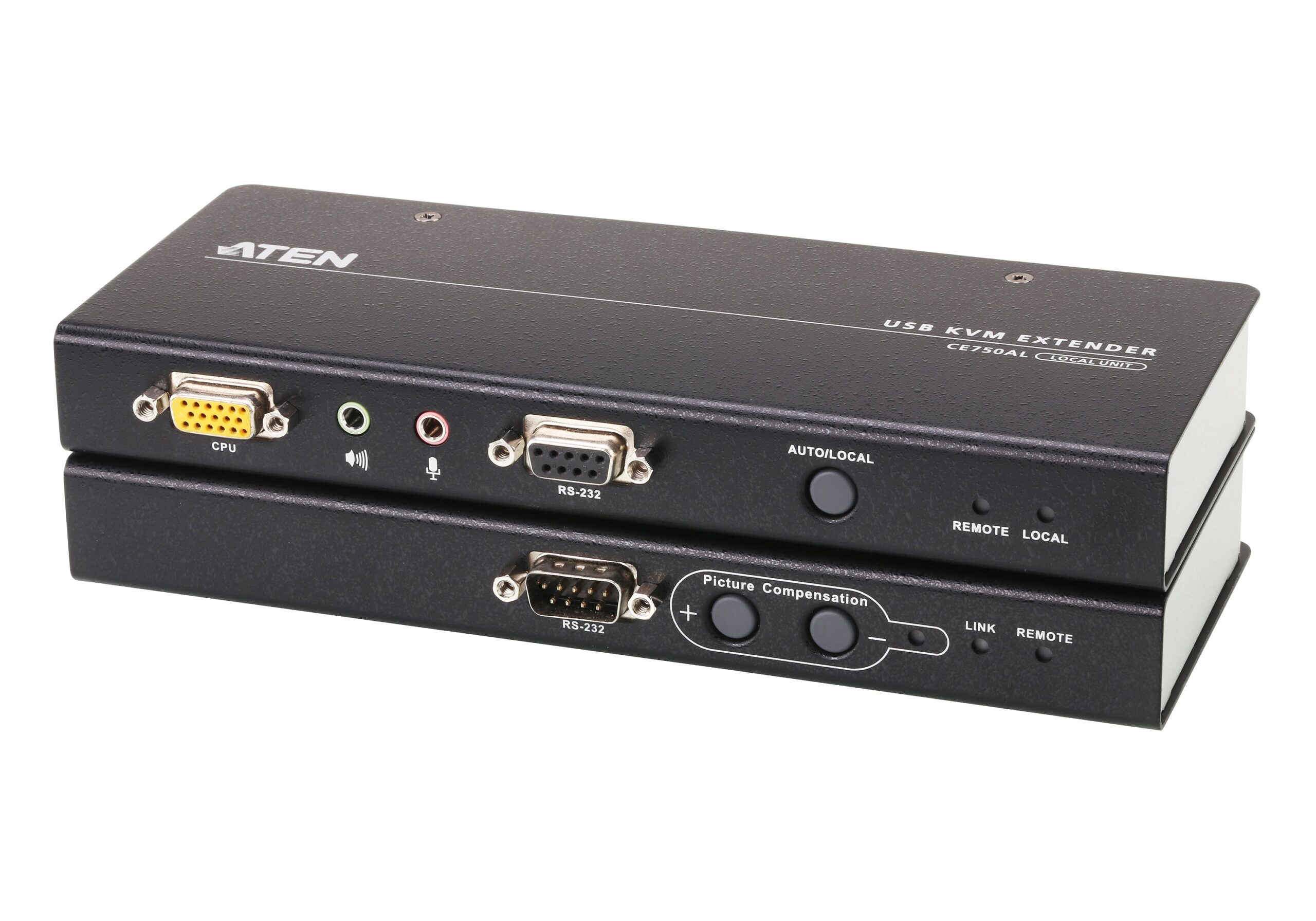

  The CE750A is a USB-based KVM Extender with automatic signal compensation and RS-232 serial functionality that allows access to a computer system from a remote USB console (USB keyboard, monitor, and USB mouse).

  Because it allows access to a computer system from a remote console, the CE750A is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – for example away from the dust and dirt of the factory floor or the harsh environment of a construction site.

  The CE750A improves on previous designs by the addition of an RS-232 port, on both the Local and Remote Units, that allows you to connect to a serial terminal for configuration (Local Unit) or serial devices such as touchscreens and barcode scanners (Remote Unit).


  Package Contents
  1x CE750AL USB KVM Extender (Local Unit)
  1x CE750AR USB KVM Extender (Remote Unit)
  1x Custom KVM Cable (VGA, USB, Audio; 1.8m/6ft)
  2x Power Adapters
  1x Mounting Kit
  1x User Instructions

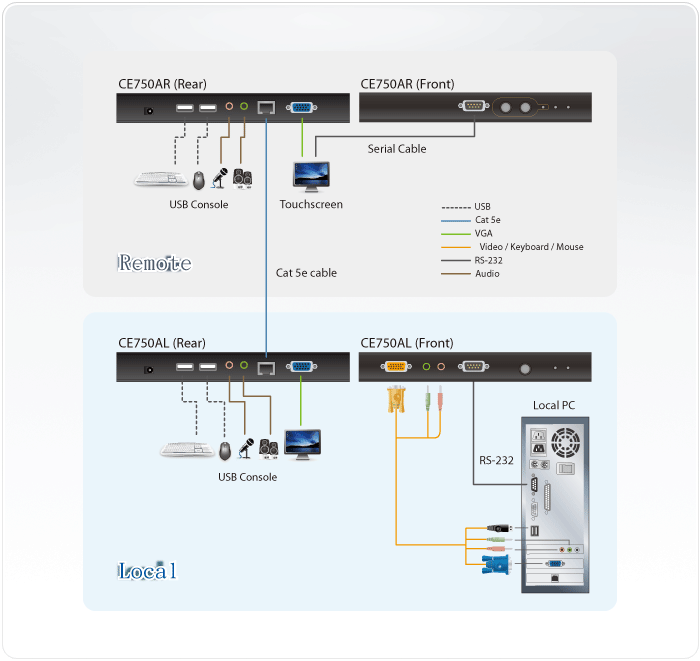

  Local and Remote units connect at distances up to 200 meters using Cat 5e cable
  Dual console operation – control your system from both the local and remote USB keyboard, monitor, and mouse consoles
  Built-in ASIC for greater reliability and compatibility
  USB keyboard and USB mouse ports
  RS-232 serial ports – allows you to connect to a serial terminal for configuration (Local Unit) or serial devices such as touchscreens and barcode scanners (Remote Unit)
  Supports stereo speakers and stereo microphone
  USB overcurrent detection and prevention
  Pushbutton operating mode selection (Local Unit only) – select between Local and Auto operating modes
  Built-in 8KV/15KV ESD protection (contact voltage 8KV, air voltage 15KV) and 2KV surge protection
  Adjustable gain control – automatically and manually adjusts signal strength to compensate for distance
  High resolution video – up to 1920×1200@60Hz at 30m,1600×1200@60Hz at 150m, 1280×1024@60Hz at 200m
  Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), and multisync monitors; local monitor supports DDC, DDC2, DDC2B
  Hot pluggable
  Rack mountable
  Easy to install – no software required, simply connect cables to the devices
  Supports wide screen formats*

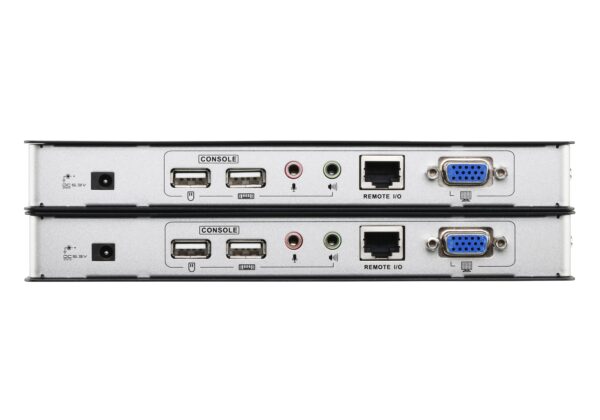

• Function	CE750AL	CE750AR
  Connectors
  Console Ports	2 x USB Type A Female (White)	2 x USB Type A Female (White)
  	1 x HDB-15 Female (Blue)	1 x HDB-15 Female (Blue)
  	1 x Mini Stereo Jack Female (Green)	1 x Mini Stereo Jack Female (Green)
  	1 x Mini Stereo Jack Female (Pink)	1 x Mini Stereo Jack Female (Pink)
  KVM Ports	1 x SPHD-15 Female (Yellow)	N/A
  	1 x Mini Stereo Jack Female (Green)
  	1 x Mini Stereo Jack Female (Pink)
  RS-232	1 x DB-9 Female (Black)	1 x DB-9 Male (Black)
  Power	1 x DC Jack (Black)	1 x DC Jack (Black)
  Unit To Unit	1 x RJ-45 Female (Black)	1 x RJ-45 Female (Black)
  LEDs
  Remote	1 (Green)	1 (Green)
  Link	N/A	1 (Green)
  Local	1 (Green)	N/A
  Picture Compensation	N/A	1 (Orange)
  Pushbuttons
  Operating Mode Selection	1 x Pushbutton	N/A
  Picture Compensation	N/A	2 x Pushbuttons
  Emulation
  Keyboard / Mouse	USB	USB
  Video	1920×1200@60Hz at 30m;	1920×1200@60Hz at 30m;
  	1600×1200@60Hz at 150m;	1600×1200@60Hz at 150m;
  	1280×1024@60Hz at 200m	1280×1024@60Hz at 200m
  Power Consumption	DC5.3V: 2.44W (16 BTU/h)	DC5.3V: 3.27W (20 BTU/h)
  	Note: Watts indicate typical consumption; BTU/h indicates full load consumption.	Note: Watts indicate typical consumption; BTU/h indicates full load consumption.
  Environmental
  Operating Temperature	0-50˚C	0-50˚C
  Storage Temperature	-20-60˚C	-20-60˚C
  Humidity	0-80% RH, Non-condensing	0-80% RH, Non-condensing
  Physical Properties
  Housing	Metal	Metal
  Weight	0.47 kg (1.04 lb)	0.47 kg (1.04 lb)
  Dimensions (L x W x H)	20.20 x 8.63 x 2.50 cm	20.20 x 8.51 x 2.50 cm
  	(7.95 x 3.4 x 0.98 in.)	(7.95 x 3.35 x 0.98 in.)
  Note	For rack mount products, dimensions are expressed as LxWxH.
