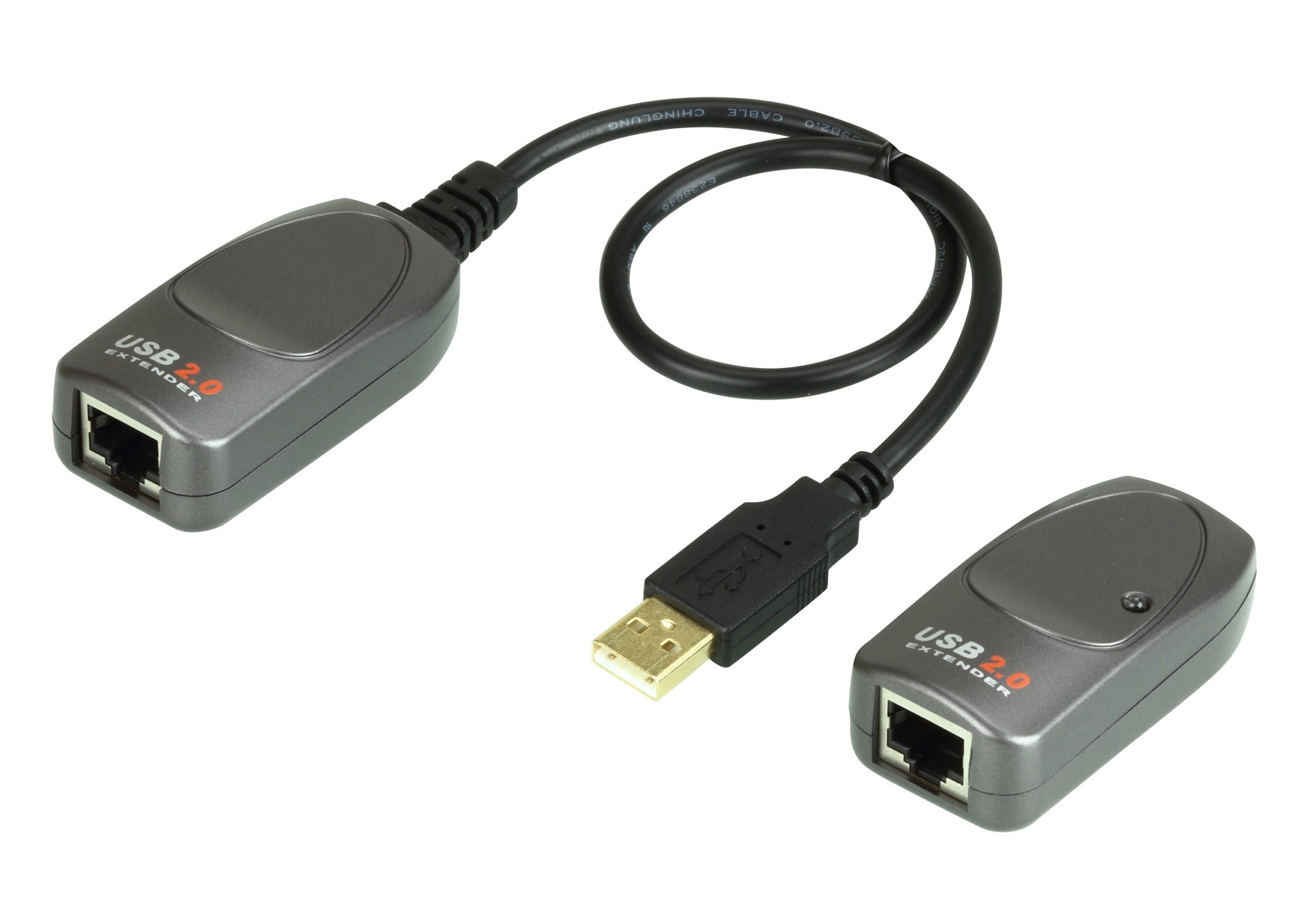

Aten UCE260 USB 2.0 Cat 5 Extender (up to 60m)

• Description
• Specifications
• Downloads

• Aten UCE260 USB 2.0 Cat 5 Extender (up to 60m)

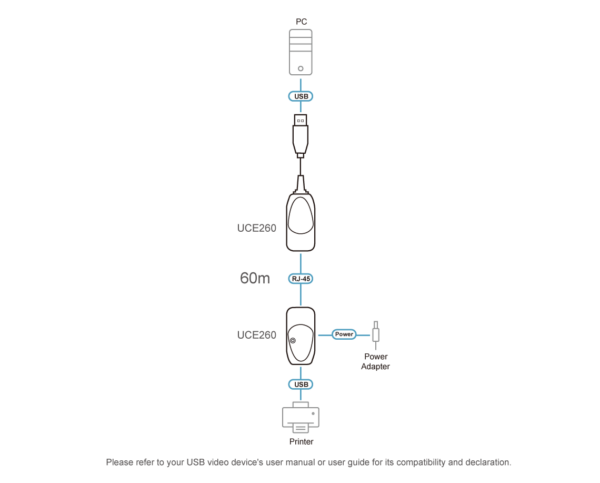

  UCE260 can easily send the USB signals via Ethernet Cable up to 60 meters (196 ft) at data rate of High Speed (480Mb/s) , Full Speed (12Mb/s) and Low Speed (1.5Mb/s). Without any configuration or software driver, this USB extender allows you to extend your USB device or hub up to 60m from your computer, which overcomes the typical USB cable limitation.

  Package Contents
  1x Local Unit with USB Cable
  1x Remote Unit
  1x Power Adapter (5V, 2.6A)
  1x User Instructions


  Features
  Supports any High-Speed (480Mb/s), full-speed (12 Mb/s) or low-speed (1.5 Mb/s) USB devices
  Extends signal transmission distance of a USB devices up to 60m via an Ethernet Cable
  Includes an AC adapter to stabilize power supply
  Hot-Pluggable
  The most cost-effective USB extender solution
  No additional software driver required

• Function	Local Unit	Remote Unit
  Connectors	1 x USB Type A Male	1 x USB Type A Female
  	1 x RJ45 Female	1 x RJ45 Female
  	N/A	1 x DC Power Jack
  USB Specification	2.0 For High / Full / Low Speed	2.0 For High / Full / Low Speed
  USB Devices Supported	N/A	1 Device
  Power Consumption	DC5V:0.65W:3BTU/h	DC5V:0.95W:15BTU/h
  Operating Temperature	0–40°C	0–40°C
  Storage Temperature	-20–60°C	-20–60°C
  Humidity	0–80% RH, Non-condensing	0–80% RH, Non-condensing
  Housing	Plastic	Plastic
  Weight	0.04 kg (0.09 lb)	0.02 kg (0.05 lb)
  Dimensions (L x W x H)	6.30 x 3.10 x 2.19 cm (2.48 x 1.22 x 0.86 in.)	6.30 x 3.10 x 2.19 cm (2.48 x 1.22 x 0.86 in.)
