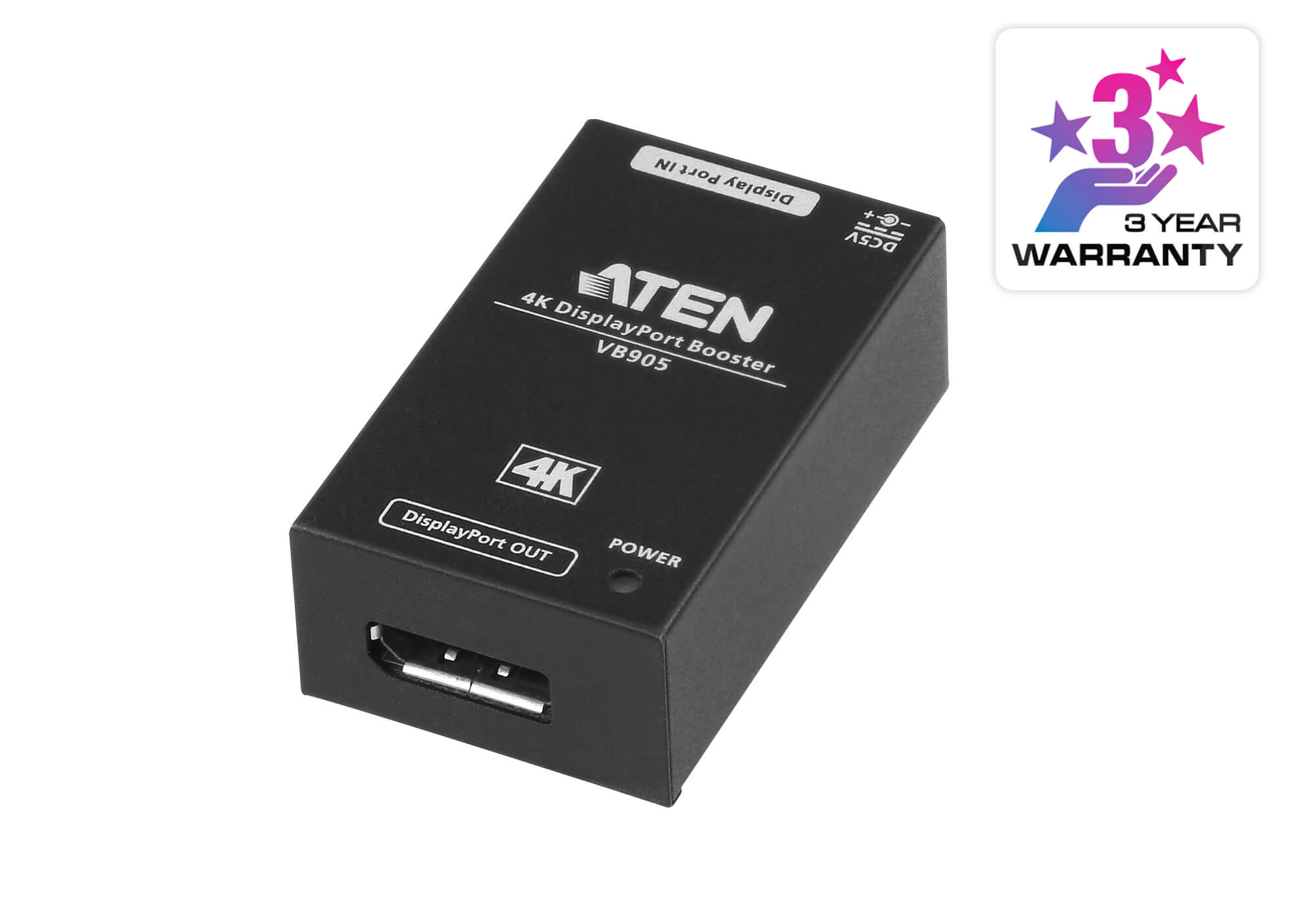

• Aten True 4K DisplayPort Booster | VB905-AT-E

  ATEN VB905 extends True 4K signal from a source device to a display up to 5 meters. For long distance transmission, the VB905 can be cascaded up to 3 levels (20 meters), guaranteeing ultimate color and image quality.

  The VB905 supports all DisplayPort enabled devices. For installation flexibility, the booster can be rack mounted, offering excellent fl exibility for managing both work and home settings.

  Package Contents
  1x VB905 True 4K DisplayPort Booster
  1x Power Adapter
  1x User Instructions


  Features
  Extends True 4K signal transmission up to 5 m
  Compliant with DisplayPort 1.2a and HDCP 2.2
  Superior video quality – up to True 4K resolutions of 4096 x 2160 @ 60 Hz (4:4:4)
  Supports HDR
  Cascade 3 levels to extend True 4K signal up to 20 m
  A single unit can be powered from the source device
  Plug-and-play
  Rack mountable

  Note: Longer transmission distance is possible with lower data rates. If you want to remain high quality transmission, please use higher quality cable.

• Category	Specification
  Video Input	1 x DisplayPort Female (20-pin)
  Max. Distance	Up to 4Kx2K@60Hz (4:4:4) / 5m, 1080p@60Hz / 5m
  Video Output	1 x DisplayPort Female (20-pin)
  Max. Distance	Up to 4Kx2K@60Hz (4:4:4) / 5m, 1080p@60Hz / 5m
  Max. Data Rate	21.6 Gbps (5.4 Gbps Per Lane)
  Compliance	DP1.2a, HDCP 2.2
  Max. Resolution	4096 x 2160@60Hz (4:4:4)
  Power	1 x DC Jack
  Power Consumption	DC5V: 0.937W (4BTU/h)
  Environmental	Operating Temperature: 0 – 40°C
  	Storage Temperature: -20 – 60°C
  	Humidity: 0 – 80% RH, Non-Condensing
  Physical Properties	Housing: Metal
  	Weight: 0.05 kg (0.11 lb)
  	Dimensions (L x W x H): 5.84 x 3.53 x 2.06 cm (2.3 x 1.39 x 0.81 in.)
  Carton Lot	10 pcs
