Aten Mini Cat 5 DVI Extender (1080p @ 15m/1080i @ 20m) | VE066-AT

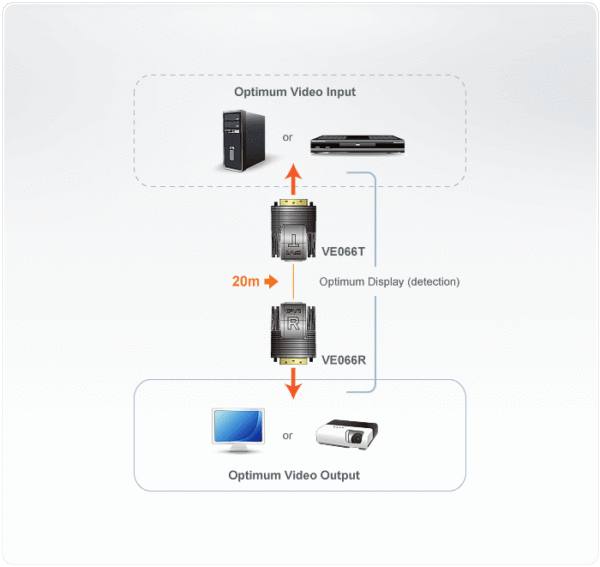

The VE066 Mini Cat 5 DVI Extender allows you to increase the distance between your DVI display and DVI source by up to 20 m using only one Cat 5e or Cat 6 cable, providing a convenient way to replace heavy and expensive DVI cables. With hot-plugging support, easily add or remove the VE066 Transmitter connected to the source or the VE066 Receiver connected to the display without having to power down the devices. Compatible with all ATEN DVI switches and DVI splitters, the VE066 Mini Cat 5 DVI Extender is a compact, convenient and economical way to extend your DVI display.
Package Contents

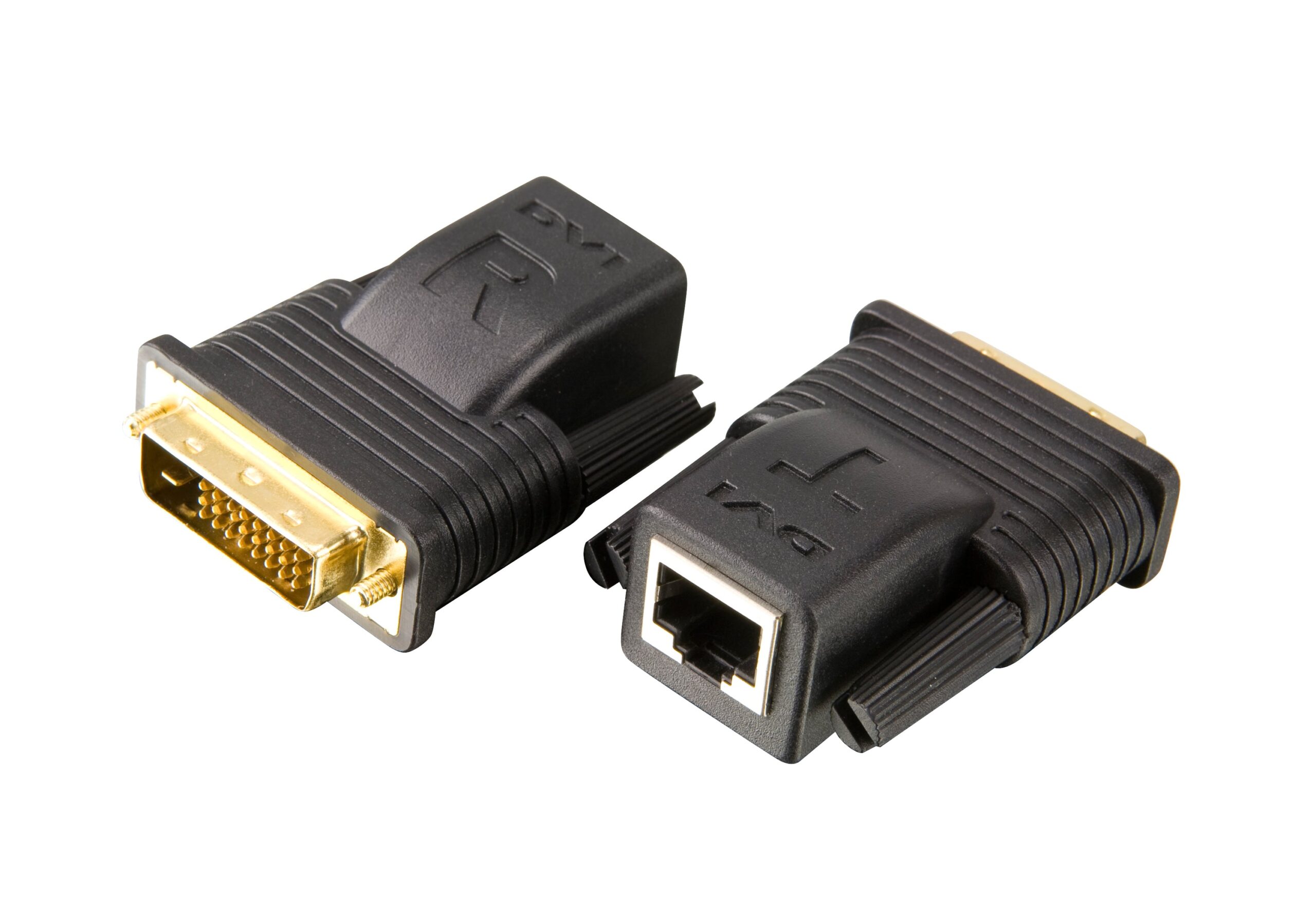

1x VE066T Mini Cat 5 DVI Extender (Transmitter)
1x VE066R Mini Cat 5 DVI Extender (Receiver)
1x User Instructions
Features
Extends the distance between DVI source and DVI display
Uses Cat 5e cable to connect the Transmitter and Receiver units
Long distance transmission – up to 1080i @ 20 m; 1080p @ 15 m*
HDCP 1.1 Compliant
Supports hot-plugging
Compact housing
Compatible with all ATEN DVI switches and DVI splitters
Supports LCD Screen, Plasma TV, and projectors
Perfect for Home entertainment system, Bank, Surveillance system, Outdoors multimedia display, Airport, Finance institution
Smart Video Display – Image quality is optimized based on the available resolution of the output device
Non-Powered*Note: For optimal resolution of 1920 x 1200, its true effective transmission distance may be shorter depending on the installation site. Using different source / display devices will result in varying results. For best results, we recommend using high-quality cables.
-
Category Specification Bandwidth 4.95 Gbit/s Frequency 165 MHz Cable Types Supported Cat5e HDCP Support Yes Impedance 100 Ω Material Plastic Maximum Resolution 1920 x 1080 Pixels Maximum Transfer Distance 20 m Product Colour Black Type AV transmitter & receiver Legal Information EU ECCN: N/A, US ECCN: 5A992 Logistics Data Master case: 3.93 kg, 24x41x22.5 cm, 20 pcs Operational Conditions Humidity: 0-80%, Temp: 0-50°C (Operating), -20-60°C (Storage) Package Dimensions 10.8×22.7×4.1 cm, 0.154 kg Packaging Content Quick start guide: Yes Packaging Data Quantity per pack: 2 pc(s) Ports & Interfaces DVI: 1 input, 1 output, Connectivity: Wired Product Dimensions 10.7×3.8×19.6 cm, 0.1 kg Technical Details Certificates: RoHS Vendor Information Brand: Aten, Warranty: 2 Year(s) Weight & Dimensions Transmitter/Receiver: 56.6×40.7×21.5 mm, 50 g each -
