• Aten HDMI Repeater Plus Audio De-embedder | VC880-AT-E

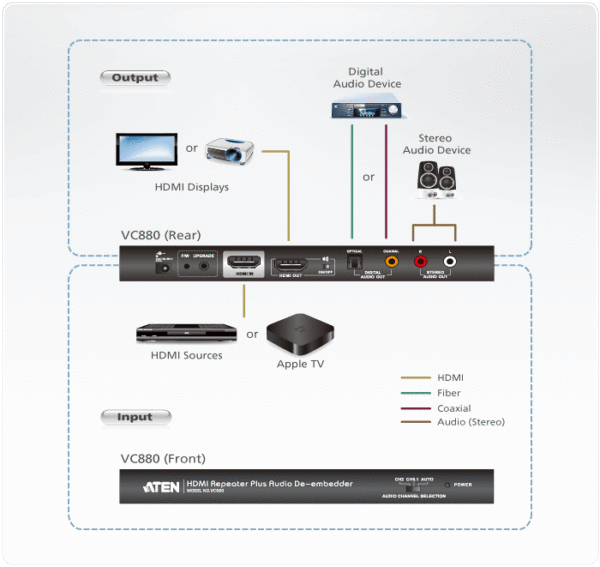

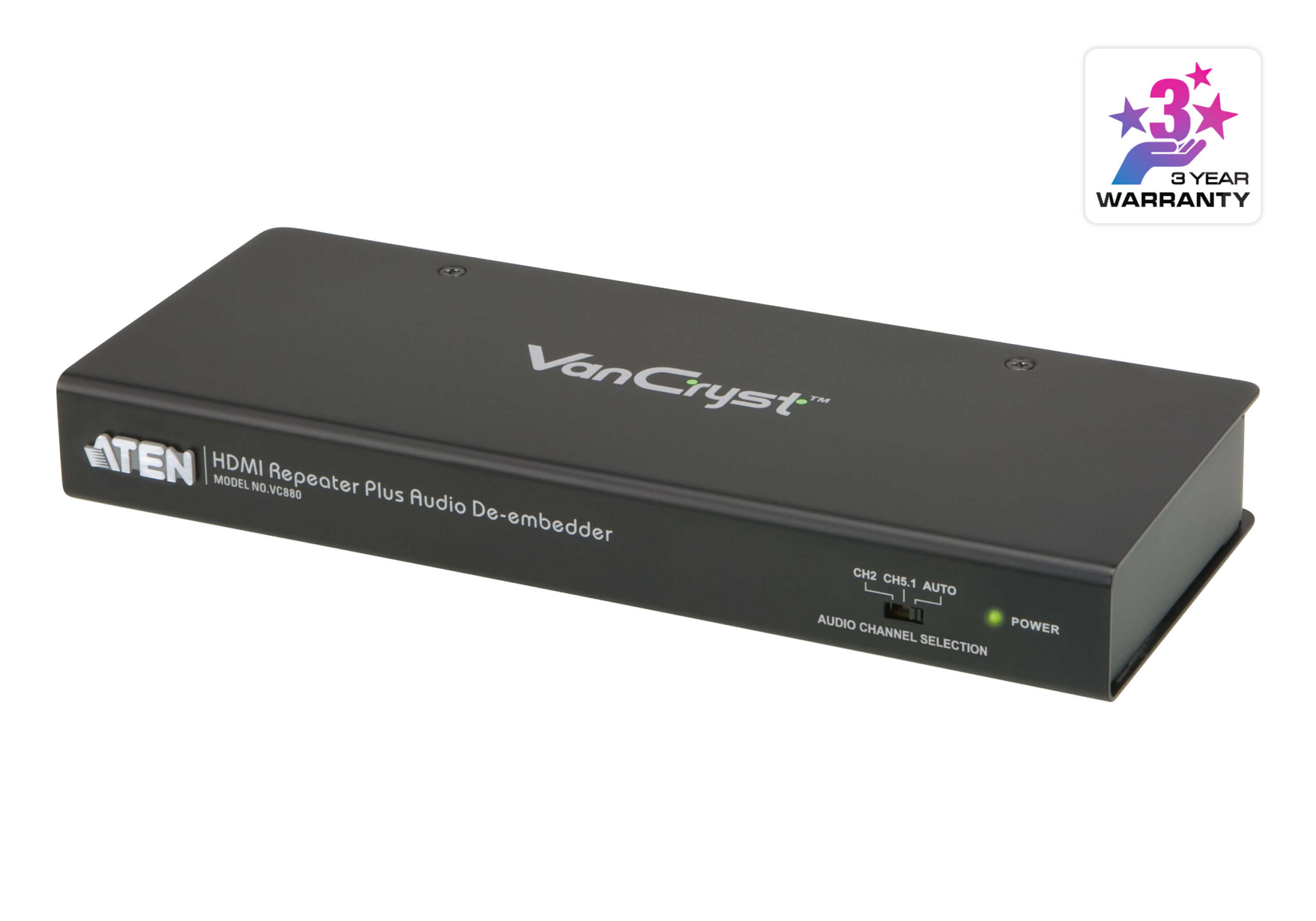

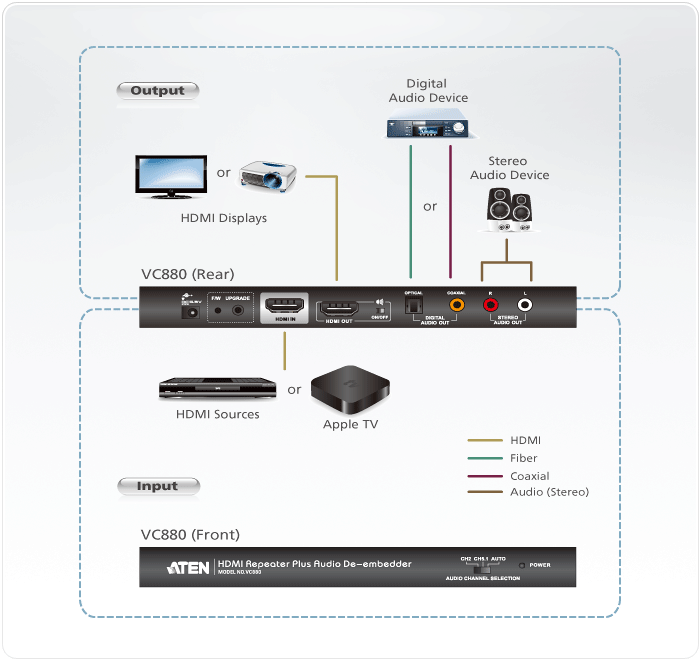

  The VC880 is an HDMI Repeater with an added audio de-embedder that extracts and converts the audio signal from the HDMI input. This means that as well as the repeated HDMI audio and video signal output, users can also choose between analog stereo audio via RCA connectors or digital audio via optical or coaxial connectors as an additional high quality audio output. With support for 3D TV formats, the VC880 is ideal for users who want to enjoy high defi nition video with their choice of high defi nition audio output on TVs, projectors, A/V receivers or speakers.

  Package Contents
  1x VC880 HDMI Repeater Plus Audio De-embedder
  1x Power Adapter
  1x User Instructions


  Features
  Repeats HDMI input signal up to 15 meters
  Extracts HDMI audio signal and outputs as additional audio source
  Supports optical / coaxial digital audio and analog stereo audio*
  HDCP 1.1 compatible
  Superior Video Quality – up to 1920×1080 (1080p)
  Firmware upgradable

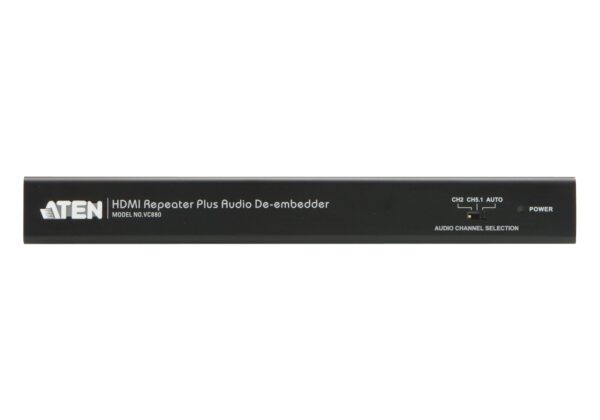

  CH2/CH5.1/Auto mode audio channel selection
  HDMI (3D)
  Supports Dolby True HD and DTS HD Master Audio
  Supports Audio on/off switch for HDMI output
  Expandable to three levels – provides three levels of audio output for one HDMI at distance up to 45 m
  Integrates with Apple TV for the perfect home entertainment system

• Category	Specification
  Video Input
  Interfaces	1 x HDMI Type A Female (Black)
  Impedance	100 Ω
  Max. Distance	3m at 1920×1080@60 (4:4:4)
  Video Output
  Interfaces	1 x HDMI Type A Female (Black)
  Impedance	100 Ω
  Max. Distance	15m at 1920×1080@60 (4:4:4)
  Video
  Max. Data Rate	6.75 Gps (2.25 Gbps Per Lane)
  Max. Pixel Clock	225 MHz
  Compliance	HDMI (3D, Deep Color), HDCP Compatible
  Max. Resolution	Up to 1920 x 1080
  Audio Output	1 x HDMI Type A Female (Black);
  	1 x Toslink (Black);
  	1 x RCA (Orange);
  	2 x RCA (Red/White)
  Connectors
  Power	1 x DC Jack
  Power Consumption	DC5.3V:2.25W:11BTU/h
  Environmental
  Operating Temperature	0 – 50 ºC
  Storage Temperature	-20 – 60 ºC
  Humidity	0 – 80% RH, Non-Condensing
  Physical Properties
  Housing	Metal
  Weight	0.46 kg (1.01 lb)
  Dimensions	20.00 x 8.20 x 2.50 cm (7.87 x 3.23 x 0.98 in.)
  Carton Lot	20 pcs
  Note	Standard dimensions in rack mount products are expressed in LxWxH.
