• Aten HDMI HDBaseT Receiver (4K@100m) (HDBaseT Class A) | VE812R-AT-E

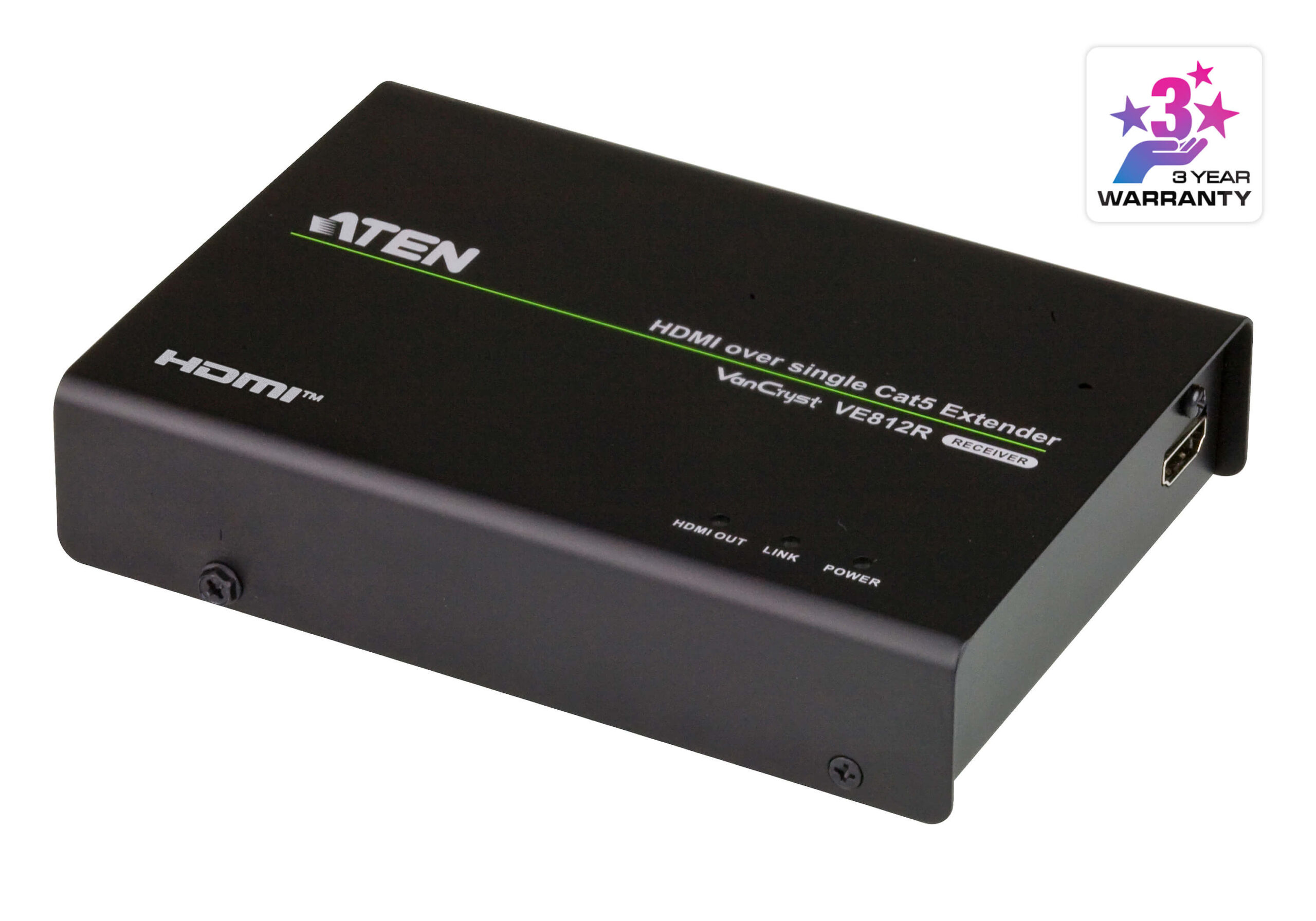

  The VE812R HDMI HDBaseT Receiver enables an HDMI display to be located up to 100 meters away from the source device. It can be conveniently extended using only one Cat 5e cable, which is cost-effective.

  The VE812R supports HDMI (3D, Deep Color), Ultra HD (4k x 2k), and is HDCP compatible. Furthermore, the remote EDID pass-through ensures optimum video quality for any HDMI display.

  The VE812R is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.

  Package Contents
  1x VE812R HDMI HDBaseT Receiver
  1x Power Adapter
  1x Mounting Kit
  1x User Instructions


  Features
  Extends the distance between HDMI source and HDMI display

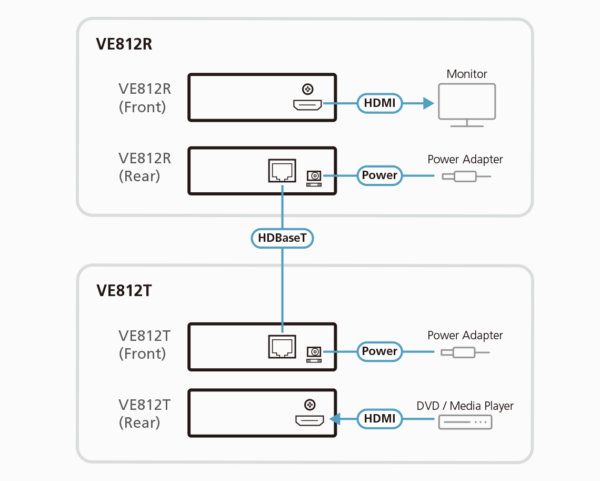

  Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver
  HDMI (3D, Deep Color, 4k); HDCP Compatible
  Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
  Long distance transmission – up to 100m
  Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
  Supports up to 340MHz bandwidth for high performance video
  Supports Dolby True HD and DTS HD Master Audio
  Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)

• Category	Specification
  Video Output	1 x HDMI Type A Female (Black)
  Impedance	100 Ω
  Max. Distance	3 m
  Max. Data Rate	10.2 Gbps (3.4 Gbps Per Lane)
  Max. Pixel Clock	Up to 340 MHz
  Compliance	HDMI (3D, Deep Color, 4K), HDCP2.2 Compatible, Consumer Electronics Control (CEC)
  Max. Resolutions / Distance	Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a); 1080p@100m
  4K Supported	4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
  Audio Output	1 x HDMI Type A Female (Black)

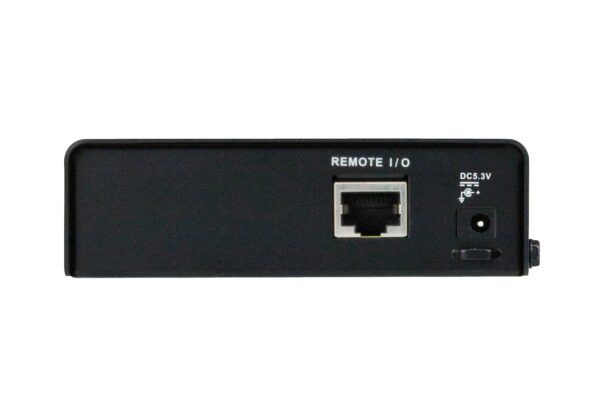

  Connectors	Power: 1 x DC Jack
  Power Consumption	DC5.3V: 5.06W (24BTU/h)
  Environmental	Operating Temperature: 0 – 50°C
  	Storage Temperature: -20 – 60°C
  	Humidity: 0 – 80% RH, Non-Condensing
  Physical Properties	Housing: Metal
  	Weight: 0.41 kg (0.9 lb)
  	Dimensions (L x W x H): 14.17 x 10.30 x 3.00 cm (5.58 x 4.06 x 1.18 in.)
  Carton Lot	5 pcs
