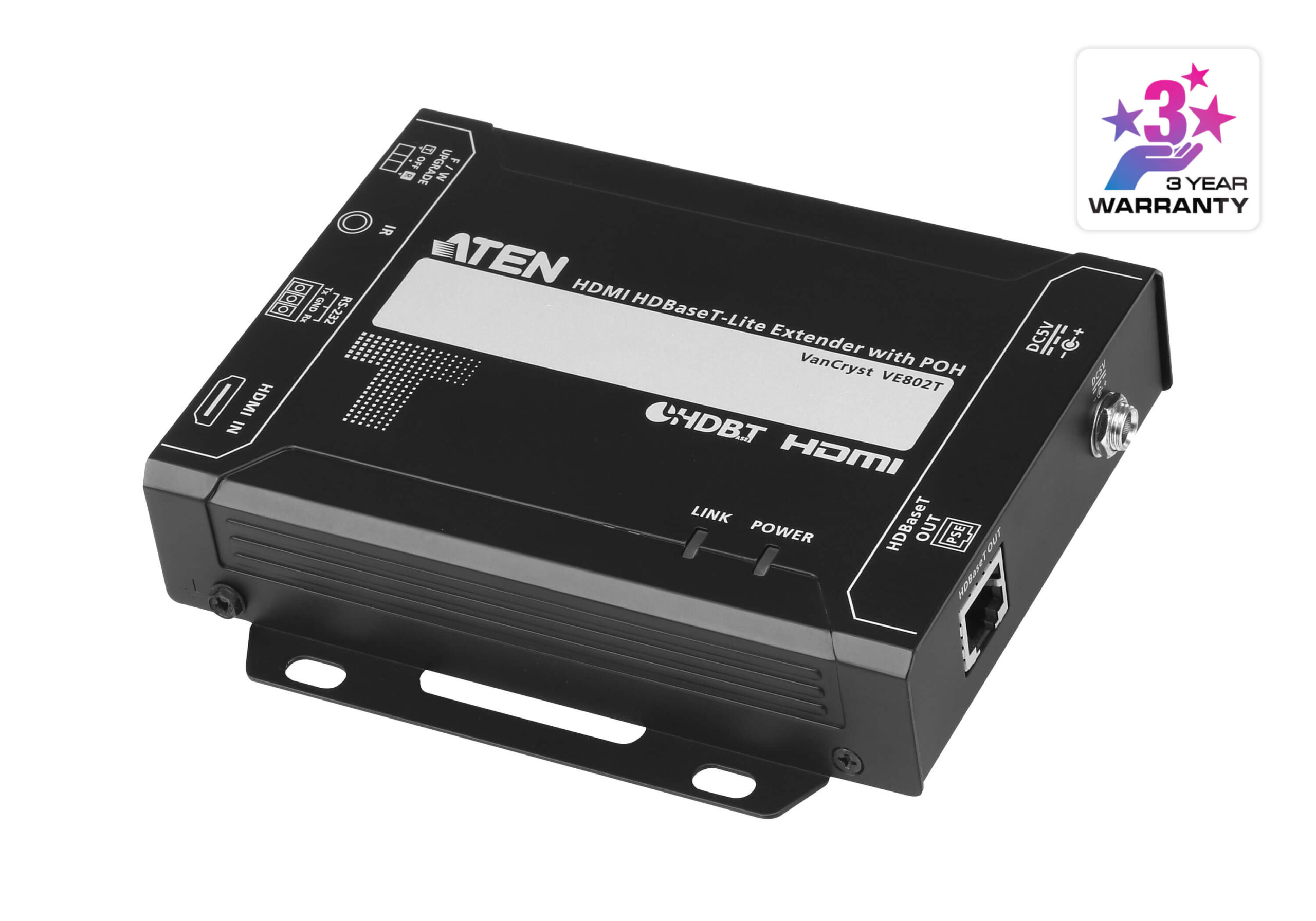

• Aten HDMI HDBaseT-Lite Transmitter with PoH (4K@40m) (HDBaseT Class B) (PoH PSE) | VE802T-AT-E

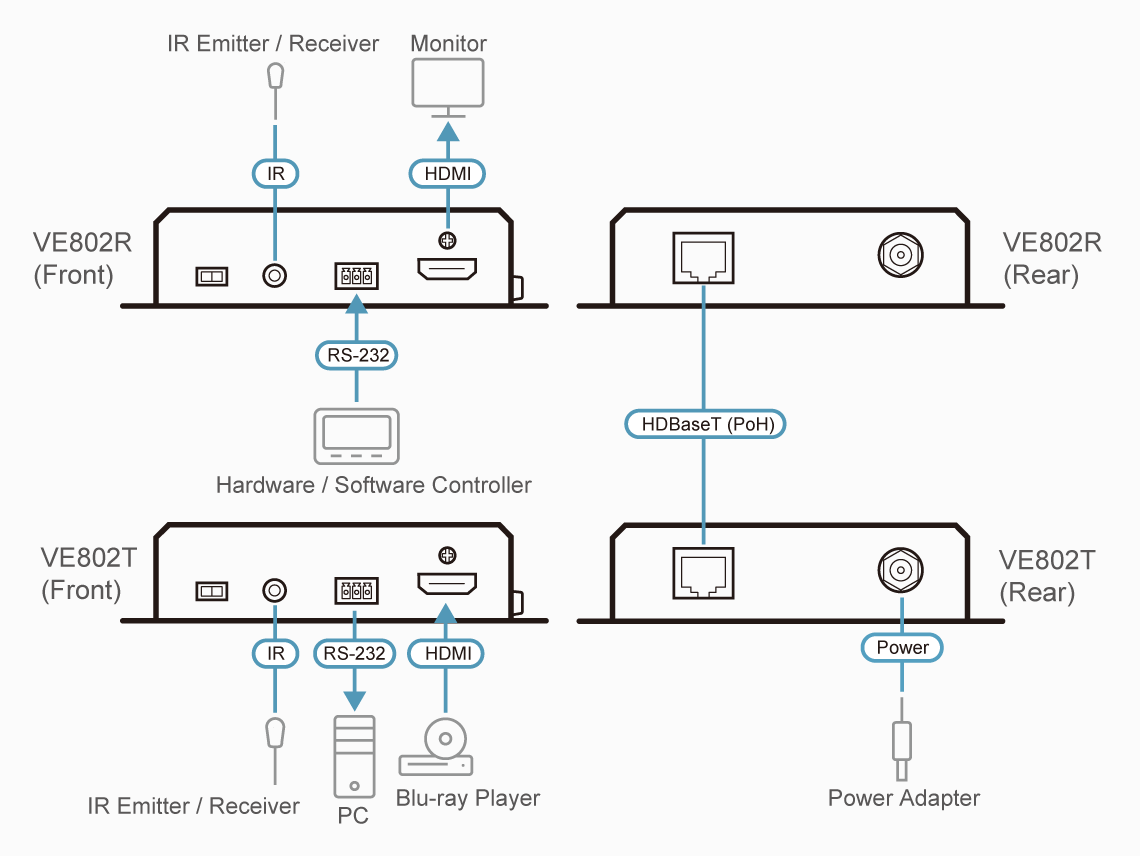

  The VE802T HDMI HDBaseT-Lite Transmitter connects with HDBaseT receivers* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802T features Power over HDBaseT (PoH) which can send power over Cat 5e/6/6a cable without an additional power supply. The VE802T is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802T is perfect for a digital entertainment center or any installation that requires superior video quality.

  * Compatible HDBaseT Reciver Units: VE802R

  Package Contents
  1x VE802T HDMI HDBaseT-Lite Transmitter with PoH
  1x Power Adapter
  1x IR Transmitter
  1x Terminal Block
  1x User Instructions


  Features
  HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
  Superior video quality – up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
  HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
  PoH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable
  Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
  Bi-directional IR channel – IR transmission is processed one direction at a time
  Rack- Mountable

• Category	Specification
  Video Input	1 x HDMI Type A Female (Black)
  Impedance	100Ω
  Max. Distance	3 m
  Max. Data Rate	10.2Gbps (3.4Gbps per lane)
  Max. Pixel Clock	340 MHz
  Compliance	HDMI (3D, Deep Color, 4K), HDCP2.2 Compatible, Consumer Electronics Control (CEC)
  Max. Resolutions / Distance	Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
  4K Supported	4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
  Audio Input	1 x HDMI Type A Female (Black)

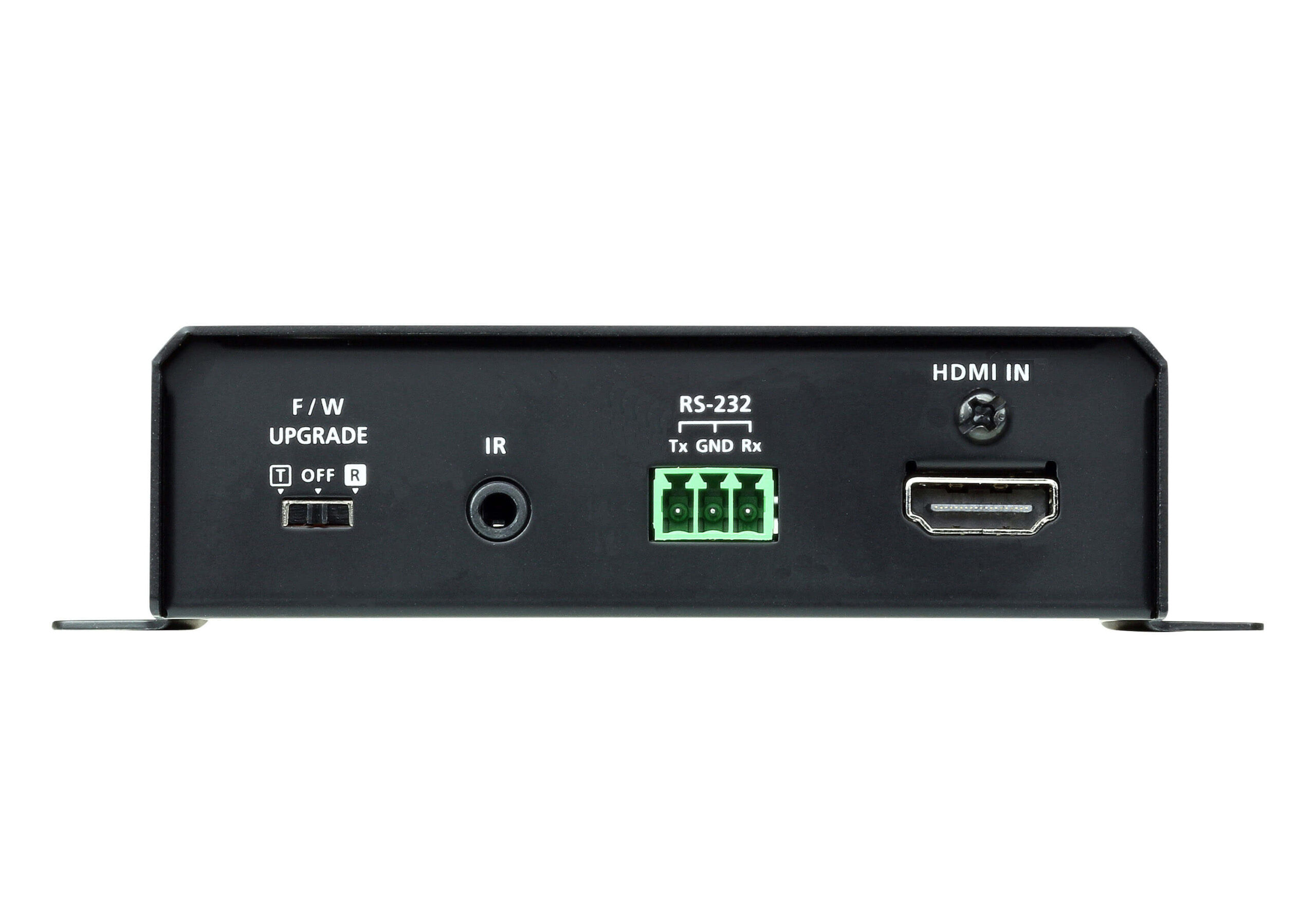

  Control	RS-232: 1 x Terminal Block, 3 pole, Baud Rate: 19200, Data Bits: 8, Stop Bits: 1, No parity, No flow control
  	IR: 1 x Mini Stereo Jack Female (Black)
  Connectors	Power: 1 x DC Jack (Black) with locking
  	Unit to Unit: 1 x RJ-45 Female
  Power Consumption	DC5V: 2.7W (13BTU/h)
  Environmental	Operating Temperature: 0 – 50°C
  	Storage Temperature: -20 – 60°C
  	Humidity: 0 – 80% RH, Non-Condensing
  Physical Properties	Housing: Metal
  	Weight: 0.44 kg (0.97 lb)
  	Dimensions (L x W x H) with bracket: 14.04 x 12.30 x 3.00 cm (5.53 x 4.84 x 1.18 in.)
  	Dimensions (L x W x H) without bracket: 13.60 x 10.10 x 2.90 cm (5.35 x 3.98 x 1.14 in.)
