• Aten HDMI HDBaseT-Lite Transmitter (4K@40m) (HDBaseT Class B) | VE801T-AT-E

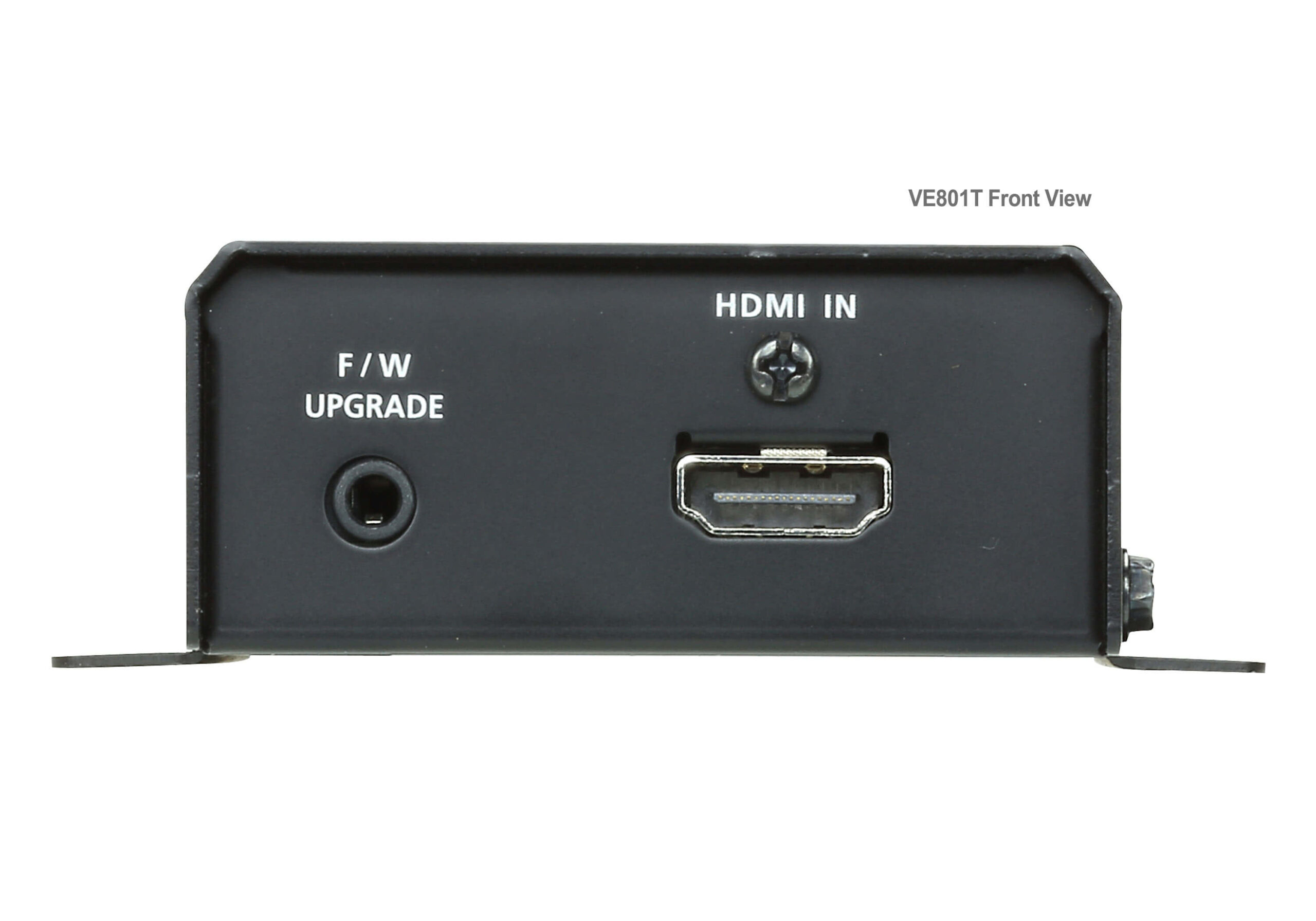

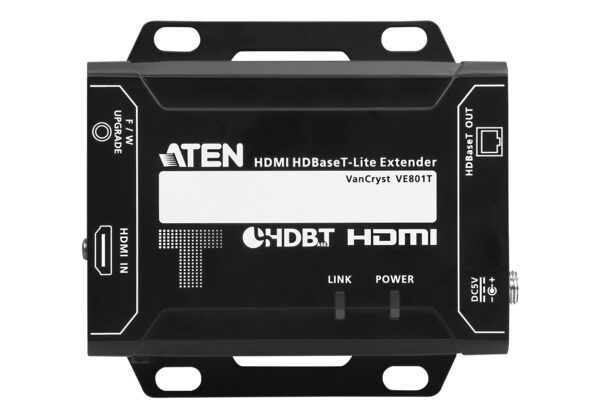

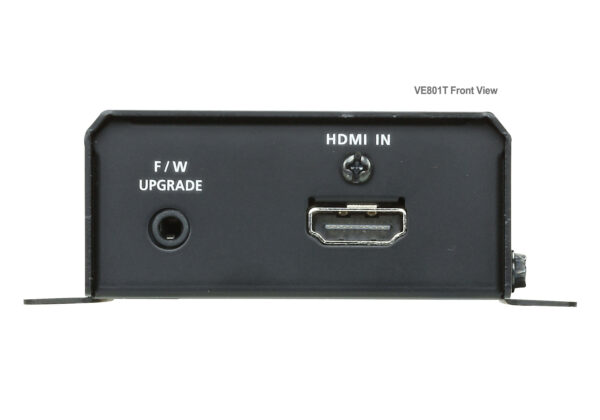

  The VE801T HDMI HDBaseT-Lite Transmitter connects with HDBaseT receivers* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801T all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801T is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended at great distances.

  * Compatible HDBaseT Receiver Units: VE801R

  Package Contents
  1x VE801T HDMI HDBaseT-Lite Extender
  1x Power Adapter
  1x User Instructions


  Features
  Extends HDMI signals over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable
  HDMI (3D, Deep color, 4K); HDCP 2.2 compliant
  Superior video quality – up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
  HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
  Plug-and-play
  Rack-mountable

• Category	Specifications
  Video Input
  Interfaces	1 x HDMI Type A Female (Black)
  Impedance	100Ω
  Max. Distance	3 m
  Video
  Max. Data Rate	10.2Gbps (3.4Gbps per lane)
  Max. Pixel Clock	340 MHz
  Compliance	HDMI (3D, Deep Color, 4K), HDCP Compatible, CEC
  Max. Resolutions / Distance	Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
  4K Supported	4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
  Audio Input	1 x HDMI Type A Female (Black)
  Connectors
  Power	1 x DC Jack (Black) with locking
  Unit To Unit	1 x RJ-45 Female
  Power Consumption	DC5V:1.86W:9BTU/h
  Environmental
  Operating Temperature	0 – 50°C
  Storage Temperature	-20 – 60°C
  Humidity	0% – 80% RH, Non-condensing
  Physical Properties
  Housing	Metal
  Weight	0.24 kg (0.53 lb)
  Dimensions with bracket (L x W x H)	9.86 x 8.70 x 3.00 cm (3.88 x 3.43 x 1.18 in.)
  Dimensions without bracket (L x W x H)	9.42 x 6.60 x 2.90 cm (3.71 x 2.6 x 1.14 in.)
