• Aten HDMI HDBaseT Extender (4K@100m) (HDBaseT Class A) | VE811-AT-E

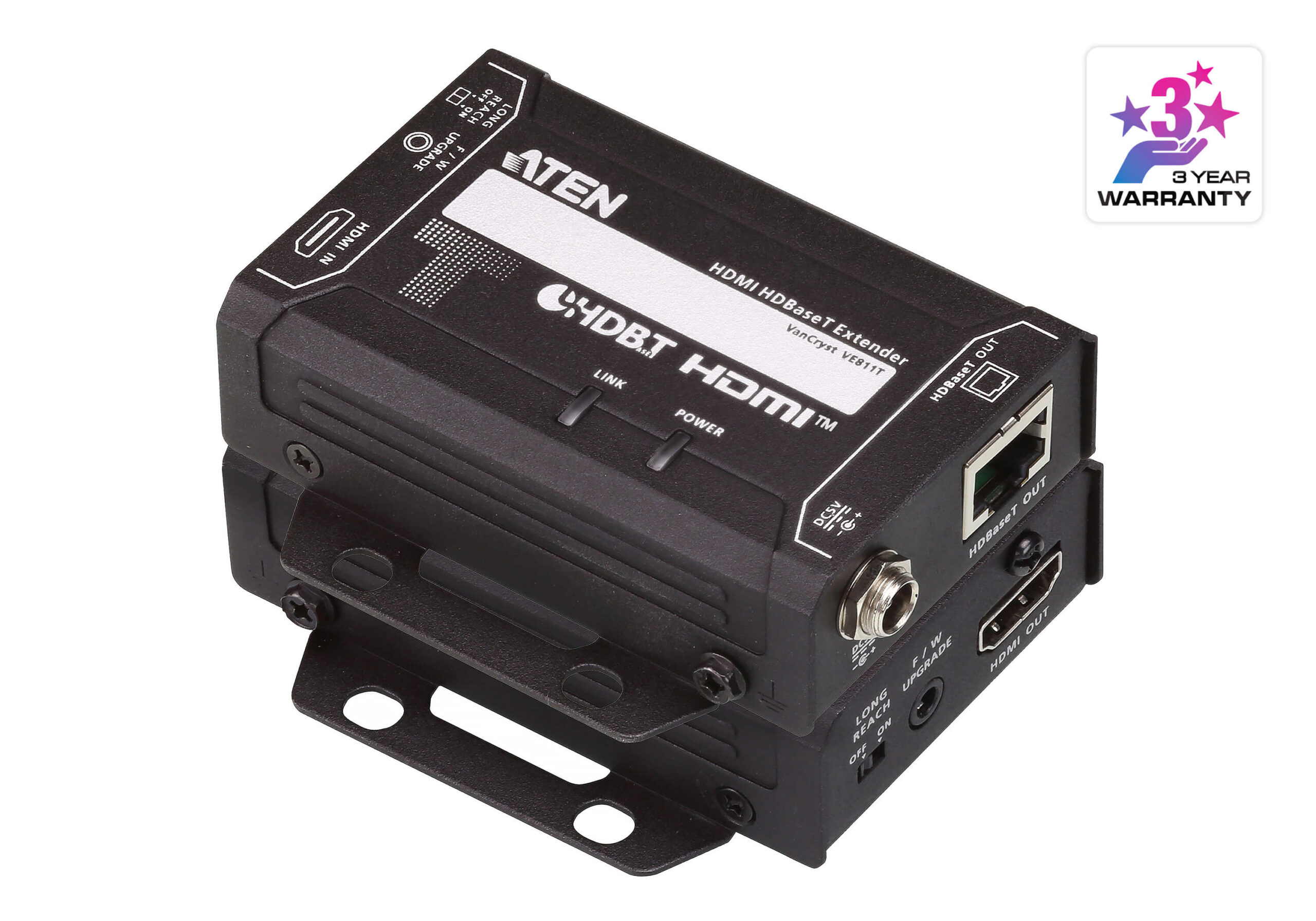

  The ATEN VE811 HDMI HDBaseT Extender guarantees the optimum 4K HDMI signal transmission across up to100 m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. In addition, with the support for Long Reach Mode, it extends HDMI signals @ 1080p up to 150 m via a single Cat 5e/6 cable. The VE811 meets HDMI specification features including 3D, Deep Color, HD lossless audio formats and CEC pass-through. Plus, it supports Dolby Digital 7.1 ch and DTS HD audio.

  Pushing the technology and design to the limit, the compact design makes the VE811 easy to mount in any location. Engineered for today’s digital trends, the VE811 is ideal for meeting rooms, or any setting that requires high quality HDMI video to be extended for great distances.

  Package Contents
  1x VE811T HDMI HDBaseT Transmitter

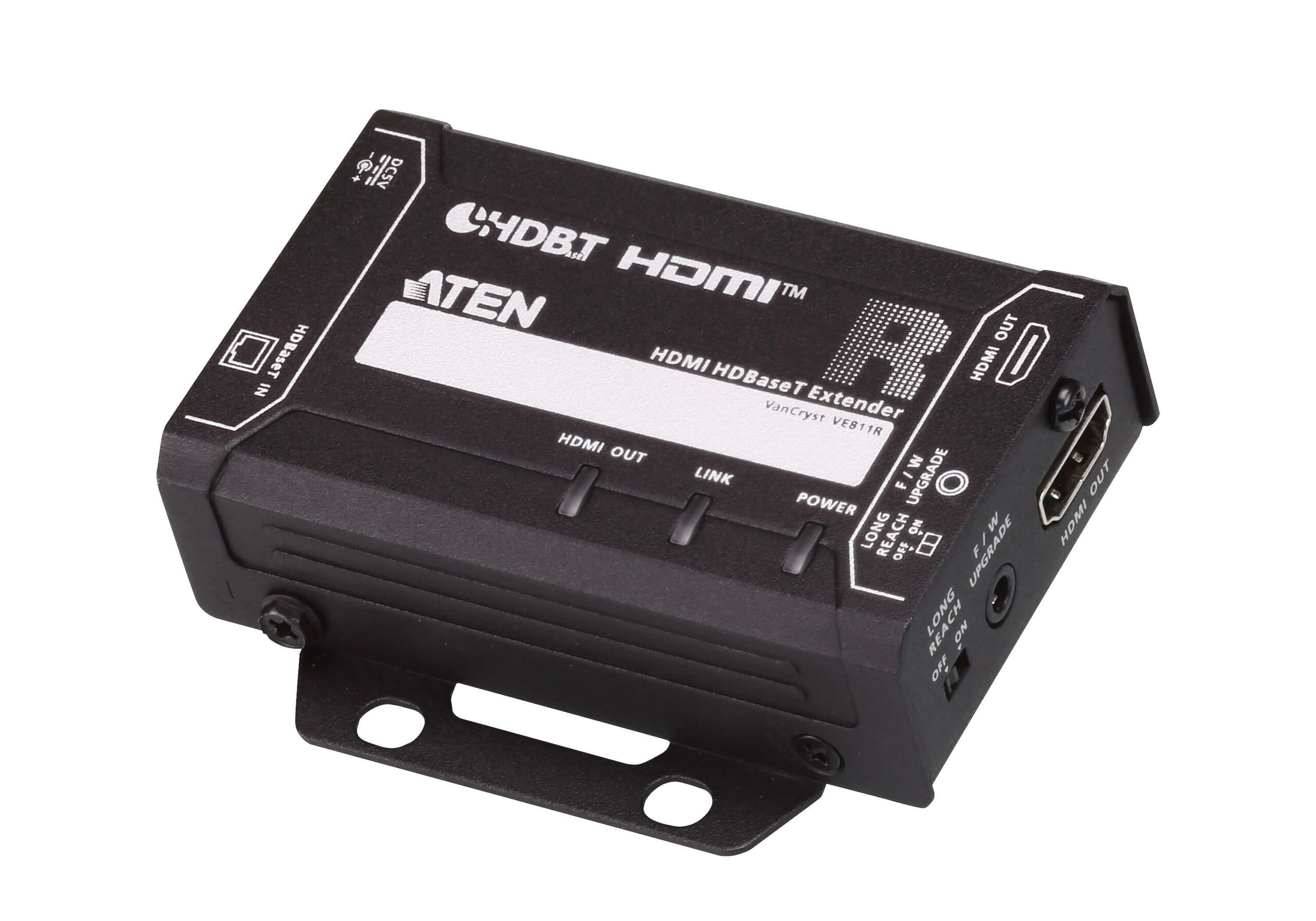

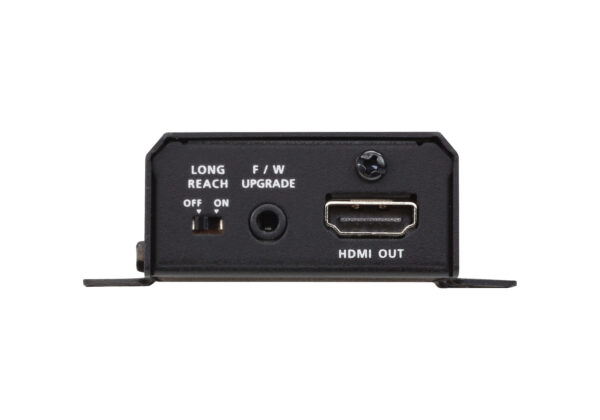

  1x VE811R HDMI HDBaseT Receiver
  2x Power Adapters
  1x User Instructions


  Features
  HDBaseT connectivity – extends 4K HDMI signals up to 100m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
  Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
  HDMI (3D, Deep Color, 4K)
  HDCP 2.2 compatible
  Supports resolutions of up to 4K and 1080p
  Consumer Electronic Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control
  Supports wide screen format
  Plug and play – no software required
  Built-in 8 kV / 15 kV ESD protection
  Rack mountable

• Function/Specification	VE811R (Receiver)	VE811T (Transmitter)
  Video Input
  Interfaces	N/A	1 x HDMI Type A Female (Black)
  Impedance	N/A	100 Ω
  Max. Distance	N/A	3 m
  Video Output
  Interfaces	1 x HDMI Type A Female (Black)	N/A
  Impedance	100 Ω	N/A
  Max. Distance	3 m	N/A
  Video
  Max. Data Rate	10.2Gbps (3.4Gbps per lane)	10.2Gbps (3.4Gbps per lane)
  Max. Pixel Clock	340 MHz	340 MHz
  Compliance	HDMI (3D, Deep Color, 4K), HDCP2.2, CEC	HDMI (3D, Deep Color, 4K), HDCP2.2, CEC
  Max. Resolutions / Distance	Up to 4K@70m (Cat 5e/6), 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m	Up to 4K@70m (Cat 5e/6), 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m
  Audio
  Input	N/A	1 x HDMI Type A Female (Black)
  Output	1 x HDMI Type A Female (Black)	N/A
  Connectors
  Unit To Unit	1 x RJ-45 Female	1 x RJ-45 Female
  Firmware Upgrade	1 x Mini Stereo Jack Female (Black)	1 x Mini Stereo Jack Female (Black)
  Power	1 x DC Jack (Black) with locking	1 x DC Jack (Black) with locking
  Switches

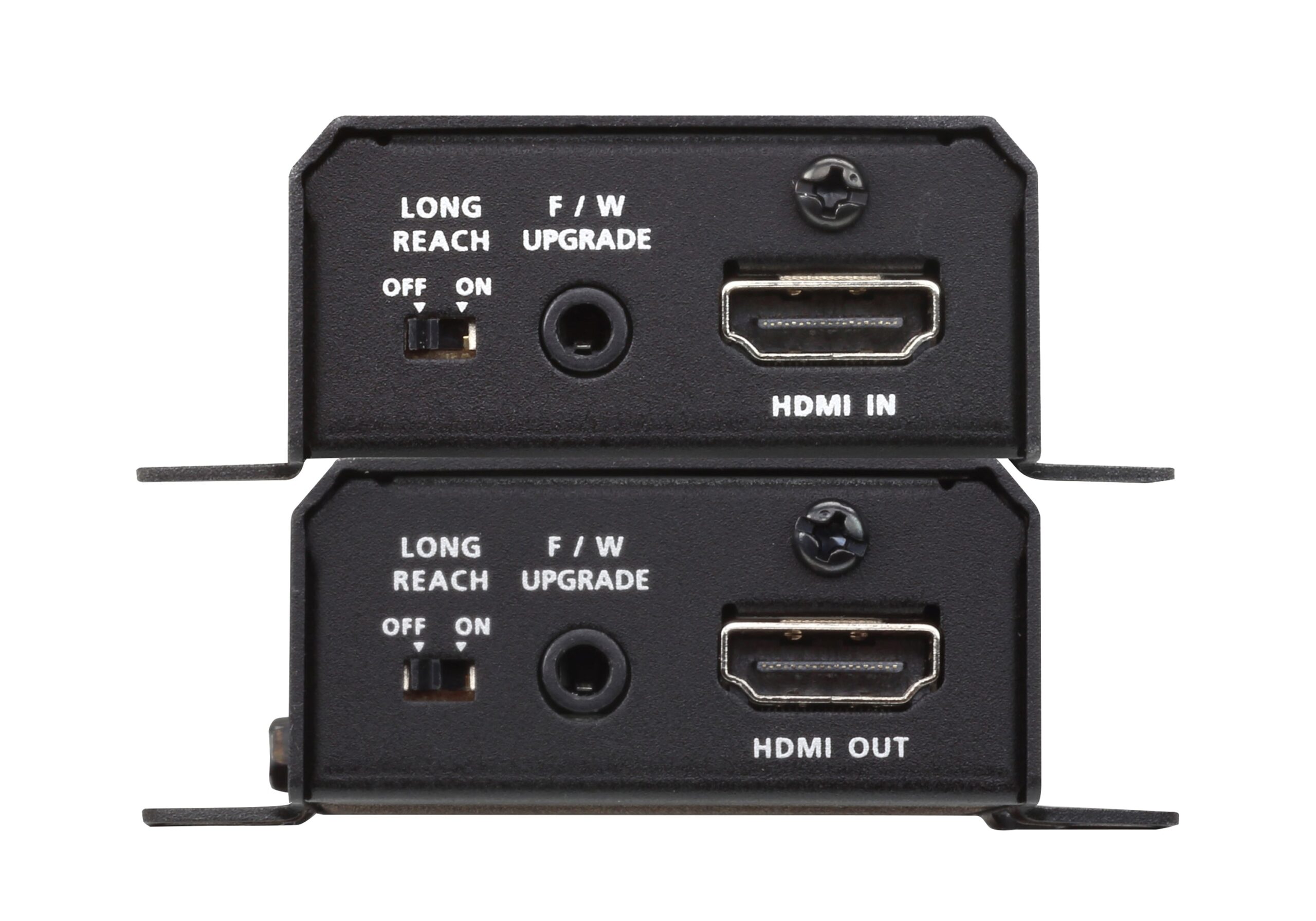

  Long Reach Mode Switch	1 x Slide Switch – ON/OFF	1 x Slide Switch – ON/OFF
  Power Consumption	DC5V:3.84W:18BTU	DC5V:3.77W:18BTU
  Environmental
  Operating Temperature	0 – 40°C	0 – 40°C
  Storage Temperature	-20 – 60°C	-20 – 60°C
  Humidity	0 – 80% RH, Non-Condensing	0 – 80% RH, Non-Condensing
  Physical Properties
  Housing	Metal	Metal
  Weight	0.17 kg (0.37 lb)	0.16 kg (0.35 lb)
  Dimensions (L x W x H) with bracket	8.64 x 7.30 x 2.47 cm	8.64 x 7.30 x 2.47 cm
  Dimensions (L x W x H) without bracket	8.20 x 5.20 x 2.37 cm	8.20 x 5.20 x 2.37 cm
