• Aten HDMI/Audio Cat 5 Extender with MK Wall Plate (1080p @ 40m) | VE807-AT-E

  The VE807 HDMI/Audio Cat 5 Extender with MK Wall Plate is designed to be conveniently mounted in a one- gang junction box for the UK, Singapore, Hong Kong and other markets that apply MK type junction boxes. It extends HDMI and audio signals up to 60 meters over a Cat 5e/6 cable and supports widescreen formats ensuring excellent video quality.

  The VE807 can be either powered at Transmitter or Receiver side, and a second Cat 5e/6 cable is used for power signal transmission, real EDID bypass, and HDCP key authentication. The VE807’s compact wall plate design does away with bulky cables allowing a neat and convenient installation. Therefore, it is a perfect solution for function rooms, museums and any setting that requires equipment or cabling to be kept from the public’s view.

  Package Contents

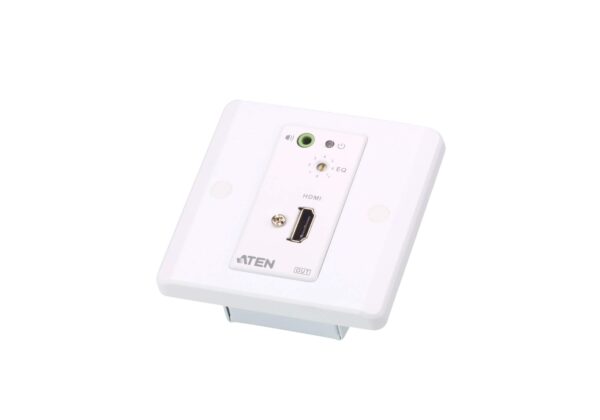

  1x VE807 HDMI/Audio Cat 5 Transmitter with MK Wall Plate

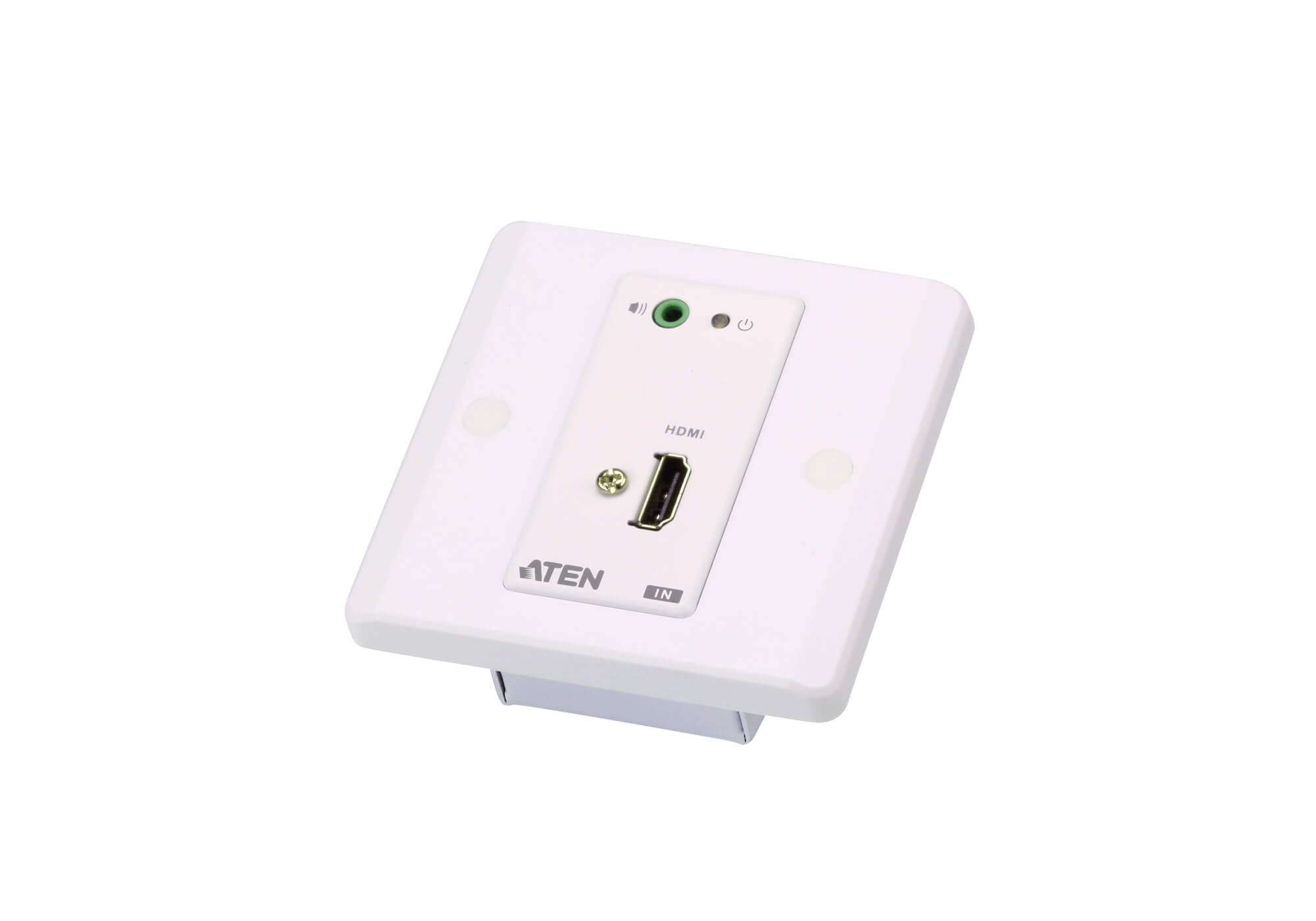

  1x VE807 HDMI/Audio Cat 5 Receiver with MK Wall Plate
  1x Terminal Block Connector
  1x Power Adapter
  2x MK type Wall Plate Covers
  8x Screw Covers
  1x Screw kit
  1x User Instructions


  Features
  Uses two Cat 5e/6 cables to connect the local and remote units – one to transmit video and audio signal, and the other one is used for power signal transmission, real EDID bypass, and HDCP key authentication*
  Remotely powered from either the transmitter or receiver side**
  Extends the distance between HDMI source and display
  Supports superior video quality up to 1080p @ 60 Hz at a distance of 40 m; 1080i @ 60 Hz at a distance of 60 m
  Designed to mount in one- gang junction box for UK, Singapore, Hong Kong and other markets that apply MK type junction boxes.
  HDMI (3D, Deep Color); HDCP compatible
  Supports 8 segment equalization adjustment via switch
  Supports widescreen formats
  Supports hot- plugging
  Supports stereo audio
  Built- in 8KV/ 15 KV ESD protection
  Plug- and- play with no software installation required
  LED indication of power sources / connection status
  * A second Cat 5e/6 cable connection is required to remotely power on either the transmitter or receiver
  **A power adapter is provided with this package and can be used at either the transmitter or receiver side, which in turn remotely powers the other unit

• Function/Specification	VE807R (Receiver)	VE807T (Transmitter)
  Video Input
  Interfaces	N/A	1 x HDMI Type A Female (Black)
  Impedance	N/A	100 Ω
  Max. Distance	N/A	3 m
  Video Output
  Interfaces	1 x HDMI Type A Female (Black)	N/A
  Impedance	100 Ω	N/A
  Max. Distance	3 m	N/A
  Video
  Max. Data Rate	6.75 Gbps (2.25 Gbps Per Lane)	6.75 Gbps (2.25 Gbps Per Lane)
  Max. Pixel Clock	225 MHz	225 MHz
  Compliance	HDMI (3D, Deep Color), HDCP Compatible	HDMI (3D, Deep Color), HDCP Compatible
  Max. Resolutions / Distance	Up to 1080p@40m; 1080i@60m	Up to 1080p@40m; 1080i@60m
  Audio
  Input	N/A	1 x HDMI Type A Female (Black)
  Output	1 x HDMI Type A Female (Black)	N/A
  Connectors
  Power	1 x Terminal Block (Green)	1 x Terminal Block (Green)
  Power Consumption	DC9V:0.81W:4BTU/h	DC9V:1.35W:6BTU/h
  Environmental
  Operating Temperature	0 – 50°C	0 – 50°C
  Storage Temperature	-20 – 60°C	-20 – 60°C
  Humidity	0-80% RH, Non-Condensing	0-80% RH, Non-Condensing
  Physical Properties
  Housing	Metal	Metal
  Weight	0.18 kg (0.4 lb)	0.18 kg (0.4 lb)
  Dimensions (L x W x H)	6.86 x 4.44 x 4.00 cm (2.7 x 1.75 x 1.57 in.)	6.86 x 4.44 x 4.00 cm (2.7 x 1.75 x 1.57 in.)
  Faceplate Dimensions (L x W x H)	8.60 x 8.60 x 1.60 cm (3.39 x 3.39 x 0.63 in.)	8.60 x 8.60 x 1.60 cm (3.39 x 3.39 x 0.63 in.)
  Carton Lot	5 pcs	5 pcs

• Description	Downloads
  Datasheet	Downloads
  Manual	Downloads
