• Aten DVI Dual Link/Audio Cat 5 Extender (2560 x 1600@40m) | VE602-AT-E

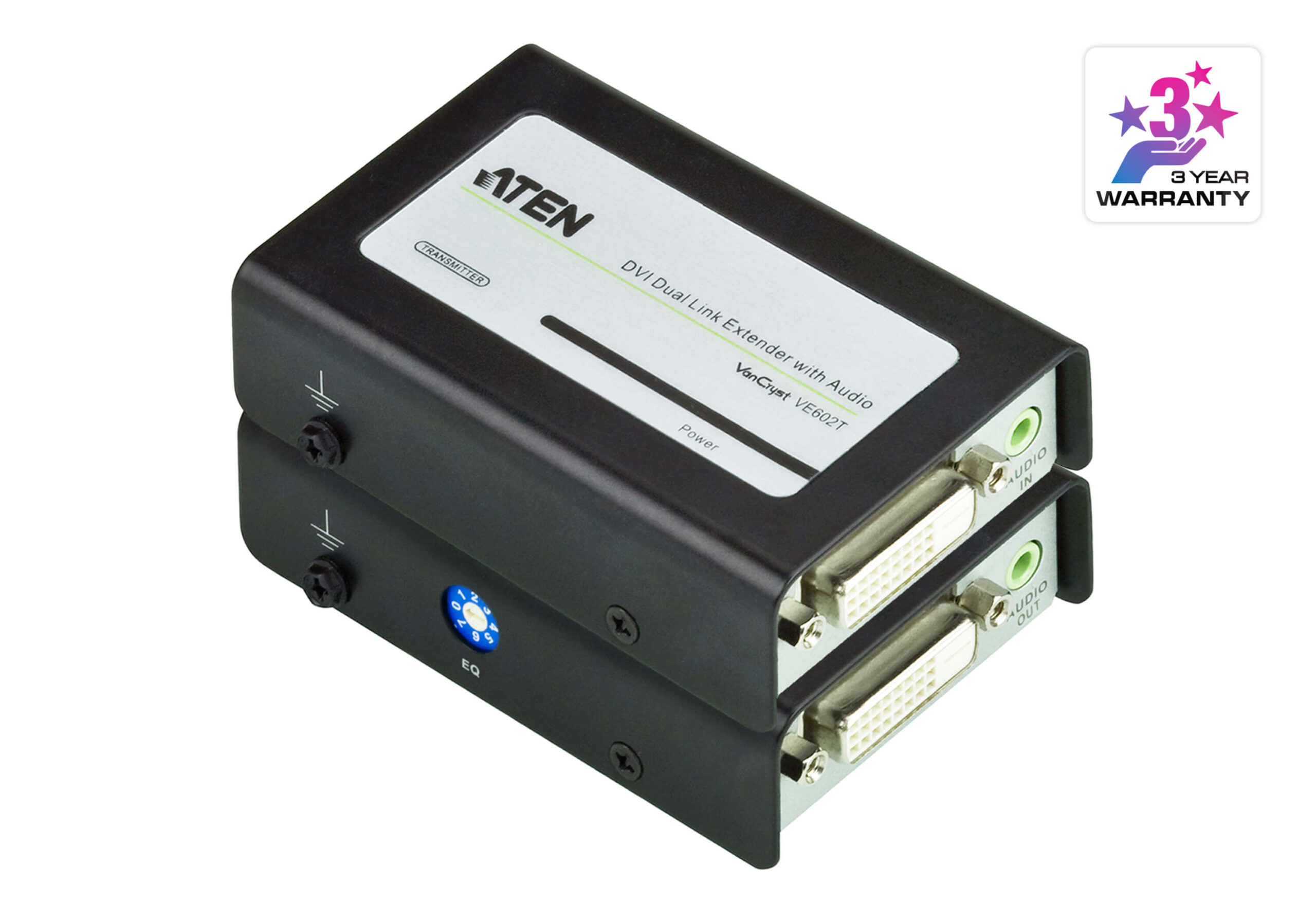

  The VE602 DVI Dual Link Extender with Audio extends your DVI display up to 60 m away from your DVI source using Cat 5e cables. The use of Cat 5e cables provides a simple and reliable connection method that takes advantage of the wiring system in most modern office buildings.

  The VE602 incorporates ATEN’s technology that allows A/V signals to be transmitted over one Cat 5e cable. It uses ATEN default EDID, but is able to learn and save the EDID configuration of the remote display. For dual link video signals, simply use a second Cat 5e cable.

  With support for stereo audio and popular widescreen video formats, the VE602 provides crystal-clear image and sound quality for installations where remote DVI video displays are required.

  Package Contents
  1x VE602T DVI Dual Link Extender with Audio
  1x VE602R DVI Dual Link Extender with Audio
  2x Power Adapters
  1x Mounting Kit
  1x User Instructions


  Features
  Extends the distance between the DVI source and DVI display device
  Long distance transmission – up to 60 m

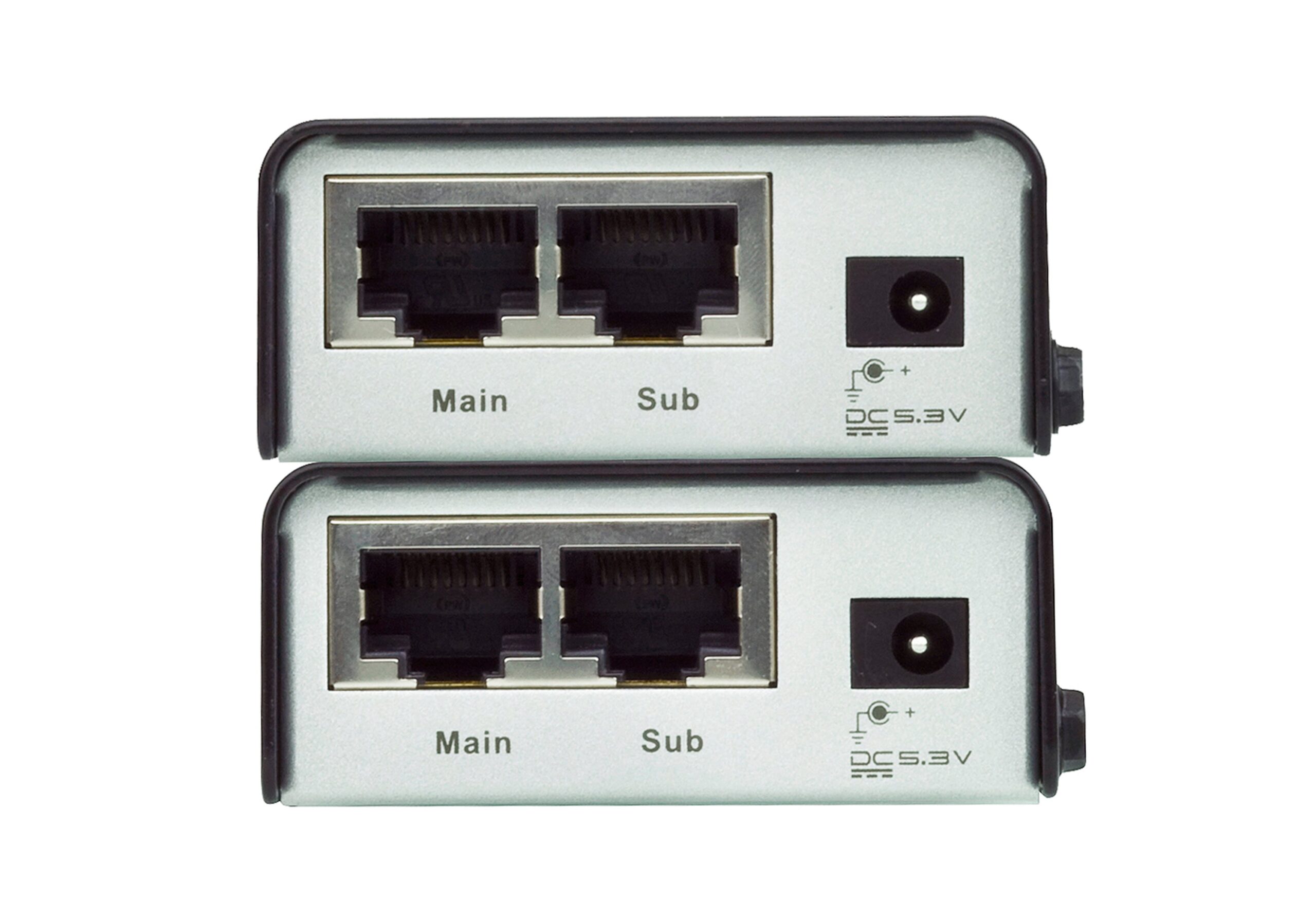

  Uses Cat 5e cable to connect the local and remote units
  Employs ATEN EDID technology that allows signal transmission over one Cat 5e cable
  Uses a second (Sub) Cat 5e cable for dual link signals*
  Supports EDID Learning – Automatically learns and saves the EDID data of the display to which the Transmitter (VE602T) is connected
  Superior video quality – DVI Dual Link up to 2560 x 1600 @ 60 Hz (40 m); DVI Single Link up to 1920×1200 @ 60 Hz (40 m), 1024 x 768 @ 60 Hz (60 m)
  Audio enabled
  8 segment equalization adjustment switch optimizes display quality
  Built-in 8KV/15KV ESD protection
  Supports widescreen formats
  Rack mountable

  Note:
  * The length of the two Cat 5e cables must be the same.
  ** HDCP is not supported.

• Function/Specification	VE602R	VE602T
  Video Input

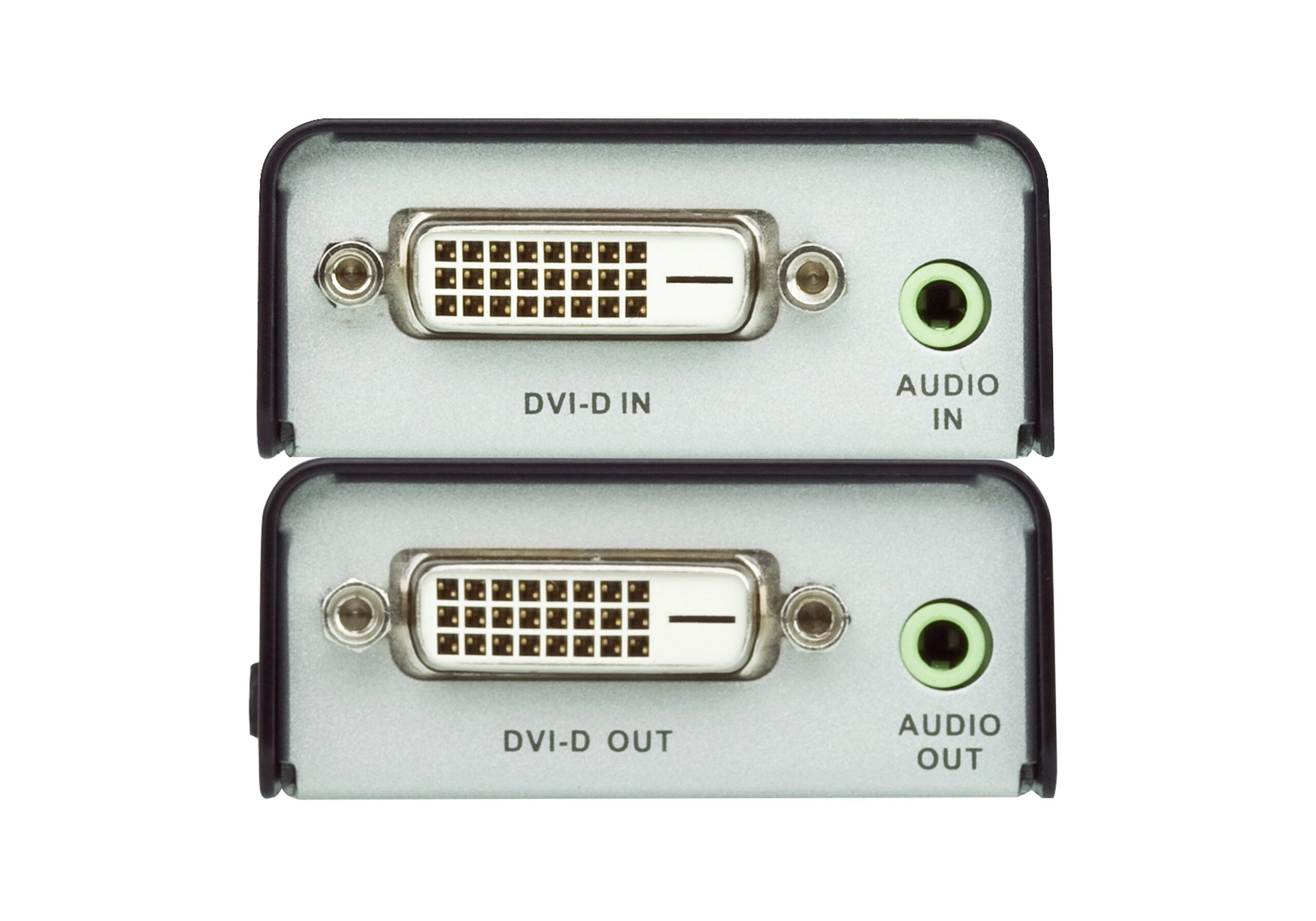

  Interfaces	N/A	1 x DVI-D Female (White)
  Impedance	N/A	100 Ω
  Max. Distance	N/A	1.8 m
  Video Output
  Interfaces	1 x DVI-D Female (White)	N/A
  Impedance	100 Ω	N/A
  Video
  Max. Data Rate	6.75 Gbps (2.25 Gbps Per Lane)	6.75 Gbps (2.25 Gbps Per Lane)
  Max. Pixel Clock	225 MHz	225 MHz
  Max. Resolutions / Distance	Dual Link: up to 2560 x 1600@40m	Dual Link: up to 2560 x 1600@40m
  	Single Link: up to 1920 x 1200@40m	Single Link: up to 1920 x 1200@40m
  	1280 x 1024@60m	1280 x 1024@60m
  Audio
  Input	N/A	1 x Mini Stereo Jack Female (Green)
  Output	1 x Mini Stereo Jack Female (Green)	N/A
  Connectors
  Power	1 x DC Jack	1 x DC Jack
  Power Consumption	DC5.3V:2.4W:11BTU/h	DC5.3V:2.86W:13BTU/h
  Environmental
  Operating Temperature	0 – 50°C	0 – 50°C
  Storage Temperature	-20 – 60°C	-20 – 60°C
  Humidity	0 – 80% RH, Non-Condensing	0 – 80% RH, Non-Condensing
  Physical Properties
  Housing	Metal	Metal
  Weight	0.18 kg (0.4 lb)	0.18 kg (0.4 lb)
  Dimensions (L x W x H)	9.13 x 5.60 x 2.40 cm (3.59 x 2.2 x 0.94 in.)	9.13 x 5.60 x 2.40 cm (3.59 x 2.2 x 0.94 in.)
  Carton Lot	20 pcs	20 pcs
