• Aten DisplayPort HDBaseT-Lite Extender (4K@40m; 1080p@70m) (HDBaseT Class B) | VE901-AT-E

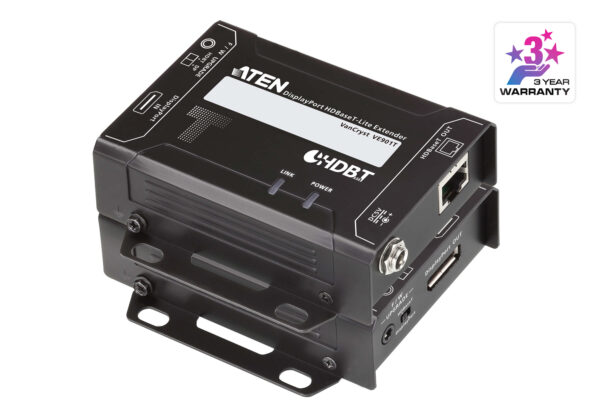

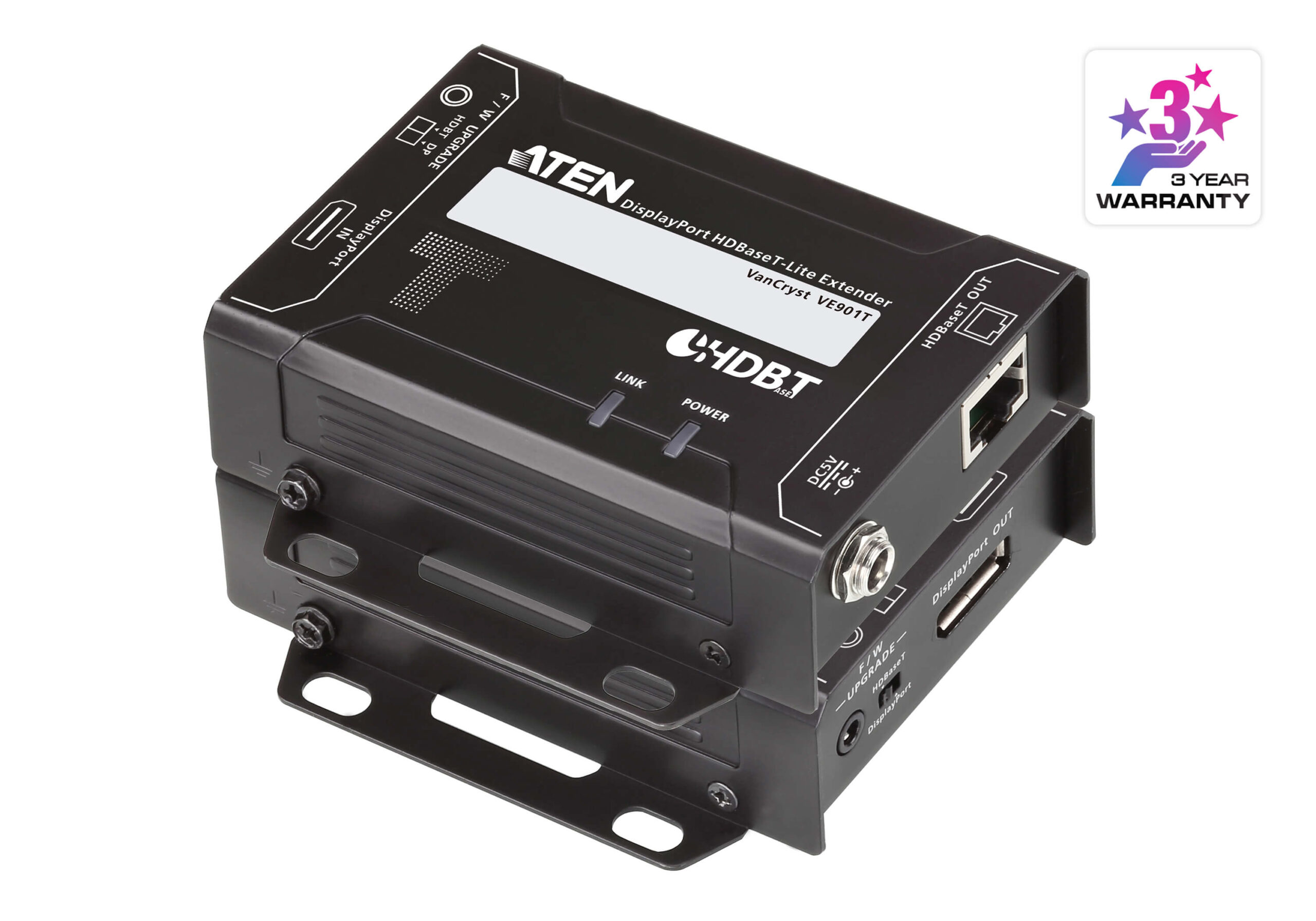

  The VE901 DisplayPort HDBaseT-Lite Extender is able to extend a DisplayPort display up to 70 m using a Cat 6/6a/ATEN 2L-2910 Cat 6 cable. This combination of ATEN and HDBaseT™ technology supports sharing 4K media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.

  The VE901 DisplayPort HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, and a slip-resistant DC Jack lock mechanism, the VE901 can be installed in a multitude of locations while ensuring peace of mind with its reliability.

  Package Contents

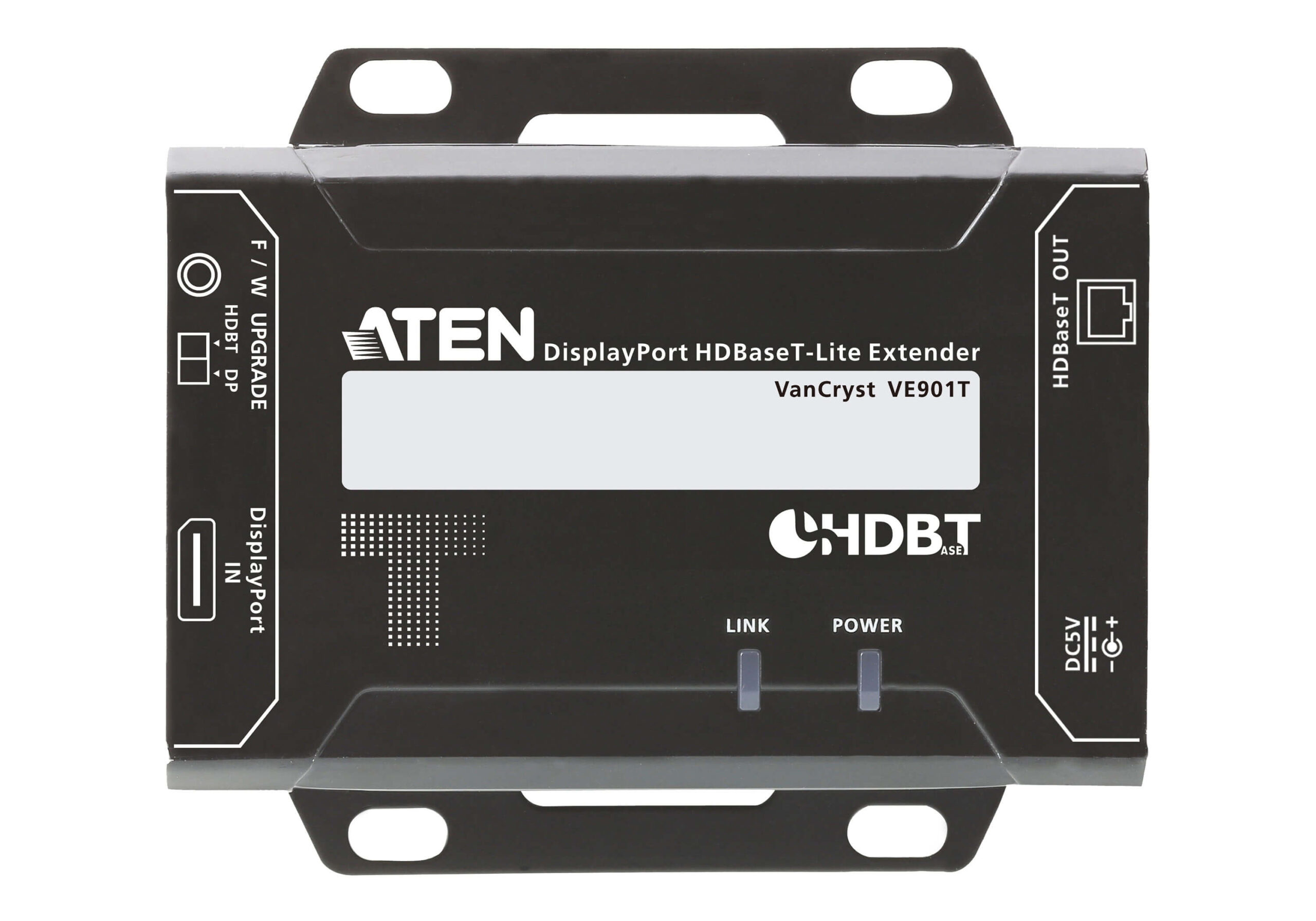

  1x VE901T DisplayPort HDBaseT-Lite Transmitter

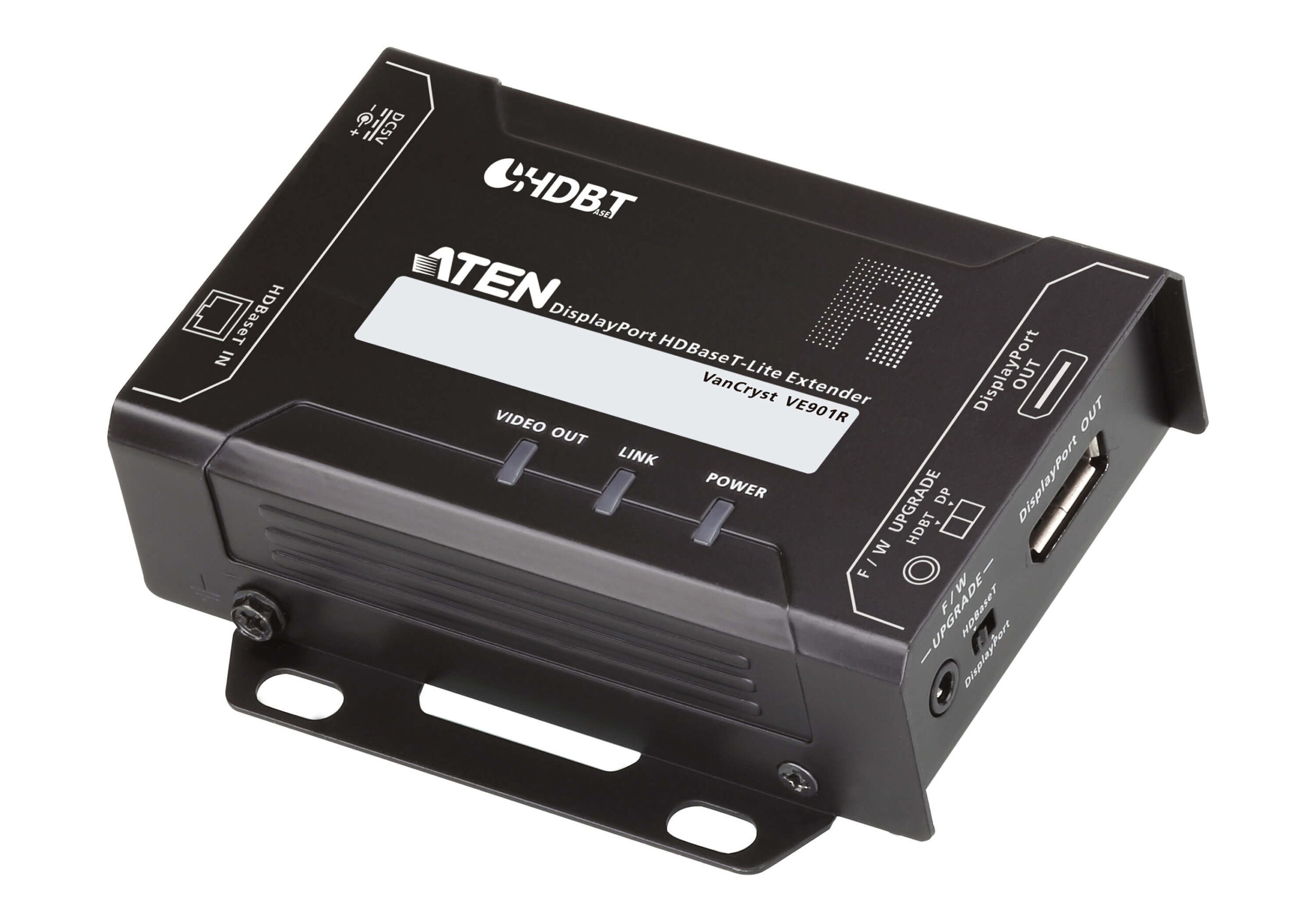

  1x VE901R DisplayPort HDBaseT-Lite Receiver
  2x Power Adapters
  1x User Instructions


  Features
  HDBaseT Connectivity – extends a DisplayPort connection up to 70 meters via a single Cat 6a cable or ATEN 2L-2910 Cat 6 cable
  DisplayPort v1.1*; HDCP 1.4 compliant
  Superior video quality – 4K @ 35 m (Cat 5e/6) / 40 m (Cat 6a/ATEN 2L-2910 Cat 6 cable) and 1920 x 1080 @ 60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat 6 cable)
  HDBaseT Anti-Jamming – resists signal interference during video transmission using HDBaseT technology
  Featuring 3.3V / 500mA power output for powering auxiliary devices
  Plug-and-play
  Rack-Mountable
  *Note:
  DisplayPort v1.1 supports up to 4Kx2K @ 30Hz.

• Category	Specification	Specification
  Function	VE901R	VE901T

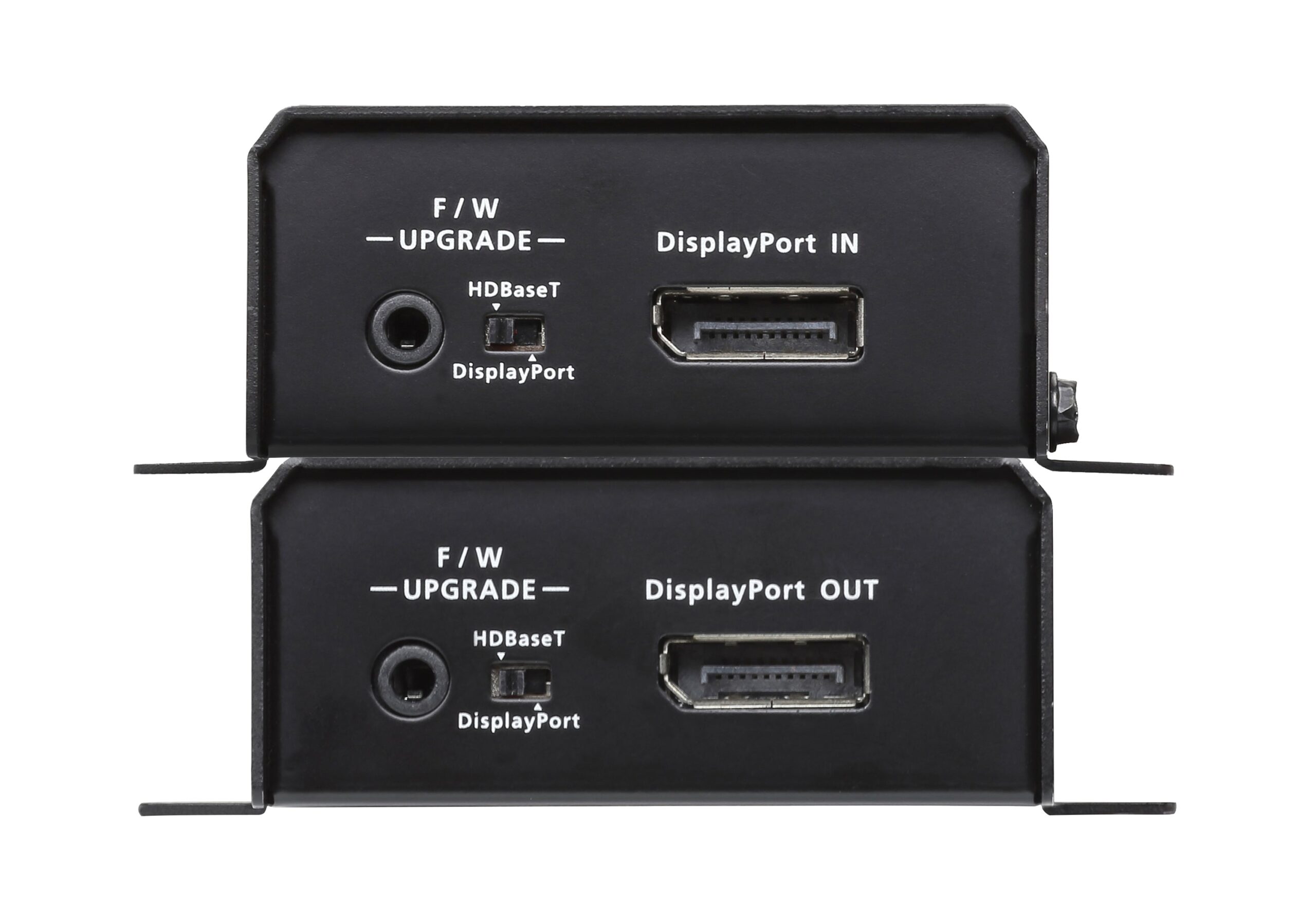

  Video Input	N/A	1 x DisplayPort Female (Black)
  Impedance	N/A	100 Ω
  Max. Distance	N/A	1.5 m
  Video Output	1 x DisplayPort Female (Black)	N/A
  Impedance	100 Ω	N/A
  Max. Distance	3 m	N/A
  Max. Data Rate	10.2Gbps (3.4Gbps per lane)	10.2Gbps (3.4Gbps per lane)
  Max. Pixel Clock	297 MHz	297 MHz
  Compliance	DisplayPort (Deep Color, 4K), HDCP Compatible	DisplayPort (Deep Color, 4K), HDCP Compatible
  Max. Resolutions / Distance	Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a); 1080p@60m (Cat 5e/6) / 70m (Cat 6a)	Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a); 1080p@60m (Cat 5e/6) / 70m (Cat 6a)
  4K Supported	4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)	4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
  Audio Input	N/A	1 x DisplayPort Female (Black)
  Audio Output	1 x DisplayPort Female (Black)	N/A
  Connectors	Power: 1 x DC Jack (Black) with locking	Power: 1 x DC Jack (Black) with locking
  Power Consumption	DC5V: 5.72W (27BTU)	DC5V: 2.84W (13BTU)
  Environmental	Operating Temperature: 0-40°C	Operating Temperature: 0-40°C
  	Storage Temperature: -20 – 60°C	Storage Temperature: -20 – 60°C
  	Humidity: 0 – 80% RH, Non-Condensing	Humidity: 0 – 80% RH, Non-Condensing
  Physical Properties	Housing: Metal	Housing: Metal
  	Weight: 0.27 kg (0.59 lb)	Weight: 0.24 kg (0.53 lb)
  	Dimensions (L x W x H) with bracket: 9.77 x 8.70 x 3.00 cm (3.85 x 3.43 x 1.18 in.)	Dimensions (L x W x H) with bracket: 9.77 x 8.70 x 3.00 cm (3.85 x 3.43 x 1.18 in.)
  	Dimensions (L x W x H) without bracket: 9.42 x 6.60 x 2.90 cm (3.71 x 2.6 x 1.14 in.)	Dimensions (L x W x H) without bracket: 9.42 x 6.60 x 2.90 cm (3.71 x 2.6 x 1.14 in.)
