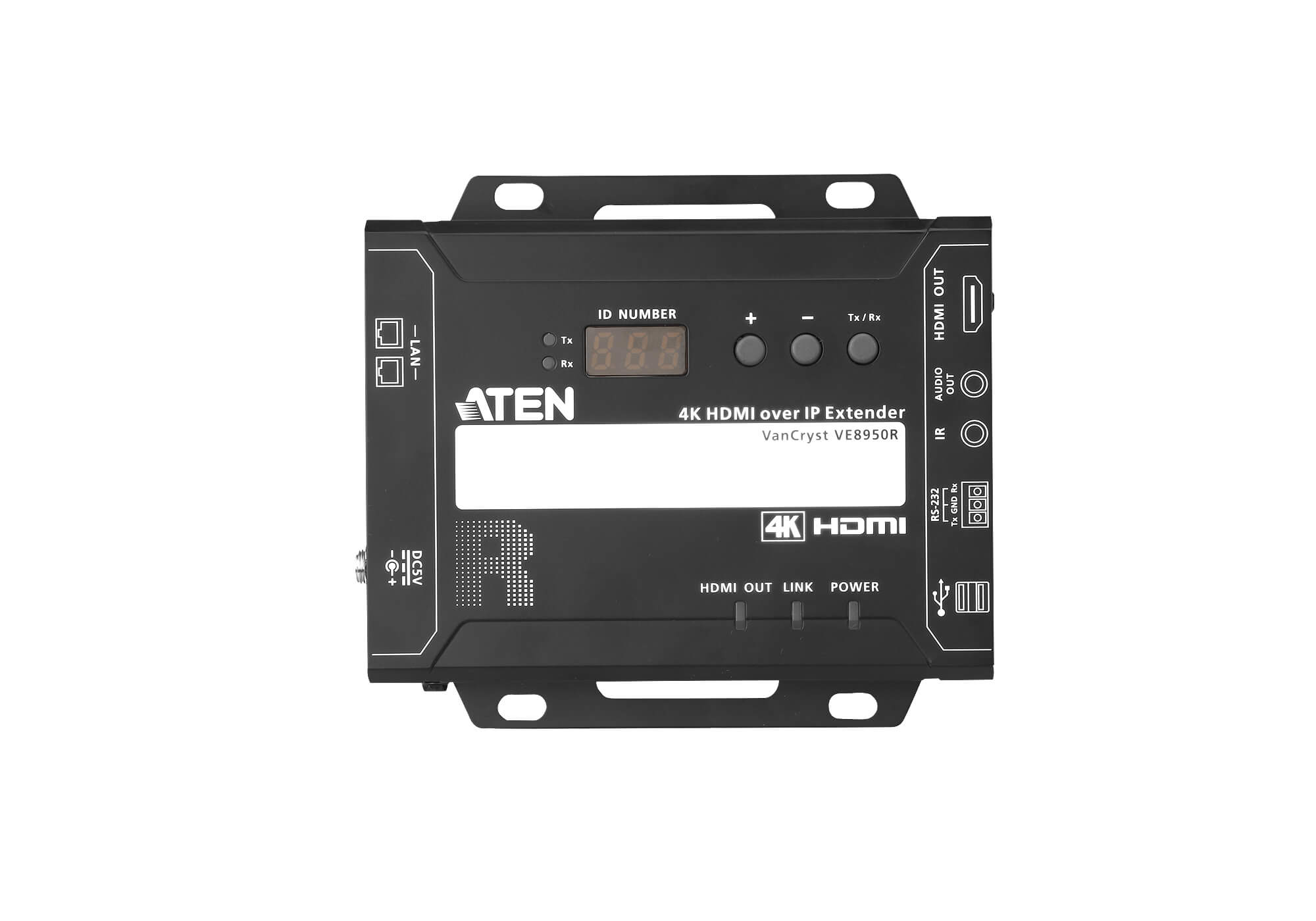

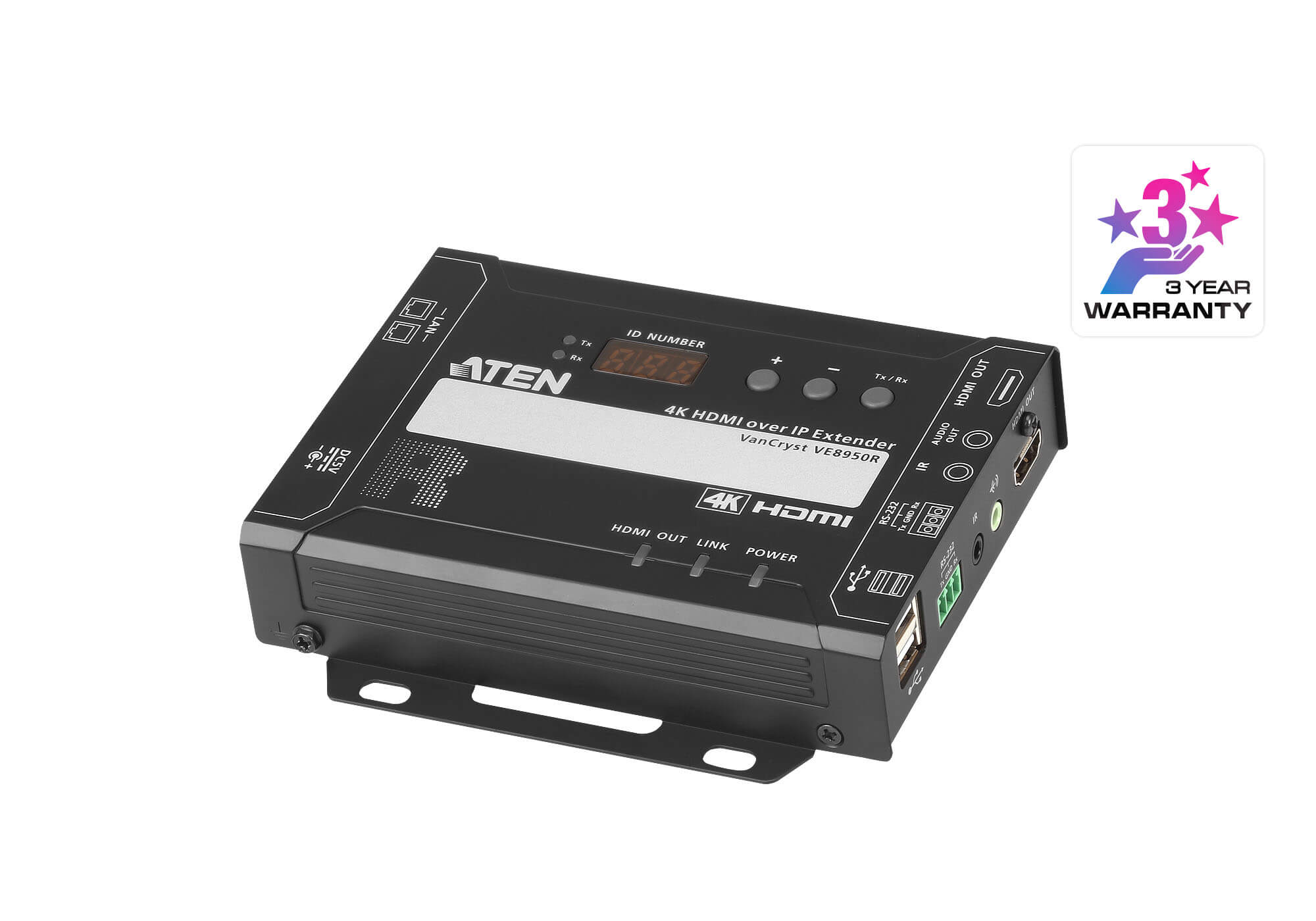

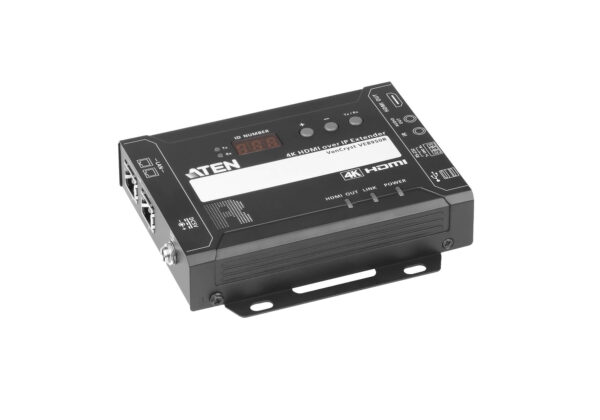

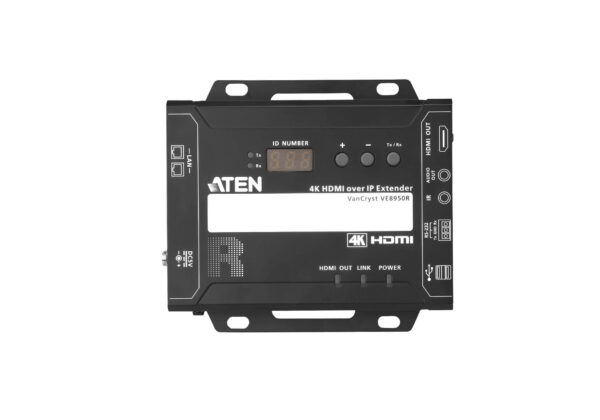

• Aten 4K HDMI over IP Receiver | VE8950R-AT-E

  The ATEN VE8950R Video over IP Receiver delivers visually lossless 4K AV signals with low latency over long distance via a local network of standard Gigabit network switch*.

  The VE8950R provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators encounter when implementing AV over IP systems:

  Limitless scalability and flexibility
  No complicated IP setup
  No additional server PCs or software required required
  Go further for less with daisy chaining

  Engineered to meet today’s demands of large scale, multi-display, 4K signal transmission, and designed to be easy to set up and operate, the VE8950R Video over IP Receiver is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.

  Package Contents
  1x VE8950R 4K HDMI over IP Receiver
  1x RS-232 Terminal block
  1x 5V Power adapter
  1x User instructions

  Lightweight Compression with Ultra-low Latency
  Delivers visually lossless high-quality video up to 4K @ 30 Hz 4:4:4
  Ensures stunning quality video using ATEN advanced video lossless compression technology
  EDID Expert™ selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens
  Offers different levels of video compression rate including Smooth, Balance, and High Quality for users to choose depending on practical usage

  Limitless Scalability and Flexibility
  Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN without distance limitations
  Offers multi-functionality in extender, splitter, matrix switch, video wall and daisy chain applications
  Mix and match the latest 4K displays and 1080p screens. The built-in scaler automatically scales up incoming video signal to match the maximum resolution of the connected display devices*

  Collaboration with ATEN Control System
  Integrated solution – Compatible with ATEN Control System, allowing users to directly operate VE8950R via CLI Telnet or RS-232 protocol
  Effortless operation – One click to effectively operate VE Manager, TV, projector, source player, and related equipments via touch panel and keypad


  Spontaneous Scheduling Management
  Offers an user-friendly scheduling management function for users to pre-plan the display schedule
  Provides robust and intuitive scheduling management options to help users to manage all events in the calendar to as detailed as to setting events to minute intervals
  Integrates all VE89 units to arrange the profile by grouping individual receiver or video wall
  Multiple profiles can be arranged to play in any order over a selected period of time


  No Complicated IP Setup
  Simple configuration that requires no extensive IT experience or extra learning
  Effortlessly switches among input sources via top panel pushbuttons


  Web GUI-Based Management, No Additional Server PCs or Software Required
  Simple Access – Without typing IP address on Chrome browser, users are allowed to directly link to VE Manager via one click on “Find My VE” Chrome based free tool


  Go Further For Less with Daisy Chaining*
  Connects multiple displays through a single port to utilize every port of the network switch and maximize their value
  Easily expandable – cabling and system deployment is easy with no huge network switches and fewer cables needed
  Perfect for large-scale deployment covering hundreds of meters, such as hotel facilities, airports, university campuses, stations, shopping malls, and exhibition centers
  * Depending on your network architecture, we recommend daisy chaining up to 30 units. Please contact ATEN representatives for more details.


  Video Wall Support
  Supports up to 8 x 8 video wall (64 displays)*
  Supports horizontal or vertical (90° and 270° rotation) display orientation
  Easily switches layout profiles, preview and drag-and-drop video sources via the intuitive web GUI
  *Depends on your network architecture, please contact ATEN representatives for more details.

  Embedded / De-embedded Audio Support
  audio stream can be extracted from the HDMI stream and delivered as a separate audio signal

  Multiple Control Channels
  Multiple control methods – the system can be managed via Ethernet or top-panel pushbuttons
  USB Connectivity – USB port (USB 2.0) allows for connection of devices such as keyboard, mouse, flash drive, printer, and other USB peripherals*
  Bi-directional IR Channel – IR transmission is processed one way at a time
  RS-232 Channel – bi-directional RS-232 serial port allows for connection of peripherals such as touch screens and bar code scanners
  Note: *Each VE8950T transmitter can be controlled by a total of 4 USB touch screens installed to VE8950R receivers.

• Category	Specifications
  Video Output	Interfaces: 1 x HDMI Type A Female (Black)
  	Impedance: 100 Ω
  	Max. Distance: 3 m
  Video	Max. Data Rate: Average: 150 ~ 500 Mbps
  	Compliance: HDMI, HDCP Compatible
  	Max. Resolutions / Distance: Up to 4K@100m (Cat 5e/6, point to point)
  	4K Supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
  Audio Output	1 x HDMI Type A Female (Black), 1 x Mini Stereo Jack Female (Green)
  Connectors	Unit To Unit: 2 x RJ-45 Female
  	Power: 1 x DC Jack (Black) with locking
  Control	IR: 1 x Mini Stereo Jack Female (Black)
  	RS-232: Connector: 1 x Terminal Block, 3 pole; Baud Rate: 19200, Data Bits: 8, Stop Bits: 1
  	USB: 2 x USB Type A Female (Black)
  Pushbuttons	ID Number Selection: 3 x Push buttons
  Power Consumption	DC5V: 4.53W: 43 BTU/h
  Environmental	Operating Temperature: 0 – 40°C
  	Storage Temperature: -20 – 60°C
  	Humidity: 0 – 80% RH, Non-Condensing
  Physical Properties	Housing: Metal
  	Weight: 0.49 kg (1.08 lb)
  	Dimensions (with bracket): 14.02 x 12.30 x 3.06 cm (5.52 x 4.84 x 1.2 in.)
  	Dimensions (without bracket): 13.60 x 10.10 x 2.96 cm (5.35 x 3.98 x 1.17 in.)
  Supported Resolutions	– 640x480p @ 59.94/60Hz (4:3)
  	– 720x576p @ 50/200Hz (4:3)/(16:9)
  	– 1280x720p @ 23.98 to 120Hz (16:9)
  	– 1920x1080i @ 50 to 120Hz (16:9)
  	– 1920x1080p @ 23.98 to 120Hz (16:9)
  	– 4096x2160p @ 23.98/24/25/29.97/30Hz
  	– 3840x2160p @ 23.98/24/25/29.97/30Hz
