• Aten 4K HDMI/DVI to HDMI Converter with Audio De-embedder | VC881-AT-E

  Fully immersive audio
  The powerful VC881 enables you to seamlessly embed a separate audio source into video content, creating a fully immersive multimedia experience that enhances the effectiveness of presentations for training and educational applications.


  Audio de-embedding for better sound
  VC881’s audio de-embedding functionality can greatly benefit restaurants and home theaters by extracting high-quality audio from the HDMI input source and outputs it to an amplifier or speaker, creating an immersive and enjoyable audio experience.

  Hassle-free setup
  The audio return channel (ARC) function eliminates the need for extra audio cables and simplifies audio setup, allowing for direct output of TV audio to speakers or amplifiers without any hassle.

  Package Contents
  1x VC881 4K HDMI/DVI to HDMI Converter with Audio De-embedder
  1x Power Adapter
  1x User Instructions

  Features
  ATEN VC881 is a high-quality HDMI/DVI to HDMI converter with audio de-embedding function. Input a DVI signal and it converts the signal to HDMI signal or input an HDMI signal and it extracts the HDMI audio signal. Advanced video support provides a better-defined connection with video resolutions up to 4K and complies with HDCP 1.4.

  The VC881 offers the fl exibility to support signal interface conversion (DVI to HDMI) and HDMI audio de-embedding. For HDMI audio de-embedding function, the VC881 splits the audio from HDMI video and converts it to S/PDIF, Coaxial, or a RCA Stereo Audio signal to support an audio system that is separate from the display. This allows HDMI video to continue to the display while supplying audio to an audio system near the HDMI source. In addition, the VC881 supports ARC to simplify the setting by eliminating the need for any separate S/PDIF audio connection.

  The compact enclosure design and audio de-embedding capability make the VC881 ideal for bars, public transportation stations, and home theater settings.

  Easy mode selection via a pushbutton
   • HDMI to HDMI
   • DVI to HDMI
   • Audio Return Channel (ARC)
  HDMI 1.4 (3D, Deep Color, 4K); HDCP 1.4 compliant

  Superior video quality:
   • HDMI: up to 4K (3840 x 2160 @30Hz)
   • DVI: up to 1920 x 1200
  HDMI audio stream can be extracted and converts it to S/PDIF, Coaxial, or a RCA Stereo Audio signal
  LED indication of power status
  Firmware upgradable
  All metal casing

• Category	Specifications

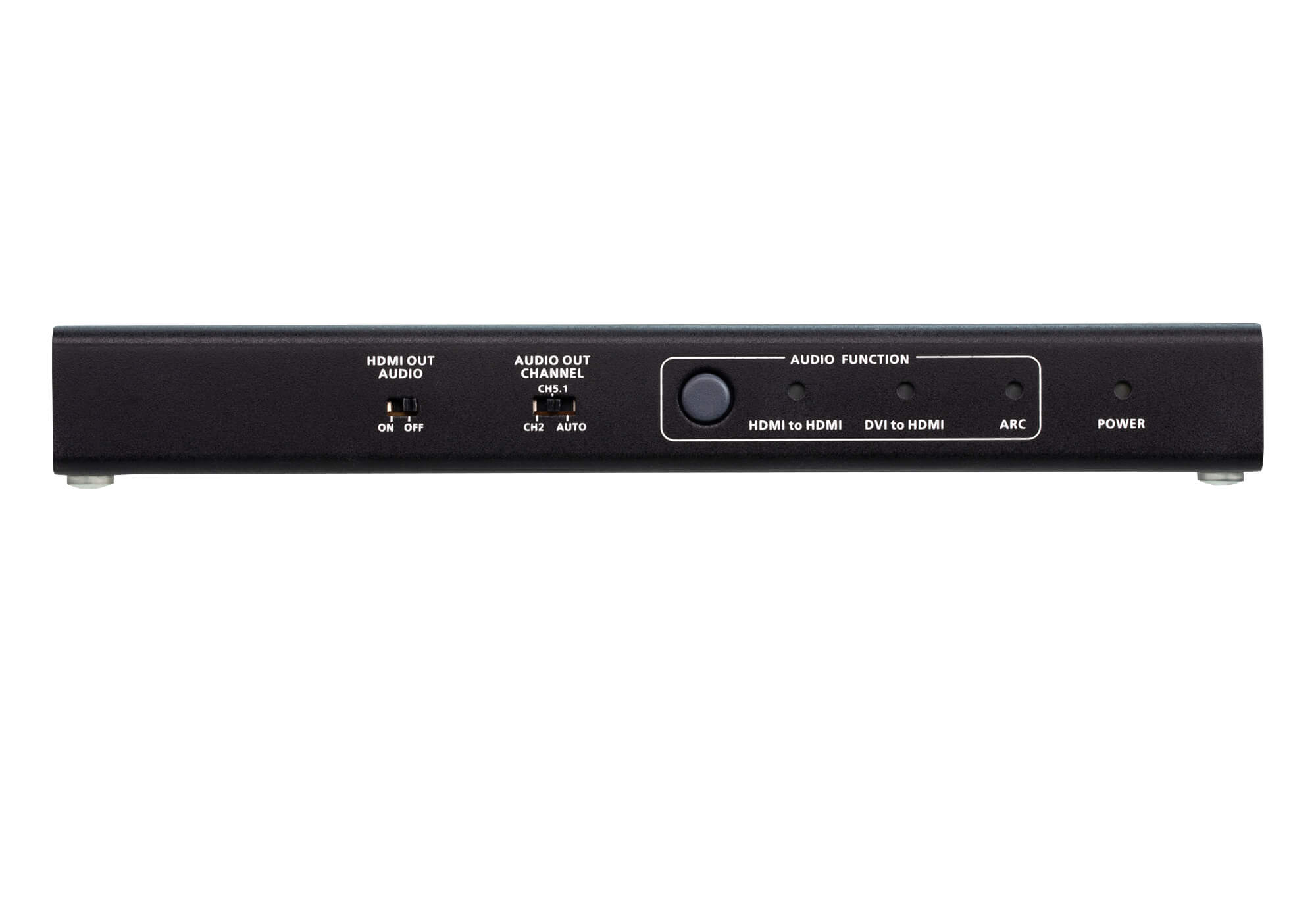

  Mode Selection	– Side Switch x 1 (HDMI Audio Out – ON/OFF)
  	– Side Switch x 1 (Audio Out Channel – AUTO/CH 5.1/CH 2)
  	– Push Button x 1 (Audio Function Selection)
  	1. HDMI to HDMI
  	2. DVI to HDMI
  	3. ARC (Audio Return Channel)

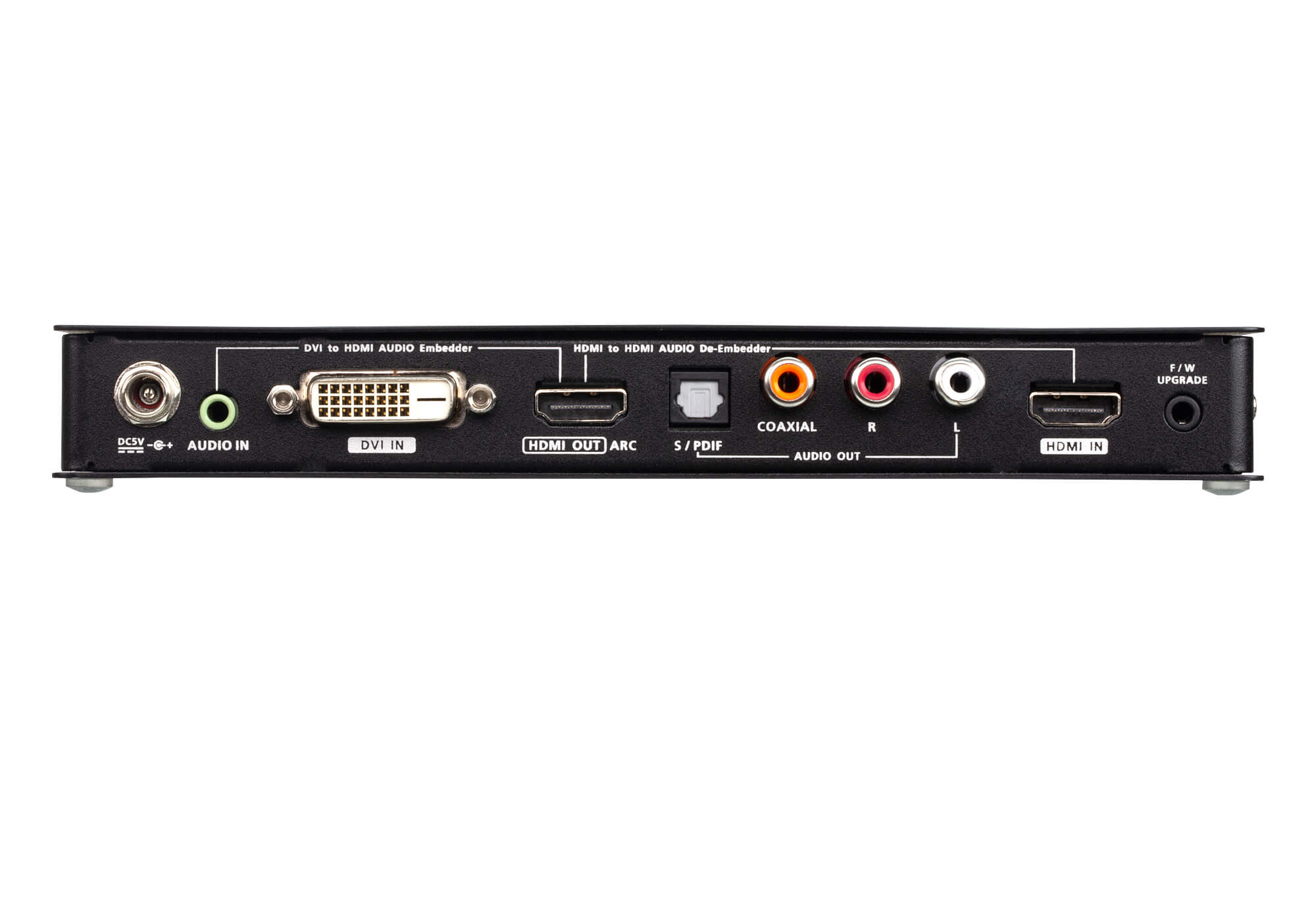

  Video Input	– Interfaces: 1 x HDMI Type A Female (Black), 1 x DVI-D Female (White)
  	– Impedance: 100 Ω
  	– Max. Distance: HDMI: 3M, DVI: 1.8M
  Video Output	– Interfaces: 1 x HDMI Type A Female (Black) with ARC
  	– Impedance: 100 Ω
  	– Max. Distance: 3M
  Video	– Max. Data Rate: 10.2 Gps (3.4 Gbps Per Lane)
  	– Max. Pixel Clock: 340 MHz
  	– Compliance: HDMI 1.4 (3D, Deep Color), HDCP 1.4 Compatible
  	– Max. Resolution: HDMI 3840 X 2160@30HZ, DVI 1920 x 1200
  Audio Output	– Optical Audio: 1 x Toslink (Black)
  	– Coaxial Audio: 1 x RCA female (Orange)
  	– Stereo Audio: 2 x RCA female (White / Red)
  Audio Input	– Stereo Audio: 1 x 3.5mm jack (Green)
  Connectors	– Power: 1 x DC Jack, 5V, Lockable
  	– Firmware Upgrade: 1 x 3.5mm jack (FW upgrade)
  	– Power Consumption: DC5V:1.767W:8BTU/h
  Environmental	– Operating Temperature: 0 – 40 ºC
  	– Storage Temperature: -20 – 60 ºC
  	– Humidity: 0 – 80% RH, Non-Condensing
  Physical Properties	– Housing: Metal
  	– Weight: 0.47 kg ( 1.04 lb )
  	– Dimensions (L x W x H): 20.20 x 8.49 x 2.50 cm (7.95 x 3.34 x 0.98 in.)
  Carton Lot	20 pcs
