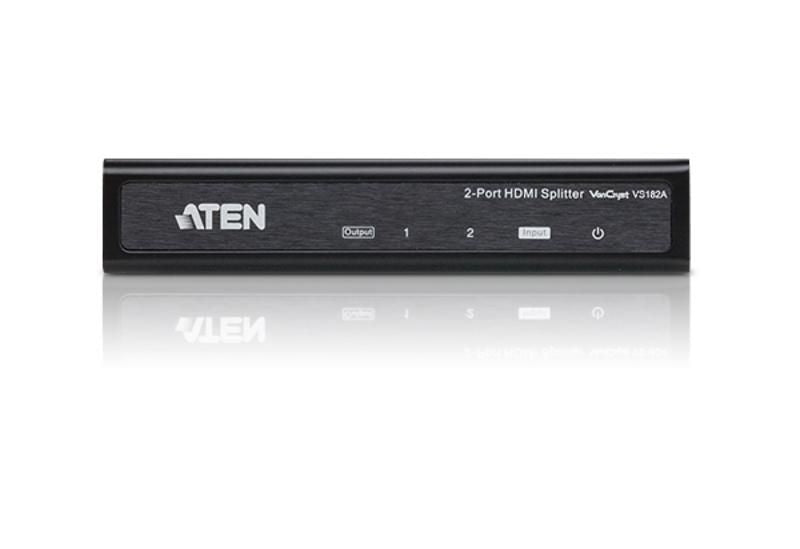

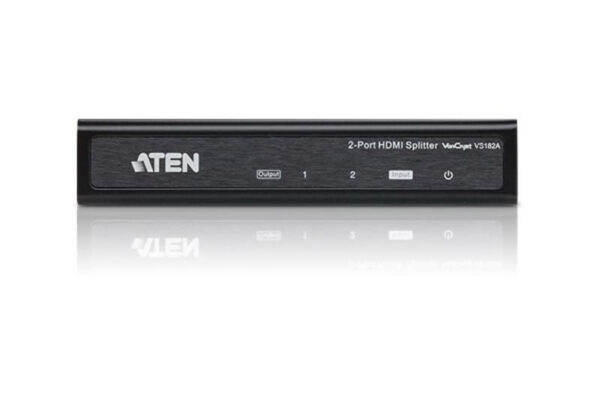

Aten 4K, 10.2Gbps, 340MHz HDMI Splitter – VS182A-AT-E

• Description
• Specifications

• Aten 4K, 10.2Gbps, 340MHz HDMI Splitter – VS182A-AT-E

  The VS182A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMI-enabled equipment such as DVD players satellite set-top boxes and all HDMI displays.The VS182A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant making it effective for use with all HDMI displays in home theater applications as well as in corporate educational and commercial settings.The VS182A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.

  The VS182A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.


  Package Contents
  1x VS182A 2-Port HDMI Splitter
  1x Power Adapter
  1x HDMI Cable
  1x User InstructionsFeatures• Connects one HDMI source to two HDMI displays at the same time• HDMI (3D Deep Color 4kx2k); HDCP Compatible• Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD• Supports Dolby True HD and DTS HD Master Audio• Long distance transmission – up to 15 m (24 AWG)• Supports up to 340MHz bandwidth for high performance video• Plug-and-play – no software installation requiredPackage Contents• 1x VS182A 2-Port HDMI Splitter • 1x Power Adapter • 1x HDMI Cable • 1x User Instructions

  Connects one HDMI source to two HDMI displays at the same time

  HDMI (3D, Deep Color, 4kx2k); HDCP Compatible 1.4

  Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD

  Supports Dolby True HD and DTS HD Master Audio

  Long distance transmission – up to 15 m (24 AWG)

  Supports up to 340MHz bandwidth for high performance video

  Plug-and-play – no software installation required



• Features	Details
  3D	Yes
  Bandwidth	340 MHz
  HDCP	Yes
  Mac operating systems supported	Yes
  Maximum operating distance	15 m
  Maximum resolution	3840 x 2160 Pixels
  Plug and Play	Yes
  Product colour	Black
  Windows operating systems supported	Yes
  Legal Information
  UNSPSC Code	52161556
  Operational conditions
  Operating relative humidity (H-H)	0 – 80 %
  Operating temperature (T-T)	0 – 50 °C
  Storage temperature (T-T)	-20 – 60 °C
  Package dimensions
  Depth (package, cm)	23.9 cm
  Gross Weight (Package, kg)	0.65 kg
  Height (package, cm)	16 cm
  Width (package, cm)	5.9 cm
  Packaging content
  AC adapter included	Yes
  Cables included	HDMI

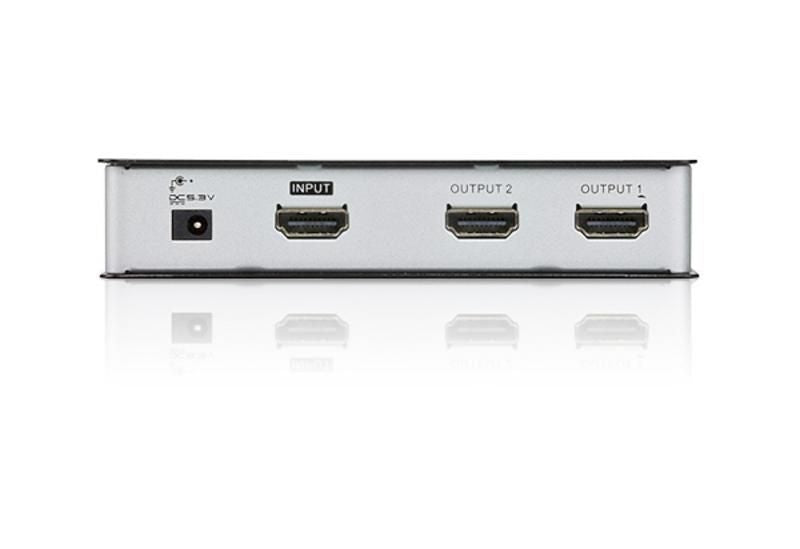

  Ports & interfaces
  DC-in jack	Yes
  Video out	2x HDMI
  Video port type	HDMI
  Video ports quantity	2
  Power
  AC input voltage	5.3 V
  Input voltage	5.3 V
  Product dimensions
  Net Weight (Product, kg)	0.1 kg
  Product Depth	8 cm
  Product Height	2.5 cm
  Product Width	12.5 cm
  Vendor information
  Brand Name	Aten
  Warranty	2 Year(s)
