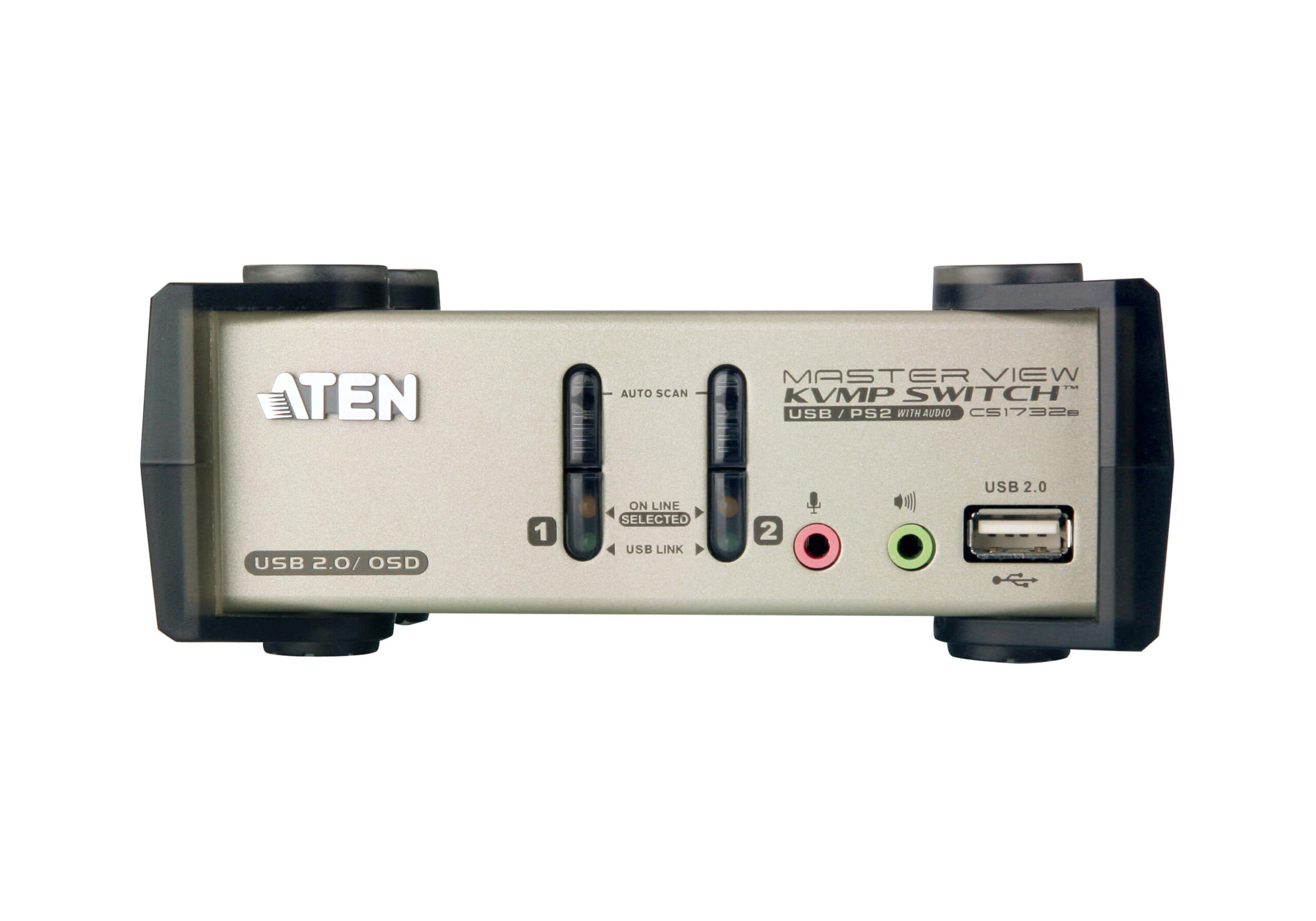

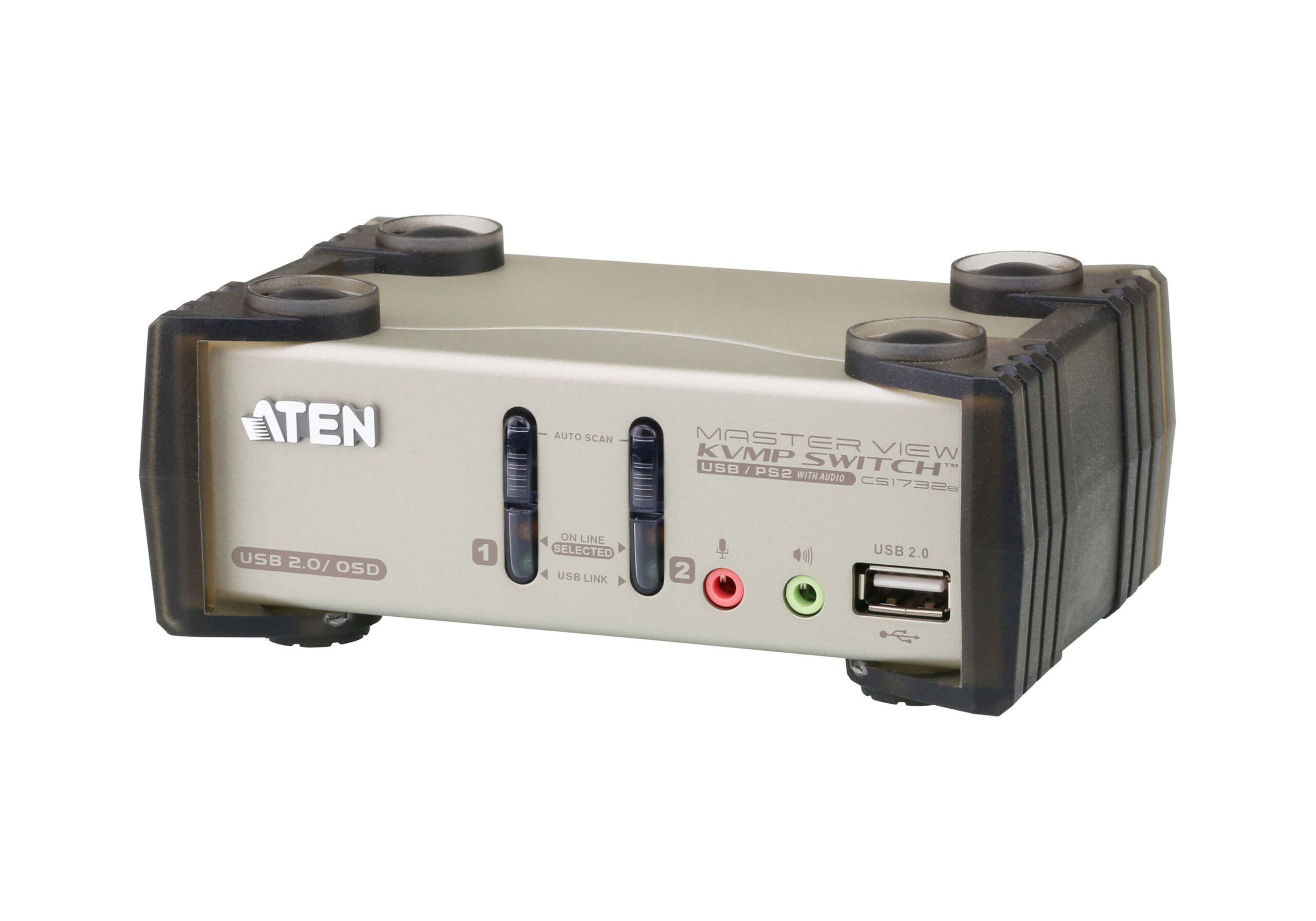

• Aten 2-Port USB KVM Switch with Audio – CS1732B-AT-E

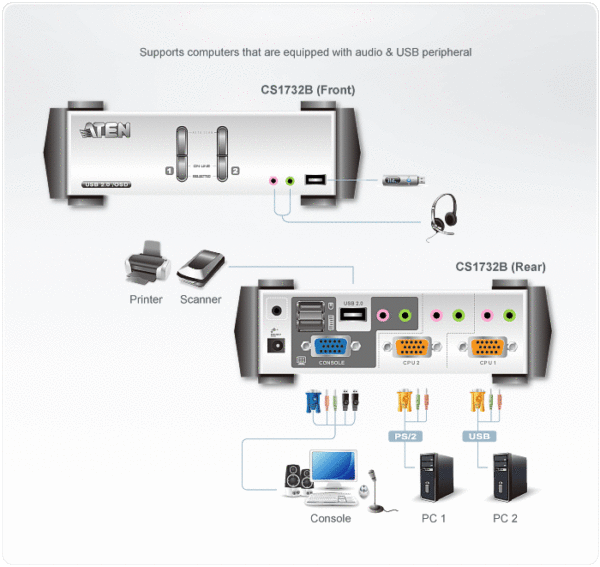

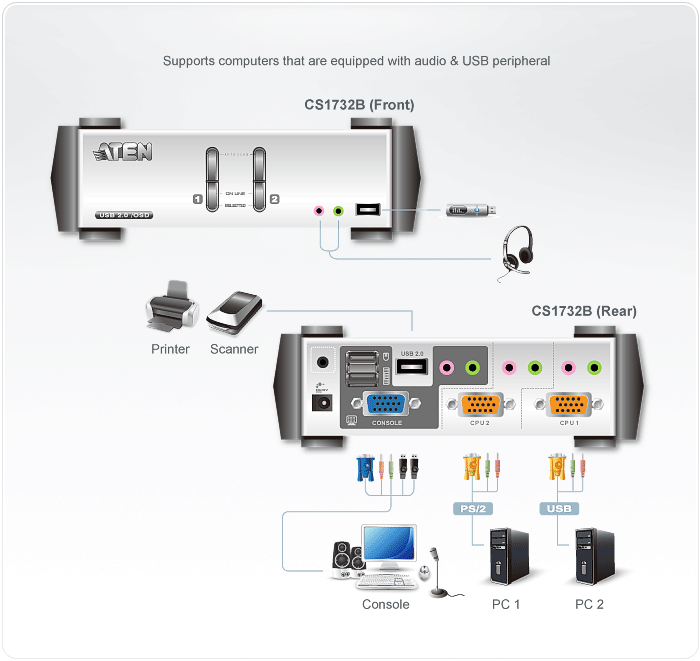

  The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
  1 x CS1732B 2-Port USB 2.0 KVMP™ Switch
  2 x 2L-5301U USB KVM Cables (1.2m)
  1 x LIN5-04A2-J13G Firmware Upgrade Cable
  1 x 0AD8-1605-24M1 Power Adapter
  2 x OSD/Hotkey Stickers
  1 x User Instructions

  Superior video quality; 2048 x 1536; DDC2B

  Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), hotkeys and mouse

  Supports computers with PS/2 or USB keyboard and mouse configurations

  Video DynaSync™ – stores the console monitor’s EDID (Extended Display Identification Data) to optimize display resolution

• Design
  Cable length	1.2 m
  Hot keys	Yes
  Housing material	Metal
  LED indicators	Yes
  Product colour	Black/Metallic
  Push button	Yes
  Display
  On Screen Display (OSD)	Yes
  Legal Information
  UNSPSC Code	43211601
  Operational conditions
  Operating relative humidity (H-H)	0 – 80 %
  Operating temperature (T-T)	0 – 50 °C
  Storage temperature (T-T)	-20 – 60 °C
  Package dimensions
  Depth (package,cm)	28.3 cm
  Gross Weight (Package, kg)	1.353 kg
  Height (package,cm)	17.3 cm
  Width (package,cm)	6.2 cm
  Packaging content
  Cables included	KVM
  Manual	Yes
  Quick installation guide	Yes
  Performance
  DDC2B support	Yes
  Firmware upgradeable	Yes
  HD type	QXGA
  Maximum resolution	2048 x 1536 Pixels
  Scan interval	1/255 Second
  Video bandwidth	60 Hz

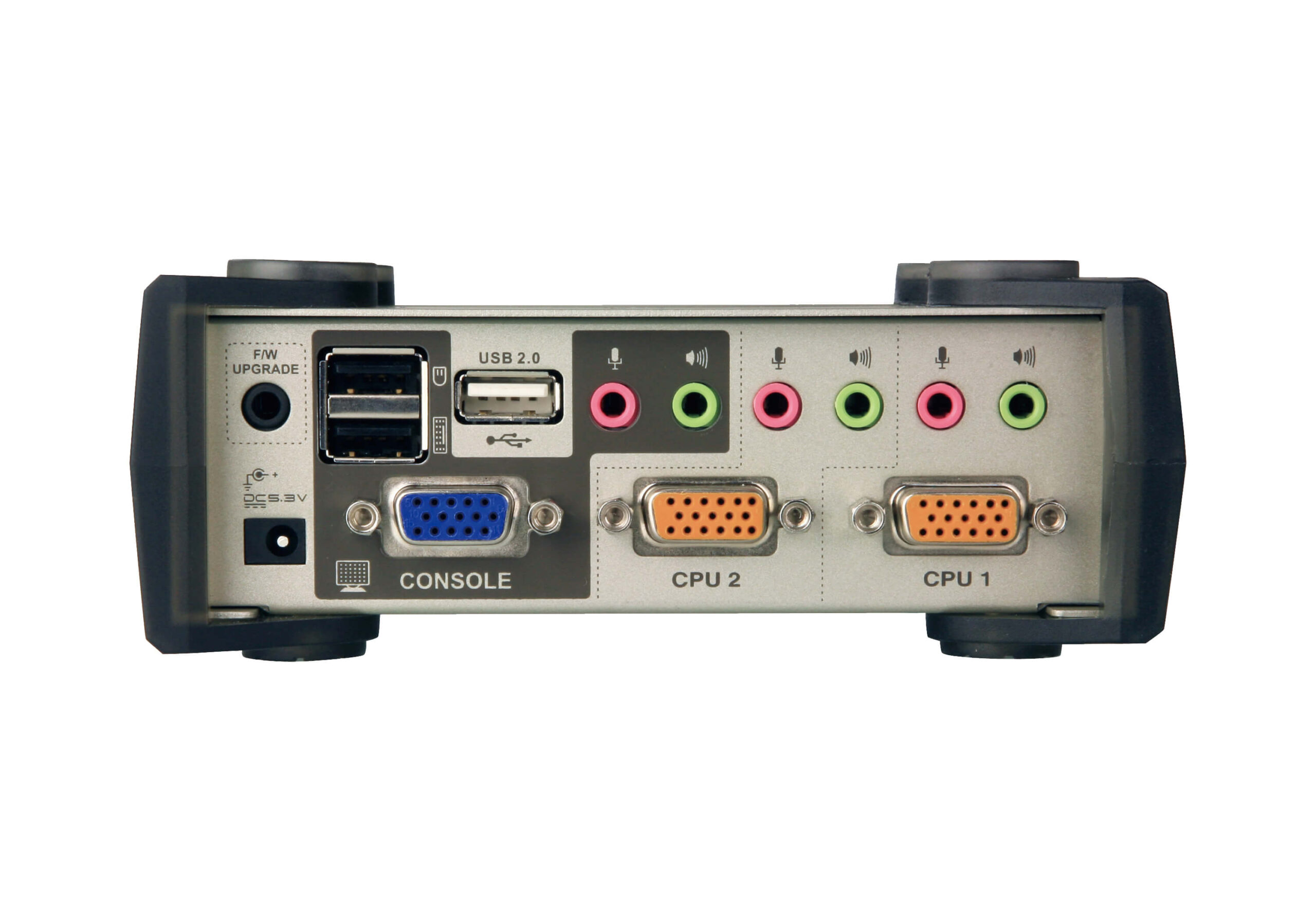

  Ports & interfaces
  Audio connections	Yes
  Console ports	3.5mm headphone/3.5mm mic
  DC-in jack	Yes
  Headphone outputs	4
  Keyboard port type	USB, PS/2
  Mouse port type	USB, PS/2
  Number of computers controlled	2
  Number of microphone inputs	4
  USB 2.0 Type-A hub ports quantity	2
  USB hub	Yes
  Video port type	VGA
  Power
  DC input voltage	5.3 V
  Power consumption (typical)	2.5 Watt
  Power source	DC
  Product dimensions
  Net Weight (Product, kg)	0.1 kg
  Product Depth	8.8 cm
  Product Height	5.55 cm
  Product Width	14 cm
  System requirements
  Mac operating systems supported	Yes
  Windows operating systems supported	Yes
  Vendor information
  Brand Name	Aten
  Warranty
  Warranty	2 Year(s)
