• Aten 16-Port USB PS/2 VGA KVM Switch – CS1316-AT-E

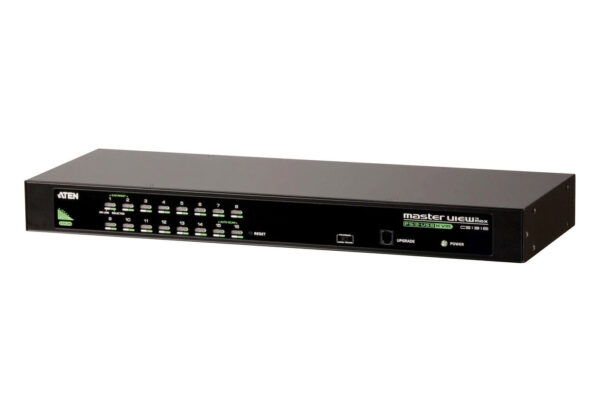

  The CS1316 KVM switch allows access and control up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and computers.
  1x CS1316 KVM Switch with Rack Mount Kit
  1x LIN5-27X6-U21G Console cable
  1x Firmware Upgrade cable
  1x Foot Pad set (4 pads)
  1x 0AD8-1605-24M1 Power Adapter
  1x User Instructions

  One USB-PS/2 console controls 16 computers; Cascade up to 2 levels – control up to 256 computers

  Broadcast mode – operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown, etc

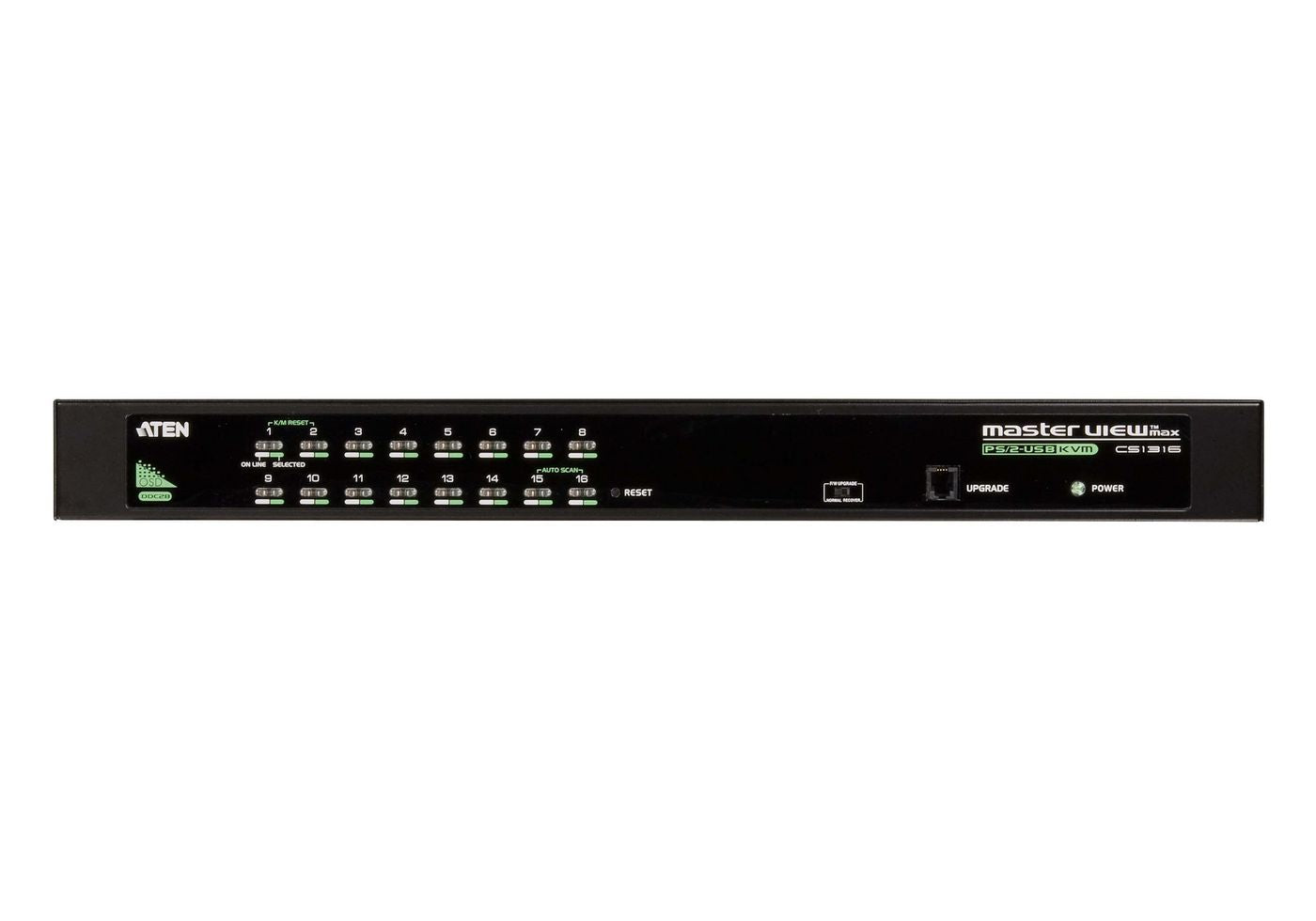

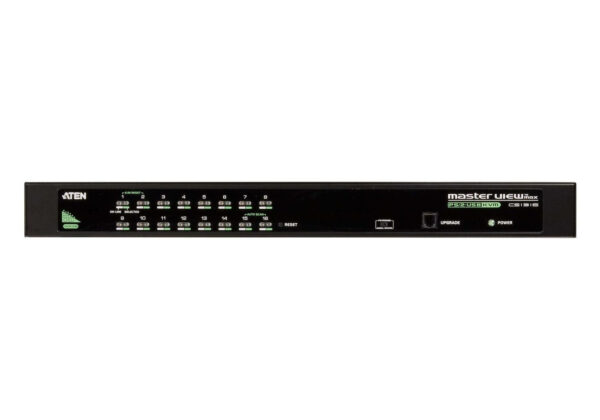

  Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu

  Video DynaSync™ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports

• Design
  Cascadable	Yes
  Hot keys	Yes
  Housing material	Metal
  LED indicators	Yes
  Product colour	Black
  Push button	Yes
  Rack capacity	1U
  Rack mounting	Yes
  Display
  Built-in display	No
  On Screen Display (OSD)	Yes
  Legal Information
  UNSPSC Code	43211601
  Operational conditions
  Operating relative humidity	0 – 80 %
  Operating temperature	0 – 50 °C
  Storage temperature	-20 – 60 °C
  Package dimensions
  Depth (package,cm)	54 cm
  Gross Weight (Package, kg)	2.868 kg
  Height (package,cm)	23.3 cm
  Width (package,cm)	11.6 cm
  Packaging content
  AC adapter included	Yes
  Cables included	KVM
  Manual	Yes
  Quick installation guide	Yes
  Performance
  DDC2B support	Yes
  Firmware upgradeable	Yes
  HD type	QXGA
  Hot-Plug support	Yes
  Maximum resolution	2048 x 1536 Pixels
  Scan interval	1/255 Second

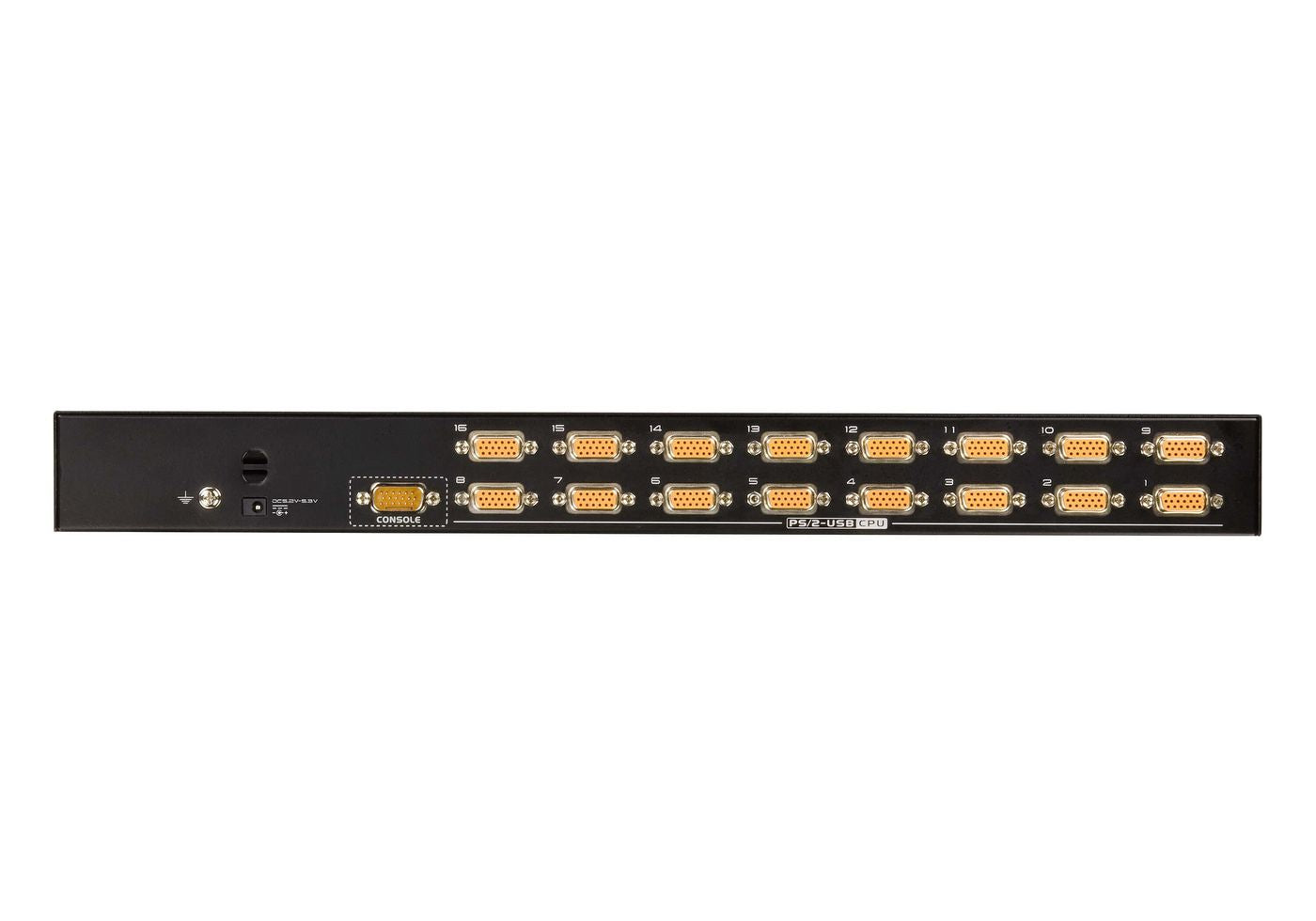

  Ports & interfaces
  Console ports	VGA (D-Sub)
  Keyboard port type	USB, PS/2
  Mouse port type	USB, PS/2
  Number of computers controlled	256
  Video port type	VGA
  Power
  DC input voltage	5.3 V
  Power consumption (typical)	6.5 Watt
  Power source	DC
  Product dimensions
  Net Weight (Product, kg)	0.1 kg
  Product Depth	16.13 cm
  Product Height	4.4 cm
  Product Width	43.72 cm
  System requirements
  Linux operating systems	Yes
  Mac operating systems	Yes
  Windows operating systems	Yes
  Vendor information
  Brand Name	Aten
