• Asus ZenScreen MQ13AH 13.3″ Full HD 60Hz 1Ms Portable Monitor

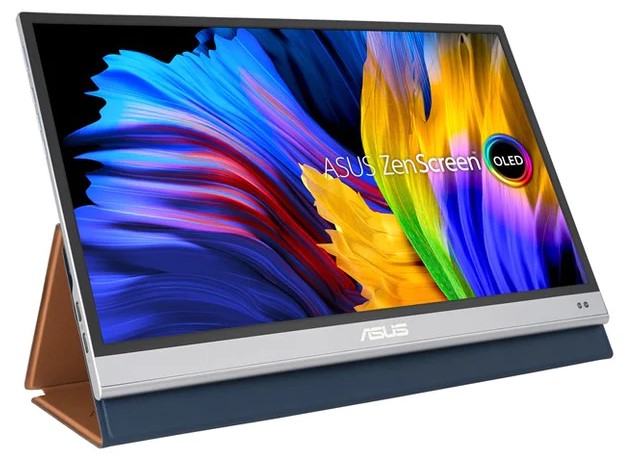

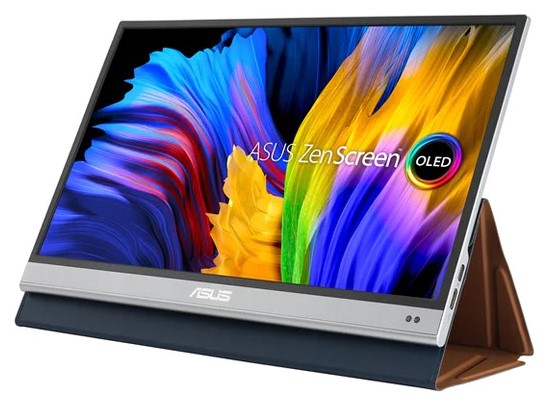

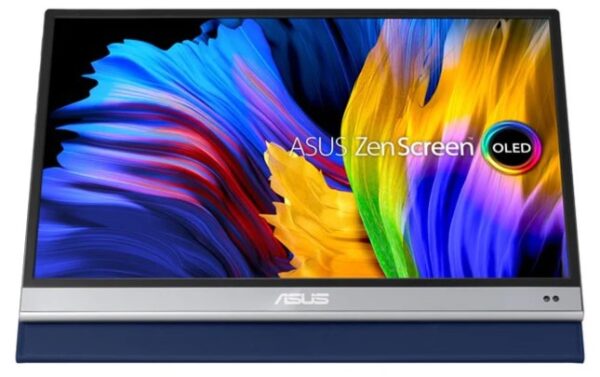

  ASUS ZenScreen OLED MQ13AH
  Portable Monitor
  Colors that pop.
  Crafted to carry.

  ASUS ZenScreen™ OLED MQ13AH is a 13.3-inch portable OLED monitor that delivers exceptional color performance, with a wide 100% DCI-P3 gamut and a 100,000:1 contrast ratio to ensure darker blacks and brighter whites. With a 1-millisecond response time, ZenScreen OLED MQ13AH displays blur-free animated and fast-action content. An ultralight, super-slim design and rich connectivity make this groundbreaking OLED portable monitor your perfect on-the-go companion.

  The ideal portable solution
  With its super-slim design, ultralight chassis, superb connectivity, and exceptional OLED visuals, ZenScreen OLED MQ13AH is the perfect companion for any mobile device. You can work more efficiently on the go with an extended display, or simply kick back and enjoy your favorite movies and videos wherever you are.

  OLED
  Astonishing
  true-to-life color
  ZenScreen OLED MQ13AH provides amazing viewing experiences, with its brilliant OLED panel and HDR technology that can display over 1 billion colors. Its cinema-grade 100% DCI-P3 color gamut and Delta E < 2 color accuracy make it a superbly versatile all-rounder for anyone ― including professional creators.

  OLED HDR
  vivid colors

  Delta-E < 2
  color accuracy

  100%
  DCI-P3 color gamut

  OLED
  Extreme blacks and
  high perceptual brightness
  The OLED technology in ZenScreen OLED MQ13AH produces the deepest blacks and ensures vivid colors at any brightness level. It also delivers extremely crisp and clear details, even in the darkest scenes.

  100,000 : 1
  contrast ratio

  OLED
  Fast response time for smooth visuals
  With a rapid response time — as low as 1 ms — ZenScreen OLED MQ13AH displays smooth fast-paced action scenes and ensures low-latency gameplay. You’ll also enjoy subtle benefits such as blur-free text scrolling.

  Super-slim, lightweight and portable
  ZenScreen OLED MQ13AH is ideal for life on the road. It weighs just 490 grams* and measures only 5 millimeters at its thinnest part, so it fits easily in any travel bag and is ready for productivity, anytime and anywhere.
  *Without Smart Case

  Flexible viewing positions
  An innovative Smart Case protects ZenScreen OLED MQ13AH from dust and scratches, and the case can be folded into a stand to prop the monitor up in different positions. There’s also a tripod socket built into the rear of the monitor.

  Don’t throw away the box!
  We’ve pulled out all the stops to create unique no-waste packaging for ZenScreen OLED MQ13AH. With just a few folds and tucks, you can turn the box into a super monitor hood* that reduces glare and distraction, and also improves perceived color accuracy. Even the protective foam inserts can be recycled for use as a handy stand for your monitor!

  Proximity sensor
  An embedded proximity sensor provides added convenience, saving energy and preventing image burn-in when ZenScreen OLED MQ13AH is not in use. The sensor switches the monitor to a power-saving mode when it detects you’ve moved away, and then resumes normal operation when you return.

  Smart connectivity
  ZenScreen OLED MQ13AH includes a mini HDMI® port and three USB-C® ports — two of which support DisplayPort™ Alt Mode and used for power input, with the remaining USB-C port solely reserved for the power adaptor. The I/O ports are side mounted, making cable management easy and offering greater setup flexibility.

  Protect your eyes with ASUS Eye Care technology

  LOW BLUE LIGHT
  The new hardware-based ASUS Low Blue Light technology reduces potentially harmful high-energy blue-light emissions while offering color performance that’s better than monitors with software-only filtering solutions.

  FLICKER FREE TECHNOLOGY
  TÜV Rheinland-certified ASUS Flicker Free technology eliminates flicker, ensuring comfortable viewing experiences. This technology helps minimize eyestrain and other ailments typically associated with extended hours of viewing.

• Model	ASUS ZenScreen OLED MQ13AH
  Display
  Panel Size (inch)	13.3
  Aspect Ratio	16:9
  Display Viewing Area (H x V)	293.76 x 165.24mm
  Display Surface	Glare
  Backlight Type	OLED
  Panel Type	OLED
  Viewing Angle (CR≧10, H/V)	178°/178°
  Pixel Pitch	0.153mm
  Resolution	1920×1080
  Color Space (DCI-P3)	100%
  Brightness (HDR, Peak)	400 cd/㎡
  Brightness (Typ.)	400 cd/㎡
  Contrast Ratio (HDR, Max)	1,000,000:1
  Contrast Ratio (Typ.)	100,000:1
  Display Colors	1073.7M (10 bit)
  Response Time	1ms(Tr+Tf)
  Refresh Rate (Max)	60Hz
  HDR Support (High Dynamic Range)	HDR10
  Flicker-free	Yes
  Video Feature
  Trace Free Technology	Yes
  SPLENDID Technology	Yes
  Color Temp. Selection	Yes (4 modes)
  Gamma Adjustment	Yes (Support Gamma 1.8/2.2/2.5)
  Color Accuracy	△E< 2
  GamePlus	Yes
  QuickFit	Yes (Photo/Alignment Grid)
  HDCP	Yes
  DisplayWidget	Yes
  Low Blue Light	Yes (Hardware Solution)
  Audio Feature
  Speaker	No
  I/O Ports
  USB-C x 2 (DP Alt Mode)
  Mini HDMI x 1
  Signal Frequency
  Digital Signal Frequency	HDMI: 60Hz (V)
  	USB-C: 60Hz (V)
  Power
  Power Consumption	4.64 W
  Power Saving Mode	<0.5W
  Power Off Mode	<0.3W
  Voltage	100-240V, 50/60Hz
  Mechanical Design
  Tilt	No
  Height Adjustment	No
  1/4″ Tripod Socket	Yes
  Dimensions (Esti.)
  Phys. Dimension without Stand	30.82 x 19.71 x 0.90 cm
  Box Dimension	50.60 x 13.40 x 36.10 cm
  Weight (Esti.)
  Net Weight without Stand	0.49 kg (1.08 lbs)
  Gross Weight	3.05 kg (6.72 lbs)
  Accessories (vary by regions)
  Color pre-calibration report
  Mini HDMI to HDMI cable
  Power adapter
  Quick start guide
  USB Type-C to A adapter
  USB-C cable
  Warranty Card
  ZenScreen smart cover
  Certificate
  TÜV Flicker-free
  TÜV Low Blue Light

• LCD Monitors Warranty Policy

  ASUS Warranty Policy

  A Limited Warranty is offered on ASUS products. This Limited Warranty does not cover any software applications or programs; non-Asus products or non-Asus branded peripherals.

  Asus guarantees that the Asus Products that you have purchased are free from defects in materials or workmanship under normal use during the Limited Warranty Period. The Limited Warranty Period starts from the date of purchase. Your sales receipt, showing the date of purchase, is the proof of your purchase date. You may be required by your Purchase Site or Asus Authorized service Providers to present the proof of purchase as a condition of receiving warranty service. You are entitled to a hardware warranty service if a repair is required within the Limited Warranty Period.

  During the Limited Warranty Period, Asus will, at its sole discretion, repair or replace any defective component. All spare-parts or module removed under this Limited Warranty become the property of Asus.

  Exclusions from this Limited Warranty Service
  Asus does not guarantee uninterrupted or error-free operation of this product. Any technical or other support provided for the product under warranty, such as assistance via telephone with “how-to” questions and those regarding product setup and information, being provided without warranties of any kind. The warranty only covers failures or malfunctions occurred in normal use conditions during the warranty period, as well as for any material or workmanship defect. The warranty will not apply if:
  a. Damage caused to this Product(s) by you or any non-authorized third party.
  b. the serial number has been altered, cancelled or removed;
  c. the damage is caused by accident, natural disaster, intentional or accidental misuse, abuse, neglect or improper maintenance, or the abnormal use conditions;
  d. the damage is caused by an external electrical fault or any accident;
  e. the damage from use outside of the operation or storage parameters or environment detailed in the User’s Manual;
  f. the damage is caused from the using of parts not manufactured or sold by ASUSTeK.
  g. damage is caused from third party software or from virus(es);
  h. the software loss or data loss that may occur during repair or replacement.
  Returning a Product to your Purchase Site or an Asus Authorized Service Provider during the warranty period does not automatically mean that it will be repaired free of charge. Upon receiving your product, the Service Centre reserves the right to check the validity of your warranty and your request for warranty service.

  Neither Asus, Asus Authorized Service Provider , nor your reseller are responsible for any of your confidential, proprietary or personal information contained in the product which you return to Asus , Asus Service Centre or Asus Authorized Service Provider for any reason. You should remove all such information from the product prior to its return.

  Asus or Asus Authorized Service Provider is not responsible for damage or loss of any personal data, programs, or removable storage media. Asus is not responsible for the restoration or reinstallation of any data or programs other than software installed by Asus when the product was manufactured.


  Standard Warranty period of the Product

  This Warranty applies for 36 months period from the date the Product was first purchased by an end-customer (“Date of Purchase”). If proof of purchase cannot be provided, the manufacture date as recorded by ASUS will be deemed to be the start of the Warranty Period. ASUS warrants the Product to be free from defects in workmanship and materials for the Warranty Period.

  *OLED Models apply 24 months warranty period from the Date of Purchase.

  The Warranty does not cover bundled accessories, which were delivered together with the Product such as: cables, free gifts etc. If the Product fails during normal and proper use within the Warranty Period, ASUS, at its discretion, will repair or replace the defective parts of the Product, or the Product itself, with new or reconditioned parts or products that are functionally equivalent or superior to those originally supplied.



  Warranty period of Adaptor and Built-in battery

  12 months warranty from the Date of Purchase. Product specifications are different by Monitor models. Please refer to Asus website: https://www.asus.com/Monitors/ for Monitor Specifications with adaptor accessory or built-in battery design.



  LCD Panel Bright/Dark Dot Warranty & Regulation

  Since LCD panel is made up of millions of micro electronic pixels, if one pixel no longer functions normally, it will become a bright or dark dot. By ISO 9241-302 standards, ASUS conforms to the acceptance level between 3 to 5 defective bright/dark pixels. In order to deliver ultimate vision experience to ASUS customer, if your panel is less than or equal to the above number of dots, then, it is considered as an acceptable LCD monitor.In addition, the Premium Range of ASUS LCDs offers a unique Zero Bright Dot (ZBD) warranty.Please refer to ASUS LCD Monitor Bright/Dark Dot Warranty Table below.

  ASUS LCD Monitor Bright/Dark Dot Warranty Table：

  Covered Models: PG Series (OLED Models not applicable)

  After Purchase	Bright Dot	Dark Dot
  12 months	0	≦5
  13~36 months	≦3	≦5



  Covered Models: PA Series (OLED Models not applicable)

  After Purchase	Bright Dot	Dark Dot
  36 months	0	≦5



  Covered Models: OLED Models

  After Purchase	Bright Dot	Dark Dot
  24 months	≦3	≦5



  Covered Models: Others (Non-ZBD Models)

  After Purchase	Bright Dot	Dark Dot
  36 months	≦3	≦5

  1. A Pixel consists of sub-pixels: one red, one green and one blue dot. A bright dot is a sub-pixel that is always on under Black pattern. A dark dot is a sub-pixel that is always off under any pattern.

  1. 1. 2. Micro Dot, less than or equal to 1/2 dot, is excluded in the warranty.

     2. 3. Non-ZBD/ZBD warranty models may vary from different regions.

     3.

     TAKING CARE OF YOUR LCD:

     1.Turn off the LCD if you will not use it for a long time. Doing this will help you save electric power consumption and prolong your LCD’s life.

  2. 2.Do not touch the LCD with your fingers, sharp, and/or hard object so as not to scratch the LCD.

  3. 3.Use monitor-cleaning sheet to lightly wipe off dirt from the LCD. Do not use your fingers!

  4. 4.Do not use any chemicals or detergents to clean the LCD.

  5. 5.Use screen saver to avoid the damage caused by long-term static (non-moving) images displayed.

  6. Warning:
     1. Warranty period may differ regionally, please check with your purchase Site.
     2. Australia statement notice
     From 1 January 2012updated warranties apply to all ASUS products, consistent with the Australian Consumer Law. For the latest product warranty details please visit http://www.asus.com/support/Search/Warranty/ Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

• Description	Downloads
  User Guide	Download
