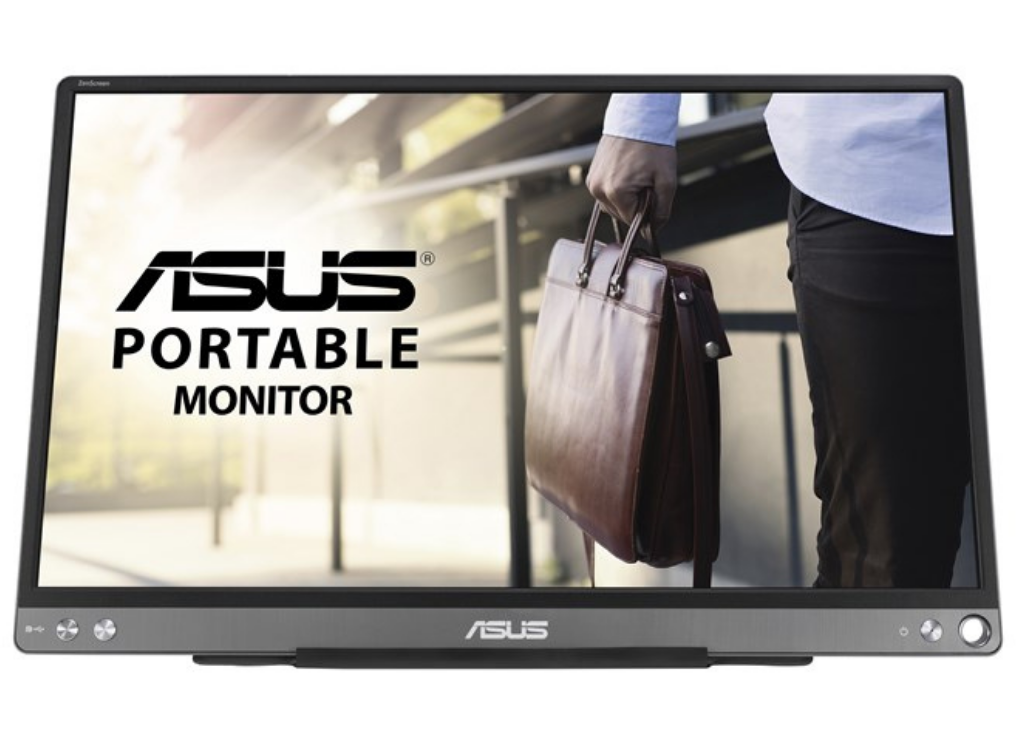

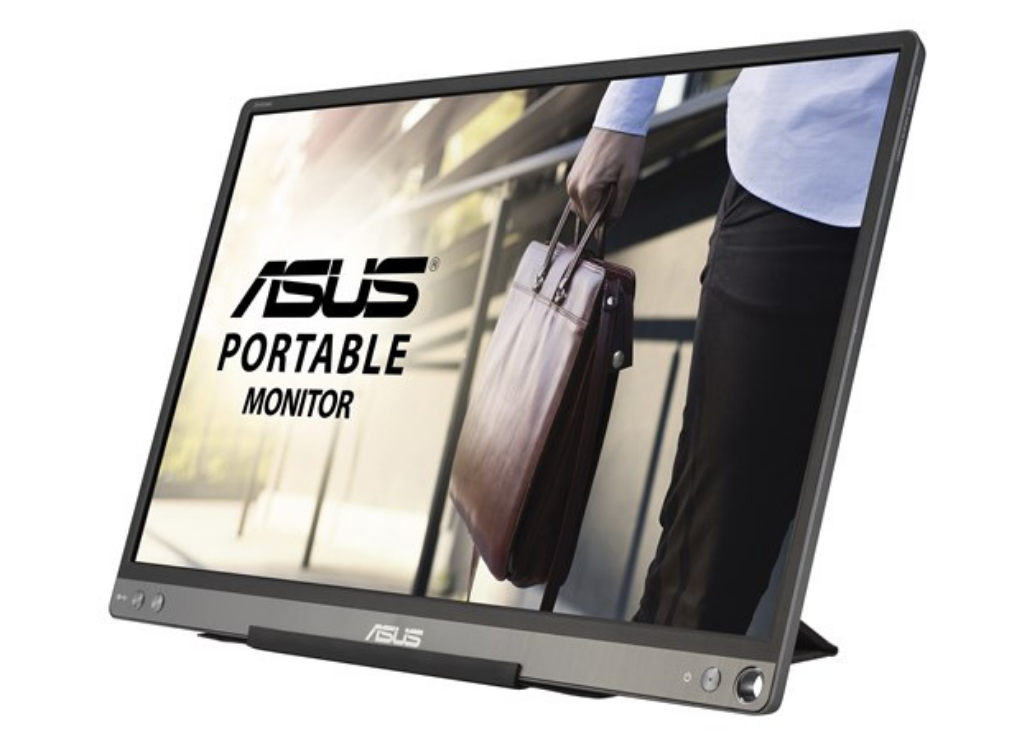

ASUS ZenScreen MB16ACE 15.6″ 70Hz 5ms Full HD Portable USB Monitor

• Description
• Specifications
• Downloads

• ASUS ZenScreen MB16ACE 15.6″ 70Hz 5ms Full HD Portable USB Monitor


  Extend your vision. Free your world.
  ASUS ZenScreen MB16ACE is designed to keep you productive, wherever you are. It’s a highly portable monitor with a hybrid signal solution, which means that it only needs a single USB connector cable to be fully compatible with almost any laptop. With a super slim 8mm profile, and weighing just 0.71 kg, ZenScreen MB16ACE is also the lightest 15.6 inch companion display monitor.

  Hybrid-signal solution: USB Type-A and Type-C support
  ZenScreen MB16ACE only requires a single USB connection for both power and video transmission from your host device. It features an innovative hybrid-signal solution with native support for USB Type-C (USB-C) connections, and uses an installed driver to support USB Type-A connectors for full compatibility. The reversible, any-way-up USB-C design enables quick, hassle-free connection to any device.


  Slim and stylish ultraportable design
  ZenScreen MB16ACE is ideal for use as a secondary monitor for dual-monitor presentations, and its versatility helps you get things done more efficiently when you’re on the go. It barely tips the scales at a lightweight 0.71kg, and with its ultra-slim 8mm profile it fits easily in any travel bag.

  Automatic screen orientation
  With DisplayWidget software, ZenScreen MB16ACE can automatically sense its orientation and switch the monitor between landscape and portrait modes. Landscape mode is ideal for presentations and Excel sheets, while Portrait mode gives you a perfect view of items such as codes, documents, books or mobile websites.

  Wide viewing angles
  ZenScreen MB16ACE features a Full HD panel that delivers stunning 1920 x 1080 resolution visuals with outstanding color reproduction. It uses IPS technology to give you more flexibility when extending your screen, so you still get superb color and contrast – even from extreme viewing positions.


  Foldable smart case
  The new foldable smart case protects ZenScreen MB16ACE from dust and scratches with lighter weight. The case can be folded into a stand to prop the monitor up in either portrait or landscape orientation. ZenScreen MB16ACE is designed in a smart pen hole in the bottom right hand corner, where you can insert a pen to prop the screen up when not using the smart case.

  Protect your eyes with ASUS Eye Care technology

  ASUS blue light filter
  Exclusive ASUS Ultra-Low Blue Light technology protects you from harmful blue light. It offers four blue-light filter settings that are easily accessed through the onscreen display menu via the hotkey.


  ASUS Flicker-free technology
  It’s time to say goodbye to those tired, strained eyes. ZenScreen MB16ACE features TÜV Rheinland-certified ASUS Flicker-free technology to reduce flicker for a comfortable viewing experience. This technology helps minimize instances of eyestrain and other damaging ailments, especially when you spend long, countless hours in front of a display watching favorite videos.

• Feature	Details
  Display
  Display diagonal	39.6 cm (15.6″)
  Display resolution	1920 x 1080 pixels
  HD type	Full HD
  Native aspect ratio	16:9
  Display technology	LED
  Panel type	IPS
  Touchscreen
  Display brightness (typical)	250 cd/m²
  Response time	5 ms
  Display surface	Matt
  Screen shape	Flat
  Contrast ratio (typical)	800:1
  Maximum refresh rate	70 Hz
  Viewing angle, horizontal	178°
  Viewing angle, vertical	178°
  Display number of colours	262000 colours
  Pixel pitch	0.179 x 0.179 mm
  Viewable size, horizontal	34.4 cm
  Viewable size, vertical	19.4 cm
  Ports & interfaces
  USB Type-C DisplayPort Alternate Mode
  DVI port
  HDMI
  Audio input
  Headphone out
  HDCP
  Ergonomics
  VESA mounting
  Cable lock slot
  Height adjustment
  Power
  Energy efficiency class (SDR)	F
  Energy consumption (SDR) per 1000 hours	13 kWh
  Power consumption (typical)	13 W
  Power consumption (standby)	0.5 W
  Power consumption (off)	0.3 W
  Energy efficiency scale	A to G
  Weight & dimensions
  Width (with stand)	359.7 mm
  Depth (with stand)	8 mm
  Height (with stand)	226.4 mm
  Weight (with stand)	800 g
  Packaging data
  Package width	434 mm
  Package depth	76 mm
  Package height	290 mm
  Package weight	1.65 kg
  Sustainability
  European Product Registry for Energy Labelling (EPREL) code	429839
  Logistics data
  Harmonized System (HS) code	85285210
  Other features
  On/off switch
  TV tuner integrated
