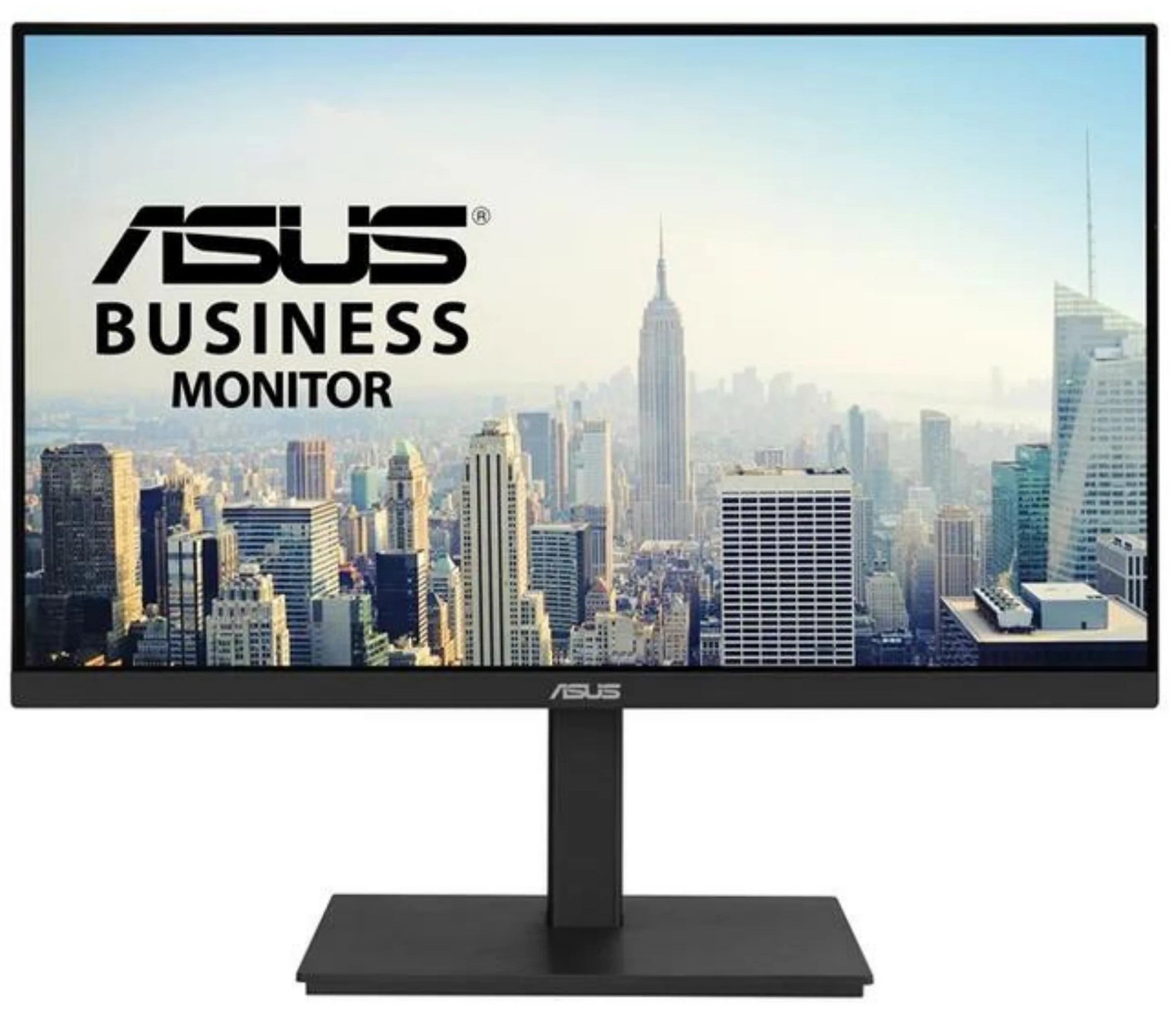

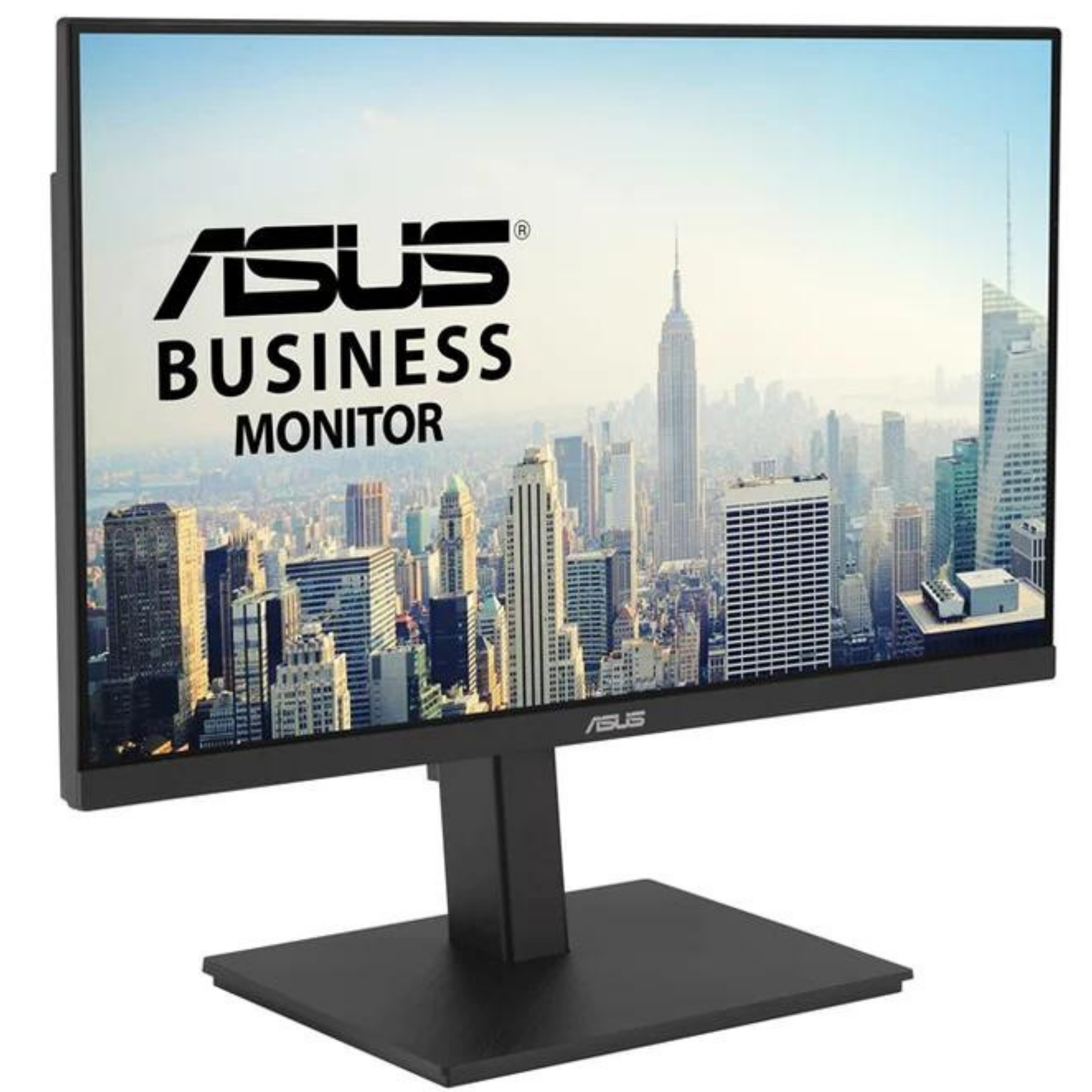

Asus VA24ECPSN 24″ Full HD IPS 75Hz Docking Monitor

• Description
• Specifications
• Warranty
• Downloads

• Asus VA24ECPSN 24″ Full HD IPS 75Hz Docking Monitor


  ASUS Docking Monitor
  Enhance Your Productivity

  ASUS VA24ECPSN is a 23.8 inch Full HD (1920 x 1080) monitor that features a frameless IPS panel for wide angle viewing to deliver incredibly sharp imagery and stunning video playback. Stable Internet connection and one-cable docking to your laptop with RJ45 and USB-C connection. Up to 75Hz refresh rate with Adaptive-Sync technology to eliminate tracing and ensure crisp and smooth viewing experience. Its highly ergonomic design with tilt, swivel, pivot and height adjustments along with TÜV Rheinland-certified Flicker-free and Low Blue Light provides a comfortable viewing experience.

  Lifelike views with 178° wide view angle
  Frameless IPS panel provides 178° viewing angles, both horizontally and vertically, so you can enjoy its beautiful visuals from almost any direction.

  The USB-C That Does It All
  An included USB-C® port enables superfast data transfers, DisplayPort connectivity and 65W power delivery to charge devices via just one USB-C cable. The monitor also serves as a USB hub: any device connected to the USB Type-A ports gains access to other peripherals hooked up to the other USB ports.

  Expansive Connectivity
  Along with a USB-C port, ASUS VA24ECPSN offers an HDMI, DisplayPort, three USB-A downstream ports and RJ45 ― so its compatible with a wide variety of devices. VA24ECPSN even includes an RJ45 Ethernet port to provide connected devices with a stable Internet connection for more space saving and convenience. It also has pass-through port for the headphone jack input.

  Built-in stereo speakers for multimedia
  With two integrated speakers, VA24ECPSN enhances your audiovisual experiences, for limitless entertainment and multimedia enjoyment.

  Ergonomic Design

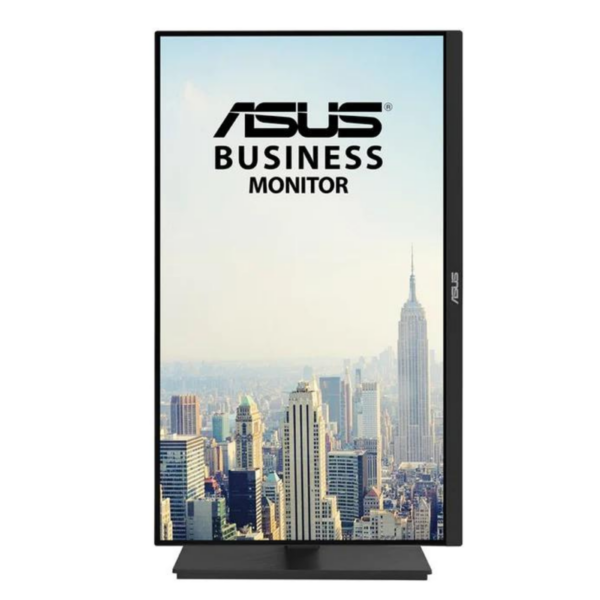

  Flexible tilt, swivel, pivot and height adjustments make it easy to find the most comfortable viewing position. The screen can also be rotated a full 90° into a portrait orientation, which is ideal for working with long documents, writing code or browsing websites.

  Protect your eyes with ASUS Eye Care technology
  ASUS blue light filter
  For viewing comfort and for protection from potentially harmful blue light, it offers intuitive and flexible with seamless adjustment that are easily accessed through the onscreen display menu.

  ASUS Flicker-free technology
  It’s time to say goodbye to those tired, strained eyes. Flicker-Free technology helps reduce onscreen flicker, giving you a more comfortable, movie-marathon-ready environment. It is designed to minimize eyestrain, headaches and eye fatigue when you spend long, countless hours in front of the display.

  Smart Cable Management
  Cable management design helps you organize and hide various cables to keep your desk area tidy.

  Caring for the environment
  Committed to creating a sustainable future, ASUS ensures its products are compliant to environmental requirements at all stages of their product life cycles. ASUS Monitor with mercury-free LED backlit panel is energy-efficient to help reduce costs in the long run and meets the latest environmental standards such as Energy Star® , TCO Certified, and EPEAT™(*) .

• Model	VA24ECPSN
  Display
  Panel Size (inch)	23.8
  Aspect Ratio	16:9
  Viewing Area (H x V)	527.04 x 296.46 mm
  Display Surface	Non-Glare
  Backlight Type	LED
  Panel Type	IPS
  Viewing Angle (CR≧10)	178°/178°
  Pixel Pitch	0.2745mm
  Resolution	1920×1080
  Brightness (Typ.)	300 cd/㎡
  Contrast Ratio (Typ.)	1000:1
  Display Colors	16.7M
  Response Time	5ms(GTG)
  Refresh Rate (Max)	75Hz
  Flicker-free	Yes
  Video Feature
  SPLENDID Technology	Yes
  Color Temp. Selection	Yes (4 modes)
  GamePlus	Yes
  QuickFit	Yes
  HDCP	Yes, 1.4
  VRR Technology	Yes (Adaptive-Sync)
  Low Blue Light	Yes
  Eye Care+ Technology	Yes
  Audio Feature
  Speaker	Yes (2Wx2)
  I/O Ports
  USB-C	x 1 (DP Alt Mode)
  DisplayPort 1.2	x 1
  HDMI(v1.4)	x 1
  USB Hub	3x USB 3.2 Gen 1 Type-A
  Earphone Jack	Yes
  USB-C Power Delivery	65W
  RJ45	Yes
  Signal Frequency
  Digital Signal Frequency	3084 KHz(H)/ 4875 Hz(V)
  Power Consumption
  Power Consumption	13.89 W
  Power Saving Mode	<0.5W
  Power Off Mode	<0.3W
  Voltage	100-240V, 50/60Hz
  Mechanical Design
  Tilt	Yes (+35° ~ -5°)
  Swivel	Yes (+180° ~ -180°)
  Pivot	Yes (+90° ~ -90°)
  Height Adjustment	0~130mm
  VESA Wall Mounting	100x100mm
  Kensington Lock	Yes
  Dimensions (Esti.)
  Phys. Dimension (W x H x D)	53.95 x 45.04 x 21.14 cm (21.24″ x 17.73″ x 8.32″)
  Phys. Dimension without Stand (W x H x D)	53.95 x 32.32 x 4.82 cm (21.24″ x 12.72″ x 1.90″)
  Box Dimension (W x H x D)	60.00 x 41.20 x 19.80 cm (23.62″ x 16.22″ x 7.80″)
  Box Dimension (W x H x D)	61.00 x 41.20 x 19.30 cm (24.02″ x 16.22″ x 7.60″)
  Weight (Esti.)
  Net Weight	5.35 kg (11.79 lbs)
  Net Weight without Stand	3.4 kg (7.50 lbs)
  Gross Weight	7.24 kg (15.96 lbs)
  Accessories (vary by regions)
  HDMI cable
  Power cord
  Quick start guide
  USB-C cable
  Warranty Card
  Certificate
  Energy Star
  EPEAT Silver
  TCO Certified
  TCO Edge Certified
  TÜV Flicker-free
  TÜV Low Blue Light

• LCD Monitors Warranty Policy

  ASUS Warranty Policy

  A Limited Warranty is offered on ASUS products. This Limited Warranty does not cover any software applications or programs; non-Asus products or non-Asus branded peripherals.

  Asus guarantees that the Asus Products that you have purchased are free from defects in materials or workmanship under normal use during the Limited Warranty Period. The Limited Warranty Period starts from the date of purchase. Your sales receipt, showing the date of purchase, is the proof of your purchase date. You may be required by your Purchase Site or Asus Authorized service Providers to present the proof of purchase as a condition of receiving warranty service. You are entitled to a hardware warranty service if a repair is required within the Limited Warranty Period.

  During the Limited Warranty Period, Asus will, at its sole discretion, repair or replace any defective component. All spare-parts or module removed under this Limited Warranty become the property of Asus.

  Exclusions from this Limited Warranty Service
  Asus does not guarantee uninterrupted or error-free operation of this product. Any technical or other support provided for the product under warranty, such as assistance via telephone with “how-to” questions and those regarding product setup and information, being provided without warranties of any kind. The warranty only covers failures or malfunctions occurred in normal use conditions during the warranty period, as well as for any material or workmanship defect. The warranty will not apply if:
  a. Damage caused to this Product(s) by you or any non-authorized third party.
  b. the serial number has been altered, cancelled or removed;
  c. the damage is caused by accident, natural disaster, intentional or accidental misuse, abuse, neglect or improper maintenance, or the abnormal use conditions;
  d. the damage is caused by an external electrical fault or any accident;
  e. the damage from use outside of the operation or storage parameters or environment detailed in the User’s Manual;
  f. the damage is caused from the using of parts not manufactured or sold by ASUSTeK.
  g. damage is caused from third party software or from virus(es);
  h. the software loss or data loss that may occur during repair or replacement.
  Returning a Product to your Purchase Site or an Asus Authorized Service Provider during the warranty period does not automatically mean that it will be repaired free of charge. Upon receiving your product, the Service Centre reserves the right to check the validity of your warranty and your request for warranty service.

  Neither Asus, Asus Authorized Service Provider , nor your reseller are responsible for any of your confidential, proprietary or personal information contained in the product which you return to Asus , Asus Service Centre or Asus Authorized Service Provider for any reason. You should remove all such information from the product prior to its return.

  Asus or Asus Authorized Service Provider is not responsible for damage or loss of any personal data, programs, or removable storage media. Asus is not responsible for the restoration or reinstallation of any data or programs other than software installed by Asus when the product was manufactured.


  Standard Warranty period of the Product

  This Warranty applies for 36 months period from the date the Product was first purchased by an end-customer (“Date of Purchase”). If proof of purchase cannot be provided, the manufacture date as recorded by ASUS will be deemed to be the start of the Warranty Period. ASUS warrants the Product to be free from defects in workmanship and materials for the Warranty Period.

  *OLED Models apply 24 months warranty period from the Date of Purchase.

  The Warranty does not cover bundled accessories, which were delivered together with the Product such as: cables, free gifts etc. If the Product fails during normal and proper use within the Warranty Period, ASUS, at its discretion, will repair or replace the defective parts of the Product, or the Product itself, with new or reconditioned parts or products that are functionally equivalent or superior to those originally supplied.



  Warranty period of Adaptor and Built-in battery

  12 months warranty from the Date of Purchase. Product specifications are different by Monitor models. Please refer to Asus website: https://www.asus.com/Monitors/ for Monitor Specifications with adaptor accessory or built-in battery design.



  LCD Panel Bright/Dark Dot Warranty & Regulation

  Since LCD panel is made up of millions of micro electronic pixels, if one pixel no longer functions normally, it will become a bright or dark dot. By ISO 9241-302 standards, ASUS conforms to the acceptance level between 3 to 5 defective bright/dark pixels. In order to deliver ultimate vision experience to ASUS customer, if your panel is less than or equal to the above number of dots, then, it is considered as an acceptable LCD monitor.In addition, the Premium Range of ASUS LCDs offers a unique Zero Bright Dot (ZBD) warranty.Please refer to ASUS LCD Monitor Bright/Dark Dot Warranty Table below.

  TAKING CARE OF YOUR LCD:

  1.Turn off the LCD if you will not use it for a long time. Doing this will help you save electric power consumption and prolong your LCD’s life.

  1. 2.Do not touch the LCD with your fingers, sharp, and/or hard object so as not to scratch the LCD.

  2. 3.Use monitor-cleaning sheet to lightly wipe off dirt from the LCD. Do not use your fingers!

  3. 4.Do not use any chemicals or detergents to clean the LCD.

  4. 5.Use screen saver to avoid the damage caused by long-term static (non-moving) images displayed.

  5.

  ASUS LCD Monitor Bright/Dark Dot Warranty Table：

  Covered Models: PG Series (OLED Models not applicable)

  After Purchase	Bright Dot	Dark Dot
  12 months	0	≦5
  13~36 months	≦3	≦5



  Covered Models: PA Series (OLED Models not applicable)

  After Purchase	Bright Dot	Dark Dot
  36 months	0	≦5



  Covered Models: OLED Models

  After Purchase	Bright Dot	Dark Dot
  24 months	≦3	≦5



  Covered Models: Others (Non-ZBD Models)

  After Purchase	Bright Dot	Dark Dot
  36 months	≦3	≦5

  1. A Pixel consists of sub-pixels: one red, one green and one blue dot. A bright dot is a sub-pixel that is always on under Black pattern. A dark dot is a sub-pixel that is always off under any pattern.

  1. 1. 2. Micro Dot, less than or equal to 1/2 dot, is excluded in the warranty.

     2. 3. Non-ZBD/ZBD warranty models may vary from different regions.

• Description	Downloads
  User Guide	Download
