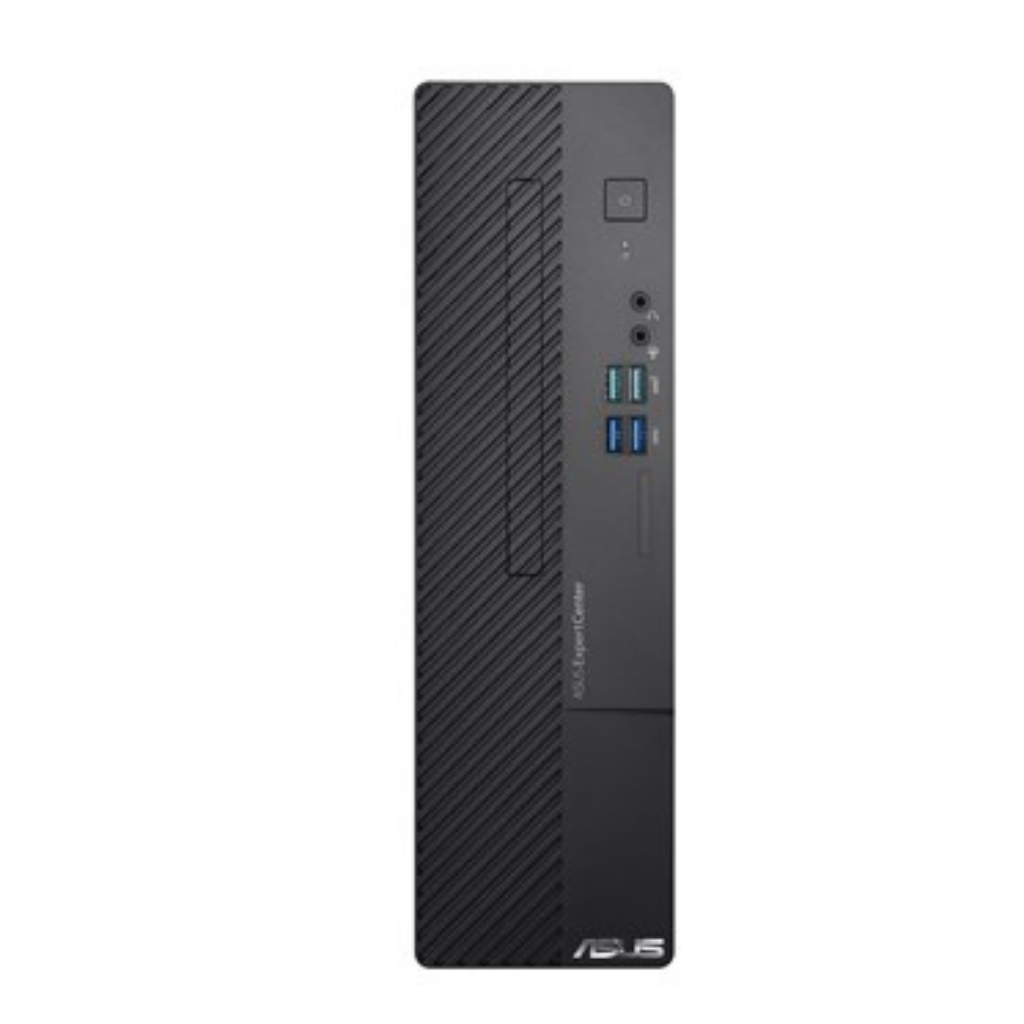

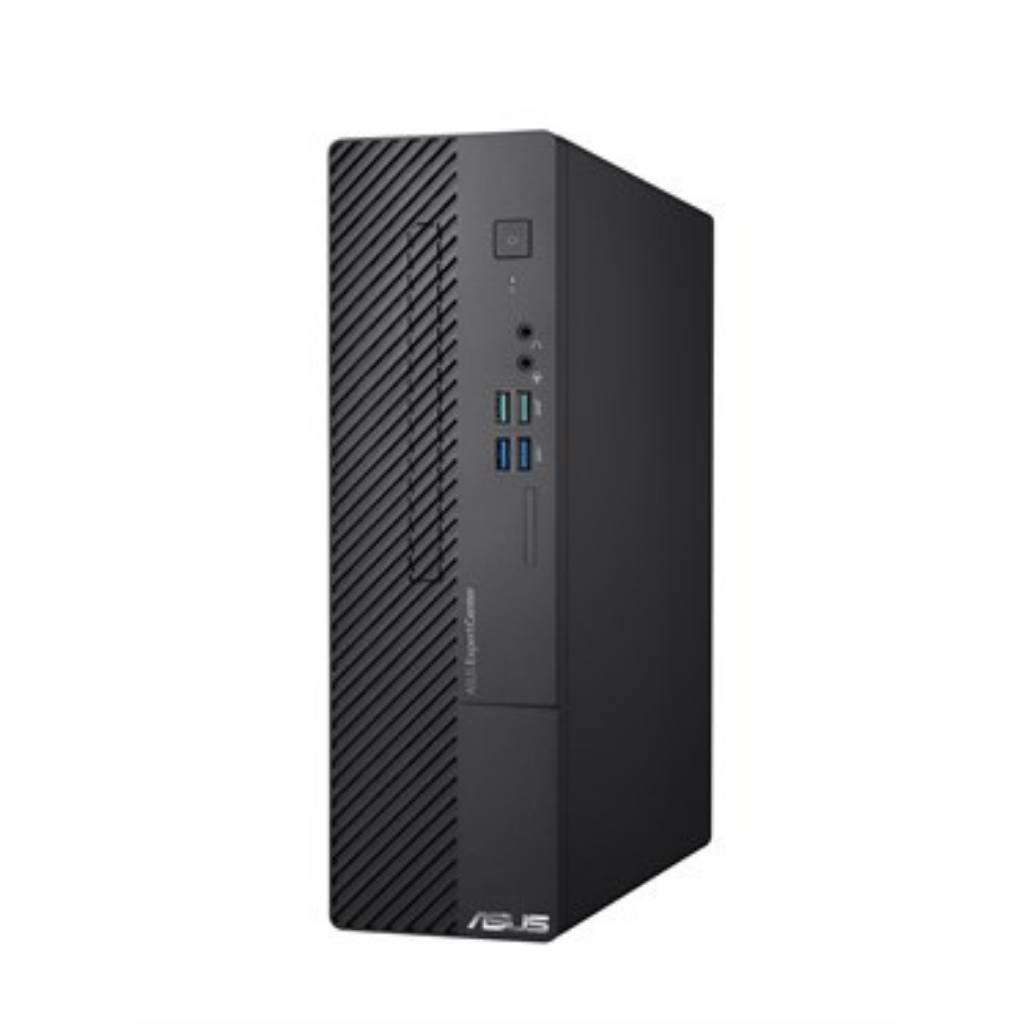

ASUS ExpertCenter D500SC_CZ-511400067X Intel® Core™ i5 i5-11400 16 GB DDR4-SDRAM 256 GB SSD Windows 11 Pro SFF PC Black

• Description
• Specifications
• Downloads

• ASUS ExpertCenter D500SC_CZ-511400067X Intel® Core™ i5 i5-11400 16 GB DDR4-SDRAM 256 GB SSD Windows 11 Pro SFF PC Black

  ASUS ExpertCenter D5 SFF features powerful, dependable and expandable performance, created especially for the unique needs of small business. Its ultracompact, flexible and sleek small form factor allows business users to enjoy flexible and neat workspace. Also, with help of our simplified small-business support services, you can enjoy reduced downtime and lower total cost of ownership.

• Processor
  Processor manufacturer	Intel
  Processor family	Intel® Core™ i5
  Processor generation	11th gen Intel® Core™ i5
  Processor model	i5-11400
  Processor cores	6
  Processor threads	12
  Processor boost frequency	4.4 GHz
  Processor frequency	2.6 GHz
  Processor cache	12 MB
  Processor cache type	Smart Cache

  Memory
  Internal memory	16 GB
  Maximum internal memory	32 GB
  Internal memory type	DDR4-SDRAM
  Memory layout (slots x size)	2 x 8 GB
  Memory slots	2x DIMM

  Storage
  Total storage capacity	256 GB
  Storage media	SSD
  Total SSDs capacity	256 GB
  Number of SSDs installed	1
  SSD capacity	256 GB
  SSD interface	PCI Express 3.0
  SSD form factor	M.2
  Card reader integrated

  Graphics
  Discrete graphics card
  On-board graphics card
  Discrete graphics card model	Not available
  On-board GPU manufacturer	Intel
  On-board graphics card family	Intel® UHD Graphics
  On-board graphics card model	Intel UHD Graphics 730
  Maximum on-board graphics	64 GB

  Network
  Ethernet LAN
  Ethernet LAN data rates	10, 100, 1000 Mbit/s
  Cabling technology	10/100/1000Base-T(X)
  Wi-Fi
  Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
  Wi-Fi standards	Wi-Fi 5 (802.11ac)
  Antenna type	2×2
  Bluetooth
  Bluetooth version	5.0

  Ports & Interfaces
  USB 2.0 ports quantity	2
  USB 3.2 Gen 1 Type-A ports	4
  USB 3.2 Gen 2 Type-A ports	2
  VGA (D-Sub) ports quantity	1
  HDMI ports quantity	1
  HDMI version	1.4
  Ethernet LAN (RJ-45) ports	1
  Microphone in
  Headphone outputs	2
  Serial ports quantity	1
  Total number of SATA	2

  Expansion Slots
  PCI Express x1 slots	1
  PCI Express x16 slots	1

  Design
  Chassis type	SFF
  Colour name	Black
  Volume	9 L
  Number of 3.5″ bays	1
  Cable lock slot type	Kensington

  Performance
  Motherboard chipset	Intel B560
  Audio system	High Definition Audio
  Audio output channels	7.1 channels
  Password protection	BIOS, HDD, User
  TPM	Yes
  TPM version	2.0

  Software
  Operating system installed	Windows 11 Pro
  Operating system architecture	64-bit

  Power
  Power supply	300 W
  80 PLUS certification	80 PLUS Platinum

  Weight & Dimensions
  Width	94.6 mm
  Depth	319.5 mm
  Height	320.6 mm
  Weight	5.5 kg

  Packaging Content
  Display included	Yes
  Mouse included	Yes
  Mouse connectivity	Wired
  Keyboard included	Yes
  Keyboard connectivity	Wired
