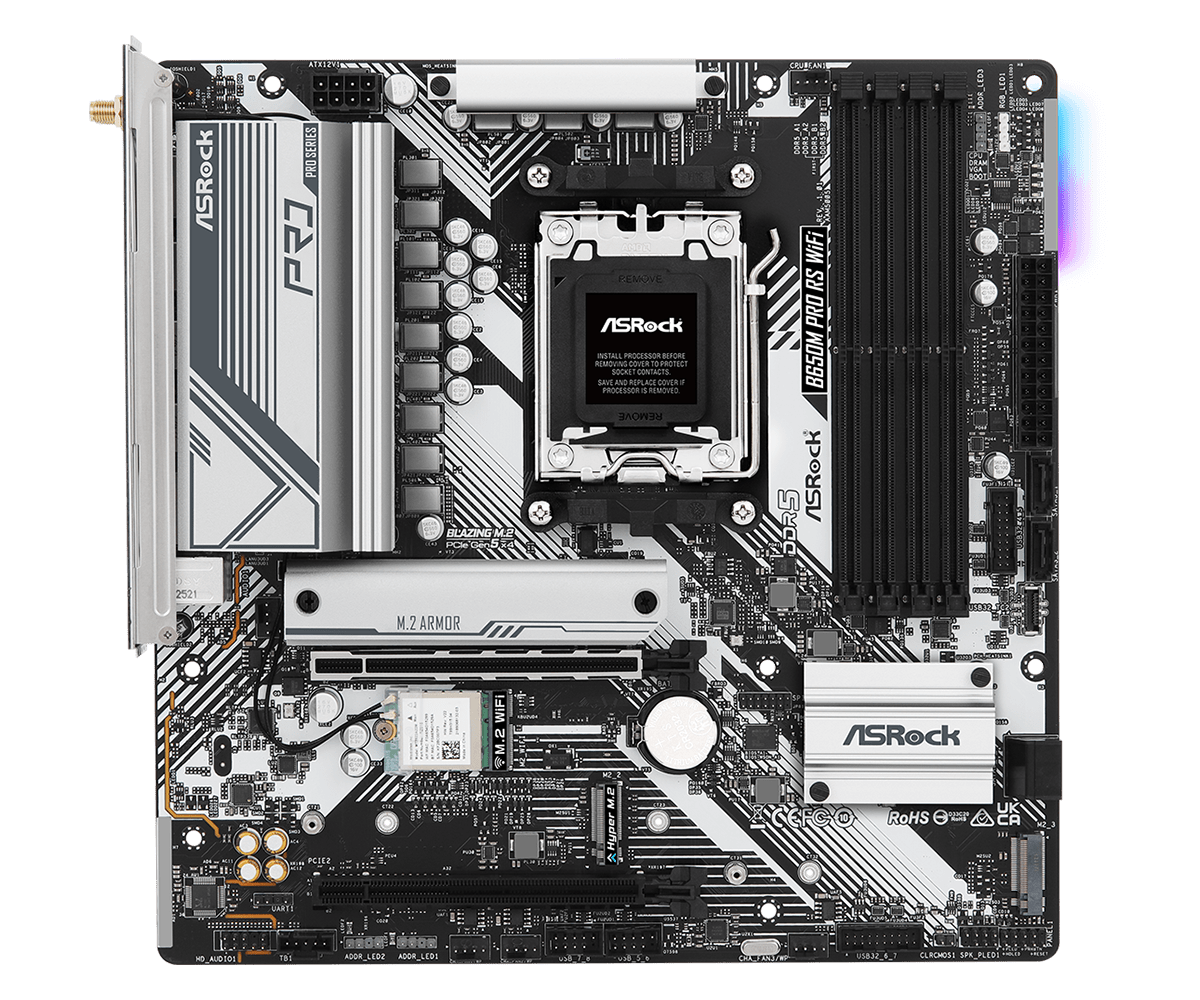

• Asrock AMD B650 Socket AM5 mATX Motherboard


  Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.
  Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.
  RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed!

  DDR5 EXPO & XMP Support
  Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. All B650 motherboards are built with 6-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 7200MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/ Intel® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

  Blazing OC Tuner
  The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold. Anything above current threshold will engage manual OC mode; if below current threshold then will engage Precision Boost Overdrive mode. This idea is to combine overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to setup up, you can modify all the settings on time under OS.

  AMD PBO Technology
  PBO(Precision Boost Overdrive) is an automatic performance-maximizing technology that is able to improve your PC’s performance by raising clock speeds based on the conditions inside your PC, AMD’s processors is equipped with intelligent thermal sensors designed to analyze conditions inside your PC and make the “go faster” decision as often as possible, please ensure system cooling is sufficient before enabling PBO.

  Aluminum Heatsink
  The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

  Fan-Tastic Tuning
  ASRock A-Tuning Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system’s cooling performance and noise reduction requirements.

  PWM/DC Fan Support
  ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.

  Dr. MOS
  Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

  8+2+1 Power Phase Design
  Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

  6 Layer PCB
  The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.

  2oz Copper PCB
  2 ounce copper inner-800 layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

  Audio That Matters
  Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

  Enhance Communication Quality
  The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
  Static Noise Suppression
  Echo Cancellation
  Lateral Sound Cancellation
  Voice Stabilizer

  Ultimate Gaming Experience
  Sound Tracker
  The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

  Works on any devices!
  Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

  POLYCHROME RGB
  In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

• Feature	Details
  Unique Feature	Superb Productivity: PCIe Gen5 (M.2), Dual Channel DDR5
  	Rock-Solid Durability: 8+2+1 Power Phase, 50A Dr.MOS, Pre-Installed I/O Shield
  	Ultrafast Connectivity: 2.5G LAN, 802.11ax Wi-Fi 6E Module
  	EZ Update: BIOS Flashback Button, ASRock Auto Driver Installer
  	EZ Troubleshooter: ASRock Post Status Checker
  CPU	Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors
  Chipset	AMD B650
  Memory	Dual Channel DDR5 Memory Technology, 4 x DDR5 DIMM Slots
  	Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)
  	Max. capacity of system memory: 192GB
  	Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
  BIOS	256Mb AMI UEFI Legal BIOS with GUI support
  Graphics	Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
  LAN	2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Dragon RTL8125BG
  Wireless LAN	802.11ax Wi-Fi 6E Module, Supports IEEE 802.11a/b/g/n/ac/ax, Supports Dual-Band 2×2 with extended 6GHz band support, Supports Bluetooth 5.2 + High speed class II
  Slots	CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), 1 x PCIe 3.0 x16 Slot (PCIE2)
  	Chipset: 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
  Storage	CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode
  	Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
  	1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode
  	4 x SATA3 6.0 Gb/s Connectors
  RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  	Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
  USB	1 x USB 3.2 Gen2 Type-C (Rear), 1 x USB 3.2 Gen2 Type-A (Rear)
  	1 x USB 3.2 Gen1 Type-C (Front), 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
  	8 x USB 2.0 (4 Rear, 4 Front)
  Connector	Various connectors including SPI TPM Header, RGB LED Header, Addressable LED Headers, CPU Fan Connector, CPU/Water Pump Fan Connector, Chassis/Water Pump Fan Connectors, 24 pin ATX Power Connector, 8 pin 12V Power Connector, Front Panel Audio Connector, Thunderbolt™ AIC Connector, USB Headers, Front Panel Type C USB 3.2 Gen1 Header
  Rear Panel I/O	Various ports including HDMI, DisplayPort, USB ports, RJ-45 LAN Port, BIOS Flashback Button, HD Audio Jacks
  Software and UEFI	ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC, ASRock Full HD UEFI, ASRock Auto Driver Installer, ASRock Instant Flash
  Accessories	User Manual, SATA Data Cables, ASRock WiFi Antennas, Screws for M.2 Sockets, Standoff for M.2 Socket
  Form Factor	Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
  OS	Microsoft Windows® 10 64-bit / 11 64-bit
  Certifications	FCC, CE, ErP/EuP ready
