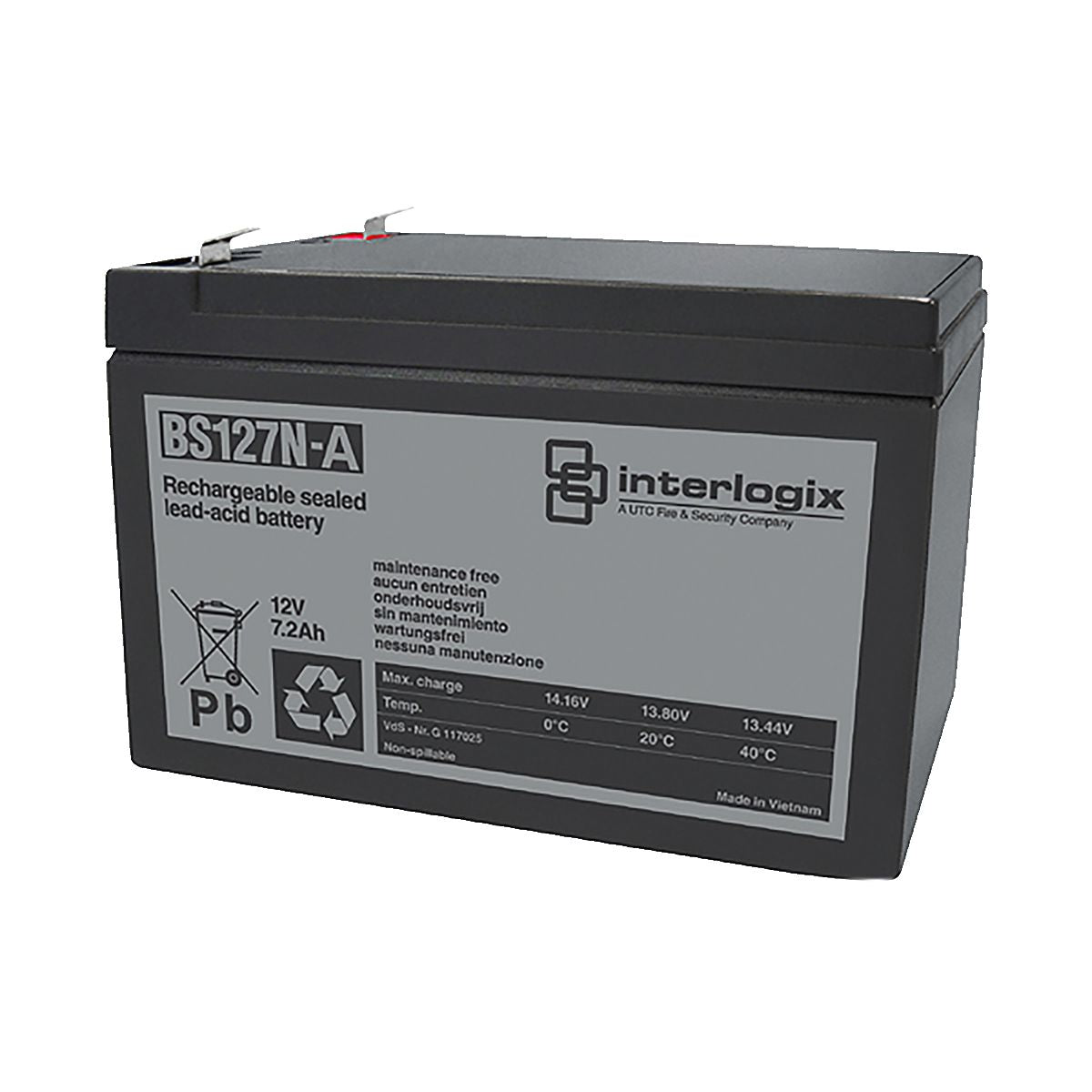

Aritech 12 V 7.2 Ah Sealed Lead-Acid Battery | BS127N-A

• Description
• Specifications
• Downloads

• Aritech 12 V 7.2 Ah Sealed Lead-Acid Battery


  At a glance
  Sealed Lead Acid battery 12 V / 7.2 Ah with Fast-on 4.8 mm terminal type.
  Note: for 2010-1 & 2010-2 fire panels only, use BS127N-A for all other applications.

  Features
  Maintenance free
  Lead-Calcium grid for extended life
  Wide operating temperature range
  Usable and rechangeable in any position
  Low self-discharge and long service life
  Leakproof construction
  High discharge rate capacity

• Category	Feature	Details
  General	Product Type	Sealed Lead Acid Battery
  Electrical Characteristics	Nominal Voltage	12 V
  	Nominal Capacity	7.2 Ah
  	Internal Resistance	21 mohm
  Charge / Discharge	Max. Charge Voltage	13.8 VDC at +20°C
  	Max. Charge Current	2.16 A
  	Max. Discharge Current	35 A
  Temperature	Charging Temperature	0 to +40°C
  	Discharging Temperature	-15 to +50°C
  Physical	Dimensions (LxWxH)	151 x 94 x 65 mm
  	Net Weight	2.678 kg
  	Shipping Weight	2.678 kg
  	Material	ABS
  	Terminal Type	Fast-on 4.8 mm
  Environmental	Fire Retardant	No
  	Operating Temperature	0 to +40°C
  	Storage Temperature	-15 to +50°C
  Regulatory	Compliancy	RoHS 2, WEEE
  	Certification	VdS
