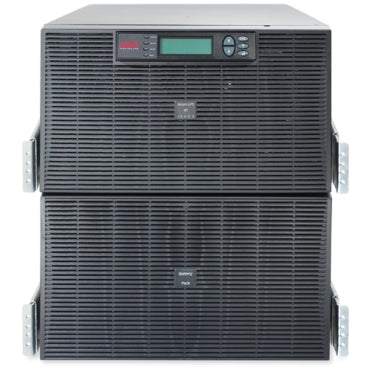

APC SURT15KRMXLI Smart-UPS RT 15kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 Outlets

• Specifications
• Downloads

• APC SURT15KRMXLI Smart-UPS RT 15kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 Outlets

  Main
  Run time for load	12000 W
  Min-max	1200-12000 W
  8 min 17 s
  Max. Capacity Used	100 %
  Main Input Voltage	230 V
  	400 V 3 phases
  Product or component type	Uninterruptible power supply (UPS)
  Other Input Voltage	220 V
  	240 V
  Main Output Voltage	230 V
  Other Output Voltage	220 V
  	240 V
  Rated power in W	12000 W
  Rated power in VA	15000 VA
  Output connection type	2 IEC Jumpers
  	8 IEC 60320 C19
  Output connector type	Hard wire 3-wire (H N + E) 1
  	Hard wire 5-wire (3P + N + E) 1
  Number of rack unit	12U
  Provided equipment	CD with software
  	Rack mounting support rails
  	Smart UPS signaling RS-232 cable
  	User manual
  	Web/SNMP management card
  Batteries & Runtime
  Number of battery free slots	0
  Number of battery filled slots	0
  Battery voltage	12 V
  Number of battery replacement quantity	4
  Battery type	Lead-acid battery
  Battery recharge time	2.5 h
  Battery life	3…5 year(s)
  Replacement battery	APCRBC140
  Extended runtime	1
  General
  UPS type	Double conversion online
  Number of power module free slots	0
  Number of power module filled slots	0
  Redundant	No
  Physical
  Colour	Black
  Height	53.3 cm
  Width	43.2 cm
  Depth	77.3 cm
  Net weight	247.73 kg
  Mounting location	Front
  Mounting preference	Lower
  Mounting mode	Rack-mounted
  	Two post mountable
  USB compatible	No
  Input
  Network frequency	40…70 Hz auto-sensing
  Number of input connectors	1 hard wire 3-wire (1P + N + E)
  	1 hard wire 5-wire (3P + N + E)
  Input voltage limits	160…280 V
  Maximum input current	90 A
  Switching current capacity	100 A
  Input harmonic distortion	Less than 5 % for full load
  Input current	90 A (1 phase)
  	30 A per phase (3 phases)
  Load power factor	0.8
  Input Power Factor at Full Load	0.95
  Output
  Maximum configurable power in VA	15000 VA
  Maximum configurable power in W	12000 W
  Output frequency	50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains
  Wave type	Sine wave
  Output overload operation	60 seconds at 125% and 30 seconds at 150%
  Efficiency	93 % (in battery operation)
  Harmonic distortion	Less than 5 %
  Crest factor	3 : 1
  Bypass type	Built-in static bypass
  	Internal bypass (automatic and manual)
  	Optional external bypass
  Additional information	Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
  Conformance
  Product certifications	VDE
  Standards	EN/IEC 62040-1:2019/A11:2021
  	EN/IEC 62040-2:2006/AC:2006
  	EN/IEC 62040-2:2018
  Environmental
  Ambient air temperature for operation	0…40 °C
  Relative humidity	0…95 % non-condensing
  Operating altitude	0…10000 ft
  Ambient air temperature for storage	-15…45 °C
  Storage Relative Humidity	0…95 % non-condensing
  Storage altitude	0.00…15240.00 m
  Acoustic level	50 dBA
  Heat dissipation	2800 Btu/h
  IP degree of protection	IP20
  Communications & Management
  Free slots	0
  Preinstalled device	Network management card 2 with environmental monitoring
  Emergency power off	Yes
  Surge Protection and Filtering
  Noise suppression	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
  Packing Units
  Unit Type of Package 1	PCE
  Number of Units in Package 1	1
  Package 1 Height	99 cm
  Package 1 Width	61 cm
  Package 1 Length	100.3 cm
  Package 1 Weight	314.09 kg
  Unit Type of Package 2	PAL
  Number of Units in Package 2	2
  Package 2 Height	112 cm
  Package 2 Width	100 cm
  Package 2 Length	120 cm
  Package 2 Weight	626.864 kg
  Contractual warranty
  Warranty	2 years repair or replace
