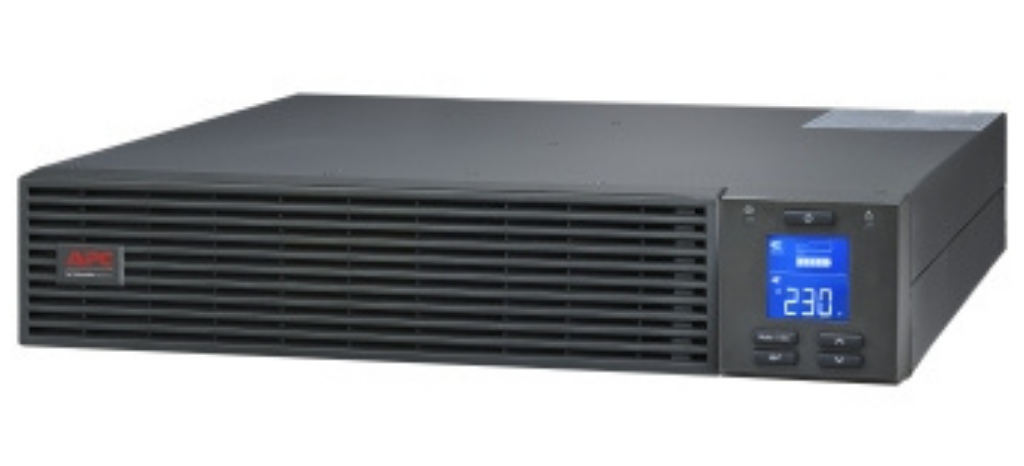

APC SRV3KRIRK Easy UPS On-Line, 3kVA/2400W, Rackmount 2U, 230V, 6x IEC C13 + 1x IEC C19 Outlets

• Specifications
• Downloads

• APC SRV3KRIRK Easy UPS On-Line, 3kVA/2400W, Rackmount 2U, 230V, 6x IEC C13 + 1x IEC C19 Outlets

  Category	Description
  Main
  Run time for load	2400 W
  Min-max: 240-2400 W
  4min 24s
  Max. Capacity Used	100 %
  Main Input Voltage	230 V
  Other Input Voltage	220 V
  	240 V
  Main Output Voltage	230 V
  Other Output Voltage	220 V
  	240 V
  Rated power in W	2400 W
  Rated power in VA	3000 VA

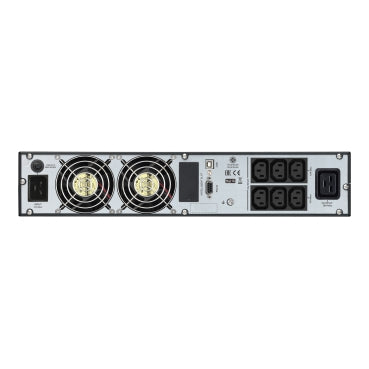

  Input Connection Type	IEC 60320 C20
  Output connection type	6 IEC 60320 C13
  	1 IEC 60320 C19
  Number of rack unit	2U
  Cable length	1.48 m
  Number of cables	1
  Provided equipment	1 IEC 60320 C19 to Schuko power cable
  	1 IEC 60320 C13 to C14 power cable
  	1 USB cable
  	1 RS-232 configuration cable
  	1 rack mounting brackets

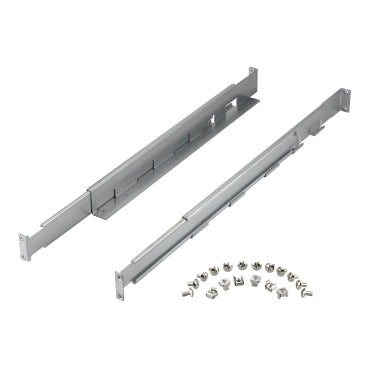

  	1 rack mounting support rails
  	User manual
  Batteries & Runtime
  Run Time	View Runtime Graph
  Efficiency	View Efficiency Graph
  Battery type	Lead-acid battery
  Battery voltage	72 V
  Number of battery filled slots	0
  Number of battery free slots	0
  Battery recharge time	4 h
  Battery life	3…5 year(s)
  Replacement battery	APCRBCV202
  Battery charger power	60 W rated
  General
  Number of power module filled slots	0
  Number of power module free slots	0
  Redundant	No
  Physical
  Colour	Black (RAL 7010)
  Height	8.6 cm
  Width	43.7 cm
  Depth	63.2 cm
  Net weight	27.6 kg
  Mounting location	Front
  Mounting preference	Lower
  Mounting mode	Rack-mounted
  USB compatible	Yes
  Mounting position	Horizontal
  Input
  Input voltage limits	110…285 V half load
  	160…280 V full load
  Network frequency	40…70 Hz auto sensing
  Output
  Maximum configurable power in VA	3000 VA
  Maximum configurable power in W	2400 W
  Output frequency	50/60 Hz +/- 3 Hz sync to mains
  Harmonic distortion	3 %
  UPS type	Double conversion online
  Wave type	Sine wave
  Efficiency	88 % (full load)
  Bypass type	Internal bypass (automatic and manual)
  Crest factor	3 : 1
  Conformance
  Product certifications	CE
  	UKCA
  	EAC
  	TISI
  Standards	EN/IEC 62040-1:2019/A11:2021
  	EN/IEC 62040-2:2006/AC:2006
  	EN/IEC 62040-2:2018
  Environmental
  Ambient air temperature (operation)	0…40 °C
  Relative humidity	0…95 % non-condensing
  Operating altitude	0…3000 m
  Ambient air temperature (storage)	-20…50 °C
  Storage Relative Humidity	0…95 % non-condensing
  Storage altitude	0…15000 m
  Acoustic level	50 dBA
  Heat dissipation	910 Btu/h
  IP degree of protection	IP20
  Communications & Management
  Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
  Free slots	1
  Control panel	Multifunction LCD status and control console
  Surge Protection and Filtering
  Surge energy rate	600 J
  Packing Units
  Unit Type of Package 1	PCE
  Number of Units in Package 1	1
  Package 1 Height	22.8 cm
  Package 1 Width	79.4 cm
  Package 1 Length	57 cm
  Package 1 Weight	29 kg
  Logistical informations
  Country of origin	CN
  Contractual warranty	2 years repair or replace
