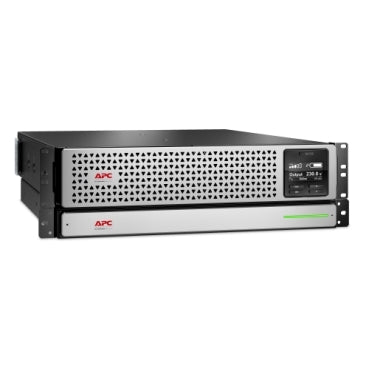

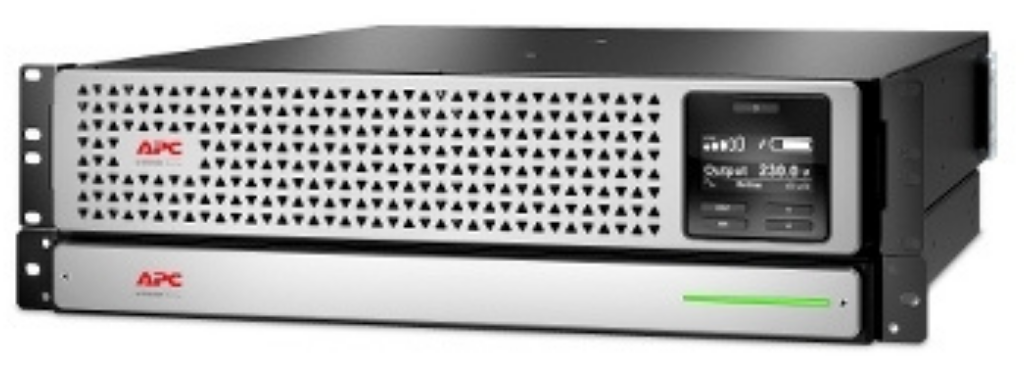

APC SRTL1000RMXLI Smart-UPS On-Line, 1000VA, Rackmount 3U, 230V, 8x C13 IEC Outlets, SmartSlot, Extended runtime, W/ rail kit, W/ Lithium-ion external battery

• Description
• Specifications
• Downloads

• APC SRTL1000RMXLI Smart-UPS On-Line, 1000VA, Rackmount 3U, 230V, 8x C13 IEC Outlets, SmartSlot, Extended runtime, W/ rail kit, W/ Lithium-ion external battery

  This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 8x IEC 320 C13 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery.

• Category	Details
  Main
  Run time for load	29min 45s
  Max. Capacity Used	100 %
  Main Input Voltage	230 V
  Other Input Voltage	220 V
  	240 V
  Main Output Voltage	230 V
  Other Output Voltage	220 V
  	240 V
  Rated power in W	900 W
  Rated power in VA	1000 VA
  Input Connection Type	IEC 60320 C14
  Output Connection Type	8 IEC 60320 C13
  Number of rack unit	3U
  Cable length	1.83 m
  Number of cables	1
  Provided equipment	CD with software
  	Communication cable
  	Documentation CD
  	Installation guide
  	Removable support feet
  	USB cable
  	Warranty card
  Batteries & Runtime
  Run Time	View Runtime Graph
  Battery type	Li-Ion (Lithium-Ion)
  Number of battery filled slots	0
  Number of battery free slots	0
  Battery recharge time	6 h
  Battery voltage	48 V
  Battery charger power	103 W rated
  Battery life	5…10 year(s)
  Extended runtime	1
  General
  UPS type	Double conversion online
  Product web sub-family	Lithium-Ion
  Number of power module free slots	0
  Number of power module filled slots	0
  Redundant	No
  Physical
  Colour	Black with silver front bezel
  Height	8.5 cm
  Width	43.2 cm
  Depth	56 cm
  Net weight	13.7 kg
  Mounting preference	No preference
  Mounting mode	Rack-mounted with kit
  	Two post mountable
  USB compatible	Yes
  Mounting position	Horizontal
  	Vertical
  Input
  Network frequency	40…70 Hz auto-sensing
  Input voltage limits	160…275 V (40% load)
  	80…150 V
  Output
  Maximum configurable power in VA	1000 VA
  Maximum configurable power in W	900 W
  Output frequency	50/60 Hz +/- 3 Hz sync to mains
  Wave type	Sine wave
  Harmonic distortion	Less than 2 %
  Crest factor	3 : 1
  Bypass type	Built-in bypass
  Conformance
  Product certifications	CE
  	EAC
  	RCM
  	VDE
  Marking	CE Mark
  Standards	EN/IEC 62040-1:2019/A11:2021
  	EN/IEC 62040-2:2006/AC:2006
  	EN/IEC 62040-2:2018
  Environmental
  Ambient air temperature for operation	0…40 °C
  Relative humidity	0…95 % non-condensing
  Operating altitude	0…10000 ft
  Ambient air temperature for storage	-15…45 °C
  Storage Relative Humidity	0…95 % non-condensing
  Storage altitude	0.00…15240.00 m
  Acoustic level	50 dBA
  Heat dissipation	400 Btu/h
  IP degree of protection	IP20
  Communications & Management
  Free slots	0
  Preinstalled device	Network management card 3 with environmental monitoring
  Alarm	Audible and visible alarms: prioritized by severity
  Emergency power off	Yes
  Surge Protection and Filtering
  Surge energy rate	340 J
  Packing Units
  Unit Type of Package 1	PCE
  Number of Units in Package 1	1
  Package 1 Height	24.5 cm
  Package 1 Width	60 cm
  Package 1 Length	81 cm
  Package 1 Weight	21 kg
  Logistical informations
  Country of origin	PH
  Contractual warranty	5 year repair or replace
