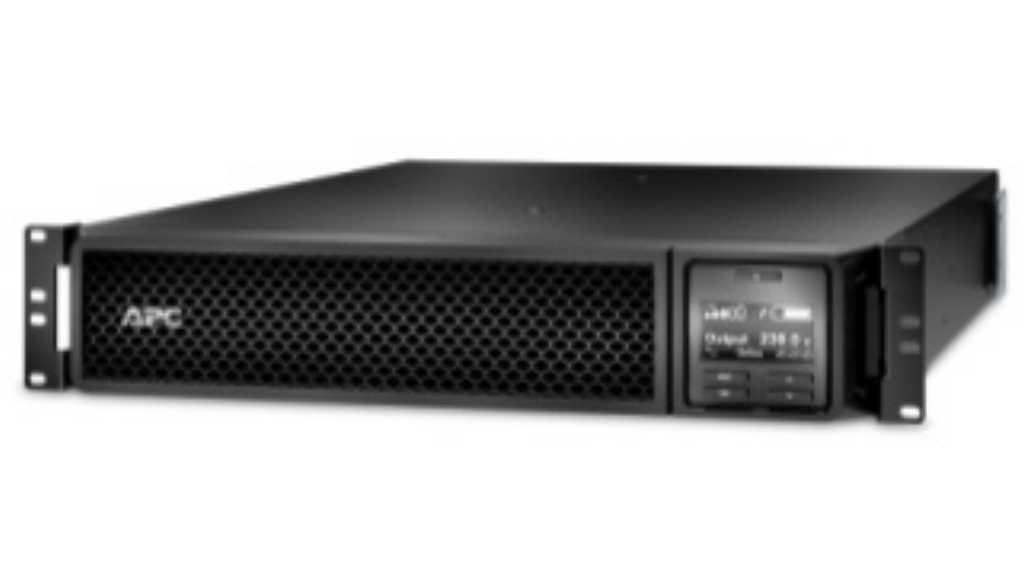

APC SRT3000RMXLW-IEC Smart-UPS On-Line, 3kVA, Rackmount 2U, 208V/230V, 6x C13+2x C19 IEC Outlets

• Description
• Specifications
• Downloads

• APC SRT3000RMXLW-IEC Smart-UPS On-Line, 3kVA, Rackmount 2U, 208V/230V, 6x C13+2x C19 IEC Outlets

  This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 6x IEC 60320 C13, 2x IEC 60320 C19 outlets, and 2x IEC jumpers. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 6x IEC 60320 C13, 2x IEC 60320 C19 outlets, and 2x IEC jumpers. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It conforms to CE, CE Mark, CSA C22.2 No 107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR V2.0 (USA), FCC part 15 class A, OSHPD, RCM, UL 1778, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

• Main
  Run time for load	2700 W
  	Min-max: 270-2700 W
  	3min 58s
  Max. Capacity Used	100%
  Main Input Voltage	208 V
  	230 V
  Other Input Voltage	220 V
  	240 V
  Main Output Voltage	208 V
  	230 V
  Other Output Voltage	220 V
  	240 V
  Rated power in W	2700 W
  Rated power in VA	3000 VA
  Input Connection Type	BS1363A British
  	IEC 60320 C20
  	Schuko CEE 7 / EU1-16P
  Output Connection Type	6 IEC 60320 C13
  	2 IEC Jumpers
  	2 IEC 60320 C19
  Number of rack unit	2U
  Cable length	2.44 m
  Number of cables	1
  Provided equipment	CD with software
  	Documentation CD
  	Installation guide
  	Rack mounting brackets
  	Rack mounting support rails
  	USB cable
  	Warranty card
  Batteries & Runtime
  Run Time	View Runtime Graph
  Efficiency	View Efficiency Graph
  Battery type	Lead-acid battery
  Number of battery filled slots	1
  Battery recharge time	3 h
  Number of battery replacement qty	1
  Battery voltage	96 V
  Battery charger power	168 W rated
  Battery life	3…5 year(s)
  Replacement battery	APCRBC152
  Extended runtime	1
  General
  UPS type	Double conversion online
  Product web sub-family	High density
  Number of power module free slots	0
  Number of power module filled slots	0
  Redundant	No
  Physical
  Color	Black
  Height	8.5 cm
  Width	43.2 cm
  Depth	63.5 cm
  Net weight	31.3 kg
  Mounting location	Front
  Mounting preference	Lower
  Mounting mode	Rack-mounted
  	Two post mountable
  USB compatible	Yes
  Mounting position	Horizontal
  Input
  Network frequency	40…70 Hz auto-sensing
  Input voltage limits	100…275 V adjustable (half load)
  Output
  Maximum configurable power in VA	3000 VA
  Maximum configurable power in W	2700 W
  Output frequency	50/60 Hz +/- 3 Hz sync to mains
  Wave type	Sine wave
  Harmonic distortion	Less than 2 %
  Crest factor	3 : 1
  Bypass type	Internal bypass (automatic and manual)
  Additional information	Configurable for 220 : 230 or 240 nominal output voltage
  Conformance
  Product certifications	CE
  	EAC
  	ENERGY STAR V2.0 (USA)
  	RCM
  	VDE
  Marking	CE Mark
  Standards	EN/IEC 62040-1:2019/A11:2021
  	EN/IEC 62040-2:2006/AC:2006
  	EN/IEC 62040-2:2018
  Environmental
  Ambient air temperature for operation	0…40 °C
  Relative humidity	0…95 % non-condensing
  Operating altitude	0…10000 ft
  Ambient air temperature for storage	-15…45 °C
  Storage Relative Humidity	0…95 % non-condensing
  Storage altitude	0.00…15240.00 m
  Communications & Management
  Free slots	1
  Alarm	Audible and visible alarms: prioritized by severity
  Emergency power off	Yes
  Surge Protection and Filtering
  Surge energy rate	340 J
  Packing Units
  Unit Type of Package 1	PCE
  Number of Units in Package 1	1
  Package 1 Height	24.6 cm
  Package 1 Width	87.1 cm
  Package 1 Length	59.9 cm
  Package 1 Weight	39.92 kg
  Contractual warranty
  Warranty	3 years repair or replace (excluding battery) and 2 years for battery

• Description	Downloads
  SRT3000RMXLW-IEC:Datasheet	Download
  SRT3000RMXLW-IEC:User Guide	Download
