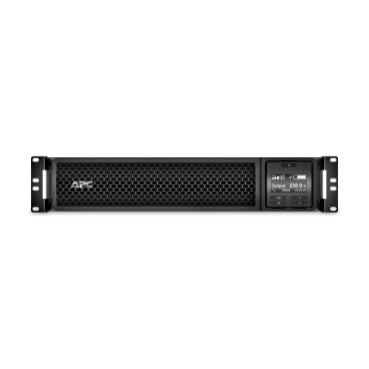

APC SRT3000RMXLI Smart-UPS On-Line, 3kVA, Rackmount 2U, 230V, 8x C13+2x C19

• Description
• Specifications
• Downloads

• APC SRT3000RMXLI Smart-UPS On-Line, 3kVA, Rackmount 2U, 230V, 8x C13+2x C19

  This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13, 2x IEC 320 C19 outlets, and 2x IEC jumpers. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13/60320 C13, 2x IEC 320 C19/60320 C19 outlets, and 2x IEC jumpers. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

• Main
  Run time for load	2700 W
  	Min-max: 270-2700 W
  	3min 58s
  Max. Capacity Used	100 %
  Main Input Voltage	230 V
  Other Input Voltage	220 V
  	240 V
  Main Output Voltage	230 V
  Other Output Voltage	220 V
  	240 V
  Rated power in W	2700 W
  Rated power in VA	3000 VA
  Input Connection Type	BS1363A British
  	IEC 60320 C20
  	Schuko CEE 7 / EU1-16P
  Output connection type	8 IEC 60320 C13
  	2 IEC Jumpers
  	2 IEC 60320 C19
  Number of rack unit	2U
  Cable length	2.44 m
  Number of cables	1
  Provided equipment	CD with software
  	Documentation CD
  	Installation guide
  	Rack mounting brackets
  	Rack mounting support rails
  	USB cable
  	Warranty card
  Batteries & Runtime
  Battery type	Lead-acid battery
  Number of battery filled slots	1
  Battery recharge time	3 h
  Number of battery replacement	1
  quantity
  Battery voltage	96 V
  Battery charger power	168 W rated
  Battery life	3…5 year(s)
  Replacement battery	APCRBC152
  Extended runtime	1
  General
  UPS type	Double conversion online
  Product web sub-family	High density
  Number of power module free	0
  slots
  Number of power module filled	0
  slots
  Redundant	No
  Physical
  Color	Black
  Height	8.5 cm
  Width	43.2 cm
  Depth	63.5 cm
  Net weight	31.3 kg
  Mounting location	Front
  Mounting preference	Lower
  Mounting mode	Rack-mounted
  	Two post mountable
  USB compatible	Yes
  Mounting position	Horizontal
  Input
  Network frequency	40…70 Hz auto-sensing
  Input voltage limits	100…275 V adjustable (half load)
  Output
  Maximum configurable power in	3000 VA
  VA
  Maximum configurable power in	2700 W
  W
  Output frequency	50/60 Hz +/- 3 Hz sync to mains
  Wave type	Sine wave
  Harmonic distortion	Less than 2 %
  Crest factor	3 : 1
  Bypass type	Internal bypass (automatic and
  	manual)
  Additional information	Configurable for 220 : 230 or 240
  	nominal output voltage
  Conformance
  Product certifications	CE
  	EAC
  	RCM
  	VDE
  Marking	CE Mark
  Standards	EN/IEC 62040-1:2019/A11:2021
  	EN/IEC 62040-2:2006/AC:2006
  	EN/IEC 62040-2:2018
  Environmental
  Ambient air temperature for	0…40 °C
  operation
  Relative humidity	0…95 % non-condensing
  Operating altitude	0…10000 ft
  Ambient air temperature for	-15…45 °C
  storage
  Storage Relative Humidity	0…95 % non-condensing
  Storage altitude	0.00…15240.00 m
  Acoustic level	55 dBA
  Heat dissipation	703 Btu/h
  IP degree of protection	IP20
  Communications & Management
  Free slots	1
  Alarm	Audible and visible alarms :
  	prioritized by severity
  Emergency power off	Yes
  **Surge Protection and
  Filtering**
  Surge energy rate	340 J
  Packing Units
  Unit Type of Package 1	PCE
  Number of Units in Package 1	1
  Package 1 Height	24.6 cm
  Package 1 Width	59.9 cm
  Package 1 Length	87.1 cm
  Package 1 Weight	39.92 kg
  Contractual warranty
  Warranty	3 years repair or replace
  	(excluding battery) and 2 years
  	for battery
