• APC SMX3000RMHV2UNC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 2U, 208V-230V, 8x C13+1x C19 IEC

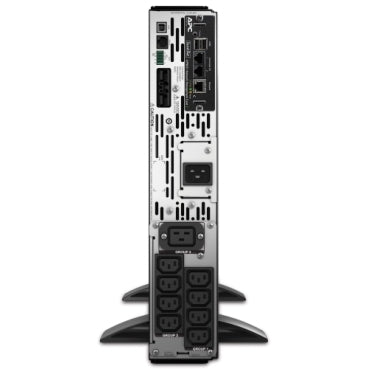

  This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. A SmartSlot in the back of the UPS offers the option to add a network management card to remotely manage the UPS over the network (network cards sold separately). This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX3000RMHV2UNC converts from a tower or stand-alone UPS to a rack mount UPS, offering flexibility in various installations. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

• Main
  Run time for load	6min 15s
  Main Input Voltage	208 V, 230 V
  Other Input Voltage	220 V, 240 V
  Main Output Voltage	230 V
  Other Output Voltage	208 V, 220 V, 240 V
  Rated power in W	2700 W
  Rated power in VA	3000 VA
  Input Connection Type	BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P
  Output Connection Type	8 IEC 320 C13, 2 IEC Jumpers, 1 IEC 320 C19
  Battery type	Lead-acid battery
  Provided equipment	CD with software, Rack mounting support rails, Smart UPS signalling RS-232 cable, Temperature probe, User manual, Web/SNMP management card
  Batteries & Runtime	Run Time, Extended runtime, Battery recharge time, Battery life, Replacement battery, Battery charger power
  General	Number of power module: 2400, Redundant: No, Physical, Colour: Black, height: 8.5 cm, Width: 43.2 cm, Depth: 66.7 cm, Net weight: 37.32 kg, Mounting location: Front, Mounting preference: Lower, Mounting mode: Rack-mounted, Two post mountable: 0, USB compatible: Yes
  Input	Input voltage limits: 140…280 V, Network frequency: 50/60 Hz +/- 3 Hz auto-sensing
  Output	Harmonic distortion: Less than 5 %, Maximum configurable power in VA: 3000 VA, Maximum configurable power in W: 2700 W, Transfer time: 2-4 ms, 6 ms typical : 10 ms maximum, UPS type: Line interactive, Wave type: Sine wave, Output frequency: 50/60 Hz +/- 3 Hz sync to mains
  Conformance	Product certifications: C-Tick, CE, EAC, GOST, IRAM, VDE, Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
  Environmental	Acoustic level: 55 dBA, heat dissipation: 184 Btu/h, Operating altitude: 0…10000 ft, Ambient air temperature for operation: 0…40 °C, Ambient air temperature for storage: -15…45 °C, Storage altitude: 0.00…15240.00 m, Relative humidity: 0…95 %, Storage Relative Humidity: 0…95 %
  Communications & Management	Control panel: Multifunction LCD status and control console, Emergency power off: Yes, Free slots: 0, Preinstalled device: Network management card 3 with environmental monitoring, Control panel: LED status display with on line : on battery : replace battery and overload indicators, Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
  Surge Protection and Filtering	Surge energy rate: 645 J, Noise suppression: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
  Packing Units	Unit Type of Package 1: PCE, Number of Units in Package 1: 1, Package 1 Height: 24.3 cm, Package 1 Width: 59.6 cm, Package 1 Length: 86.9 cm, Package 1 Weight: 45.36 kg, Unit Type of Package 2: PAL, Number of Units in Package 2: 8, Package 2 Height: 119 cm, Package 2 Width: 100 cm, Package 2 Length: 120 cm, Package 2 Weight: 382.4 kg, Pallet unit layers: 2, Pallet layers: 4
  Logistical informations	Country of origin: PH
  Contractual warranty	Warranty: 3 years repair or replace (excluding battery) and 2 years for battery, optional extended warranties available, optional on-site warranties available
