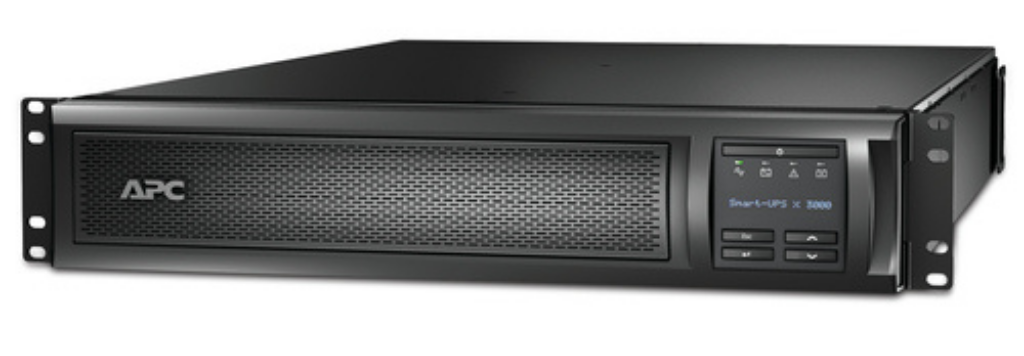

APC SMX3000RMHV2U Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 2U, 208V-230V, 8x C13+1x C19 IEC

• Description
• Specifications
• Downloads

• APC SMX3000RMHV2U Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 2U, 208V-230V, 8x C13+1x C19 IEC

  This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. Connect to 10 of the SMX120RMBP2U external battery packs to increase the amount of time the UPS can provide battery power to devices (battery packs sold separately). A SmartSlot in the back of the UPS offers the option to add a network management card to remotely manage the UPS over the network (network cards sold separately). This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX3000RMHV2U converts from a tower or stand-alone UPS to a rack mount UPS, offering flexibility in various installations. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

• Category	Details
  Main
  Run time for load	6min 15s
  Max. Capacity Used	100 %
  Main Input Voltage	208 V, 230 V
  Other Input Voltage	220 V, 240 V
  Main Output Voltage	230 V
  Other Output Voltage	208 V, 220 V, 240 V
  Rated power in W	2700 W
  Rated power in VA	3000 VA
  Input Connection Type	IEC 320 C20, Schuko CEE 7 / EU1-16P, BS1363A British
  Output Connection Type	8 IEC 320 C13, 2 IEC Jumpers, 1 IEC 320 C19
  Number of rack unit	2U
  Cable length	1.83 m
  Number of cables	1
  Battery type	Lead-acid battery
  Provided equipment	CD with software, Documentation CD, Smart UPS signalling RS-232 cable, User manual, USB cable, Rack mounting brackets
  Batteries & Runtime
  Extended runtime	1
  Number of battery filled slots	0
  Number of battery free slots	0
  Battery recharge time	3 h
  Number of battery replacement quantity	1
  Battery life	3…5 year(s)
  Replacement battery	APCRBC117
  Battery charger power	245 W rated
  General
  Number of power module	2400
  Number of power module filled slots	0
  Number of power module free slots	0
  Product web sub-family	Extended run
  Redundant	No
  Physical
  Colour	Black
  Height	8.5 cm
  Width	43.2 cm
  Depth	66.7 cm
  Net weight	37.32 kg
  Mounting location	Front
  Mounting preference	Lower
  Mounting mode	Rack-mounted, Two post mountable
  USB compatible	Yes
  Input
  Input voltage limits	140…280 V
  Network frequency	50/60 Hz +/- 3 Hz auto-sensing
  Output
  Crest factor	3 : 1
  Harmonic distortion	Less than 5 %
  Maximum configurable power in VA	3000 VA
  Maximum configurable power in W	2700 W
  Transfer time	2-4 ms
  	6 ms typical : 10 ms maximum
  UPS type	Line interactive
  Wave type	Sine wave
  Output frequency	50/60 Hz +/- 3 Hz sync to mains
  Conformance
  Product certifications	CE, CSA, EAC, IRAM, RCM, VDE
  Standards	EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
  Environmental
  Acoustic level	55 dBA
  Heat dissipation	184 Btu/h
  Operating altitude	0…10000 ft
  Ambient air temperature for operation	0…40 °C
  Ambient air temperature for storage	-15…45 °C
  Storage altitude	0.00…15240.00 m
  Relative humidity	0…95 %
  Storage Relative Humidity	0…95 %
  Communications & Management
  Control panel	Multifunction LCD status and control console
  Emergency power off	Yes
  Free slots	1
  Control panel	LED status display with on line : on battery : replace battery and overload indicators
  Surge Protection and Filtering
  Surge energy rate	645 J
  Noise suppression	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
  Packing Units
  Unit Type of Package 1	PCE
  Number of Units in Package 1	1
  Package 1 Height	24.3 cm
  Package 1 Width	59.6 cm
  Package 1 Length	86.9 cm
  Package 1 Weight	45.36 kg
  Unit Type of Package 2	PAL
  Number of Units in Package 2	8
  Package 2 Height	113 cm
  Package 2 Width	100 cm
  Package 2 Length	120 cm
  Package 2 Weight	362.88 kg
  Pallet unit layers	2
  Pallet layers	4
  Contractual Warranty
  Warranty	3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
