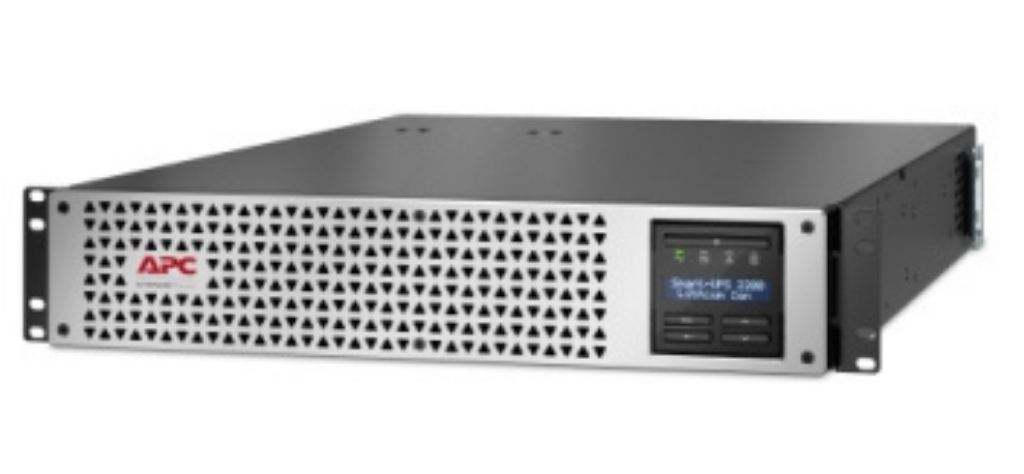

APC SMTL2200RMI2UCNC Smart-UPS Line Interactive 2200VA, Lithium-ion, Rack, 2U, 230V, 8x IEC C13 + 1x IEC C19, SmartConnect, w/Network Management

• Specifications
• Downloads

• APC SMTL2200RMI2UCNC Smart-UPS Line Interactive 2200VA, Lithium-ion, Rack, 2U, 230V, 8x IEC C13 + 1x IEC C19, SmartConnect, w/Network Management

  Category	Description
  Main
  Run time for load	1980 W
  	Min-max: 198-1980 W
  	7 min 27 sec
  Max. Capacity Used	100%
  Main Input Voltage	230 V
  Other Input Voltage	220 V
  	240 V
  Main Output Voltage	230 V
  Other Output Voltage	220 V
  	240 V
  Rated power in W	1980 W
  Rated power in VA	2200 VA
  Input Connection Type	IEC 60320 C20
  Output connection type	8 IEC 60320 C13
  	1 IEC 60320 C19
  Number of rack unit	2U
  Battery type	Li-Ion (Lithium-Ion)
  Provided equipment	Rack mounting brackets
  	Rack mounting support rails
  	Screw
  	Washer
  	USB cable
  	Ethernet patch cable
  Complementary	Software package
  	SmartConnect software for remote power monitoring feature availability varies by terms of use
  Batteries & Runtime
  Run Time	View Runtime Graph
  Efficiency	View Efficiency Graph
  Battery graph comments	This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several variables.
  Extended runtime	0
  Battery recharge time	2 h
  Number of battery replacement quantity	1
  Battery design life	8…10 year(s)
  Battery charger power	216 W rated
  General
  Product web sub-family	Cloud-enabled monitoring
  Redundant	No
  Physical
  Colour	Black with silver front bezel
  Height	8.6 cm
  Width	43.2 cm
  Depth	68.3 cm
  Net weight	33.3 kg
  Mounting preference	Lower
  Mounting mode	Rack-mounted
  USB compatible	Yes
  Input
  Input protection type	Circuit breaker
  Input voltage limits	160…286 V
  Network frequency	50/60 Hz +/- 3 Hz auto-sensing
  Output
  Crest factor	3 : 1
  Maximum configurable power in VA	2200 VA
  Maximum configurable power in W	1980 W
  Transfer time	6 ms typical : 10 ms maximum
  UPS type	Line interactive
  Wave type	Sine wave
  Output frequency	50/60 Hz +/- 3 Hz sync to mains
  Environmental
  Acoustic level	55 dB
  Operating altitude	0…10000 ft
  Ambient air temperature (operation)	0…40 °C
  Ambient air temperature (storage)	-15…45 °C
  Storage altitude	0.00…7620.00 m
  IP degree of protection	IP20
  Relative humidity	0…95 % non-condensing
  Storage Relative Humidity	0…95 % non-condensing
  Communications & Management
  Alarm	Audible and visible alarms
  Control panel	Multifunction LCD status and control console
  Emergency power off	Yes
  Free slots	1
  Preinstalled device	Network management card 3 with environmental monitoring
  Communication port support	SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
  Packing Units
  Unit Type of Package 1	PCE
  Number of Units in Package 1	1
  Package 1 Height	45.8 cm
  Package 1 Width	60 cm
  Package 1 Length	98 cm
  Package 1 Weight	41.5 kg
  Logistical informations
  Country of origin	PH
  Contractual warranty	5 year repair or replace

• Description	Downloads
  SMTL2200RMI2UCNC:Datasheet	Download
  SMTL2200RMI2UCNC:User Guide	Download
