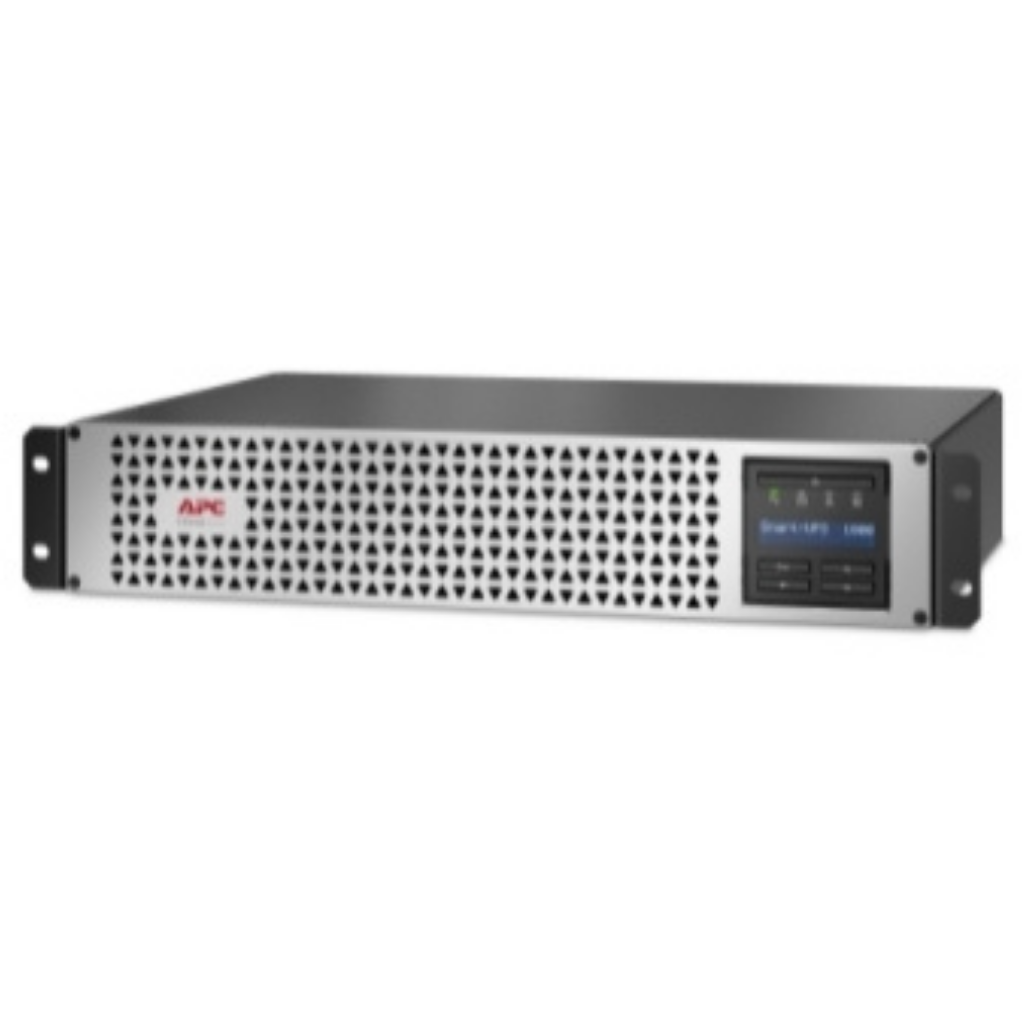

APC SMTL1000RMI2UC Smart-UPS, Line Interactive, 1000VA, Lithium-ion, Rack/Tower, 2U, 230V, 6x IEC C13 Outlets

• Description
• Specifications
• Downloads

• APC SMTL1000RMI2UC Smart-UPS, Line Interactive, 1000VA, Lithium-ion, Rack/Tower, 2U, 230V, 6x IEC C13 Outlets

  This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1000VA line interactive 2U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 6x IEC 320 C13 outlets. This rackmount UPS is tower convertible with the mounting stabilizing feet (SMTL2USF sold separately). It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.

• Category	Description
  Main
  Run time for load	800 W
  Min-max:	80-800 W
  Max. Capacity Used	100 %
  Main Input Voltage	230 V
  Other Input Voltage	220 V, 240 V
  Main Output Voltage	230 V
  Other Output Voltage	220 V, 240 V
  Rated power in W	800 W
  Rated power in VA	1000 VA
  Input Connection Type	IEC 60320 C14
  Output Connection Type	6 IEC 60320 C13
  Number of rack unit	2U
  Battery type	Li-Ion (Lithium-Ion)
  Provided equipment	Installation guide, Rack mounting support rails, USB cable
  Complementary	Software package: SmartConnect software for remote power monitoring feature availability varies by terms of use
  Batteries & Runtime
  Run Time	View Runtime Graph
  Efficiency	View Efficiency Graph
  Battery graph comments	Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several factors.
  Extended runtime	0
  Battery recharge time	3 h
  Battery design life	8…10 year(s)
  Battery charger power	79 W rated
  General
  Product web sub-family	Cloud-enabled monitoring
  Redundant	No
  Physical
  Colour	Black with silver front bezel
  Height	8.6 cm
  Width	43.8 cm
  Depth	31.8 cm
  Net weight	16.3 kg
  Mounting preference	Lower
  Mounting mode	Rack-mounted
  USB compatible	Yes
  Input
  Input protection type	Circuit breaker
  Input voltage limits	151…302 V adjustable, 160…280 V
  Network frequency	50/60 Hz +/- 3 Hz auto-sensing
  Output
  Crest factor	3 : 1
  Harmonic distortion	Less than 5 %
  Maximum configurable power in VA	1000 VA
  Maximum configurable power in W	800 W
  Transfer time	6 ms typical : 10 ms maximum
  UPS type	Line interactive
  Wave type	Sine wave
  Output frequency	50/60 Hz +/- 3 Hz sync to mains
  Conformance
  Product certifications	C-Tick, CE, EAC, RCM
  Standards	EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
  Environmental
  Acoustic level	41 dBA
  Heat dissipation	70 Btu/h
  Operating altitude	0…10000 ft
  Ambient air temperature for operation	0…40 °C
  Ambient air temperature for storage	-15…45 °C
  Storage altitude	0.00…7620.00 m
  IP degree of protection	IP20
  Relative humidity	0…95 % non-condensing
  Storage Relative Humidity	0…95 % non-condensing
  Communications & Management
  Alarm	Audible and visible alarms
  Control panel	Multifunction LCD status and control console
  Free slots	1
  Communication port support	SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
  Surge Protection and Filtering
  Surge energy rate	680 J
  Noise suppression	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
  Packing Units
  Unit Type of Package 1	PCE
  Number of Units in Package 1	1
  Package 1 Height	22.9 cm
  Package 1 Width	47.2 cm
  Package 1 Length	58.4 cm
  Package 1 Weight	18.6 kg
  Logistical information
  Country of origin	PH
  Contractual warranty
  Warranty	5 year repair or replace

• Description	Downloads
  SMTL1000RMI2UC:Datasheet	Download
  SMTL1000RMI2UC:User Guide	Download
