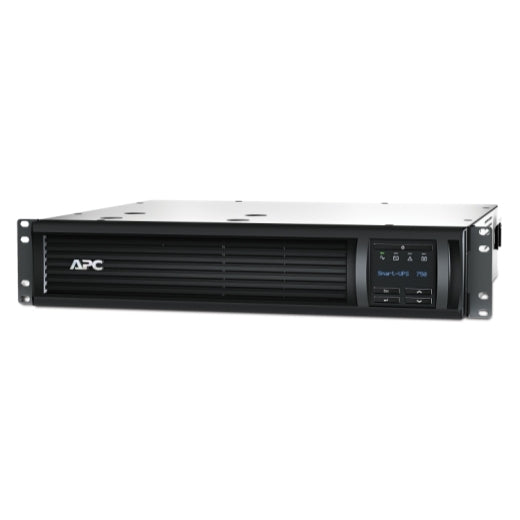

APC SMT750RMI2UC Smart-UPS, Line Interactive, 750VA, Rackmount 2U, 230V, 4x IEC C13 Outlets
- Description
- Specifications
- Downloads
-
APC SMT750RMI2UC Smart-UPS, Line Interactive, 750VA, Rackmount 2U, 230V, 4x IEC C13 Outlets

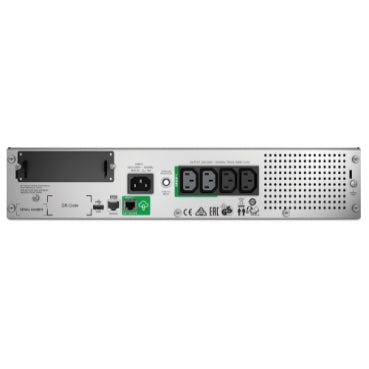

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 4x IEC 320 C13 outlets, and 2x IEC jumper cables. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
-
Main Run time for load 500 W Min-max: 50-500 W 5min 27s Max. Capacity Used 100 % Main Input Voltage 230 V Other Input Voltage 220 V 240 V Main Output Voltage 230 V Other Output Voltage 220 V 240 V Rated power in W 500 W Rated power in VA 750 VA Input Connection Type IEC 320 C14 Output Connection Type 4 IEC 320 C13 2 IEC Jumpers Number of rack unit 2U Number of cables 1 Battery type Lead-acid battery Provided Equipment Documentation CD Installation guide Rack mounting support rails USB cable Batteries & Runtime Number of battery filled slots 0 Number of battery free slots 0 Battery recharge time 3 h Number of battery replacement 1 Battery life 4…6 year(s) Replacement battery APCRBC123 Battery charger power 56 W rated General Number of power module filled 0 Number of power module free 0 Redundant No Physical Colour Black Height 8.6 cm Width 43.2 cm Depth 40.9 cm Net weight 16.6 kg Mounting location Front Mounting preference Lower Mounting mode Rack-mounted USB compatible Yes Input Input voltage limits 151…302 V adjustable 160…286 V Network frequency 50/60 Hz +/- 3 Hz auto-sensing Output Harmonic distortion Less than 5 % Maximum configurable power in 750 VA W 500 W Transfer time 6 ms typical : 10 ms maximum UPS type Line interactive Wave type Sine wave Output frequency 50/60 Hz +/- 3 Hz sync to mains Conformance Product certifications CE EAC RCM TÜV VDE Standards EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 Environmental Acoustic level 42 dBA Heat dissipation 46 Btu/h Operating altitude 0…10000 ft Ambient air temperature for 0…40 °C Operation Ambient air temperature for -15…45 °C Storage Storage altitude 0.00…15240.00 m Relative humidity 0…95 % non-condensing Storage Relative Humidity 0…95 % non-condensing Communications & Management Control panel Multifunction LCD status and control console Emergency power off Optional Free slots 1 Communication port support SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use Alarm Alarm when on battery : distinctive low battery alarm : configurable delays Surge Protection and Filtering Surge energy rate 459 J Noise suppression Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 24.1 cm Package 1 Width 58.4 cm Package 1 Length 54.6 cm Package 1 Weight 21.23 kg Logistical Informations Country of Origin PH Contractual Warranty Warranty 3 years repair or replace (excluding battery) and 2 years for battery -
Description Downloads SMT750RMI2UC:Datasheet Download SMT750RMI2UC:User Guide Download
