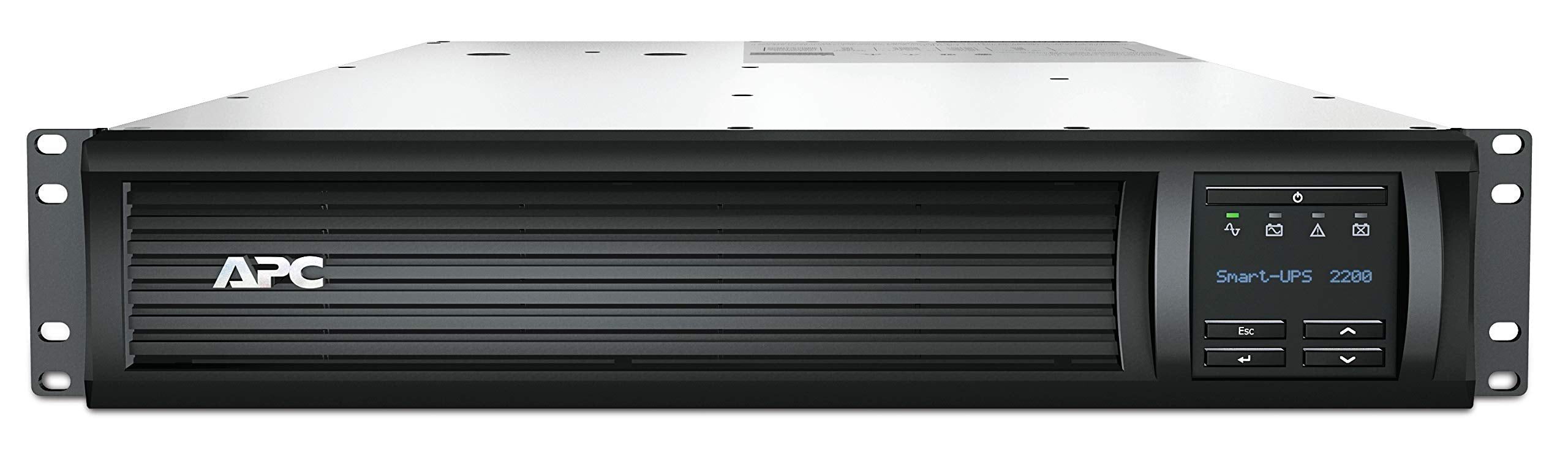

• APC SMT2200RMI2UNC Smart-UPS, Line Interactive, 2200VA, Rackmount 2U, 230V, 8x IEC C13+2x IEC C19 Outlets

  This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C20 input, BS1363A British and Schuko CEE 7/EU1-16P input cables, 8x IEC 320 C13 and 1x IEC 320 C19 outlets, and 3x IEC jumper cables. It has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

• Main
  Run time for load	5min 27s
  Max. Capacity Used	100%
  Main Input Voltage	230 V
  Other Input Voltage	220 V, 240 V
  Main Output Voltage	230 V
  Other Output Voltage	220 V, 240 V
  Rated power in W	1980 W
  Rated power in VA	2200 VA
  Input Connection Type	BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P
  Output Connection Type	8 IEC 320 C13, 3 IEC Jumpers, 1 IEC 320 C19
  Number of rack unit	2U
  Cable length	2.00 m
  Number of cables	1
  Battery type	Lead-acid battery
  Provided equipment	CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack mounting support rails, Smart UPS signalling RS-232 cable, Temperature probe, USB cable
  Batteries & Runtime
  Run Time	View Runtime Graph
  Efficiency	View Efficiency Graph
  Additional information	Configurable for 220 : 230 or 240 nominal output voltage, Extended runtime, Battery recharge time: 3 h
  Number of battery filled slots	0
  Number of battery free slots	0
  Number of battery replacement quantity	1
  Battery life	3…5 year(s)
  Replacement battery	RBC43
  Battery charger power	169 W rated
  General
  Number of power module filled slots	0
  Number of power module free slots	0
  product web sub-family	Network card pre-installed
  Redundant	No
  Physical
  Height	8.6 cm
  Width	48 cm
  Depth	68.3 cm
  Net weight	42.22 kg
  Mounting location	Front
  Mounting preference	Lower
  Mounting mode	Rack-mounted
  Two post mountable	0
  USB compatible	No
  Input
  Input voltage limits	151…302 V adjustable
  Network frequency	50/60 Hz +/- 3 Hz auto-sensing
  Output
  Maximum configurable power in VA	2200 VA
  Maximum configurable power in W	1980 W
  Transfer time	4 ms typical : 8 ms maximum
  UPS type	Line interactive
  Wave type	Sine wave
  Output frequency	50/60 Hz +/- 3 Hz sync to mains
  Conformance
  product certifications	CE, EAC, IRAM, RCM, VDE
  Marking	GS Mark
  Standards	EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
  Environmental
  Acoustic level	55 dBA
  heat dissipation	215 Btu/h
  Operating altitude	0…10000 ft
  Ambient air temperature for operation	0…40 °C
  Ambient air temperature for storage	-15…45 °C
  Storage altitude	0.00…15240.00 m
  Relative humidity	0…95 %
  Storage Relative Humidity	0…95 %
  Communications & Management
  control panel	Multifunction LCD status and control console
  Emergency power off	Optional
  Preinstalled device	Network management card 3 with environmental monitoring
  Control panel	LED status display with on line : on battery : replace battery and overload indicators
  Alarm	Alarm when on battery : distinctive low battery alarm : configurable delays
  Surge Protection and Filtering
  Surge energy rate	375 J
  Packing Units
  Unit Type of Package 1	PCE
  Number of Units in Package 1	1
  Package 1 Height	25.4 cm
  Package 1 Width	98 cm
  Package 1 Length	60 cm
  Package 1 Weight	49.63 kg
  Logistical informations
  Country of origin	PH
  Contractual warranty	3 years repair or replace (excluding battery) and 2 years for battery
