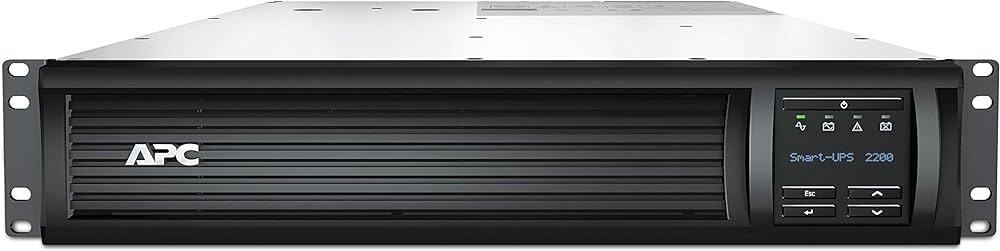

• APC SMT2200RMI2UC Smart-UPS, Line Interactive, 2200VA, Rackmount 2U, 230V, 8x IEC C13+2x IEC C19 Outlets

  This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C20 input, BS1363A British and Schuko CEE 7/EU1-16P input cables, 8x IEC 320 C13 and 1x IEC 320 C19 outlets, and 3x IEC jumper cables. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

• Main
  Run time for load	1980 W
  	Min-max: 198-1980 W
  	5min 27s
  Max. Capacity Used	100 %
  Main Input Voltage	230 V
  Other Input Voltage	220 V
  	240 V
  Main Output Voltage	230 V
  Other Output Voltage	220 V
  	240 V
  Rated power in W	1980 W
  Rated power in VA	2200 VA
  Input Connection Type	BS1363A British
  	IEC 320 C20
  	Schuko CEE 7 / EU1-16P
  Output Connection Type	8 IEC 320 C13
  	3 IEC Jumpers
  	1 IEC 320 C19
  Number of rack unit	2U
  Cable length	2.00 m
  Number of cables	1
  Battery type	Lead-acid battery
  Provided equipment	Documentation CD
  	Rack mounting hardware
  	Rack mounting support rails
  	USB cable
  Complementary	Software package
  	SmartConnect software for remote power monitoring feature…
  Batteries & Runtime	Run Time
  	View Runtime Graph
  	Efficiency
  	View Efficiency Graph
  Additional information	Configurable for 220 : 230 or 240 nominal output voltage
  Extended runtime	0
  Number of battery filled slots	0
  Number of battery free slots	0
  Battery recharge time	3 h
  Number of battery replacement quantity	1
  Battery life	3…5 year(s)
  Replacement battery	RBC43
  Battery charger power	169 W rated
  General	Number of power module filled slots
  	0
  	Number of power module free slots
  	0
  product web sub-family	Cloud-enabled monitoring
  Redundant	No
  Physical	height
  	8.6 cm
  Width	43.2 cm
  Depth	68.3 cm
  Net weight	42.31 kg
  Mounting location	Front
  Mounting preference	No preference
  Mounting mode	Rack-mounted
  	Two post mountable
  	0
  USB compatible	No
  Input	Input voltage limits
  	151…302 V adjustable
  	160…286 V
  Network frequency	50/60 Hz +/- 3 Hz auto-sensing
  Output	Harmonic distortion
  	Less than 5 %
  Maximum configurable power in VA	2200 VA
  Maximum configurable power in W	1980 W
  Transfer time	6 ms typical : 10 ms maximum
  UPS type	Line interactive
  Wave type	Sine wave
  Output frequency	50/60 Hz +/- 3 Hz sync to mains
  Conformance	product certifications
  	CE
  	EAC
  	IRAM
  	RCM
  	VDE
  Marking	GS Mark
  Standards	EN/IEC 62040-1:2019/A11:2021
  	EN/IEC 62040-2:2006/AC:2006
  	EN/IEC 62040-2:2018
  Environmental	Acoustic level
  	55 dBA
  heat dissipation	215 Btu/h
  Operating altitude	0…10000 ft
  Ambient air temperature for operation	0…40 °C
  Ambient air temperature for storage	-15…45 °C
  Storage altitude	0.00…15240.00 m
  Relative humidity	0…95 %
  Storage Relative Humidity	0…95 %
  Communications & Management	control panel
  	Multifunction LCD status and control console
  Free slots	1
  Communication port support	SmartConnect Ethernet port: for cloud monitoring feature…
  Alarm	Alarm when on battery
  	distinctive low battery alarm
  	configurable delays
  Surge Protection and Filtering	Surge energy rate
  	375 J
  Packing Units	Unit Type of Package 1
  	PCE
  Number of Units in Package 1	1
  Package 1 Height	25.4 cm
  Package 1 Width	98 cm
  Package 1 Length	60 cm
  Package 1 Weight	49.73 kg
  Logistical informations	Country of origin
  	PH
  Contractual warranty	Warranty
  	3 years repair or replace (excluding battery) and 2 year…
