APC SMT1500RMI2UC Smart-UPS, Line Interactive, 1500VA, Rackmount 2U, 230V, 4x IEC C13 Outlets

• Description
• Specifications
• Downloads

• APC SMT1500RMI2UC Smart-UPS, Line Interactive, 1500VA, Rackmount 2U, 230V, 4x IEC C13 Outlets

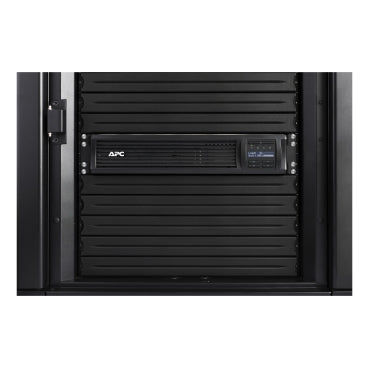

  This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 4x IEC 320 C13 outlets, and 2x IEC jumper cables. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

• Main
  Run time for load	1000 W
  	Min-max: 100-1000 W
  	7min 9s
  Max. Capacity Used	100 %
  Main Input Voltage	230 V
  Other Input Voltage	220 V
  	240 V
  Main Output Voltage	230 V
  Other Output Voltage	220 V
  	240 V
  Rated power in W	1000 W
  Rated power in VA	1500 VA

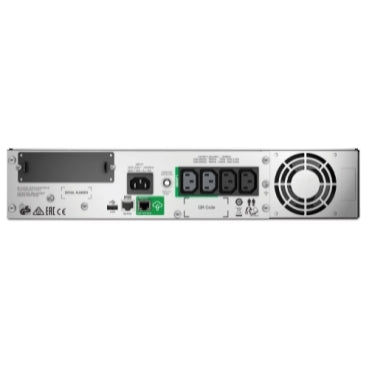

  Input Connection Type	IEC 320 C14
  Output Connection Type	4 IEC 320 C13
  	2 IEC Jumpers C13
  Number of rack unit	2U
  Battery type	Lead-acid battery
  Provided equipment	Installation guide
  	Rack mounting support rails
  	USB cable
  Complementary	SmartConnect software
  	Batteries & Runtime
  Run Time	1000 W
  	View Runtime Graph
  Efficiency	View Efficiency Graph
  Additional information	Configurable for 220 : 230 or 240 nominal output voltage
  Extended runtime	0
  Number of battery filled slots	0
  Number of battery free slots	0
  Battery recharge time	3 h
  Number of battery replacement quantity	1
  Battery life	3…5 year(s)
  Replacement battery	APCRBC159
  Battery charger power	144 W rated
  General	Number of power module filled slots
  	0
  	Number of power module free slots
  	0
  	product web sub-family
  	Cloud-enabled monitoring
  	Redundant
  	No
  Physical	Color
  	Black
  Height	8.6 cm
  Width	43.2 cm
  Depth	47.7 cm
  Net weight	26.1 kg
  Mounting location	Front
  Mounting preference	Lower
  Mounting mode	Rack-mounted
  	Two post mountable
  0	USB compatible
  Yes	Input
  Input voltage limits	151…302 V adjustable
  	160…286 V
  Network frequency	50/60 Hz +/- 3 Hz auto-sensing
  Output	Harmonic distortion
  	Less than 5 %
  Maximum configurable power in VA	1500 VA
  Maximum configurable power in W	1000 W
  Transfer time	6 ms typical : 10 ms maximum
  UPS type	Line interactive
  Wave type	Sine wave
  Output frequency	50/60 Hz +/- 3 Hz sync to mains
  Conformance	Product certifications
  	CE
  	EAC
  	RCM
  	TÜV
  	VDE
  Standards	EN/IEC 62040-1:2019/A11:2021
  	EN/IEC 62040-2:2006/AC:2006
  	EN/IEC 62040-2:2018
  Environmental	Acoustic level
  	46 dBA
  Heat dissipation	90 Btu/h
  Operating altitude	0…10000 ft
  Ambient air temperature for operation	0…40 °C
  Ambient air temperature for storage	-15…45 °C
  Storage altitude	0.00…15240.00 m
  Relative humidity	0…95 %
  Storage Relative Humidity	0…95 %
  Communications & Management	Control panel
  	Multifunction LCD status and control console
  Emergency power off	Optional
  Free slots	1
  Communication port support	SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
  Alarm	Alarm when on battery : distinctive low battery alarm : configurable delays
  Surge Protection and Filtering	Surge energy rate
  	459 J
  Noise suppression	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
  Packing Units	Unit Type of Package 1
  	PCE
  Number of Units in Package 1	1
  Package 1 Height	25.1 cm
  Package 1 Width	59.4 cm
  Package 1 Length	60.3 cm
  Package 1 Weight	31.91 kg
  Unit Type of Package 2	P12
  Number of Units in Package 2	4
  Package 2 Height	62 cm
  Package 2 Width	80 cm
  Package 2 Length	120 cm
  Package 2 Weight	139.37 kg
  Logistical informations	Country of origin
  	PH
  Contractual warranty	Warranty
  	3 years repair or replace (excluding battery) and 2 years for battery

• Description	Downloads
  SMT1500RMI2UC:Datasheet	Download
  SMT1500RMI2UC:User Guide	Download
